PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTR060V0040-BKPTC RESET FUSE 60V 400MA RADIAL |
7,621 | 0.19 |
|
Datasheet |
Radial, Disc | PTR060V | Bulk | Active | Polymeric | 60V | 400 mA | 800 mA | 40 A | 3.8 s | 550 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.299" Dia x 0.118" T (7.60mm x 3.00mm) | 0.532" (13.50mm) | - | 0.197" (5.00mm) |
|
|
PTR060V0185-BKPTC RESET FUSE 60V 1.85A RADIAL |
500 | 0.31 |
|
Datasheet |
Radial, Disc | PTR060V | Bulk | Active | Polymeric | 60V | 1.85 A | 3.7 A | 40 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.701" Dia x 0.118" T (17.80mm x 3.00mm) | 0.902" (22.90mm) | - | 0.197" (5.00mm) |
|
BK60-300-DZPTC RESET FUSE 60V 3A RAD |
200 | 0.27 |
|
Datasheet |
Radial, Disc | BK60 | Bulk | Active | Polymeric | 60V | 3 A | 6 A | 40 A | 19.8 s | 40 mOhms | 90 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.976" Dia x 0.122" T (24.80mm x 3.10mm) | 1.181" (30.00mm) | - | 0.413" (10.50mm) |
|
|
BK30-500-SZPTC RESET FUSE 30V 5A RAD |
454 | 0.21 |
|
Datasheet |
Radial, Disc | BK30 | Bulk | Active | Polymeric | 30V | 5 A | 10 A | 40 A | 14.5 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.122" W (14.00mm x 3.10mm) | 0.929" (23.60mm) | - | 0.413" (10.50mm) |
|
PFRY.110PTC RESET FUSE 72V 1.1A RADIAL |
637 | 0.42 |
|
Datasheet |
Radial, Disc | PFRY | Bulk | Active | Polymeric | 72V | 1.1 A | 2.2 A | 40 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.427" L x 0.118" W (10.84mm x 3.00mm) | 0.661" (16.80mm) | - | 0.201" (5.10mm) |
|
|
BK60-185-DZPTC RESET FUSE 60V 1.85A RAD |
1,000 | 0.21 |
|
Datasheet |
Radial, Disc | BK60 | Bulk | Active | Polymeric | 60V | 1.85 A | 3.7 A | 40 A | 12.6 s | 80 mOhms | 180 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.689" Dia x 0.122" T (17.50mm x 3.10mm) | 0.902" (22.90mm) | - | 0.201" (5.10mm) |
|
|
BK30-900-SZPTC RESET FUSE 30V 9A RAD |
190 | 0.29 |
|
Datasheet |
Radial, Disc | BK30 | Bulk | Active | Polymeric | 30V | 9 A | 18 A | 40 A | 20 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.957" L x 0.122" W (24.30mm x 3.10mm) | 1.240" (31.50mm) | - | 0.413" (10.50mm) |
|
|
PTR060V0065-BKPTC RESET FUSE 60V 650MA RADIAL |
7,864 | 0.19 |
|
Datasheet |
Radial, Disc | PTR060V | Bulk | Active | Polymeric | 60V | 650 mA | 1.3 A | 40 A | 5.3 s | 310 mOhms | 720 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.382" Dia x 0.118" T (9.70mm x 3.00mm) | 0.571" (14.50mm) | - | 0.197" (5.00mm) |
|
|
PFRY.160PTC RESET FUSE 72V 1.6A RADIAL |
789 | 0.45 |
|
Datasheet |
Radial, Disc | PFRY | Bulk | Active | Polymeric | 72V | 1.6 A | 3.2 A | 40 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.549" L x 0.118" W (13.94mm x 3.00mm) | 0.783" (19.90mm) | - | 0.201" (5.10mm) |
|
PTR016V1200-BKPTC RESET FUSE 16V 12A RADIAL |
249 | 0.44 |
|
Datasheet |
Radial, Disc | PTR016V | Bulk | Active | Polymeric | 16V | 12 A | 20.4 A | 100 A | 7.5 s | 3 mOhms | 9 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.689" L x 0.122" W (17.50mm x 3.10mm) | 1.102" (28.00mm) | - | 0.394" (10.00mm) |
|
|
BK16-1400-SZPTC RESET FUSE 16V 14A RAD |
200 | 0.32 |
|
Datasheet |
Radial, Disc | BK16 | Bulk | Active | Polymeric | 16V | 14 A | 28 A | 100 A | 9 s | 3 mOhms | 8 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.945" L x 0.122" W (24.00mm x 3.10mm) | 1.220" (31.00mm) | - | 0.413" (10.50mm) |
|
|
MF-RHS350-0FUSE PTC RESET 3.5A 16V |
500 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHS | Bulk | Active | Polymeric | 16V | 3.5 A | 7 A | 100 A | 4.5 s | 0.018 Ohms | 0.05 Ohms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.331" L x 0.118" W (8.40mm x 3.00mm) | 0.665" (16.90mm) | - | 0.201" (5.10mm) |
|
|
BK60-250-DZPTC RESET FUSE 60V 2.5A RAD |
329 | 0.26 |
|
Datasheet |
Radial, Disc | BK60 | Bulk | Active | Polymeric | 60V | 2.5 A | 5 A | 40 A | 15.6 s | 50 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.850" Dia x 0.122" T (21.60mm x 3.10mm) | 1.047" (26.60mm) | - | 0.413" (10.50mm) |
|
|
BK60-375-DZPTC RESET FUSE 60V 3.75A RAD |
126 | 0.27 |
|
Datasheet |
Radial, Disc | BK60 | Bulk | Active | Polymeric | 60V | 3.75 A | 7.5 A | 40 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 1.071" Dia x 0.122" T (27.20mm x 3.10mm) | 1.260" (32.00mm) | - | 0.413" (10.50mm) |
|
|
PFRY.300PTC RESET FUSE 72V 3A RADIAL |
871 | 0.71 |
|
Datasheet |
Radial, Disc | PFRY | Bulk | Active | Polymeric | 72V | 3 A | 6 A | 40 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.814" L x 0.118" W (20.67mm x 3.00mm) | 0.937" (23.80mm) | - | 0.402" (10.20mm) |
|
|
BK600-150-SYPTC RESET FUSE 500V 150MA RAD |
485 | 0.33 |
|
Datasheet |
Radial, Disc | BK600 | Bulk | Active | Polymeric | 500V | 150 mA | 300 mA | 3 A | 6 s | 5 Ohms | 15 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.591" L x 0.256" W (15.00mm x 6.50mm) | 0.709" (18.00mm) | - | 0.201" (5.10mm) |
|
|
0ZAF0005FF28LINE VOLTAGE RATED SURFACE MOUNT |
550 | 0.00 |
|
Datasheet |
2920 (7351 Metric), Concave | - | Tape & Reel (TR) | Active | Polymeric | 240V (250V Int) | 50 mA | 120 mA | 1 A | 15 s | 10 Ohms | 70 Ohms | 55 Ohms | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.102" (2.60mm) | - |
|

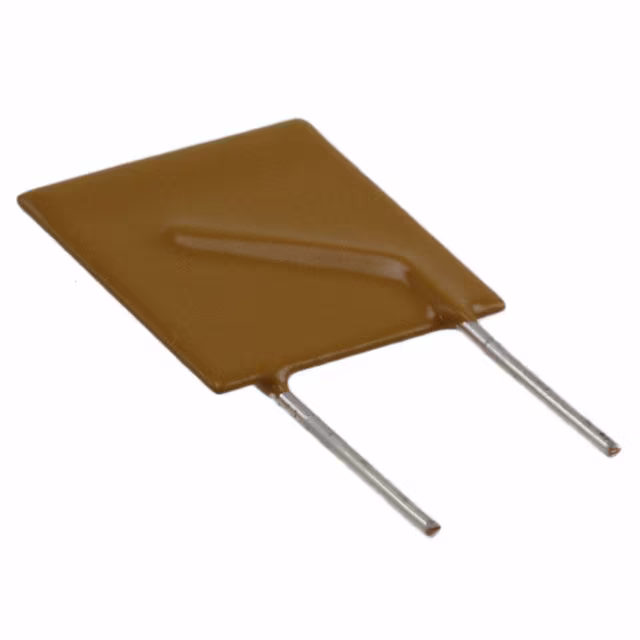

PFRA.500PTC RESET FUSE 30V 5A RADIAL |
952 | 0.74 |
|
Datasheet |
Radial, Disc | PFRA | Bulk | Active | Polymeric | 30V | 5 A | 10 A | 40 A | 14.5 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.685" L x 0.118" W (17.40mm x 3.00mm) | 0.980" (24.90mm) | - | 0.402" (10.20mm) |
|
|
BK250-800-SZPTC RESET FUSE 250V 800MA RAD |
475 | 0.28 |
|
Datasheet |
Radial, Disc | BK250 | Bulk | Active | Polymeric | 250V | 800 mA | 1.6 A | 10 A | 18 s | 400 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.787" L x 0.181" W (20.00mm x 4.60mm) | 0.866" (22.00mm) | - | 0.201" (5.10mm) |
|
|
0ZAF0008FF28LINE VOLTAGE RATED SURFACE MOUNT |
159 | 0.00 |
|
Datasheet |
2920 (7351 Metric), Concave | - | Tape & Reel (TR) | Active | Polymeric | 240V (250V Int) | 80 mA | 190 mA | 1.2 A | 15 s | 6 Ohms | 25 Ohms | 16 Ohms | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.102" (2.60mm) | - |
