PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

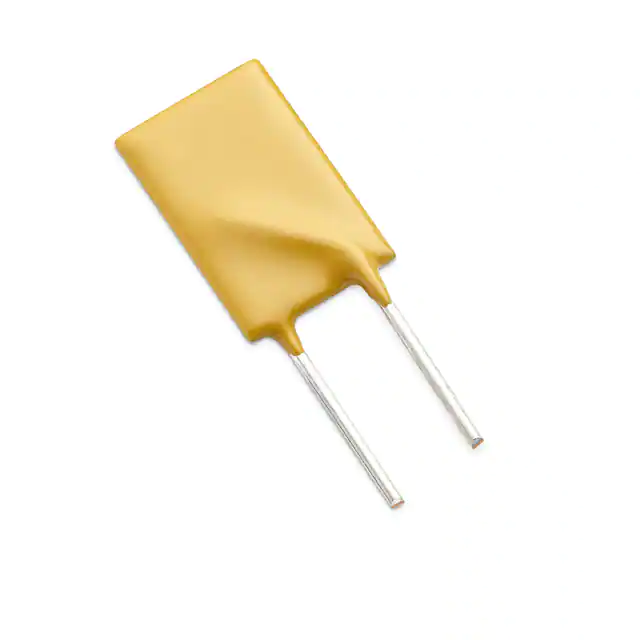

AHRL550PTC RESET FUSE 5.5A 16V RAD |
9,953 | 1.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHRL | Bulk | Active | Polymeric | 16V | 5.5 A | 11 A | 50 A | 6 s | 12 mOhms | 22 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.370" L x 0.118" W (9.40mm x 3.00mm) | 0.567" (14.40mm) | - | 0.199" (5.05mm) |
|
AHRL1500PTC RESET FUSE 15A 16V RAD |
3,590 | 2.04 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHRL | Bulk | Active | Polymeric | 16V | 15 A | 30 A | 100 A | 18 s | 2.9 mOhms | 4.3 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.724" L x 0.142" W (18.40mm x 3.60mm) | 1.039" (26.40mm) | - | 0.400" (10.15mm) |
|
MF-RHT600-2PTC RESET FUSE 16V 6A RADIAL |
2,091 | 0.94 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Tape & Reel (TR) | Active | Polymeric | 16V | 6 A | 10.8 A | 100 A | 5 s | 13 mOhms | 21.5 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.827" (21.00mm) | - | 0.201" (5.10mm) |
|
MF-RG600-2PTC RESET FUSE 16V 6A RADIAL |
5,684 | 0.97 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Tape & Reel (TR) | Active | Polymeric | 16V | 6 A | 10.2 A | 100 A | 3.3 s | 10 mOhms | 28 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.421" L x 0.118" W (10.70mm x 3.00mm) | 0.673" (17.10mm) | - | 0.201" (5.10mm) |
|
PTR060V0250-BKPTC RESET FUSE 60V 2.5A RADIAL |
4,148 | 0.87 |
|
Datasheet |
Radial, Disc | PTR060V | Bulk | Active | Polymeric | 60V | 2.5 A | 5 A | 40 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.839" Dia x 0.118" T (21.30mm x 3.00mm) | 1.039" (26.40mm) | - | 0.394" (10.00mm) |
|

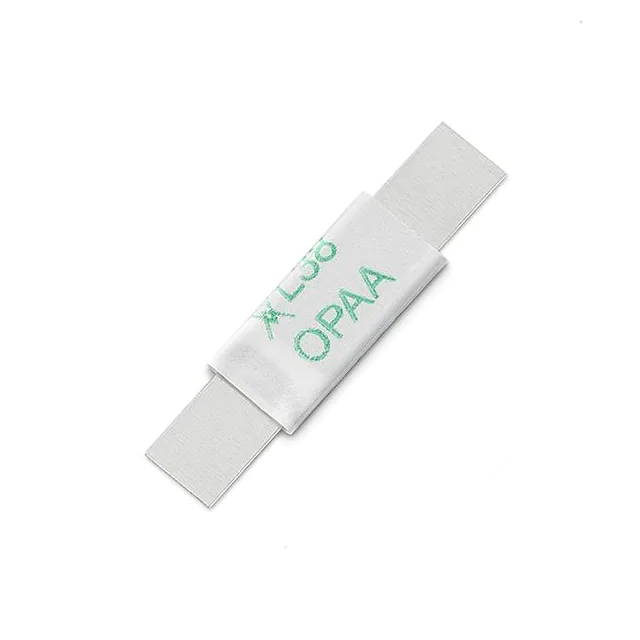

LSP380PTC RESET FUSE 16V 3.8A |
9,687 | 1.11 |
|
Datasheet |
Strap | PolySwitch®, LSP | Bag | Active | Polymeric | 16V | 3.8 A | 8 A | 50 A | 5 s | 13 mOhms | 37 mOhms | 21 mOhms | -40°C ~ 85°C | Automotive | AEC-Q200 | - | User Defined | 0.787" L x 0.205" W (20.00mm x 5.20mm) | - | 0.035" (0.90mm) | - |
|
TRF600-150SPTC RESET FUSE 250V 150MA RADIAL |
9,993 | 1.14 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF600 | Bag | Active | Polymeric | 250V (600V Int) | 150 mA | 300 mA | 40 A | 4 s | 6 Ohms | 17 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.354" L x 0.181" W (9.00mm x 4.60mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
AGRF1100PTC RESET FUSE 16V 11A RADIAL |
2,903 | 1.17 |
|
Datasheet |
Radial, Disc | PolySwitch®, AGRF | Bag | Active | Polymeric | 16V | 11 A | 20.3 A | 100 A | 7.5 s | 3.3 mOhms | 8.9 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.689" L x 0.118" W (17.50mm x 3.00mm) | 1.043" (26.50mm) | - | 0.199" (5.05mm) |
|

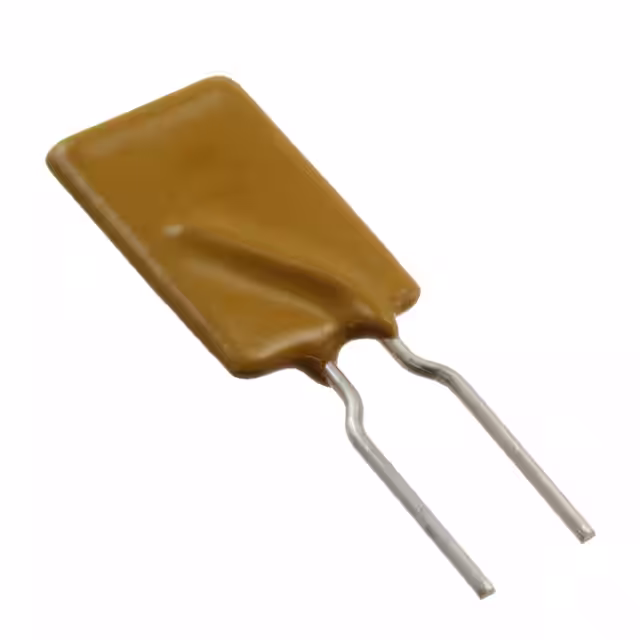

0ZRN0600FF1APTC RESET FUSE 16V 6A RADIAL |
6,539 | 1.10 |
|
Datasheet |
Radial, Disc | 0ZRN | Bulk | Active | Polymeric | 16V | 6 A | 10.8 A | 100 A | 5 s | 13 mOhms | 32 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.827" (21.00mm) | - | 0.201" (5.10mm) |
|

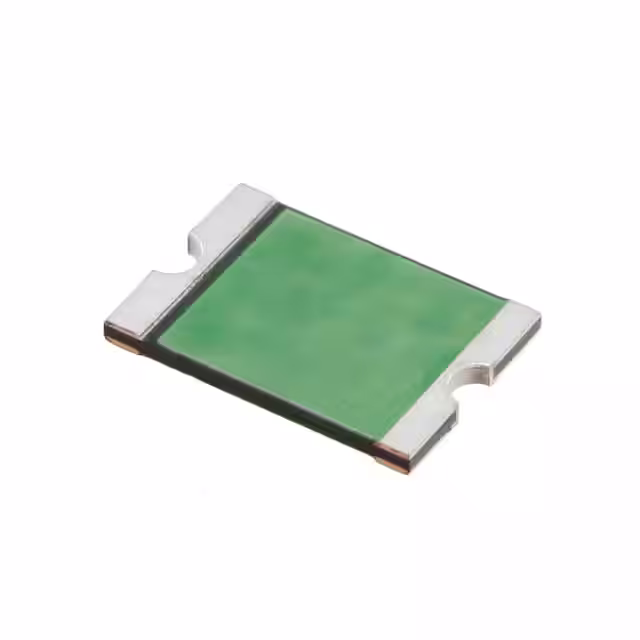

0ZTF0110FF2CPTC RESET FUSE 16V 1.1A 2920 |
5,987 | 1.07 |
|
Datasheet |
2920 (7351 Metric), Concave | 0ZTF | Tape & Reel (TR) | Active | Polymeric | 16V | 1.1 A | 2.2 A | 50 A | 2 s | 90 mOhms | 410 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.067" (1.70mm) | - |
|
TRF600-150-RB-B-0.5PTC RESET FUSE 250V 150MA RADIAL |
1,686 | 1.20 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF600 | Bag | Active | Polymeric | 250V (600V Int) | 150 mA | 300 mA | 40 A | 3 s | 9 Ohms | 22 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.354" L x 0.181" W (9.00mm x 4.60mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|

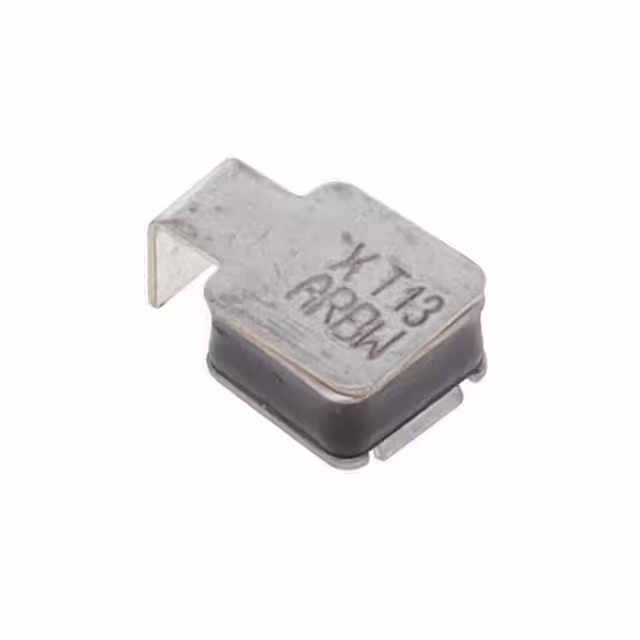

TSL250-130F-2PTC RESET FUSE 60V 130MA 2SMD |
8,317 | 1.05 |
|
Datasheet |
2-SMD | PolySwitch®, TSL250 | Tape & Reel (TR) | Active | Polymeric | 60V (250V Int) | 130 mA | 260 mA | 3 A | 2 s | 4 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.287" L x 0.199" W (7.30mm x 5.05mm) | 0.146" (3.70mm) | - | - |
|
MF-FSML260/6-2PTC RESET FUSE 6V 2.6A 0603 |
5,625 | 1.45 |
|
Datasheet |
0603 (1608 Metric), Concave | Multifuse®, MF-FSML | Tape & Reel (TR) | Active | Polymeric | 6V | 2.6 A | 5.2 A | 50 A | 5 s | 3 mOhms | 55 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.065" L x 0.033" W (1.65mm x 0.85mm) | - | 0.055" (1.40mm) | - |
|

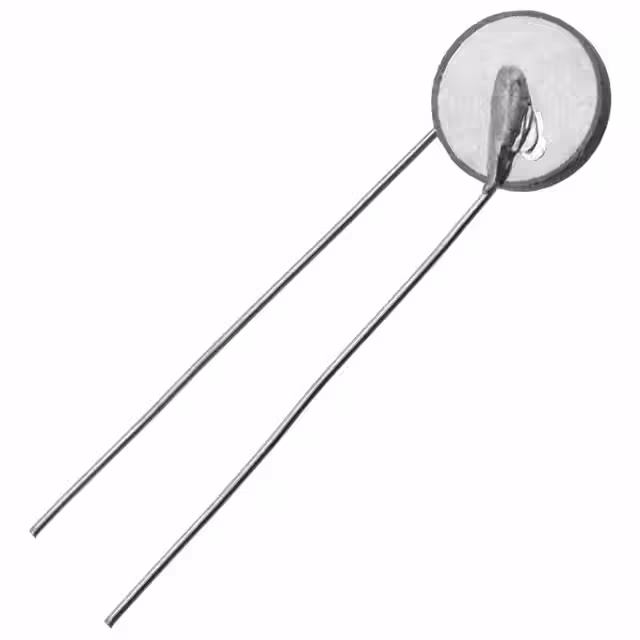

YS5918PTOPTC RESET FUSE 120V RADIAL DISC |
9,175 | 3.72 |
|
Datasheet |
Radial, Disc | PTO | Bulk | Active | Ceramic | 120V | - | - | - | - | - | - | 25 Ohms | 10°C ~ 55°C | - | - | - | Through Hole | 0.600" Dia x 0.220" T (15.24mm x 5.59mm) | 0.600" (15.24mm) | - | 0.330" (8.38mm) |
|
|
AHRL1200PTC RESET FUSE 12A 16V RAD |
2,500 | 1.77 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHRL | Bulk | Active | Polymeric | 16V | 12 A | 24 A | 100 A | 12.5 s | 3.5 mOhms | 5.8 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.685" L x 0.142" W (17.40mm x 3.60mm) | 0.921" (23.40mm) | - | 0.400" (10.15mm) |
|

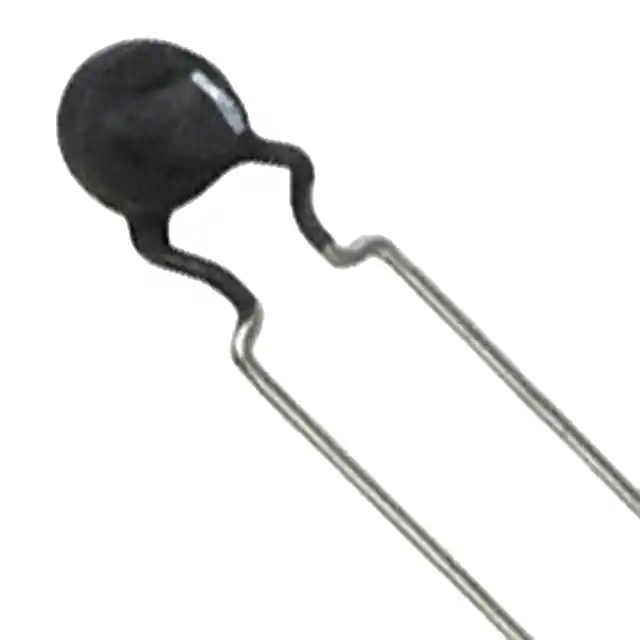

YM120C15N182PTC RESET FUSE 265V 16MA RADIAL |
3,002 | 3.84 |
|
Datasheet |
Radial, Disc | YM | Bulk | Active | Ceramic | 265V | 16 mA | 23 mA | 100 mA | - | - | - | 1.8 kOhms | 0°C ~ 55°C | - | - | - | Through Hole | 0.157" Dia x 0.177" T (4.00mm x 4.50mm) | 0.256" (6.50mm) | - | 0.200" (5.08mm) |
|
YQS5751PTOPTC RESET FUSE 25V RADIAL DISC |
1,864 | 1.81 |
|
Datasheet |
Radial, Disc | PTO | Bulk | Active | Ceramic | 25V | - | - | - | - | - | - | 50 Ohms | 10°C ~ 55°C | - | - | - | Through Hole | 0.350" Dia x 0.150" T (8.90mm x 3.80mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) |
|
YQS5856PTFPTC RESET FUSE 50V 60MA RADIAL |
9,483 | 2.11 |
|
Datasheet |
Radial, Disc | PTF | Bulk | Active | Ceramic | 50V | 60 mA | 120 mA | - | - | - | - | 100 Ohms | 10°C ~ 55°C | - | - | - | Through Hole | 0.421" Dia x 0.201" T (10.70mm x 5.10mm) | 0.472" (12.00mm) | - | 0.197" (5.00mm) |
|
1210L350/12SLYRPTC RESET FUSE 6V 3.5A 1210 |
4,409 | 2.43 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 3.5 A | 7 A | 50 A | 2 s | 3 mOhms | 18 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.039" (1.00mm) | - |
|
YQD120N0025PTC RESET FUSE 265V 130MA RADIAL |
7,597 | 2.39 |
|
Datasheet |
Radial, Disc | YQ | Bulk | Active | Ceramic | 265V | 130 mA | 250 mA | 800 mA | - | - | - | 25 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | - | - | 0.201" (5.10mm) |
