PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BK250-120-SZPTC RESET FUSE 250V 120MA RAD |
1,565 | 0.10 |
|
Datasheet |
Radial, Disc | BK250 | Bulk | Active | Polymeric | 250V | 120 mA | 240 mA | 3 A | 5 s | 6 Ohms | 10.5 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.276" L x 0.181" W (7.00mm x 4.60mm) | 0.571" (14.50mm) | - | 0.201" (5.10mm) |
|
|
BK250-120-SYPTC RESET FUSE 250V 120MA RAD |
9,553 | 0.10 |
|
Datasheet |
Radial, Disc | BK250 | Bulk | Active | Polymeric | 250V | 120 mA | 240 mA | 3 A | 5 s | 6 Ohms | 10.5 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.276" L x 0.181" W (7.00mm x 4.60mm) | 0.571" (14.50mm) | - | 0.201" (5.10mm) |
|
|
BK250-200-SZPTC RESET FUSE 250V 200MA RAD |
4,221 | 0.14 |
|
Datasheet |
Radial, Disc | BK250 | Bulk | Active | Polymeric | 250V | 200 mA | 400 mA | 10 A | 9 s | 3 Ohms | 6 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.413" L x 0.181" W (10.50mm x 4.60mm) | 0.728" (18.50mm) | - | 0.201" (5.10mm) |
|
PTR030V0500-BK1PTC RESET FUSE 30V 5A RADIAL |
6,445 | 0.30 |
|
Datasheet |
Radial, Disc | PTR030V | Bulk | Active | Polymeric | 30V | 5 A | 10 A | 40 A | 14.5 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 1.047" (26.60mm) | - | 0.394" (10.00mm) |
|
PTR060V0160-BKPTC RESET FUSE 60V 1.6A RADIAL |
9,561 | 0.31 |
|
Datasheet |
Radial, Disc | PTR060V | Bulk | Active | Polymeric | 60V | 1.6 A | 3.2 A | 40 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.642" Dia x 0.118" T (16.30mm x 3.00mm) | 0.839" (21.30mm) | - | 0.197" (5.00mm) |
|
|
PTR060V0160-BK1PTC RESET FUSE 60V 1.6A RADIAL |
2,473 | 0.31 |
|
Datasheet |
Radial, Disc | PTR060V | Bulk | Active | Polymeric | 60V | 1.6 A | 3.2 A | 40 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.642" Dia x 0.118" T (16.30mm x 3.00mm) | 0.839" (21.30mm) | - | 0.197" (5.00mm) |
|
|
PTR060V0185-BK1PTC RESET FUSE 60V 1.85A RADIAL |
5,682 | 0.31 |
|
Datasheet |
Radial, Disc | PTR060V | Bulk | Active | Polymeric | 60V | 1.85 A | 3.7 A | 40 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.701" Dia x 0.118" T (17.80mm x 3.00mm) | 0.902" (22.90mm) | - | 0.197" (5.00mm) |
|
PTR016V1000-BK1PTC RESET FUSE 16V 10A RADIAL |
2,990 | 0.36 |
|
Datasheet |
Radial, Disc | PTR016V | Bulk | Active | Polymeric | 16V | 10 A | 17 A | 100 A | 6 s | 4 mOhms | 10 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.650" L x 0.122" W (16.50mm x 3.10mm) | 1.102" (28.00mm) | - | 0.197" (5.00mm) |
|
|
PTR016V1100-BKPTC RESET FUSE 16V 11A RADIAL |
3,903 | 0.36 |
|
Datasheet |
Radial, Disc | PTR016V | Bulk | Active | Polymeric | 16V | 11 A | 18.7 A | 100 A | 7 s | 3 mOhms | 9 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.689" L x 0.122" W (17.50mm x 3.10mm) | 1.024" (26.00mm) | - | 0.197" (5.00mm) |
|
|
PTR016V1100-BK1PTC RESET FUSE 16V 11A RADIAL |
8,548 | 0.36 |
|
Datasheet |
Radial, Disc | PTR016V | Bulk | Active | Polymeric | 16V | 11 A | 18.7 A | 100 A | 7 s | 3 mOhms | 9 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.689" L x 0.122" W (17.50mm x 3.10mm) | 1.142" (29.00mm) | - | 0.197" (5.00mm) |
|
RXEF020-APPTC RESET FUSE 72V 200MA RADIAL |
4,566 | 0.46 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Cut Tape (CT) | Active | Polymeric | 72V | 200 mA | 400 mA | 40 A | 2.2 s | 1.83 Ohms | 4.4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.461" (11.70mm) | - | 0.199" (5.05mm) |
|
|
BK250-200-DZPTC RESET FUSE 250V 200MA RAD |
5,032 | 0.14 |
|
Datasheet |
Radial, Disc | BK250 | Bulk | Active | Polymeric | 250V | 200 mA | 400 mA | 10 A | 9 s | 3 Ohms | 6 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.413" Dia x 0.181" T (10.50mm x 4.60mm) | 0.728" (18.50mm) | - | 0.201" (5.10mm) |
|
SMD2920B260TF/24PTC RESET FUSE 24V 2.6A 2920 |
1,665 | 0.15 |
|
Datasheet |
2920 (7351 Metric), Concave | SMD2920 | Tape & Reel (TR) | Active | Polymeric | 24V | 2.6 A | 5 A | 40 A | 8 s | 14 mOhms | 75 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.047" (1.20mm) | - |
|

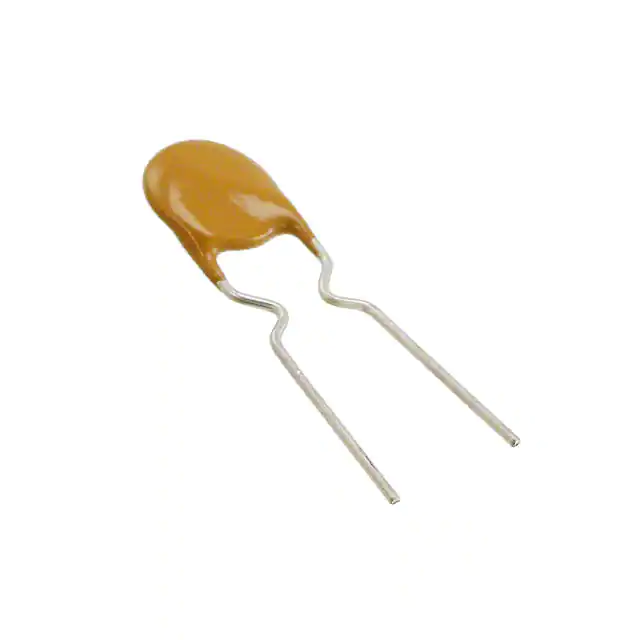

PFRA.075PTC RESET FUSE 60V 750MA RADIAL |
1,154 | 0.42 |
|
Datasheet |
Radial, Disc | PFRA | Bulk | Active | Polymeric | 60V | 750 mA | 1.5 A | 40 A | 6.3 s | 180 mOhms | 600 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.409" Dia x 0.122" T (10.40mm x 3.10mm) | 0.630" (16.00mm) | - | 0.201" (5.10mm) |
|
|
PTR016V1200-BK1PTC RESET FUSE 16V 12A RADIAL |
5,516 | 0.44 |
|
Datasheet |
Radial, Disc | PTR016V | Bulk | Active | Polymeric | 16V | 12 A | 20.4 A | 100 A | 7.5 s | 3 mOhms | 9 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.689" L x 0.122" W (17.50mm x 3.10mm) | 1.220" (31.00mm) | - | 0.394" (10.00mm) |
|
|
BK60-160-DZPTC RESET FUSE 60V 1.6A RAD |
2,483 | 0.17 |
|
Datasheet |
Radial, Disc | BK60 | Bulk | Active | Polymeric | 60V | 1.6 A | 3.2 A | 40 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.642" Dia x 0.122" T (16.30mm x 3.10mm) | 0.839" (21.30mm) | - | 0.201" (5.10mm) |
|
|
PTR016V1500-BK1PTC RESET FUSE 16V 15A RADIAL |
9,868 | 0.48 |
|
Datasheet |
Radial, Disc | PTR016V | Bulk | Active | Polymeric | 16V | 15 A | 25.5 A | 100 A | 10 s | 2 mOhms | 7 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.989" L x 0.122" W (25.10mm x 3.10mm) | 1.260" (32.00mm) | - | 0.394" (10.00mm) |
|
|
PTR016V1300-BK1PTC RESET FUSE 16V 13A RADIAL |
7,892 | 0.48 |
|
Datasheet |
Radial, Disc | PTR016V | Bulk | Active | Polymeric | 16V | 13 A | 22.1 A | 100 A | 8.5 s | 2 mOhms | 8 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.850" L x 0.122" W (21.60mm x 3.10mm) | 1.260" (32.00mm) | - | 0.394" (10.00mm) |
|
|
PTR030V0700-BK1PTC RESET FUSE 30V 7A RADIAL |
7,855 | 0.51 |
|
Datasheet |
Radial, Disc | PTR030V | Bulk | Active | Polymeric | 30V | 7 A | 14 A | 100 A | 17.5 s | 5 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.752" L x 0.118" W (19.10mm x 3.00mm) | 1.228" (31.20mm) | - | 0.394" (10.00mm) |
|
|
PTR030V0800-BK1PTC RESET FUSE 30V 8A RADIAL |
5,600 | 0.51 |
|
Datasheet |
Radial, Disc | PTR030V | Bulk | Active | Polymeric | 30V | 8 A | 16 A | 100 A | 18.8 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.850" L x 0.118" W (21.60mm x 3.00mm) | 1.327" (33.70mm) | - | 0.394" (10.00mm) |
