PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMD2920P100TSAPTC RESET FUSE 33V 1.1A 2920 |
6,444 | 0.00 |
|
- |
2920 (7351 Metric), Concave | POLY-FUSE®, SMD2920 | Tape & Reel (TR) | Obsolete | Polymeric | 33V | 1.1 A | 2.2 A | 40 A | 500 ms | 120 mOhms | 410 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.031" (0.78mm) | - |
|
|
SMD2920P125TSAPTC RESET FUSE 15V 1.25A 2920 |
3,011 | 0.00 |
|
- |
2920 (7351 Metric), Concave | POLY-FUSE®, SMD2920 | Tape & Reel (TR) | Obsolete | Polymeric | 15V | 1.25 A | 2.5 A | 40 A | 2 s | 70 mOhms | 250 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.031" (0.78mm) | - |
|
RUEF090-1PTC RESET FUSE 30V 900MA RADIAL |
9,724 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Bulk | Obsolete | Polymeric | 30V | 900 mA | 1.8 A | 100 A | 5.9 s | 70 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.480" (12.20mm) | - | 0.199" (5.05mm) |
|
|
RKEF110KPTC RESET FUSE 60V 1.1A RADIAL |
5,586 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bag | Obsolete | Polymeric | 60V | 1.1 A | 2.2 A | 40 A | 3 s | 170 mOhms | 280 mOhms | - | - | - | - | - | Through Hole | 0.299" L x 0.161" W (7.60mm x 4.10mm) | 0.591" (15.00mm) | - | 0.200" (5.08mm) |
|
0ZCC0075FF2CPTC RESET FUSE 16V 750MA 1812 |
4,758 | 0.00 |
|
Datasheet |
1812 (4532 Metric) | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 16V | 750 mA | 1.5 A | 40 A | 200 ms | 110 mOhms | 450 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.035" (0.90mm) | - |
|
0ZCC0110FF2CPTC RESET FUSE 8V 1.1A 1812 |
5,035 | 0.00 |
|
Datasheet |
1812 (4532 Metric) | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 8V | 1.1 A | 2.2 A | 100 A | 300 ms | 40 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.022" (0.55mm) | - |
|

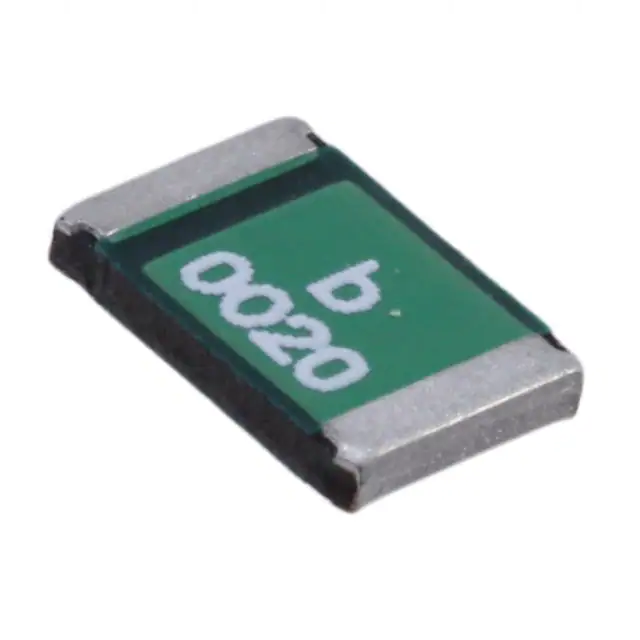

0ZCC0020FF2CPTC RESET FUSE 30V 200MA 1812 |
8,900 | 0.00 |
|
Datasheet |
1812 (4532 Metric) | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 30V | 200 mA | 400 mA | 40 A | 20 ms | 800 mOhms | 5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.035" (0.90mm) | - |
|

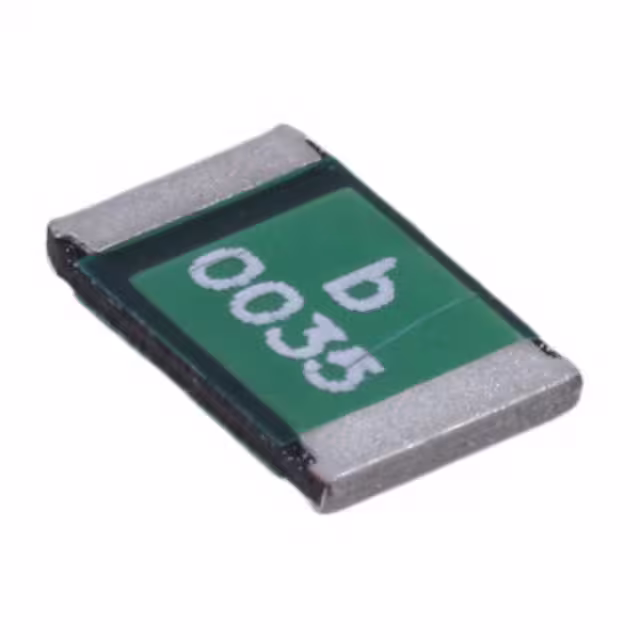

0ZCC0035FF2CPTC RESET FUSE 16V 350MA 1812 |
3,395 | 0.00 |
|
Datasheet |
1812 (4532 Metric) | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 16V | 350 mA | 700 mA | 40 A | 100 ms | 320 mOhms | 1.5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.035" (0.90mm) | - |
|
RUSBF075-1PTC RESET FUSE 6V 750MA RADIAL |
4,276 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUSBF | Bulk | Obsolete | Polymeric | 6V | 750 mA | 1.3 A | 40 A | 400 ms | 110 mOhms | 230 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.272" Dia x 0.122" T (6.90mm x 3.10mm) | 0.449" (11.40mm) | - | 0.201" (5.10mm) |
|
SMD1206P035TSAPTC RESET FUSE 6V 350MA 1206 |
9,194 | 0.00 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, SMD1206 | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 350 mA | 750 mA | 40 A | 100 ms | 300 mOhms | 1.2 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.024" (0.60mm) | - |
|
|
SMD1206P050TSAPTC RESET FUSE 6V 500MA 1206 |
7,143 | 0.00 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, SMD1206 | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 500 mA | 1 A | 40 A | 100 ms | 150 mOhms | 700 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.024" (0.60mm) | - |
|
|
SMD1206P075TSAPTC RESET FUSE 6V 750MA 1206 |
6,133 | 0.00 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, SMD1206 | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 750 mA | 1.5 A | 40 A | 200 ms | 90 mOhms | 290 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.033" (0.85mm) | - |
|
|
SMD2920P030TSAPTC RESET FUSE 60V 300MA 2920 |
7,239 | 0.00 |
|
- |
2920 (7351 Metric), Concave | POLY-FUSE®, SMD2920 | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 300 mA | 600 mA | 10 A | 3 s | 1.2 Ohms | 4.8 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.039" (1.00mm) | - |
|
|
SMD2920P050TSAPTC RESET FUSE 60V 500MA 2920 |
7,795 | 0.00 |
|
- |
2920 (7351 Metric), Concave | POLY-FUSE®, SMD2920 | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 500 mA | 1 A | 10 A | 4 s | 350 mOhms | 1.4 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.039" (1.00mm) | - |
|
|
SMD2920P075TSAPTC RESET FUSE 30V 750MA 2920 |
7,257 | 0.00 |
|
- |
2920 (7351 Metric), Concave | POLY-FUSE®, SMD2920 | Tape & Reel (TR) | Obsolete | Polymeric | 30V | 750 mA | 1.5 A | 40 A | 300 ms | 350 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.039" (1.00mm) | - |
|
|
SMD2920P150TSAPTC RESET FUSE 33V 1.5A 2920 |
2,902 | 0.00 |
|
- |
2920 (7351 Metric), Concave | POLY-FUSE®, SMD2920 | Tape & Reel (TR) | Obsolete | Polymeric | 33V | 1.5 A | 3 A | 40 A | 2 s | 80 mOhms | 230 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.039" (1.00mm) | - |
|
|
SMD1812P260TSAPTC RESET FUSE 6V 2.6A 1812 |
6,738 | 0.00 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, SMD1812 | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 2.6 A | 5.2 A | 40 A | 2.5 s | 15 mOhms | 47 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.051" (1.30mm) | - |
|
0ZRG0185FF1EPTC RESET FUSE 30V 1.85A RADIAL |
6,983 | 0.18 |
|
Datasheet |
Radial, Disc | 0ZRG | Bulk | Active | Polymeric | 30V | 1.85 A | 3.7 A | 40 A | 10 s | 30 mOhms | 90 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.402" L x 0.118" W (10.20mm x 3.00mm) | 0.618" (15.70mm) | - | 0.201" (5.10mm) |
|
RXE020-2PTC RESET FUSE 72V 200MA RADIAL |
4,705 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXE | Tape & Reel (TR) | Obsolete | Polymeric | 72V | 200 mA | 400 mA | 40 A | 2.2 s | 1.83 Ohms | 4.4 Ohms | - | - | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.461" (11.70mm) | - | 0.199" (5.05mm) |
|
RXEF075-1PTC RESET FUSE 72V 750MA RADIAL |
8,576 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Bulk | Obsolete | Polymeric | 72V | 750 mA | 1.5 A | 40 A | 6.3 s | 250 mOhms | 600 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.402" Dia x 0.118" T (10.20mm x 3.00mm) | 0.598" (15.20mm) | - | 0.199" (5.05mm) |
