PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RF4525-000NANOASMDC025F-2 |
7,222 | 0.00 |
|
Datasheet |
1206 (3216 Metric), Concave | PolySwitch® ASMD | Tape & Reel (TR) | Active | Polymeric | 16V | 250 mA | 580 mA | 100 A | 10 ms | 400 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.59mm) | - | 0.032" (0.82mm) | - |
|
0ZRA0500FF2DPTC RESET FUSE 16V 5A RADIAL |
7,257 | 0.20 |
|
Datasheet |
Radial, Disc | 0ZRA | Tape & Reel (TR) | Active | Polymeric | 16V | 5 A | 8.5 A | 100 A | 3.6 s | 14 mOhms | 44 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.409" L x 0.118" W (10.40mm x 3.00mm) | 0.563" (14.30mm) | - | 0.201" (5.10mm) |
|
|
SMD1210P150TSAPTC RESET FUSE 6V 1.5A 1210 |
4,622 | 0.00 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, SMD1210 | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.5 A | 3 A | 40 A | 500 ms | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.051" (1.30mm) | - |
|
|
SMD1812P010TSAPTC RESET FUSE 30V 100MA 1812 |
7,337 | 0.00 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, SMD1812 | Tape & Reel (TR) | Obsolete | Polymeric | 30V | 100 mA | 300 mA | 10 A | 1.5 s | 1.6 Ohms | 15 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.039" (1.00mm) | - |
|
|
SMD2920P260TSAPTC RESET FUSE 6V 2.6A 2920 |
4,822 | 0.00 |
|
- |
2920 (7351 Metric), Concave | POLY-FUSE®, SMD2920 | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 2.6 A | 5.2 A | 40 A | 10 s | 25 mOhms | 75 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.031" (0.78mm) | - |
|
0ZCA0035FF2GPTC RESET FUSE 16V 350MA 1206 |
8,097 | 0.00 |
|
Datasheet |
1206 (3216 Metric) | 0ZCA | Tape & Reel (TR) | Obsolete | Polymeric | 16V | 350 mA | 750 mA | 40 A | 100 ms | 300 mOhms | 1.2 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.030" (0.75mm) | - |
|
0ZCB0010FF2EPTC RESET FUSE 60V 100MA 1210 |
8,019 | 0.00 |
|
Datasheet |
1210 (3225 Metric) | 0ZCB | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 100 mA | 250 mA | 10 A | 1.5 s | 1.6 Ohms | 15 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.045" (1.15mm) | - |
|
SMD1206P100TSAPTC RESET FUSE 6V 1A 1206 |
5,804 | 0.00 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, SMD1206 | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1 A | 1.8 A | 40 A | 300 ms | 55 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.039" (1.00mm) | - |
|
PTGL6SAR0R8M1B51A0PTC RESET FUSE 16V 505MA RADIAL |
2,965 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 16V | 505 mA | 955 mA | 3 A | - | - | - | 800 mOhms | -30°C ~ 85°C | - | - | - | Through Hole | 0.256" Dia x 0.138" T (6.50mm x 3.50mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
RXE040-2PTC RESET FUSE 72V 400MA RADIAL |
3,413 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXE | Tape & Reel (TR) | Obsolete | Polymeric | 72V | 400 mA | 800 mA | 40 A | 3.8 s | 550 mOhms | 1.29 Ohms | - | - | - | - | - | Through Hole | 0.299" Dia x 0.118" T (7.60mm x 3.00mm) | 0.532" (13.50mm) | - | 0.199" (5.05mm) |
|
|
RUEF090SPTC RESET FUSE 30V 900MA RADIAL |
6,170 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Bulk | Obsolete | Polymeric | 30V | 900 mA | 1.8 A | 100 A | 5.9 s | 70 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.480" (12.20mm) | - | 0.199" (5.05mm) |
|
|
BK250-250-SZPTC RESET FUSE 250V 250MA RAD |
2,610 | 0.00 |
|
Datasheet |
Radial, Disc | BK250 | Bulk | Active | Polymeric | 250V | 250 mA | 500 mA | 10 A | 7 s | 1.6 Ohms | 4.8 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.366" L x 0.181" W (9.30mm x 4.60mm) | 0.591" (15.00mm) | - | 0.201" (5.10mm) |
|
|
SMD1206P150TSAPTC RESET FUSE 6V 1.5A 1206 |
8,541 | 0.00 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, SMD1206 | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.5 A | 3 A | 40 A | 1 s | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.039" (1.00mm) | - |
|
RXE050-2PTC RESET FUSE 72V 500MA RADIAL |
8,877 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXE | Tape & Reel (TR) | Obsolete | Polymeric | 72V | 500 mA | 1 A | 40 A | 4 s | 500 mOhms | 1.17 Ohms | - | - | - | - | - | Through Hole | 0.311" Dia x 0.118" T (7.90mm x 3.00mm) | 0.539" (13.70mm) | - | 0.199" (5.05mm) |
|
0ZRM0017FF1EPTC RESET FUSE 120V 170MA RADIAL |
8,761 | 0.20 |
|
Datasheet |
Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 170 mA | 340 mA | 2 A | 10 s | 2 Ohms | 7 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.311" Dia x 0.150" T (7.90mm x 3.80mm) | 0.512" (13.00mm) | - | 0.201" (5.10mm) |
|

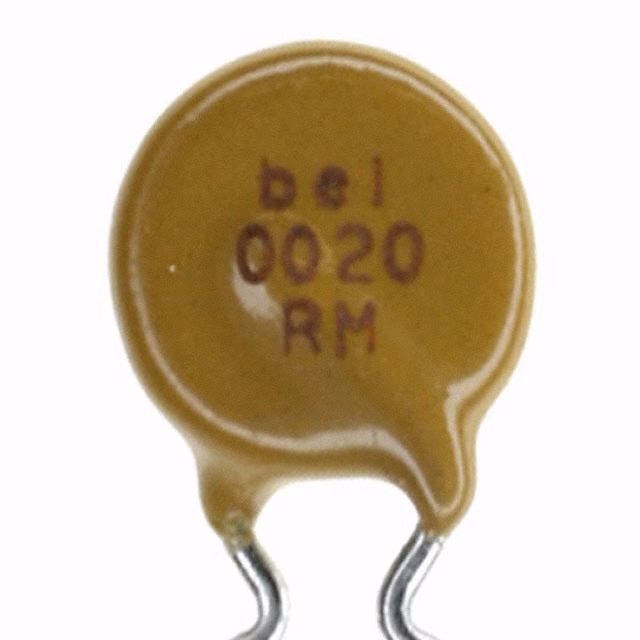

0ZRM0020FF1EPTC RESET FUSE 120V 200MA RADIAL |
7,177 | 0.20 |
|
Datasheet |
Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 200 mA | 400 mA | 2 A | 9 s | 1.83 Ohms | 4.4 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.311" Dia x 0.150" T (7.90mm x 3.80mm) | 0.512" (13.00mm) | - | 0.201" (5.10mm) |
|
0ZRM0025FF1EPTC RESET FUSE 120V 250MA RADIAL |
7,601 | 0.20 |
|
Datasheet |
Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 250 mA | 500 mA | 3 A | 7.5 s | 1.25 Ohms | 3 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.311" Dia x 0.150" T (7.90mm x 3.80mm) | 0.512" (13.00mm) | - | 0.201" (5.10mm) |
|
|
SMD2920P250TSAPTC RESET FUSE 15V 2.5A 2920 |
6,473 | 0.00 |
|
- |
2920 (7351 Metric), Concave | POLY-FUSE®, SMD2920 | Tape & Reel (TR) | Obsolete | Polymeric | 15V | 2.5 A | 5 A | 40 A | 10 s | 35 mOhms | 85 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.039" (1.00mm) | - |
|
0ZRR0110FF2BPTC RESET FUSE 60V 1.1A RADIAL |
7,566 | 0.20 |
|
Datasheet |
Radial, Disc | 0ZRR | Tape & Reel (TR) | Active | Polymeric | 60V | 1.1 A | 2.2 A | 40 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.512" Dia x 0.122" T (13.00mm x 3.10mm) | 0.709" (18.00mm) | - | 0.201" (5.10mm) |
|
|
BK130-900-SZPTC RESET FUSE 130V 900MA RAD |
8,408 | 0.00 |
|
Datasheet |
Radial, Disc | BK130 | Bulk | Active | Polymeric | 130V | 900 mA | 1.8 A | 10 A | 8 s | 300 mOhms | 600 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.150" W (14.00mm x 3.80mm) | 0.854" (21.70mm) | - | 0.201" (5.10mm) |
