PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF-R025-2-17PTC RESETTABLE 0.25A 60V RADIAL |
9,217 | 0.28 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 60V | 250 mA | 500 mA | 40 A | 2.5 s | 1 Ohms | 3 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
|
MF-R110-0-17PTC RESETTABLE 1.1A 30V RADIAL L |
6,269 | 0.28 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 30V | 1.1 A | 2.2 A | 40 A | 6.6 s | 100 mOhms | 270 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.350" Dia x 0.118" T (8.90mm x 3.00mm) | 0.551" (14.00mm) | - | 0.201" (5.10mm) |
|
|
MF-R030-2-17PTC RESETTABLE 0.3A 60V RADIAL L |
9,695 | 0.28 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 60V | 300 mA | 600 mA | 40 A | 3 s | 760 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.528" (13.40mm) | - | 0.201" (5.10mm) |
|
|
MF-MSMF300X-2PTC RESETTABLE 3A 6V SMD 1812 |
3,668 | 0.28 |
|
Datasheet |
1812 (4532 Metric), Concave | Multifuse®, MF-MSMF | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 3 A | 5 A | 100 A | 5 s | 10 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.181" L x 0.128" W (4.60mm x 3.24mm) | - | 0.063" (1.60mm) | - |
|
PTR016V0110-TRPTC RESET FUSE 16V 1.1A RADIAL |
3,254 | 0.23 |
|
Datasheet |
Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 1.1 A | 2.2 A | 40 A | 2.3 s | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.122" W (7.40mm x 3.10mm) | 0.559" (14.20mm) | - | 0.197" (5.00mm) |
|
|
PTR016V0135-TRPTC RESET FUSE 16V 1.35A RADIAL |
3,270 | 0.23 |
|
Datasheet |
Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 1.35 A | 2.7 A | 40 A | 4.5 s | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.122" W (8.90mm x 3.10mm) | 0.532" (13.50mm) | - | 0.197" (5.00mm) |
|
MINISMDE190-2PTC RESET FUSE 16V 1.9A 4520 |
4,586 | 0.00 |
|
Datasheet |
4520 (11350 Metric), Concave | PolySwitch®, miniSMD | Tape & Reel (TR) | Obsolete | Polymeric | 16V | 1.9 A | 3.8 A | 100 A | 2 s | 24 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.446" L x 0.200" W (11.33mm x 5.08mm) | - | 0.021" (0.53mm) | - |
|

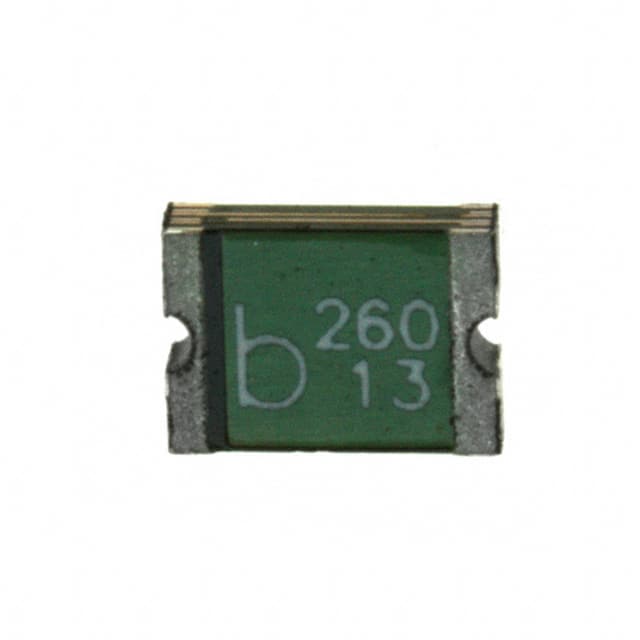

0ZCC0050FF2CPTC RESET FUSE 16V 500MA 1812 |
3,121 | 0.00 |
|
Datasheet |
1812 (4532 Metric) | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 16V | 500 mA | 1 A | 40 A | 150 ms | 150 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.035" (0.90mm) | - |
|
0ZCC0014FF2CPTC RESET FUSE 60V 140MA 1812 |
7,846 | 0.00 |
|
Datasheet |
1812 (4532 Metric) | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 140 mA | 300 mA | 10 A | 8 ms | 1.2 Ohms | 6.5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.035" (0.90mm) | - |
|

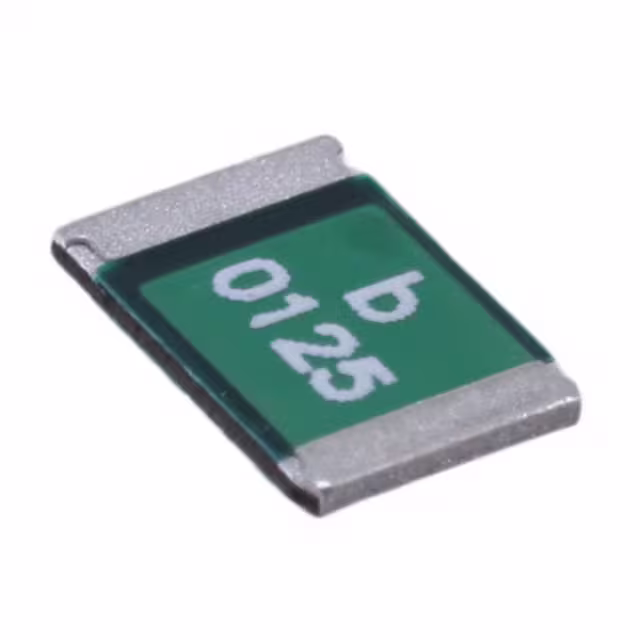

0ZCC0125FF2CPTC RESET FUSE 6V 1.25A 1812 |
3,870 | 0.00 |
|
Datasheet |
1812 (4532 Metric) | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.25 A | 2.5 A | 40 A | 400 ms | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.022" (0.55mm) | - |
|
0ZCE0050FF2EPTC RESET FUSE 6V 500MA 0805 |
9,811 | 0.00 |
|
Datasheet |
0805 (2012 Metric), Concave | 0ZCE | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 500 mA | 1 A | 100 A | 100 ms | 150 mOhms | 850 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.049" (1.25mm) | - |
|
|
0ZCE0075FF2EPTC RESET FUSE 6V 750MA 0805 |
3,445 | 0.00 |
|
Datasheet |
0805 (2012 Metric), Concave | 0ZCE | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 750 mA | 1.5 A | 40 A | 200 ms | 90 mOhms | 350 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.049" (1.25mm) | - |
|
|
PTR016V0160-TRPTC RESET FUSE 16V 1.6A RADIAL |
9,794 | 0.24 |
|
Datasheet |
Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 1.6 A | 3.2 A | 40 A | 9 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.122" W (8.90mm x 3.10mm) | 0.598" (15.20mm) | - | 0.197" (5.00mm) |
|
|
MF-R010-2-17PTC RESETTABLE 0.1A 60V RADIAL L |
4,635 | 0.26 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 60V | 100 mA | 200 mA | 40 A | 4 s | 2.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
SMD1206P020TSAPTC RESET FUSE 16V 200MA 1206 |
7,792 | 0.00 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, SMD1206 | Tape & Reel (TR) | Obsolete | Polymeric | 16V | 200 mA | 400 mA | 40 A | 50 ms | 600 mOhms | 2.5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.030" (0.75mm) | - |
|
|
SMD1206P025TSAPTC RESET FUSE 16V 250MA 1206 |
7,058 | 0.00 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, SMD1206 | Tape & Reel (TR) | Obsolete | Polymeric | 16V | 250 mA | 500 mA | 40 A | 80 ms | 550 mOhms | 2.3 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.030" (0.75mm) | - |
|
0ZRM0065FF2BPTC RESET FUSE 120V 650MA RADIAL |
9,913 | 0.27 |
|
Datasheet |
Radial, Disc | 0ZRM | Tape & Reel (TR) | Active | Polymeric | 120V | 650 mA | 1.3 A | 5 A | 5.7 s | 310 mOhms | 720 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.382" Dia x 0.150" T (9.70mm x 3.80mm) | 0.587" (14.90mm) | - | 0.201" (5.10mm) |
|
SRP350PTC RESET FUSE 30V 3.5A STRAP |
2,393 | 0.00 |
|
Datasheet |
Strap | PolySwitch®, SRP | Bulk | Obsolete | Polymeric | 30V | 3.5 A | 6.3 A | 100 A | 3 s | 17 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.185" L x 0.522" W (30.10mm x 13.25mm) | - | 0.043" (1.10mm) | - |
|
|
LR4-170UFPTC RESET FUSE 15V 1.7A STRAP |
4,225 | 0.00 |
|
- |
Strap | PolySwitch® | Bulk | Obsolete | Polymeric | 15V | 1.7 A | 3.4 A | 100 A | 5 s | 44 mOhms | 114 mOhms | - | - | - | - | - | User Defined | 0.787" L x 0.156" W (20.00mm x 3.95mm) | - | 0.028" (0.70mm) | - |
|

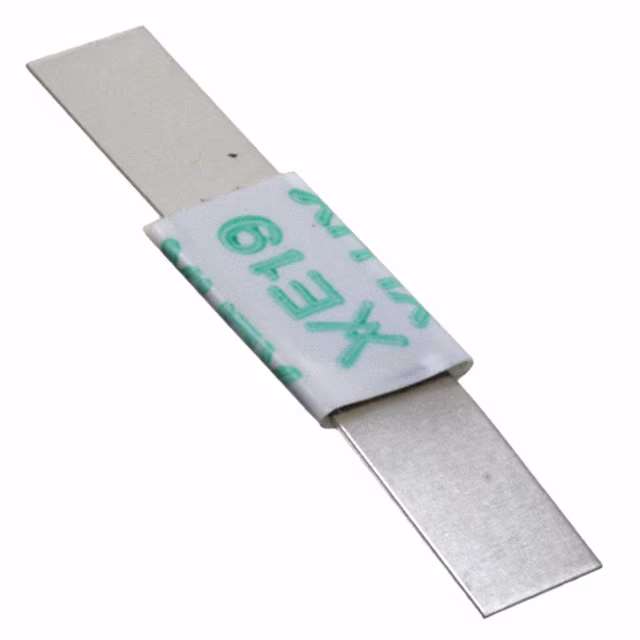

LR4-190LFPTC RESET FUSE 15V 1.9A STRAP |
3,945 | 0.00 |
|
- |
Strap | PolySwitch®, LR4 | Bag | Obsolete | Polymeric | 15V | 1.9 A | 3.9 A | 100 A | 5 s | 39 mOhms | 102 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.161" L x 0.205" W (29.50mm x 5.20mm) | - | - | - |
