PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0ZCA0100FF2EPTC RESET FUSE 6V 1A 1206 |
5,260 | 0.00 |
|
Datasheet |
1206 (3216 Metric), Concave | 0ZCA | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1 A | 1.8 A | 100 A | 300 ms | 55 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.039" (1.00mm) | - |
|
|
0ZCA0110FF2EPTC RESET FUSE 6V 1.1A 1206 |
6,103 | 0.00 |
|
Datasheet |
1206 (3216 Metric), Concave | 0ZCA | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.1 A | 2.2 A | 100 A | 300 ms | 40 mOhms | 180 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.039" (1.00mm) | - |
|
0ZCB0110FF2EPTC RESET FUSE 6V 1.1A 1210 |
4,735 | 0.00 |
|
Datasheet |
1210 (3225 Metric), Concave | 0ZCB | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.1 A | 2.2 A | 100 A | 300 ms | 60 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.039" (1.00mm) | - |
|
|
0ZCB0150FF2EPTC RESET FUSE 6V 1.5A 1210 |
3,365 | 0.00 |
|
Datasheet |
1210 (3225 Metric), Concave | 0ZCB | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.5 A | 3 A | 100 A | 500 ms | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.035" (0.90mm) | - |
|
0ZCC0075AF2BPTC RESET FUSE 24V 750MA 1812 |
8,623 | 0.00 |
|
Datasheet |
1812 (4532 Metric), Concave | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 24V | 750 mA | 1.5 A | 40 A | 200 ms | 110 mOhms | 290 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.061" (1.55mm) | - |
|
|
0ZCC0075BF2BPTC RESET FUSE 33V 750MA 1812 |
7,018 | 0.00 |
|
Datasheet |
1812 (4532 Metric), Concave | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 33V | 750 mA | 1.5 A | 40 A | 200 ms | 110 mOhms | 400 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.061" (1.55mm) | - |
|
|
0ZCC0110BF2BPTC RESET FUSE 24V 1.1A 1812 |
7,223 | 0.00 |
|
Datasheet |
1812 (4532 Metric), Concave | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 24V | 1.1 A | 2.2 A | 100 A | 500 ms | 60 mOhms | 200 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.051" (1.30mm) | - |
|
|
0ZCC0150AF2CPTC RESET FUSE 12V 1.5A 1812 |
5,059 | 0.00 |
|
Datasheet |
1812 (4532 Metric), Concave | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 12V | 1.5 A | 3 A | 100 A | 500 ms | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.043" (1.10mm) | - |
|
|
0ZCC0150BF2CPTC RESET FUSE 24V 1.5A 1812 |
9,630 | 0.00 |
|
Datasheet |
1812 (4532 Metric), Concave | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 24V | 1.5 A | 3 A | 100 A | 1.5 s | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.061" (1.55mm) | - |
|
|
0ZCC0160AF2CPTC RESET FUSE 12V 1.6A 1812 |
6,971 | 0.00 |
|
Datasheet |
1812 (4532 Metric), Concave | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 12V | 1.6 A | 3.2 A | 100 A | 1 s | 30 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.053" (1.35mm) | - |
|
|
0ZCC0260FF2CPTC RESET FUSE 6V 2.6A 1812 |
3,967 | 0.00 |
|
Datasheet |
1812 (4532 Metric), Concave | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 2.6 A | 5 A | 100 A | 2.5 s | 15 mOhms | 47 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.047" (1.20mm) | - |
|
12VL175LUPTC RESET FUSE 12V 1.75A STRAP |
4,921 | 0.00 |
|
Datasheet |
Strap | POLY-FUSE®, VL | Bulk | Obsolete | Polymeric | 12V | 1.75 A | 4.2 A | 100 A | 5 s | 17 mOhms | 62 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.201" L x 0.122" W (30.50mm x 3.10mm) | - | 0.032" (0.80mm) | - |
|
PTGL9SARR33M1B51A0PTC RESET FUSE 16V 875MA RADIAL |
2,707 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 16V | 875 mA | 1.625 A | 7 A | - | - | - | 330 mOhms | -30°C ~ 85°C | - | - | - | Through Hole | 0.354" Dia x 0.138" T (9.00mm x 3.50mm) | 0.551" (14.00mm) | - | 0.197" (5.00mm) |
|
|
SMD1812P050TFAPTC RESET FUSE 15V 500MA 1812 |
4,771 | 0.00 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, SMD1812 | Tape & Reel (TR) | Obsolete | Polymeric | 15V | 500 mA | 1 A | 40 A | 150 ms | 150 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.025" (0.63mm) | - |
|
|
PTGL07AR470M3B51A0PTC RESET FUSE |
5,737 | 0.00 |
|
- |
- | * | Tape & Box (TB) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PTGL05AS6R8K3B51A0PTC RESET FUSE 51V 249MA RADIAL |
4,370 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 51V | 249 mA | 331 mA | 1.5 A | - | - | - | 6.8 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.217" Dia x 0.138" T (5.50mm x 3.50mm) | 0.413" (10.50mm) | - | 0.197" (5.00mm) |
|
|
PTGL05AR1R0M1B51B0PTC RESET FUSE 16V 470MA RADIAL |
2,639 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 16V | 470 mA | 880 mA | 2 A | - | - | - | 1 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.236" Dia x 0.138" T (6.00mm x 3.50mm) | 0.374" (9.50mm) | - | 0.197" (5.00mm) |
|
LVRL075SPTC RESET FUSE 120V 750MA RADIAL |
6,085 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVRL | Bulk | Obsolete | Polymeric | 120V (135V Int) | 750 mA | 1.52 A | 7.5 A | 14.4 s | 250 mOhms | 690 mOhms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.430" L x 0.160" W (10.90mm x 4.10mm) | 0.669" (17.00mm) | - | 0.200" (5.08mm) |
|

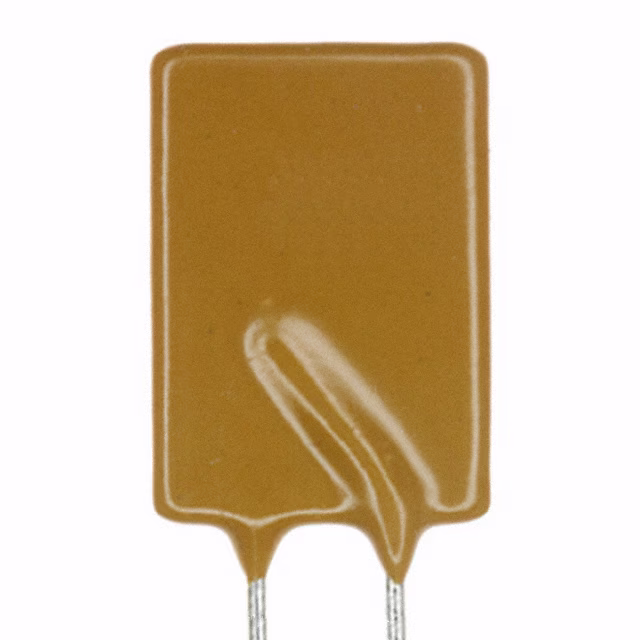

0ZRA0800FF1APTC RESET FUSE 16V 8A RADIAL |
4,509 | 0.25 |
|
Datasheet |
Radial, Disc | 0ZRA | Box | Active | Polymeric | 16V | 8 A | 13.6 A | 100 A | 9 s | 5 mOhms | 18 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.823" (20.90mm) | - | 0.201" (5.10mm) |
|
|
0ZRB0500FA1APTC RESET FUSE |
2,290 | 0.00 |
|
- |
Radial, Disc | 0ZRB | Bulk | Active | Polymeric | 30V | 5 A | 10 A | 40 A | 14.5 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.980" (24.90mm) | - | 0.402" (10.20mm) |
