PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTP180LFPTC RESET FUSE 24V 1.8A STRAP |
6,416 | 0.00 |
|
- |
Strap | PolySwitch®, LTP | Bulk | Obsolete | Polymeric | 24V | 1.8 A | 3.8 A | 100 A | 2.9 s | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.437" L x 0.199" W (36.50mm x 5.05mm) | - | 0.039" (1.00mm) | - |
|
|
MF-SVS170-0PTC RESET FUSE 10V 1.7A STRAP |
2,108 | 0.29 |
|
Datasheet |
Strap | Multifuse®, MF-SVS | Bulk | Active | Polymeric | 10V | 1.7 A | 4.1 A | 100 A | 5 s | 18 mOhms | 64 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.669" L x 0.205" W (17.00mm x 5.20mm) | - | 0.035" (0.90mm) | - |
|
MF-VS170N-0PTC RESET FUSE 12V 1.7A STRAP |
5,291 | 0.29 |
|
Datasheet |
Strap | Multifuse®, MF-VS | Bulk | Active | Polymeric | 12V | 1.7 A | 3.4 A | 100 A | 3 s | 30 mOhms | 105 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.906" L x 0.148" W (23.00mm x 3.75mm) | - | 0.035" (0.90mm) | - |
|
|
MF-RX090/72-0-17PTC RESETTABLE 0.9A 72V RADIAL L |
2,134 | 0.30 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/72 | Bulk | Active | Polymeric | 72V | 900 mA | 1.8 A | 40 A | 7.2 s | 140 mOhms | 470 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.461" Dia x 0.122" T (11.70mm x 3.10mm) | 0.657" (16.70mm) | - | 0.201" (5.10mm) |
|
|
SMD1812P125TFAPTC RESET FUSE 15V 1.25A 1812 |
8,796 | 0.00 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, SMD1812 | Tape & Reel (TR) | Obsolete | Polymeric | 15V | 1.25 A | 2.5 A | 40 A | 400 ms | 70 mOhms | 250 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.039" (1.00mm) | - |
|
|
SMD1812P150TFAPTC RESET FUSE 6V 1.5A 1812 |
3,577 | 0.00 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, SMD1812 | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.5 A | 3 A | 40 A | 500 ms | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.039" (1.00mm) | - |
|
|
SMD1812P075TF/24APTC RESET FUSE 24V 750MA 1812 |
5,498 | 0.00 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, SMD1812 | Tape & Reel (TR) | Obsolete | Polymeric | 24V | 750 mA | 1.5 A | 40 A | 200 ms | 110 mOhms | 290 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.045" (1.15mm) | - |
|
PTR060V0020-TR1PTC RESET FUSE 60V 200MA RADIAL |
6,762 | 0.25 |
|
Datasheet |
Radial, Disc | PTR060V | Tape & Reel (TR) | Active | Polymeric | 60V | 200 mA | 400 mA | 40 A | 2.2 s | 1.83 Ohms | 4.4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.480" (12.20mm) | - | 0.197" (5.00mm) |
|
|
1210L050YR-APTC 13.2V POLYFUSE SURF MOUNT 12 |
7,315 | 0.00 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, 1210L | Tape & Reel (TR) | Active | Polymeric | 13.2V | 500 mA | 1 A | 100 A | 50 ms | 250 mOhms | 900 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.033" (0.85mm) | - |
|
|
PRG21BC0R6MM1RKPTC RESET FUSE |
6,290 | 0.35 |
|
- |
- | * | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PRG21BC0R4MM1RKPTC RESET FUSE |
7,505 | 0.35 |
|
- |
- | * | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
0ZRM0075AF2BPTC RESET FUSE 120V 750MA RADIAL |
8,657 | 0.28 |
|
Datasheet |
Radial, Disc | 0ZRM | Tape & Reel (TR) | Active | Polymeric | 120V | 750 mA | 1.5 A | 7 A | 15 s | 250 mOhms | 690 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.429" L x 0.161" W (10.90mm x 4.10mm) | 0.669" (17.00mm) | - | 0.201" (5.10mm) |
|

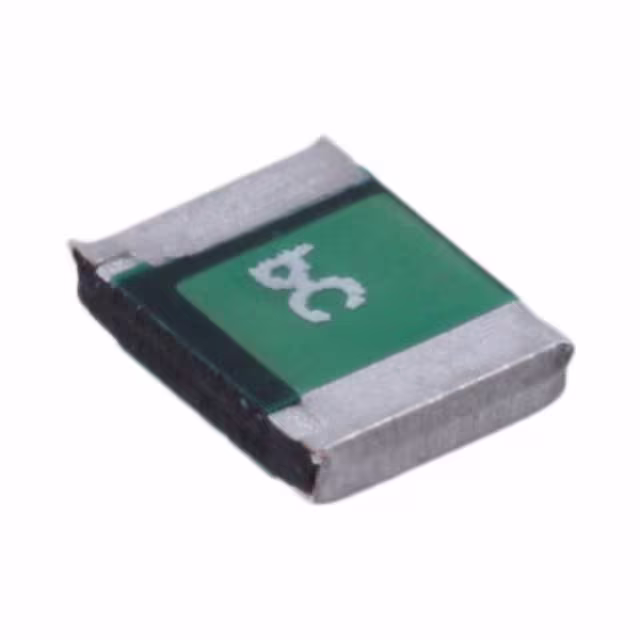

0ZCB0005FF2EPTC RESET FUSE 60V 50MA 1210 |
2,771 | 0.00 |
|
Datasheet |
1210 (3225 Metric) | 0ZCB | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 50 mA | 150 mA | 10 A | 1.5 s | 3.6 Ohms | 50 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.045" (1.15mm) | - |
|
|
0ZCB0075FF2GPTC RESET FUSE 8V 750MA 1210 |
9,882 | 0.00 |
|
Datasheet |
1210 (3225 Metric) | 0ZCB | Tape & Reel (TR) | Obsolete | Polymeric | 8V | 750 mA | 1.5 A | 40 A | 100 ms | 130 mOhms | 400 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.028" (0.70mm) | - |
|
|
PTR060V0065-TRPTC RESET FUSE 60V 650MA RADIAL |
7,100 | 0.25 |
|
Datasheet |
Radial, Disc | PTR060V | Tape & Reel (TR) | Active | Polymeric | 60V | 650 mA | 1.3 A | 40 A | 5.3 s | 310 mOhms | 720 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.382" Dia x 0.118" T (9.70mm x 3.00mm) | 0.571" (14.50mm) | - | 0.197" (5.00mm) |
|
|
PTR060V0025-TR1PTC RESET FUSE 60V 250MA RADIAL |
3,854 | 0.26 |
|
Datasheet |
Radial, Disc | PTR060V | Tape & Reel (TR) | Active | Polymeric | 60V | 250 mA | 500 mA | 40 A | 2.5 s | 1.25 Ohms | 3 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.197" (5.00mm) |
|
PTGL05AS3R9K2B51A0PTC RESET FUSE 30V 340MA RADIAL |
3,972 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 30V | 340 mA | 452 mA | 3.5 A | - | - | - | 3.9 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.217" Dia x 0.138" T (5.50mm x 3.50mm) | 0.413" (10.50mm) | - | 0.197" (5.00mm) |
.jpg)
|
NANOSMD450LR-2PTC RESET FUSE 6V 4.5A 1206 |
6,297 | 0.74 |
|
- |
1206 (3216 Metric) | PolySwitch®, microSMD | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 4.5 A | 9 A | 50 A | 2 s | 2 mOhms | 8 mOhms | - | -40°C ~ 80°C | - | - | - | Surface Mount | 0.127" L x 0.063" W (3.22mm x 1.61mm) | - | 0.032" (0.80mm) | - |
|
|
NANOSMD500LR-D-2PTC RESET FUSE 6V 5A 1206 |
9,568 | 0.00 |
|
- |
1206 (3216 Metric) | PolySwitch®, LoRho | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 5 A | 10 A | 50 A | 2 s | 2 mOhms | 8 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.063" W (3.22mm x 1.61mm) | - | 0.032" (0.80mm) | - |
|
|
PTR060V0030-TR1PTC RESET FUSE 60V 300MA RADIAL |
2,951 | 0.26 |
|
Datasheet |
Radial, Disc | PTR060V | Tape & Reel (TR) | Active | Polymeric | 60V | 300 mA | 600 mA | 40 A | 3 s | 880 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.512" (13.00mm) | - | 0.197" (5.00mm) |
