PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AGRF500S-1.0PTC RESET FUSE 16V 5A RADIAL |
8,919 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, AGRF | Bulk | Obsolete | Polymeric | 16V | 5 A | 9.4 A | 100 A | 2.5 s | 14 mOhms | 34 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.409" L x 0.118" W (10.40mm x 3.00mm) | 0.614" (15.60mm) | - | 0.200" (5.08mm) |
|
PTR016V0110-TR1PTC RESET FUSE 16V 1.1A RADIAL |
9,912 | 0.29 |
|
Datasheet |
Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 1.1 A | 2.2 A | 40 A | 2.3 s | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.122" W (7.40mm x 3.10mm) | 0.559" (14.20mm) | - | 0.197" (5.00mm) |
|
PTR060V0040-TR1PTC RESET FUSE 60V 400MA RADIAL |
4,806 | 0.29 |
|
Datasheet |
Radial, Disc | PTR060V | Tape & Reel (TR) | Active | Polymeric | 60V | 400 mA | 800 mA | 40 A | 3.8 s | 550 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.299" Dia x 0.118" T (7.60mm x 3.00mm) | 0.532" (13.50mm) | - | 0.197" (5.00mm) |
|

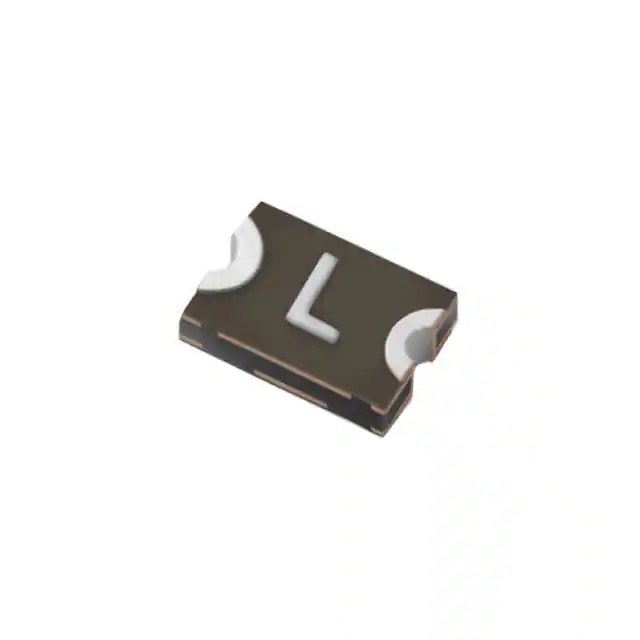

PICOASMDCH020F-2PTC RESET FUSE 0.20A 16V 0805 |
8,296 | 0.00 |
|
Datasheet |
0805 (2012 Metric), Concave | PolySwitch®, picoASMD | Tape & Reel (TR) | Obsolete | Polymeric | 16V | 200 mA | 700 mA | 40 A | 100 ms | 750 mOhms | 3.4 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.083" L x 0.055" W (2.10mm x 1.40mm) | - | 0.031" (0.80mm) | - |
|
|
PICOASMDCH005F-2PTC RESET FUSE 0.050A 16V 0805 |
9,060 | 0.82 |
|
Datasheet |
0805 (2012 Metric), Concave | PolySwitch®, picoASMD | Tape & Reel (TR) | Obsolete | Polymeric | 16V | 50 mA | 180 mA | 40 A | 80 ms | 3.5 Ohms | 38 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.083" L x 0.055" W (2.10mm x 1.40mm) | - | 0.031" (0.80mm) | - |
|
RF4929-000PICOASMDCH020F-2 |
2,412 | 0.00 |
|
Datasheet |
0805 (2012 Metric), Concave | PolySwitch®, SMD | Tape & Reel (TR) | Active | Polymeric | 16V | 200 mA | 700 mA | 40 A | 100 ms | 750 mOhms | 3.4 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.083" L x 0.055" W (2.10mm x 1.40mm) | - | 0.031" (0.80mm) | - |
|
PTGL09ARR33M1B51A0PTC RESET FUSE 16V 875MA RADIAL |
6,880 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 16V | 875 mA | 1.625 A | 7 A | - | - | - | 330 mOhms | -10°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.138" T (9.00mm x 3.50mm) | 0.551" (14.00mm) | - | 0.197" (5.00mm) |
|
|
MF-LS260PTC RESET FUSE 24V 2.6A STRAP |
9,165 | 0.34 |
|
Datasheet |
Strap | Multifuse®, MF-LS | Bulk | Active | Polymeric | 24V | 2.6 A | 5.2 A | 100 A | 5 s | 25 mOhms | 76 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.984" L x 0.447" W (25.00mm x 11.35mm) | - | 0.039" (1.00mm) | - |
|
|
MF-SVS175N-0PTC RESET FUSE 10V 1.75A STRAP |
7,184 | 0.34 |
|
Datasheet |
Strap | Multifuse®, MF-SVS | Bulk | Active | Polymeric | 10V | 1.75 A | 4.2 A | 100 A | 5 s | 17 mOhms | 63 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.906" L x 0.148" W (23.00mm x 3.75mm) | - | 0.035" (0.90mm) | - |
|
|
PTR016V0160-TR1PTC RESET FUSE 16V 1.6A RADIAL |
6,425 | 0.29 |
|
Datasheet |
Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 1.6 A | 3.2 A | 40 A | 9 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.122" W (8.90mm x 3.10mm) | 0.598" (15.20mm) | - | 0.197" (5.00mm) |
|
0ZCD0075FF2CPTC RESET FUSE 33V 750MA 2920 |
8,576 | 0.00 |
|
Datasheet |
2920 (7351 Metric) | 0ZCD | Tape & Reel (TR) | Obsolete | Polymeric | 33V | 750 mA | 1.5 A | 40 A | 300 ms | 180 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.045" (1.15mm) | - |
|
|
0ZCD0125FF2CPTC RESET FUSE 33V 1.25A 2920 |
5,605 | 0.00 |
|
Datasheet |
2920 (7351 Metric) | 0ZCD | Tape & Reel (TR) | Obsolete | Polymeric | 33V | 1.25 A | 2.5 A | 40 A | 2 s | 50 mOhms | 250 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.035" (0.90mm) | - |
|
|
0ZCD0150FF2CPTC RESET FUSE 33V 1.5A 2920 |
8,298 | 0.00 |
|
Datasheet |
2920 (7351 Metric) | 0ZCD | Tape & Reel (TR) | Obsolete | Polymeric | 33V | 1.5 A | 3 A | 40 A | 2 s | 50 mOhms | 230 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.035" (0.90mm) | - |
|
|
0ZCD0185FF2CPTC RESET FUSE 33V 1.85A 2920 |
6,675 | 0.00 |
|
Datasheet |
2920 (7351 Metric) | 0ZCD | Tape & Reel (TR) | Obsolete | Polymeric | 33V | 1.85 A | 3.7 A | 40 A | 2.5 s | 40 mOhms | 150 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.035" (0.90mm) | - |
|
|
0ZCD0250FF2CPTC RESET FUSE 16V 2.5A 2920 |
6,482 | 0.00 |
|
Datasheet |
2920 (7351 Metric) | 0ZCD | Tape & Reel (TR) | Obsolete | Polymeric | 16V | 2.5 A | 5 A | 40 A | 16 s | 25 mOhms | 85 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.035" (0.90mm) | - |
|
0ZCA0150FF2CPTC RESET FUSE 6V 1.5A 1206 |
2,384 | 0.00 |
|
Datasheet |
1206 (3216 Metric), Concave | 0ZCA | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.5 A | 3 A | 100 A | 1 s | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.055" (1.40mm) | - |
|
|
0ZCD0260FF2CPTC RESET FUSE 6V 2.6A 2920 |
6,476 | 0.00 |
|
Datasheet |
2920 (7351 Metric) | 0ZCD | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 2.6 A | 5.2 A | 40 A | 20 s | 20 mOhms | 75 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.035" (0.90mm) | - |
|
|
0ZCD0300FF2CPTC RESET FUSE 6V 3A 2920 |
7,228 | 0.00 |
|
Datasheet |
2920 (7351 Metric) | 0ZCD | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 3 A | 5.2 A | 40 A | 25 s | 10 mOhms | 48 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.035" (0.90mm) | - |
|
|
RF1915-000VLP220N-C30IIF |
6,711 | 0.00 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MF-RX250/72-APPTC RESET FUSE 72V 2.5A RADIAL |
9,874 | 0.34 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/72 | Tape & Box (TB) | Active | Polymeric | 72V | 2.5 A | 5 A | 40 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.839" L x 0.122" W (21.30mm x 3.10mm) | 1.039" (26.40mm) | - | 0.402" (10.20mm) |
