PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

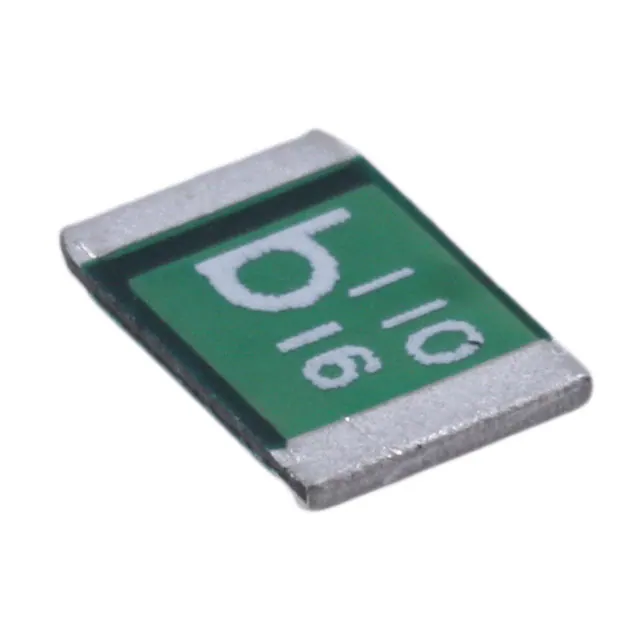

0ZCC0110AF2CPTC RESET FUSE 16V 1.1A 1812 |
3,625 | 0.00 |
|
Datasheet |
1812 (4532 Metric) | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 16V | 1.1 A | 2.2 A | 100 A | 500 ms | 40 mOhms | 180 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.035" (0.90mm) | - |
|
0ZCC0260AF2BPTC RESET FUSE 13.2V 2.6A 1812 |
2,968 | 0.00 |
|
Datasheet |
1812 (4532 Metric), Concave | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 13.2V | 2.6 A | 5 A | 100 A | 5 s | 15 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.061" (1.55mm) | - |
|
|
0ZCC0260BF2BPTC RESET FUSE 16V 2.6A 1812 |
9,965 | 0.00 |
|
Datasheet |
1812 (4532 Metric), Concave | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 16V | 2.6 A | 5 A | 100 A | 5 s | 15 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.061" (1.55mm) | - |
|
|
0ZCC0300FF2BPTC RESET FUSE 6V 3A 1812 |
6,921 | 0.00 |
|
Datasheet |
1812 (4532 Metric), Concave | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 3 A | 5 A | 100 A | 4 s | 12 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.061" (1.55mm) | - |
|
PTR016V0185-TR1PTC RESET FUSE 16V 1.85A RADIAL |
2,710 | 0.30 |
|
Datasheet |
Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 1.85 A | 3.7 A | 40 A | 10 s | 30 mOhms | 90 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.402" L x 0.122" W (10.20mm x 3.10mm) | 0.618" (15.70mm) | - | 0.197" (5.00mm) |
|
PTGL07AR4R6H2B51A0PTC RESET FUSE 30V 340MA RADIAL |
6,787 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 30V | 340 mA | 610 mA | 2 A | - | - | - | 4.6 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.291" Dia x 0.157" T (7.40mm x 4.00mm) | 0.528" (13.40mm) | - | 0.197" (5.00mm) |
|
2920L125PR-APTC 15V POLYFUSE SURF MOUNT 2920 |
7,807 | 0.00 |
|
Datasheet |
2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 15V | 1.25 A | 2.5 A | 40 A | 2 s | 70 mOhms | 250 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.039" (1.00mm) | - |
|
0ZRS0050FF2DPTC RESET FUSE 32V 500MA RADIAL |
8,673 | 0.35 |
|
Datasheet |
Radial, Disc | 0ZRS | Tape & Reel (TR) | Active | Ceramic | 32V | 500 mA | 1 A | 100 A | 3 s | 350 mOhms | 1.1 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
|
0ZRS0070FF2DPTC RESET FUSE 32V 700MA RADIAL |
9,947 | 0.35 |
|
Datasheet |
Radial, Disc | 0ZRS | Tape & Reel (TR) | Active | Ceramic | 32V | 700 mA | 1.4 A | 100 A | 3.2 s | 230 mOhms | 800 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.272" L x 0.118" W (6.90mm x 3.00mm) | 0.425" (10.80mm) | - | 0.201" (5.10mm) |
|
|
PTGL07AS1R8K2B51A0PTC RESET FUSE 30V 532MA RADIAL |
5,715 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Tape & Box (TB) | Obsolete | Ceramic | 30V | 532 mA | 708 mA | 5 A | - | - | - | 1.8 Ohms | -30°C ~ 85°C | - | - | - | Through Hole | 0.287" Dia x 0.138" T (7.30mm x 3.50mm) | 0.484" (12.30mm) | - | 0.197" (5.00mm) |
|
PTGL09AR4R7M3B51A0PTC RESET FUSE 56V 350MA RADIAL |
4,736 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 56V | 350 mA | 600 mA | 2 A | - | - | - | 4.7 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.374" Dia x 0.157" T (9.50mm x 4.00mm) | 0.610" (15.50mm) | - | 0.197" (5.00mm) |
|
0ZRM0090FF2BPTC RESET FUSE 120V 900MA RADIAL |
4,535 | 0.34 |
|
Datasheet |
Radial, Disc | 0ZRM | Tape & Reel (TR) | Active | Polymeric | 120V | 900 mA | 1.8 A | 5 A | 7.2 s | 200 mOhms | 470 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.469" Dia x 0.150" T (11.90mm x 3.80mm) | 0.626" (15.90mm) | - | 0.201" (5.10mm) |
|
MF-RX012/250U-0PTC RESET FUSE 60V 120MA RADIAL |
6,468 | 0.35 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/250 | Bulk | Active | Polymeric | 60V (250V Int) | 120 mA | - | 3 A | - | 6 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.236" L x 0.150" W (6.00mm x 3.80mm) | 0.394" (10.00mm) | - | 0.201" (5.10mm) |
|
|
MF-RX014/250U-0PTC RESET FUSE 60V 145MA RADIAL |
8,734 | 0.35 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/250 | Bulk | Active | Polymeric | 60V (250V Int) | 145 mA | - | 3 A | - | 3.5 Ohms | 12 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.236" L x 0.150" W (6.00mm x 3.80mm) | 0.394" (10.00mm) | - | 0.201" (5.10mm) |
|
|
MF-RX018/250U-0PTC RESET FUSE 60V 180MA RADIAL |
6,266 | 0.35 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/250 | Bulk | Active | Polymeric | 60V (250V Int) | 180 mA | - | 10 A | - | 800 mOhms | 4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.409" Dia x 0.150" T (10.40mm x 3.80mm) | 0.496" (12.60mm) | - | 0.201" (5.10mm) |
|
MF-R400-APPTC RESET FUSE 30V 4A RADIAL |
3,128 | 0.35 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Box (TB) | Active | Polymeric | 30V | 4 A | 8 A | 40 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.567" L x 0.118" W (14.40mm x 3.00mm) | 0.976" (24.80mm) | - | 0.201" (5.10mm) |
|
MF-RHT200-APPTC RESET FUSE 16V 2A RADIAL |
2,845 | 0.35 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Tape & Box (TB) | Active | Polymeric | 16V | 2 A | 3.8 A | 100 A | 3 s | 45 mOhms | 110 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.370" Dia x 0.118" T (9.40mm x 3.00mm) | 0.551" (14.00mm) | - | 0.114" (2.90mm) |
|
MF-RHT100-APPTC RESET FUSE 30V 1A RADIAL |
2,841 | 0.35 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Bulk | Active | Polymeric | 30V | 1 A | 1.8 A | 40 A | 5.2 s | 180 mOhms | 430 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.382" L x 0.118" W (9.70mm x 3.00mm) | 0.535" (13.60mm) | - | 0.201" (5.10mm) |
|
|
MF-RX250/72-AP-14PTC RESET FUSE 72V 2.5A RADIAL |
3,669 | 0.35 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/72 | Tape & Box (TB) | Active | Polymeric | 72V | 2.5 A | 5 A | 40 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.702" L x 0.122" W (17.84mm x 3.10mm) | 0.839" (21.30mm) | - | 0.201" (5.10mm) |
|
|
MF-R300-AP-14PTC RESETTABLE 3.0A 30V RADIAL L |
7,825 | 0.35 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Box (TB) | Active | Polymeric | 30V | 3 A | 6 A | 40 A | 10.8 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.472" L x 0.118" W (12.00mm x 3.00mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
