PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF-RHT300-2-14PTC 3.0A 16V RADIAL LEADED HI-TE |
7,657 | 0.38 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Tape & Reel (TR) | Active | Polymeric | 16V | 3 A | 6 A | 100 A | 5 s | 33 mOhms | 79 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.346" L x 0.118" W (8.80mm x 3.00mm) | 0.543" (13.80mm) | - | 0.201" (5.10mm) |
|
|
MF-RHT450-2-14PTC 4.5A 16V RADIAL LEADED HI-TE |
6,477 | 0.38 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Tape & Reel (TR) | Active | Polymeric | 16V | 4.5 A | 7.8 A | 100 A | 3 s | 22 mOhms | 54 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.409" L x 0.118" W (10.40mm x 3.00mm) | 0.614" (15.60mm) | - | 0.201" (5.10mm) |
|
|
MF-RHT550-0-14PTC 5.5A 16V RADIAL LEADED HI-TE |
7,417 | 0.38 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Bulk | Active | Polymeric | 16V | 5.5 A | 10 A | 100 A | 6 s | 15 mOhms | 37 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.744" (18.90mm) | - | 0.201" (5.10mm) |
|
RHEF750-1PTC RESET FUSE 16V 7.5A RADIAL |
7,652 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, RHEF | Bulk | Obsolete | Polymeric | 16V | 7.5 A | 13.1 A | 100 A | 7 s | 9.4 mOhms | 22 mOhms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.925" (23.50mm) | - | 0.199" (5.05mm) |
|
|
SMD2920P125TFAPTC RESET FUSE 15V 1.25A 2920 |
6,009 | 0.00 |
|
- |
2920 (7351 Metric), Concave | POLY-FUSE®, SMD2920 | Tape & Reel (TR) | Obsolete | Polymeric | 15V | 1.25 A | 2.5 A | 40 A | 2 s | 70 mOhms | 250 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.031" (0.78mm) | - |
|
|
BK16-1200-SZPTC RESET FUSE 16V 12A RAD |
5,089 | 0.00 |
|
Datasheet |
Radial, Disc | BK16 | Bulk | Active | Polymeric | 16V | 12 A | 24 A | 100 A | 7.5 s | 3 mOhms | 9 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.886" L x 0.122" W (22.50mm x 3.10mm) | 1.122" (28.50mm) | - | 0.413" (10.50mm) |
|
PTR016V0500-TRPTC RESET FUSE 16V 5A RADIAL |
5,420 | 0.32 |
|
Datasheet |
Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 5 A | 8.5 A | 100 A | 2 s | 10 mOhms | 34 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.409" L x 0.122" W (10.40mm x 3.10mm) | 0.563" (14.30mm) | - | 0.197" (5.00mm) |
|
|
SMD2920P100TFAPTC RESET FUSE 33V 1.1A 2920 |
9,832 | 0.00 |
|
- |
2920 (7351 Metric), Concave | POLY-FUSE®, SMD2920 | Tape & Reel (TR) | Obsolete | Polymeric | 33V | 1.1 A | 2.2 A | 40 A | 500 ms | 120 mOhms | 410 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.031" (0.78mm) | - |
|
MF-RG1000-APPTC RESET FUSE 16V 10A RADIAL |
6,903 | 0.70 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Tape & Box (TB) | Active | Polymeric | 16V | 10 A | 17 A | 100 A | 6 s | 4 mOhms | 10.2 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.854" (21.70mm) | - | 0.201" (5.10mm) |
|
PTGL09BD3R3N2B51B0PTC RESET FUSE 24V 248MA RADIAL |
3,020 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 24V | 248 mA | 461 mA | 2 A | - | - | - | 3.3 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.374" Dia x 0.157" T (9.50mm x 4.00mm) | 0.610" (15.50mm) | - | 0.197" (5.00mm) |
|
MF-RX012/250-T-0PTC RESET FUSE 60V 120MA RADIAL |
8,391 | 0.38 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/250 | Bulk | Active | Polymeric | 60V (250V Int) | 120 mA | - | 3 A | - | 7 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.201" (5.10mm) |
|
PTGL05AR181M9N52A0PTC RESET FUSE 265V 180OHM 120C |
6,897 | 0.00 |
|
Datasheet |
Radial, Disc | Posistor® | Tape & Box (TB) | Obsolete | Ceramic | - | - | - | - | - | - | - | 18.1 Ohms | - | - | - | - | Through Hole | - | - | - | - |
|
1210L150/12WRPTC RESET FUSE 12V 1.5A 1210 |
7,309 | 0.00 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, 1210L | Tape & Reel (TR) | Obsolete | Polymeric | 12V | 1.5 A | 3 A | 100 A | 300 ms | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.042" (1.07mm) | - |
|
SMD0805P010TSAPTC RESET FUSE 15V 100MA 0805 |
5,857 | 0.00 |
|
- |
0805 (2012 Metric), Concave | POLY-FUSE®, SMD0805 | Tape & Reel (TR) | Obsolete | Polymeric | 15V | 100 mA | 300 mA | 40 A | 1.5 s | 1 Ohms | 6 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.039" (1.00mm) | - |
|
|
SMD0805P020TSAPTC RESET FUSE 9V 200MA 0805 |
5,357 | 0.00 |
|
- |
0805 (2012 Metric), Concave | POLY-FUSE®, SMD0805 | Tape & Reel (TR) | Obsolete | Polymeric | 9V | 200 mA | 500 mA | 40 A | 20 ms | 650 mOhms | 3.5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.039" (1.00mm) | - |
|
|
SMD0805P035TSAPTC RESET FUSE 6V 350MA 0805 |
7,213 | 0.00 |
|
- |
0805 (2012 Metric), Concave | POLY-FUSE®, SMD0805 | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 350 mA | 750 mA | 40 A | 100 ms | 250 mOhms | 1.2 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.024" (0.60mm) | - |
|
|
LTP340PTC RESET FUSE 24V 3.4A STRAP |
9,997 | 0.00 |
|
- |
Strap | PolySwitch®, LTP | Bulk | Obsolete | Polymeric | 24V | 3.4 A | 6.8 A | 100 A | 5 s | 16 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.984" L x 0.604" W (25.00mm x 15.35mm) | - | 0.039" (1.00mm) | - |
|
|
LTP300FPTC RESET FUSE 24V 3A STRAP |
2,346 | 0.00 |
|
- |
Strap | PolySwitch®, LTP | Bulk | Obsolete | Polymeric | 24V | 3 A | 6.3 A | 100 A | 4 s | 15 mOhms | 55 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.185" L x 0.522" W (30.10mm x 13.25mm) | - | 0.043" (1.10mm) | - |
|
|
BBRF550SPTC RESET FUSE 99V 550MA RADIAL |
3,740 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 99V | 550 mA | 1.1 A | 20 A | 60 s | 800 mOhms | 1.95 Ohms | - | - | - | - | - | Through Hole | 0.429" Dia x 0.142" T (10.90mm x 3.60mm) | 0.567" (14.40mm) | - | 0.200" (5.08mm) |
|

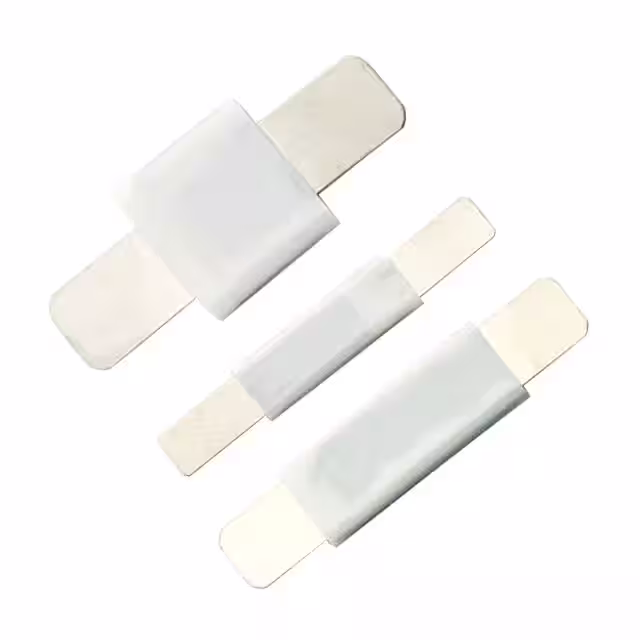

VLP270DFPTC RESET FUSE 16V 2.7A STRAP |
9,661 | 0.00 |
|
- |
Strap | PolySwitch®, VLP | Bulk | Discontinued at Digi-Key | Polymeric | 16V | 2.7 A | 6.5 A | 60 A | 5 s | 12 mOhms | 36 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.866" L x 0.201" W (22.00mm x 5.10mm) | - | 0.032" (0.80mm) | - |
