PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTR016V0700-TRPTC RESET FUSE 16V 7A RADIAL |
2,885 | 0.34 |
|
Datasheet |
Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 7 A | 11.9 A | 100 A | 3.5 s | 6 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.441" L x 0.122" W (11.20mm x 3.10mm) | 0.776" (19.70mm) | - | 0.197" (5.00mm) |
|
PTGL09AR150M3B51B0PTC RESET FUSE 56V 190MA RADIAL |
9,306 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 56V | 190 mA | 340 mA | 1.2 A | - | - | - | 15 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.374" Dia x 0.157" T (9.50mm x 4.00mm) | 0.610" (15.50mm) | - | 0.197" (5.00mm) |
|
SMD2920P200TFAPTC RESET FUSE 15V 2A 2920 |
3,875 | 0.00 |
|
- |
2920 (7351 Metric), Concave | POLY-FUSE®, SMD2920 | Tape & Reel (TR) | Obsolete | Polymeric | 15V | 2 A | 4 A | 40 A | 5 s | 50 mOhms | 125 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.039" (1.00mm) | - |
|
|
SMD2920P185TFAPTC RESET FUSE 33V 1.85A 2920 |
5,455 | 0.00 |
|
- |
2920 (7351 Metric), Concave | POLY-FUSE®, SMD2920 | Tape & Reel (TR) | Obsolete | Polymeric | 33V | 1.85 A | 3.7 A | 40 A | 2.5 s | 65 mOhms | 150 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.039" (1.00mm) | - |
|
PTR030V0185-TR1PTC RESET FUSE 30V 1.85A RADIAL |
5,653 | 0.34 |
|
Datasheet |
Radial, Disc | PTR030V | Tape & Reel (TR) | Active | Polymeric | 30V | 1.85 A | 3.7 A | 40 A | 8.7 s | 30 mOhms | 90 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.402" L x 0.118" W (10.20mm x 3.00mm) | 0.618" (15.70mm) | - | 0.197" (5.00mm) |
|
|
PTR030V0160-TR1PTC RESET FUSE 30V 1.6A RADIAL |
9,901 | 0.35 |
|
Datasheet |
Radial, Disc | PTR030V | Tape & Reel (TR) | Active | Polymeric | 30V | 1.6 A | 3.2 A | 40 A | 8 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.598" (15.20mm) | - | 0.197" (5.00mm) |
|
PTR060V0135-TR1PTC RESET FUSE 60V 1.35A RADIAL |
6,544 | 0.35 |
|
Datasheet |
Radial, Disc | PTR060V | Tape & Reel (TR) | Active | Polymeric | 60V | 1.35 A | 2.7 A | 40 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.571" Dia x 0.118" T (14.50mm x 3.00mm) | 0.772" (19.60mm) | - | 0.197" (5.00mm) |
|

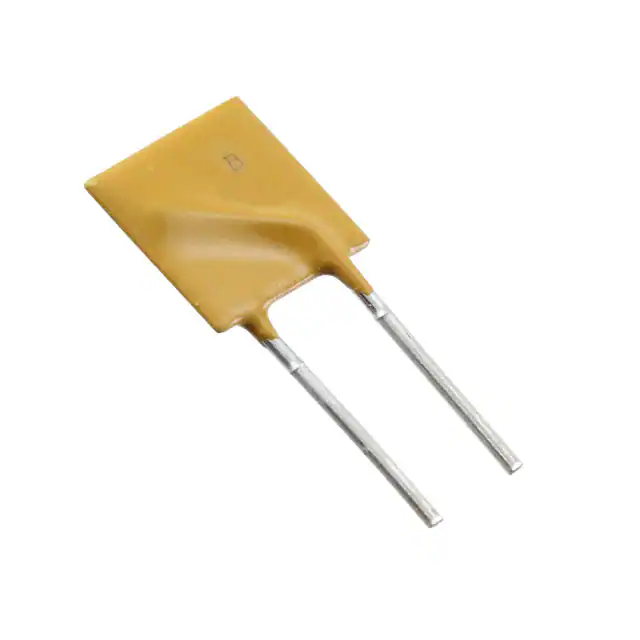

MF-RG500-APPTC RESET FUSE 16V 5A RADIAL |
9,020 | 0.41 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Tape & Box (TB) | Active | Polymeric | 16V | 5 A | 8.5 A | 100 A | 2 s | 15 mOhms | 34 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.409" L x 0.118" W (10.40mm x 3.00mm) | 0.563" (14.30mm) | - | 0.201" (5.10mm) |
|
|
MF-R700-APPTC RESET FUSE 30V 7A RADIAL |
7,465 | 0.41 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Box (TB) | Active | Polymeric | 30V | 7 A | 14 A | 40 A | 17.5 s | 5 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.870" L x 0.118" W (22.10mm x 3.00mm) | 1.173" (29.80mm) | - | 0.402" (10.20mm) |
|
MF-RG600-APPTC RESET FUSE 16V 6A RADIAL |
8,269 | 0.41 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Tape & Box (TB) | Active | Polymeric | 16V | 6 A | 10.2 A | 100 A | 3.3 s | 10 mOhms | 28 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.421" L x 0.118" W (10.70mm x 3.00mm) | 0.673" (17.10mm) | - | 0.201" (5.10mm) |
|
|
MF-R600-0-14PTC RESETTABLE 6.0A 30V RADIAL L |
8,951 | 0.41 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 30V | 6 A | 12 A | 40 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.760" L x 0.118" W (19.30mm x 3.00mm) | 1.256" (31.90mm) | - | 0.402" (10.20mm) |
|
|
MF-R500-AP-14PTC RESETTABLE 5.0A 30V RADIAL L |
9,948 | 0.41 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Box (TB) | Active | Polymeric | 30V | 5 A | 10 A | 40 A | 14.5 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.685" L x 0.118" W (17.40mm x 3.00mm) | 0.980" (24.90mm) | - | 0.402" (10.20mm) |
|
|
MF-RHT650-0-14PTC 6.5A 16V RADIAL LEADED HI-TE |
4,887 | 0.41 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Bulk | Active | Polymeric | 16V | 6.5 A | 12 A | 100 A | 5.5 s | 11 mOhms | 26 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.874" (22.20mm) | - | 0.201" (5.10mm) |
|
|
MF-RG300-0-14PTC RESETTABLE 3.0A 16V RADIAL L |
8,591 | 0.41 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Bulk | Active | Polymeric | 16V | 3 A | 5.1 A | 100 A | 1 s | 38 mOhms | 97.5 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.280" L x 0.118" W (7.10mm x 3.00mm) | 0.433" (11.00mm) | - | 0.201" (5.10mm) |
|
|
MF-R500-2-14PTC RESETTABLE 5.0A 30V RADIAL L |
2,293 | 0.41 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 30V | 5 A | 10 A | 40 A | 14.5 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.685" L x 0.118" W (17.40mm x 3.00mm) | 0.980" (24.90mm) | - | 0.402" (10.20mm) |
|
|
MF-RHT600-0-14PTC 6.0A 16V RADIAL LEADED HI-TE |
7,694 | 0.41 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Bulk | Active | Polymeric | 16V | 6 A | 10.8 A | 100 A | 5 s | 13 mOhms | 32 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.827" (21.00mm) | - | 0.201" (5.10mm) |
|

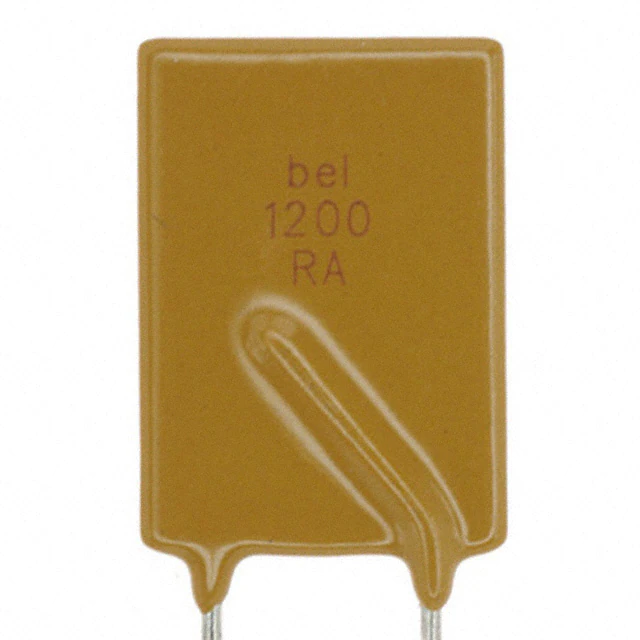

0ZRA1200FF1APTC RESET FUSE 16V 12A RADIAL |
5,590 | 0.36 |
|
Datasheet |
Radial, Disc | 0ZRA | Box | Active | Polymeric | 16V | 12 A | 20.4 A | 100 A | 16 s | 2 mOhms | 9 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.689" L x 0.142" W (17.50mm x 3.60mm) | 1.102" (28.00mm) | - | 0.402" (10.20mm) |
|

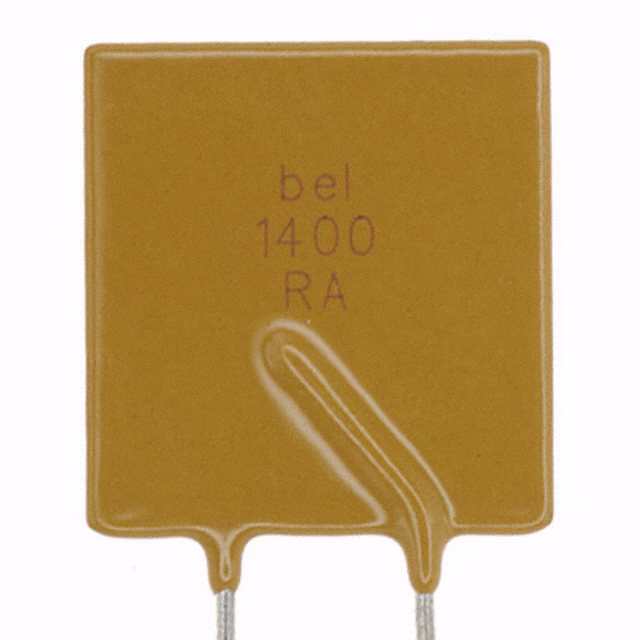

0ZRA1400FF1APTC RESET FUSE 16V 14A RADIAL |
2,871 | 0.38 |
|
Datasheet |
Radial, Disc | 0ZRA | Box | Active | Polymeric | 16V | 14 A | 23.8 A | 100 A | 20 s | 2 mOhms | 8 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 1.098" L x 0.142" W (27.90mm x 3.60mm) | 1.098" (27.90mm) | - | 0.402" (10.20mm) |
|
PTGL7SAS3R3K3B51A0PTC RESET FUSE 51V 389MA RADIAL |
3,583 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 51V | 389 mA | 517 mA | 3 A | - | - | - | 3.3 Ohms | -30°C ~ 125°C | - | - | - | Through Hole | 0.287" Dia x 0.138" T (7.30mm x 3.50mm) | 0.484" (12.30mm) | - | 0.197" (5.00mm) |
|
|
BK30-800-SZPTC RESET FUSE 30V 8A RAD |
7,304 | 0.29 |
|
Datasheet |
Radial, Disc | BK30 | Bulk | Active | Polymeric | 30V | 8 A | 16 A | 40 A | 18.8 s | 5 mOhms | 25 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.925" L x 0.122" W (23.50mm x 3.10mm) | 1.220" (31.00mm) | - | 0.413" (10.50mm) |
