PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

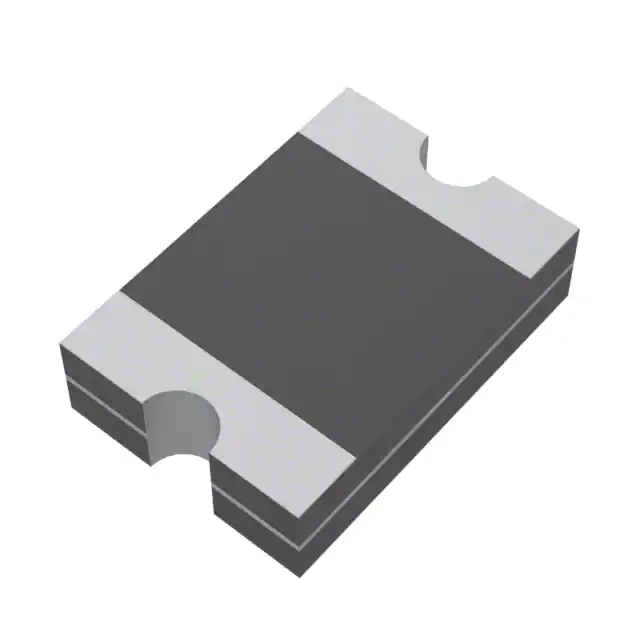

SMD1210B075TF/24PTC RESET FUSE 24V 750MA 1210 |
6,594 | 0.13 |
|
Datasheet |
1210 (3225 Metric), Concave | SMD1210 | Tape & Reel (TR) | Active | Polymeric | 24V | 750 mA | 1.5 A | 100 A | 100 ms | 70 mOhms | 400 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.071" (1.80mm) | - |
|
|
SMD1210B020TFPTC RESET FUSE 30V 200MA 1210 |
5,785 | 0.13 |
|
Datasheet |
1210 (3225 Metric), Concave | SMD1210 | Tape & Reel (TR) | Active | Polymeric | 30V | 200 mA | 400 mA | 10 A | 20 ms | 800 mOhms | 5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.039" (1.00mm) | - |
|
|
SMD1210B005TFPTC RESET FUSE 30V 50MA 1210 |
5,306 | 0.13 |
|
Datasheet |
1210 (3225 Metric), Concave | SMD1210 | Tape & Reel (TR) | Active | Polymeric | 30V | 50 mA | 150 mA | 10 A | 1.5 s | 3.6 Ohms | 50 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.049" (1.25mm) | - |
|
SMD0805B010TFPTC RESET FUSE 15V 100MA 0805 |
4,008 | 0.00 |
|
Datasheet |
0805 (2012 Metric), Concave | SMD0805 | Tape & Reel (TR) | Active | Polymeric | 15V | 100 mA | 300 mA | 100 A | 1.5 s | 1 Ohms | 6 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.039" (0.98mm) | - |
|
SMD0805B050TFPTC RESET FUSE 6V 500MA 0805 |
3,693 | 0.12 |
|
Datasheet |
0805 (2012 Metric), Concave | SMD0805 | Tape & Reel (TR) | Active | Polymeric | 6V | 500 mA | 1 A | 100 A | 100 ms | 150 mOhms | 850 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.049" (1.25mm) | - |
|
|
SMD0805B110TFPTC RESET FUSE 6V 1.1A 0805 |
2,998 | 0.12 |
|
Datasheet |
0805 (2012 Metric), Concave | SMD0805 | Tape & Reel (TR) | Active | Polymeric | 6V | 1.1 A | 2 A | 100 A | 300 ms | 35 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.059" (1.50mm) | - |
|
|
SMD1210B110TF/12PTC RESET FUSE 12V 1.1A 1210 |
2,532 | 0.13 |
|
Datasheet |
1210 (3225 Metric), Concave | SMD1210 | Tape & Reel (TR) | Active | Polymeric | 12V | 1.1 A | 2.2 A | 100 A | 300 ms | 50 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.049" (1.25mm) | - |
|
|
SMD0805B100TFTPTC RESET FUSE 6V 1A 0805 |
1,389 | 0.05 |
|
Datasheet |
0805 (2012 Metric), Concave | SMD0805 | Tape & Reel (TR) | Active | Polymeric | 6V | 1 A | 1.95 A | 40 A | 300 ms | 40 mOhms | 230 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.059" (1.50mm) | - |
|
|
SMD1210B150TF/16PTC RESET FUSE 16V 1.5A 1210 |
1,111 | 0.05 |
|
Datasheet |
1210 (3225 Metric), Concave | SMD1210 | Tape & Reel (TR) | Active | Polymeric | 16V | 1.5 A | 3 A | 100 A | 300 ms | 30 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.071" (1.80mm) | - |
.JPG)
|
MF-NSMF035-2PTC RESET FUSE 6V 350MA 1206 |
24,606 | 0.36 |
|
Datasheet |
1206 (3216 Metric), Concave | Multifuse®, MF-NSMF | Tape & Reel (TR) | Active | Polymeric | 6V | 350 mA | 750 mA | 100 A | 100 ms | 300 mOhms | 1.2 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.033" (0.85mm) | - |
|
PTS120630V016PTC RESET FUSE 30V 160MA 1206 |
1,553 | 0.14 |
|
Datasheet |
1206 (3216 Metric), Concave | PTS1206 | Tape & Reel (TR) | Active | Polymeric | 30V | 160 mA | 370 mA | 100 A | 300 ms | 1.1 Ohms | 4.5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.027" (0.68mm) | - |
.JPG)
|
PRG15BC180MM1RCPTC RESET FUSE 24V 47MA 0402 |
28,387 | 0.26 |
|
Datasheet |
0402 (1005 Metric) | POSISTOR®, PRG | Tape & Reel (TR) | Active | Ceramic | 24V | 47 mA | 98 mA | 1.2 A | - | - | - | 18 Ohms | -20°C ~ 85°C | - | - | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.043" (1.10mm) | - |
|
|
PTS120630V012PTC RESET FUSE 30V 120MA 1206 |
27,728 | 0.14 |
|
Datasheet |
1206 (3216 Metric), Concave | PTS1206 | Tape & Reel (TR) | Active | Polymeric | 30V | 120 mA | 290 mA | 100 A | 200 ms | 1.4 Ohms | 6 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.035" (0.90mm) | - |
|
|
PTS120616V025PTC RESET FUSE 16V 250MA 1206 |
15,172 | 0.14 |
|
Datasheet |
1206 (3216 Metric), Concave | PTS1206 | Tape & Reel (TR) | Active | Polymeric | 16V | 250 mA | 500 mA | 100 A | 80 ms | 550 mOhms | 2.3 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.027" (0.68mm) | - |
|
PTS181230V020PTC RESET FUSE 30V 200MA 1812 |
12,968 | 0.14 |
|
Datasheet |
1812 (4532 Metric), Concave | PTS1812 | Tape & Reel (TR) | Active | Polymeric | 30V | 200 mA | 400 mA | 100 A | 20 ms | 800 mOhms | 5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.035" (0.90mm) | - |
|
|
PTS120616V035PTC RESET FUSE 16V 350MA 1206 |
11,249 | 0.14 |
|
Datasheet |
1206 (3216 Metric), Concave | PTS1206 | Tape & Reel (TR) | Active | Polymeric | 16V | 350 mA | 750 mA | 100 A | 100 ms | 250 mOhms | 1.2 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.027" (0.68mm) | - |
|
|
PTS120624V020PTC RESET FUSE 24V 200MA 1206 |
10,133 | 0.14 |
|
Datasheet |
1206 (3216 Metric), Concave | PTS1206 | Tape & Reel (TR) | Active | Polymeric | 24V | 200 mA | 420 mA | 100 A | 100 ms | 650 mOhms | 2.6 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.027" (0.68mm) | - |
|
PTS181260V014PTC RESET FUSE 60V 140MA 1812 |
8,601 | 0.14 |
|
Datasheet |
1812 (4532 Metric), Concave | PTS1812 | Tape & Reel (TR) | Active | Polymeric | 60V | 140 mA | 340 mA | 10 A | 200 ms | 1.5 Ohms | 6 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.035" (0.90mm) | - |
|
|
PTS12066V050PTC RESET FUSE 6V 500MA 1206 |
7,302 | 0.14 |
|
Datasheet |
1206 (3216 Metric), Concave | PTS1206 | Tape & Reel (TR) | Active | Polymeric | 6V | 500 mA | 1 A | 100 A | 100 ms | 150 mOhms | 700 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.027" (0.68mm) | - |
|
|
PTS181230V010PTC RESET FUSE 30V 100MA 1812 |
5,588 | 0.14 |
|
Datasheet |
1812 (4532 Metric), Concave | PTS1812 | Tape & Reel (TR) | Active | Polymeric | 30V | 100 mA | 300 mA | 100 A | 1.5 s | 1.6 Ohms | 15 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.035" (0.90mm) | - |
