PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMD0603B050TFPTC RESET FUSE 6V 500MA 0603 |
22,165 | 0.20 |
|
Datasheet |
0603 (1608 Metric), Concave | SMD0603 | Tape & Reel (TR) | Active | Polymeric | 6V | 500 mA | 1 A | 40 A | 100 ms | 100 mOhms | 680 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.061" (1.55mm) | - |
|
|
SMD0603B025TFPTC RESET FUSE 9V 250MA 0603 |
19,809 | 0.20 |
|
Datasheet |
0603 (1608 Metric), Concave | SMD0603 | Tape & Reel (TR) | Active | Polymeric | 9V | 250 mA | 550 mA | 40 A | 80 ms | 500 mOhms | 3 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.039" (1.00mm) | - |
|
0ZCM0016FF2GPTC RESET FUSE 9V 160MA 0603 |
13,776 | 0.19 |
|
Datasheet |
0603 (1608 Metric), Concave | 0ZCM | Tape & Reel (TR) | Active | Polymeric | 9V | 160 mA | 400 mA | 40 A | 100 ms | 1 Ohms | 4.2 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.029" W (1.60mm x 0.73mm) | - | 0.030" (0.75mm) | - |
|

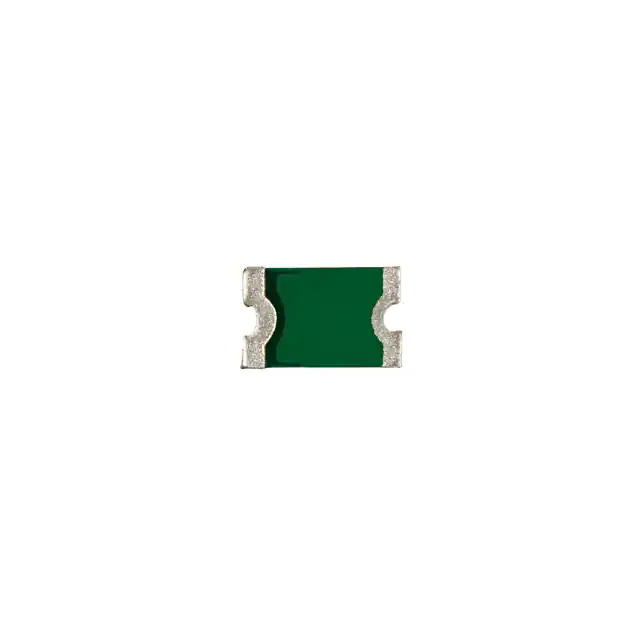

PTS060315V004PTC RESET FUSE 40MA 15V 0603 |
5,982 | 0.18 |
|
Datasheet |
0603 (1608 Metric), Concave | PTS0603 | Tape & Reel (TR) | Active | - | 15V | 40 mA | 120 mA | 1 A | 1 s | 1.5 Ohms | 40 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.065" L x 0.031" W (1.65mm x 0.80mm) | - | 0.031" (0.80mm) | - |
|

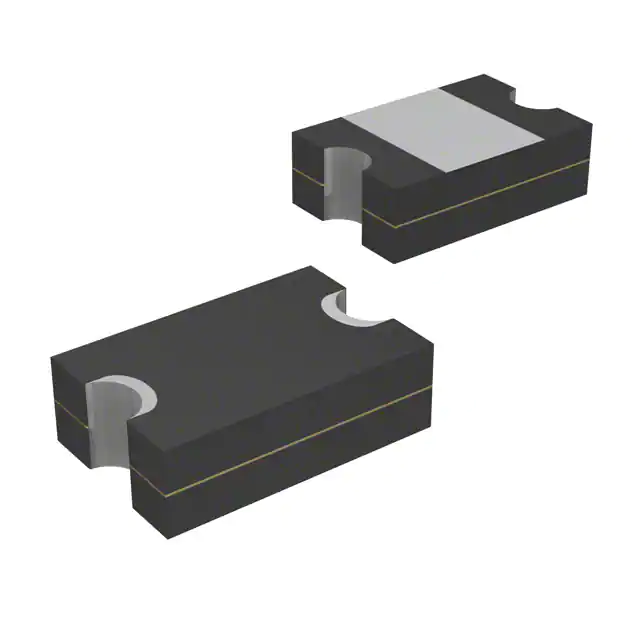

MF-PSHT035KX-2PTC RESET FUSE 16V 350MA 0805 |
3,000 | 1.07 |
|
Datasheet |
0805 (2012 Metric), Concave | Multifuse®, MF-PSHT | Tape & Reel (TR) | Active | Polymeric | 16V | 350 mA | 1.75 A | 40 A | 100 ms | 250 mOhms | 3 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.047" (1.20mm) | - |
|
|
MF-PSHT010KX-2PTC RESET FUSE 16V 100MA 0805 |
2,972 | 1.07 |
|
Datasheet |
0805 (2012 Metric), Concave | Multifuse®, MF-PSHT | Tape & Reel (TR) | Active | Polymeric | 16V | 100 mA | 500 mA | 40 A | 1.5 s | 1 Ohms | 7.5 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.031" (0.80mm) | - |
|
SMD1812B200TF/16PTC RESET FUSE 16V 2A 1812 |
1,931 | 0.19 |
|
Datasheet |
1812 (4532 Metric), Concave | SMD1812 | Tape & Reel (TR) | Active | Polymeric | 16V | 2 A | 3.5 A | 100 A | 2 s | 20 mOhms | 75 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | 0.039" (1.00mm) | 0.079" (2.00mm) | - |
|
|
PTS060315V010PTC RESET FUSE 100MA 15V 0603 |
1,710 | 0.18 |
|
Datasheet |
0603 (1608 Metric), Concave | PTS0603 | Tape & Reel (TR) | Active | - | 15V | 100 mA | 250 mA | 3 A | 1 s | 500 mOhms | 6 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.065" L x 0.031" W (1.65mm x 0.80mm) | - | 0.031" (0.80mm) | - |
,-Concave.jpg)
|
0ZCG0110AF2CPTC RESET FUSE 16V 1.1A 1812 |
54,603 | 0.20 |
|
Datasheet |
1812 (4532 Metric), Concave | 0ZCG | Tape & Reel (TR) | Active | Polymeric | 16V | 1.1 A | 2.2 A | 100 A | 500 ms | 40 mOhms | 180 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.035" (0.90mm) | - |
|
|
0ZCG0150FF2CPTC RESET FUSE 8V 1.5A 1812 |
13,382 | 0.20 |
|
Datasheet |
1812 (4532 Metric), Concave | 0ZCG | Tape & Reel (TR) | Active | Polymeric | 8V | 1.5 A | 3 A | 100 A | 500 ms | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.022" (0.55mm) | - |
|
MF-MSMF260-2PTC RESET FUSE 6V 2.6A 1812 |
13,376 | 0.61 |
|
Datasheet |
1812 (4532 Metric), Concave | Multifuse®, MF-MSMF | Tape & Reel (TR) | Active | Polymeric | 6V | 2.6 A | 5.2 A | 100 A | 5 s | 15 mOhms | 80 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.033" (0.85mm) | - |
|
PTS120615V050PTC RESET FUSE 15V 500MA 1206 |
6,080 | 0.20 |
|
Datasheet |
1206 (3216 Metric), Concave | PTS1206 | Tape & Reel (TR) | Active | Polymeric | 15V | 500 mA | 1 A | 100 A | 100 ms | 150 mOhms | 700 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.042" (1.06mm) | - |
|
|
MF-MSMF150-2PTC RESET FUSE 6V 1.5A 1812 |
5,475 | 0.61 |
|
Datasheet |
1812 (4532 Metric), Concave | Multifuse®, MF-MSMF | Tape & Reel (TR) | Active | Polymeric | 6V | 1.5 A | 3 A | 100 A | 500 ms | 30 mOhms | 120 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.033" (0.85mm) | - |
|
|
MF-MSMF200-2PTC RESET FUSE 8V 2A 1812 |
25,917 | 0.61 |
|
Datasheet |
1812 (4532 Metric), Concave | Multifuse®, MF-MSMF | Tape & Reel (TR) | Active | Polymeric | 8V | 2 A | 4 A | 40 A | 3 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.033" (0.85mm) | - |
|
|
PTS12066V100PTC RESET FUSE 6V 1A 1206 |
10,999 | 0.20 |
|
Datasheet |
1206 (3216 Metric), Concave | PTS1206 | Tape & Reel (TR) | Active | Polymeric | 6V | 1 A | 1.8 A | 100 A | 100 ms | 60 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.035" (0.88mm) | - |
|
|
PTS06036V035PTC RESET FUSE 350MA 6V 0603 |
4,025 | 0.21 |
|
Datasheet |
0603 (1608 Metric), Concave | PTS0603 | Tape & Reel (TR) | Active | - | 6V | 350 mA | 750 mA | 8 A | 100 ms | 90 mOhms | 1.5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.065" L x 0.035" W (1.60mm x 0.90mm) | - | 0.031" (0.80mm) | - |
|

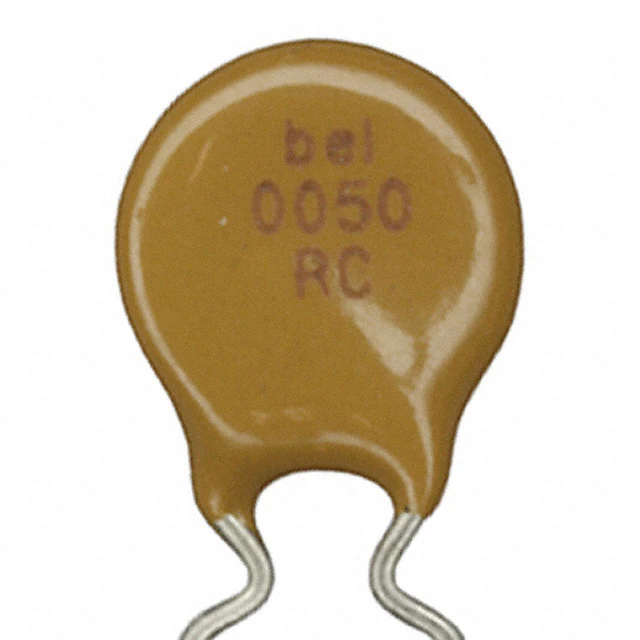

0ZRC0050FF1EPTC RESET FUSE 90V 500MA RADIAL |
93,195 | 0.31 |
|
Datasheet |
Radial, Disc | 0ZRC | Box | Active | Polymeric | 90V | 500 mA | 1 A | 40 A | 4 s | 500 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.311" L x 0.122" W (7.90mm x 3.10mm) | - | - | 0.201" (5.10mm) |
|
0ZRB0090FF1CPTC RESET FUSE 30V 900MA RADIAL |
25,362 | 0.30 |
|
Datasheet |
Radial, Disc | 0ZRB | Box | Active | Polymeric | 30V | 900 mA | 1.8 A | 40 A | 5.9 s | 70 mOhms | 220 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.480" (12.20mm) | - | 0.201" (5.10mm) |
|
|
0ZCG0200FF2CPTC RESET FUSE 8V 2A 1812 |
60,955 | 0.23 |
|
Datasheet |
1812 (4532 Metric), Concave | 0ZCG | Tape & Reel (TR) | Active | Polymeric | 8V | 2 A | 3.5 A | 100 A | 2 s | 20 mOhms | 70 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.047" (1.20mm) | - |
|
|
0ZCG0160BF2CPTC RESET FUSE 16V 1.6A 1812 |
35,580 | 0.23 |
|
Datasheet |
1812 (4532 Metric), Concave | 0ZCG | Tape & Reel (TR) | Active | Polymeric | 16V | 1.6 A | 3.2 A | 100 A | 1 s | 30 mOhms | 100 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.053" (1.35mm) | - |
