PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AHS080-2018-2PTC RESET FUSE 16V 800MA 2SMD |
23,714 | 0.79 |
|
Datasheet |
2-SMD | PolySwitch®, AHS | Tape & Reel (TR) | Active | Polymeric | 16V | 800 mA | 2 A | 70 A | 9 s | 130 mOhms | 550 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.200" L x 0.180" W (5.08mm x 4.58mm) | - | 0.060" (1.52mm) | - |
|

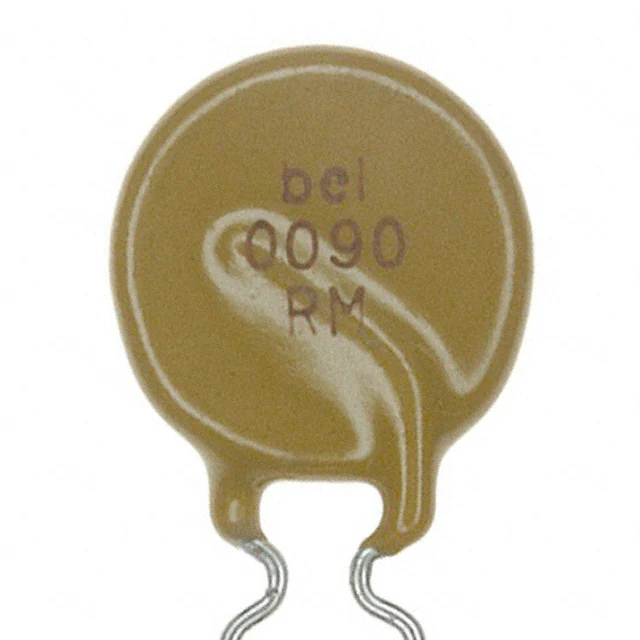

0ZRM0090FF1EPTC RESET FUSE 120V 900MA RADIAL |
9,429 | 0.74 |
|
Datasheet |
Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 900 mA | 1.8 A | 5 A | 7.2 s | 200 mOhms | 470 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.469" Dia x 0.150" T (11.90mm x 3.80mm) | 0.626" (15.90mm) | - | 0.201" (5.10mm) |
|
MF-NSHT016KX-2PTC RESET FUSE 30V 160MA 1206 |
9,387 | 1.00 |
|
Datasheet |
1206 (3216 Metric), Concave | Multifuse®, MF-NSHT | Tape & Reel (TR) | Active | Polymeric | 30V | 160 mA | 800 mA | 20 A | 100 ms | 700 mOhms | 6 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.033" (0.85mm) | - |
|
|
MF-NSHT050KX-2PTC RESET FUSE 16V 500MA 1206 |
8,302 | 1.00 |
|
Datasheet |
1206 (3216 Metric), Concave | Multifuse®, MF-NSHT | Tape & Reel (TR) | Active | Polymeric | 16V | 500 mA | 2.5 A | 20 A | 100 ms | 170 mOhms | 1.6 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.047" (1.20mm) | - |
|
RUSBF110-2PTC RESET FUSE 16V 1.1A RADIAL |
4,920 | 0.61 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUSBF | Tape & Reel (TR) | Active | Polymeric | 16V | 1.1 A | 2.2 A | 40 A | 2.3 s | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.559" (14.20mm) | - | 0.199" (5.05mm) |
|
RKEF185PTC RESET FUSE 60V 1.85A RADIAL |
23,820 | 0.64 |
|
Datasheet |
Radial, Disc | PolySwitch®, RKEF | Bag | Active | Polymeric | 60V | 1.85 A | 3.7 A | 40 A | 12.6 s | 60 mOhms | 250 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.512" L x 0.150" W (13.00mm x 3.81mm) | 0.740" (18.80mm) | - | 0.200" (5.08mm) |
|

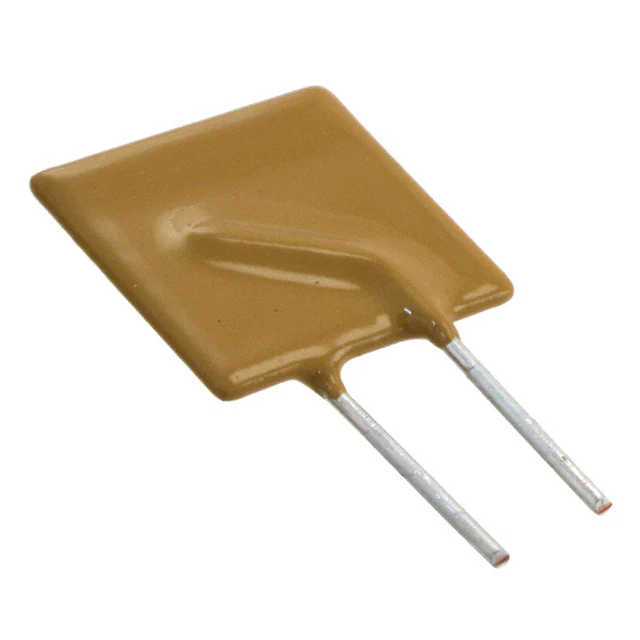

MF-RX185/72-0PTC RESET FUSE 72V 1.85A RADIAL |
18,727 | 0.51 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/72 | Bulk | Active | Polymeric | 72V | 1.85 A | 3.7 A | 40 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.701" L x 0.122" W (17.80mm x 3.10mm) | 0.902" (22.90mm) | - | 0.201" (5.10mm) |
|
MICROASMD005F-2PTC RESET FUSE 30V 50MA 1210 |
11,911 | 0.57 |
|
Datasheet |
1210 (3225 Metric), Concave | PolySwitch®, microASMD | Tape & Reel (TR) | Active | Polymeric | 30V | 50 mA | 150 mA | 10 A | 1.5 s | 3.6 Ohms | 50 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.026" (0.67mm) | - |
|

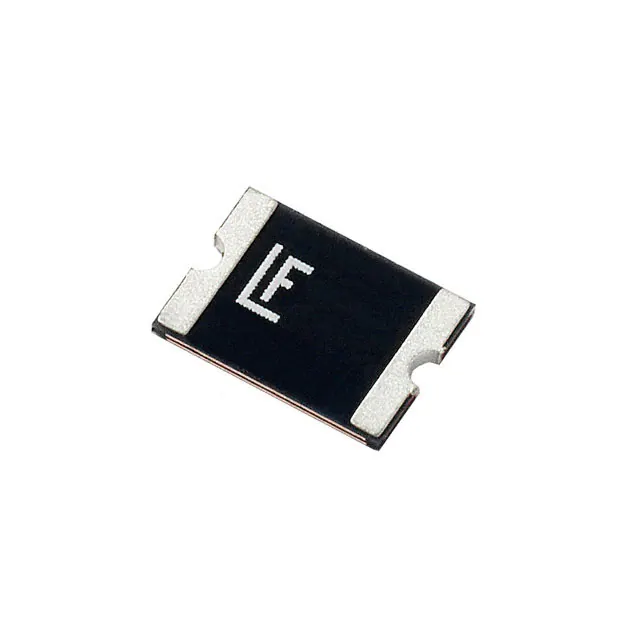

1812L260THDRPTC RESET FUSE 8V 2.6A 1812 |
7,610 | 0.56 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Active | Polymeric | 8V | 2.6 A | 5.2 A | 100 A | 2.5 s | 15 mOhms | 47 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.039" (1.00mm) | - |
;RA.JPG)
|
PRG21BC2R2MM1RAPTC RESET FUSE 16V 220MA 0805 |
2,500 | 0.89 |
|
Datasheet |
0805 (2012 Metric) | POSISTOR®, PRG | Tape & Reel (TR) | Active | Ceramic | 16V | 220 mA | 500 mA | 9 A | - | - | - | 2.2 Ohms | -20°C ~ 85°C | - | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.043" (1.10mm) | - |
;RK.JPG)
|
PRG21BB220MB1RKPTC RESET FUSE 20V 44MA 0805 |
26,767 | 1.04 |
|
Datasheet |
0805 (2012 Metric) | POSISTOR®, PRG | Tape & Reel (TR) | Active | Ceramic | 20V | 44 mA | 91 mA | 1.1 A | - | - | - | 22 Ohms | -20°C ~ 60°C | - | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - |
|
|
PRG21BC1R0MM1RAPTC RESET FUSE 12V 330MA 0805 |
24,850 | 0.91 |
|
Datasheet |
0805 (2012 Metric) | POSISTOR®, PRG | Tape & Reel (TR) | Active | Ceramic | 12V | 330 mA | 740 mA | 10 A | - | - | - | 1 Ohms | -20°C ~ 85°C | - | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.043" (1.10mm) | - |
|

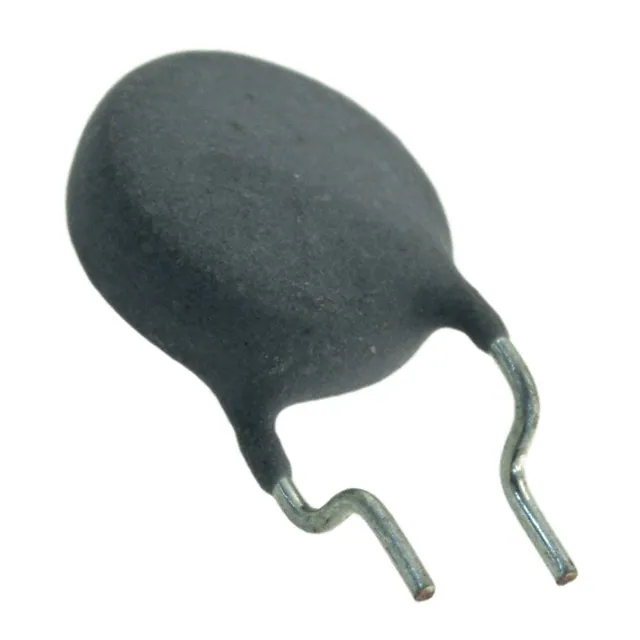

CMF-RL35-0PTC RESET FUSE 220V 75MA RADIAL |
13,013 | 0.66 |
|
Datasheet |
Radial, Disc | CMF-RL | Bulk | Active | Ceramic | 230V (600V Int) | 80 mA | 220 mA | 3 A | 150 ms | - | - | 35 Ohms | -40°C ~ 125°C | - | - | - | Through Hole | 0.386" L x 0.197" W (9.80mm x 5.00mm) | 0.532" (13.50mm) | - | 0.200" (5.08mm) |
|
RXEF160-2PTC RESET FUSE 72V 1.6A RADIAL |
4,444 | 0.63 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Tape & Reel (TR) | Active | Polymeric | 72V | 1.6 A | 3.2 A | 40 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.642" Dia x 0.118" T (16.30mm x 3.00mm) | 0.819" (20.80mm) | - | 0.200" (5.08mm) |
|
RXEF090-2PTC RESET FUSE 72V 900MA RADIAL |
4,265 | 0.57 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Tape & Reel (TR) | Active | Polymeric | 72V | 900 mA | 1.8 A | 40 A | 7.2 s | 200 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.441" Dia x 0.118" T (11.20mm x 3.00mm) | 0.622" (15.80mm) | - | 0.199" (5.05mm) |
|
SMD150F/33-2920-2PTC RESET FUSE 33V 1.5A 2SMD |
3,902 | 0.63 |
|
Datasheet |
2-SMD | PolySwitch®, SMD | Tape & Reel (TR) | Active | Polymeric | 33V | 1.5 A | 3 A | 40 A | 5 s | 80 mOhms | - | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.289" L x 0.202" W (7.35mm x 5.12mm) | - | 0.118" (3.00mm) | - |
|
|
1812L200THPRPTC RESET FUSE 8V 2A 1812 |
3,354 | 0.56 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Active | Polymeric | 8V | 2 A | 3.5 A | 100 A | 2 s | 20 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.024" (0.60mm) | - |
|
|
RKEF160PTC RESET FUSE 60V 1.6A RADIAL |
2,246 | 0.63 |
|
Datasheet |
Radial, Disc | PolySwitch®, RKEF | Bag | Active | Polymeric | 60V | 1.6 A | 3.2 A | 40 A | 9 s | 100 mOhms | 320 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.480" L x 0.150" W (12.20mm x 3.81mm) | 0.720" (18.30mm) | - | 0.200" (5.08mm) |
|
1206L005/30WRPTC RESET FUSE 60V 50MA 1206 |
2,124 | 0.57 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, 1206L | Tape & Reel (TR) | Active | Polymeric | 30V | 50 mA | 150 mA | 10 A | 1.5 s | 3.6 Ohms | 20 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | - | - |
|

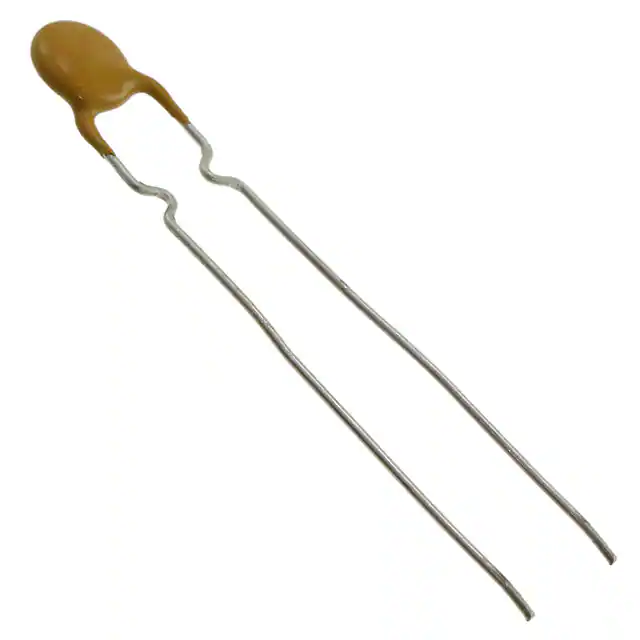

RHEF050PTC RESET FUSE 30V 500MA RADIAL |
2,000 | 0.63 |
|
Datasheet |
Radial, Disc | PolySwitch®, RHEF | Bag | Active | Polymeric | 30V | 500 mA | 920 mA | 40 A | 2.5 s | 480 mOhms | 1.1 Ohms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.199" (5.05mm) |
