PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF-R075PTC RESET FUSE 60V 750MA RADIAL |
6,773 | 0.64 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 60V | 750 mA | 1.5 A | 40 A | 6.3 s | 180 mOhms | 600 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.409" Dia x 0.122" T (10.40mm x 3.10mm) | 0.630" (16.00mm) | - | 0.201" (5.10mm) |
|

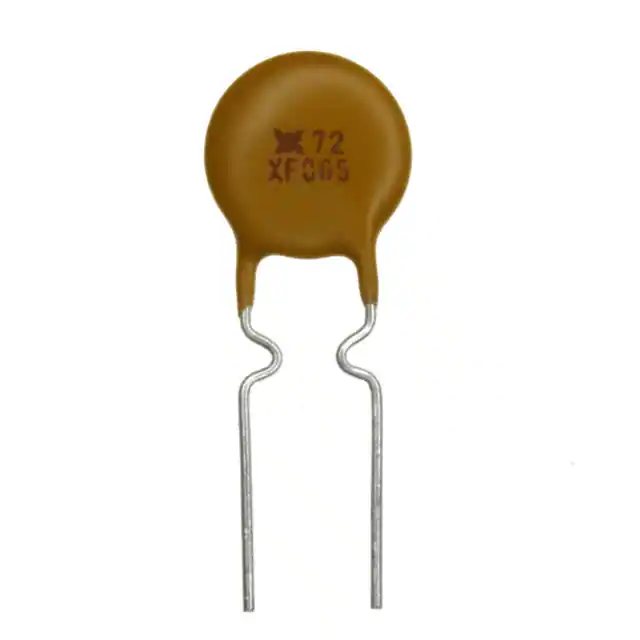

RXEF065PTC RESET FUSE 72V 650MA RADIAL |
5,476 | 0.49 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Bag | Active | Polymeric | 72V | 650 mA | 1.3 A | 40 A | 5.3 s | 310 mOhms | 720 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.370" Dia x 0.118" T (9.40mm x 3.00mm) | 0.571" (14.50mm) | - | 0.199" (5.05mm) |
|

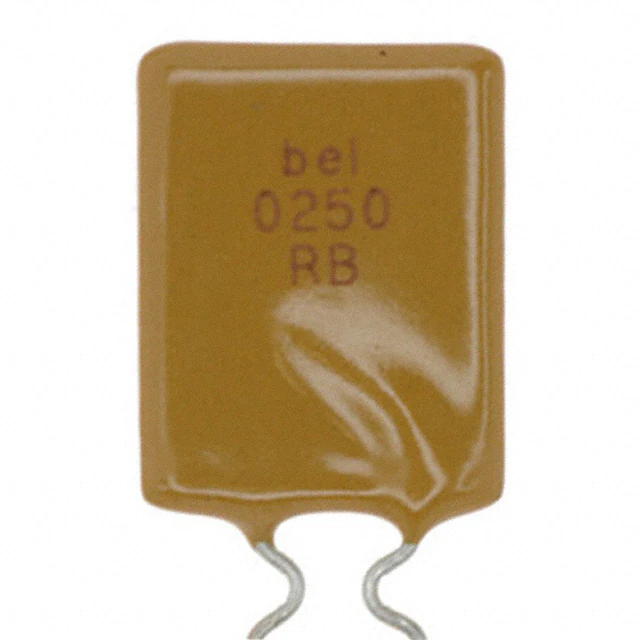

0ZRB0250FF1EPTC RESET FUSE 30V 2.5A RADIAL |
5,057 | 0.41 |
|
Datasheet |
Radial, Disc | 0ZRB | Box | Active | Polymeric | 30V | 2.5 A | 5 A | 40 A | 10.3 s | 20 mOhms | 70 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
|
RKEF050PTC RESET FUSE 60V 500MA RADIAL |
4,404 | 0.50 |
|
Datasheet |
Radial, Disc | PolySwitch®, RKEF | Bag | Active | Polymeric | 60V | 500 mA | 1 A | 40 A | 800 ms | 320 mOhms | 900 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.280" L x 0.140" W (7.10mm x 3.56mm) | 0.450" (11.43mm) | - | 0.199" (5.05mm) |
|
RUEF160PTC RESET FUSE 30V 1.6A RADIAL |
1,550 | 0.50 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Bag | Active | Polymeric | 30V | 1.6 A | 3.2 A | 100 A | 8 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.598" (15.20mm) | - | 0.199" (5.05mm) |
|

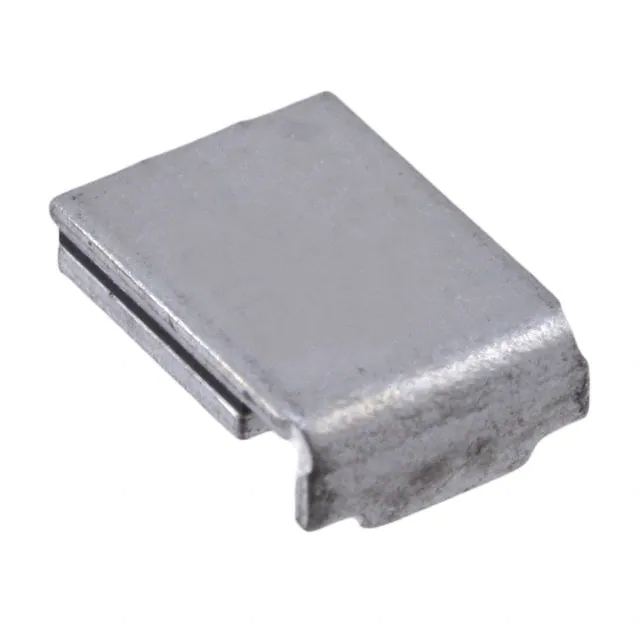

MF-SM200-2PTC RESET FUSE 15V 2A 2SMD |
26,570 | 0.41 |
|
Datasheet |
2-SMD | Multifuse®, MF-SM | Tape & Reel (TR) | Active | Polymeric | 15V | 2 A | 4 A | 100 A | 12 s | 45 mOhms | 125 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.344" L x 0.264" W (8.75mm x 6.71mm) | - | 0.118" (3.00mm) | - |
|
MF-SM250-2PTC RESET FUSE 15V 2.5A 2SMD |
14,026 | 0.41 |
|
Datasheet |
2-SMD | Multifuse®, MF-SM | Tape & Reel (TR) | Active | Polymeric | 15V | 2.5 A | 5 A | 100 A | 25 s | 24 mOhms | 85 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.344" L x 0.264" W (8.75mm x 6.71mm) | - | 0.118" (3.00mm) | - |
|
RXEF025-2PTC RESET FUSE 72V 250MA RADIAL |
10,702 | 0.46 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Tape & Reel (TR) | Active | Polymeric | 72V | 250 mA | 500 mA | 40 A | 2.5 s | 1.25 Ohms | 3 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.199" (5.05mm) |
|
RXEF010-2PTC RESET FUSE 60V 100MA RADIAL |
6,984 | 0.45 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Tape & Reel (TR) | Active | Polymeric | 60V | 100 mA | 200 mA | 40 A | 4 s | 2.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.457" (11.60mm) | - | 0.199" (5.05mm) |
|
RXEF040S-2PTC RESET FUSE 72V 400MA RADIAL |
6,306 | 0.51 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Tape & Reel (TR) | Active | Polymeric | 72V | 400 mA | 800 mA | 40 A | 3.8 s | 550 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.299" Dia x 0.118" T (7.60mm x 3.00mm) | 0.532" (13.50mm) | - | 0.199" (5.05mm) |
|
RXEF040-2PTC RESET FUSE 72V 400MA RADIAL |
3,905 | 0.51 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Tape & Reel (TR) | Active | Polymeric | 72V | 400 mA | 800 mA | 40 A | 3.8 s | 550 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.299" Dia x 0.118" T (7.60mm x 3.00mm) | 0.532" (13.50mm) | - | 0.199" (5.05mm) |
|
MF-R300PTC RESET FUSE 30V 3A RADIAL |
2,720 | 0.51 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 30V | 3 A | 6 A | 40 A | 10.8 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.472" L x 0.118" W (12.00mm x 3.00mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
|

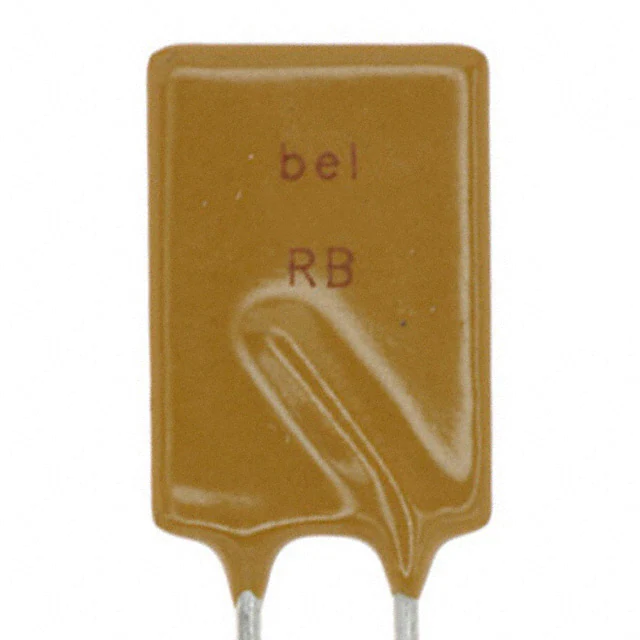

0ZRB0300FF1APTC RESET FUSE 30V 3A RADIAL |
2,560 | 0.42 |
|
Datasheet |
Radial, Disc | 0ZRB | Box | Active | Polymeric | 30V | 3 A | 6 A | 40 A | 10.8 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.681" (17.30mm) | - | 0.201" (5.10mm) |
|

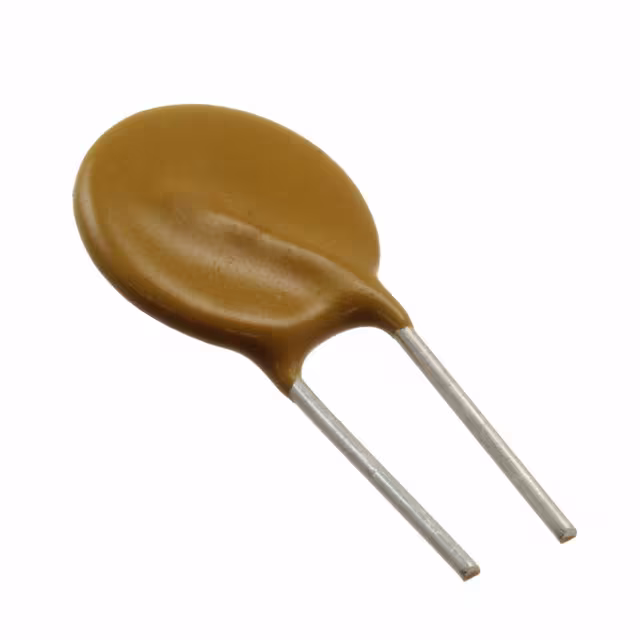

0ZRR0110FF1APTC RESET FUSE 60V 1.1A RADIAL |
1,348 | 0.42 |
|
Datasheet |
Radial, Disc | 0ZRR | Bulk | Active | Polymeric | 60V | 1.1 A | 2.2 A | 40 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.512" Dia x 0.122" T (13.00mm x 3.10mm) | 0.709" (18.00mm) | - | 0.201" (5.10mm) |
|

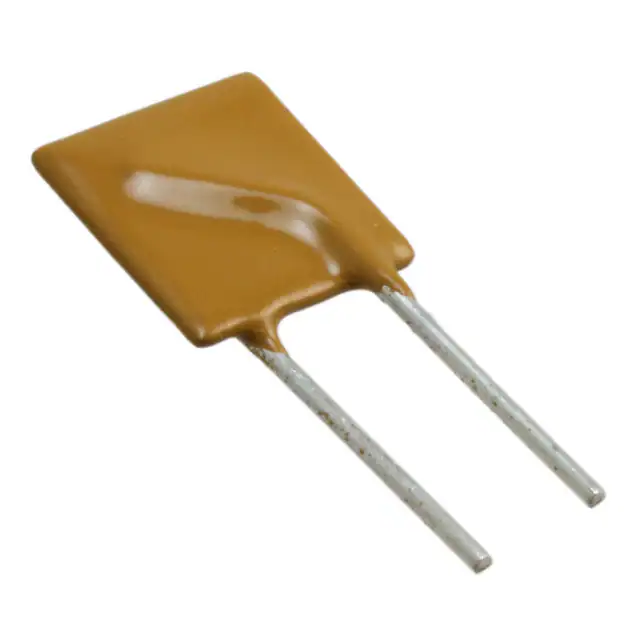

MF-RX110/72-2PTC RESET FUSE 72V 1.1A RADIAL |
130,627 | 0.42 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/72 | Tape & Reel (TR) | Active | Polymeric | 72V | 1.1 A | 2.2 A | 40 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.427" L x 0.122" W (10.84mm x 3.10mm) | 0.662" (16.84mm) | - | 0.201" (5.10mm) |
|

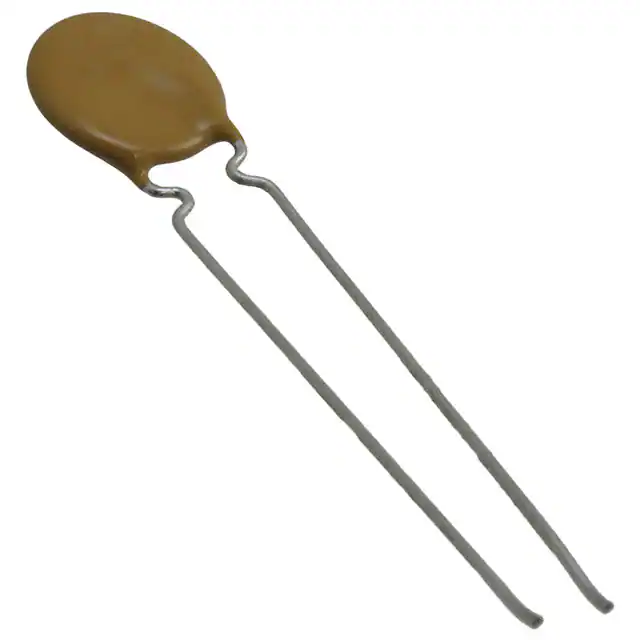

RHEF100-2PTC RESET FUSE 30V 1A RADIAL |
20,615 | 0.67 |
|
Datasheet |
Radial, Disc | PolySwitch®, RHEF | Tape & Reel (TR) | Active | Polymeric | 30V | 1 A | 1.8 A | 40 A | 5.2 s | 180 mOhms | 430 mOhms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.382" Dia x 0.118" T (9.70mm x 3.00mm) | 0.535" (13.60mm) | - | 0.199" (5.05mm) |
|
MF-R090-2PTC RESET FUSE 60V 900MA RADIAL |
10,160 | 0.42 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 60V | 900 mA | 1.8 A | 40 A | 7.2 s | 140 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.461" L x 0.122" W (11.70mm x 3.10mm) | 0.657" (16.70mm) | - | 0.201" (5.10mm) |
|
MF-R050-2PTC RESET FUSE 60V 500MA RADIAL |
9,286 | 0.42 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 60V | 500 mA | 1 A | 40 A | 4 s | 410 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.311" Dia x 0.122" T (7.90mm x 3.10mm) | 0.539" (13.70mm) | - | 0.201" (5.10mm) |
|
MF-RX135/72-0PTC RESET FUSE 72V 1.35A RADIAL |
9,041 | 0.68 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/72 | Bulk | Active | Polymeric | 72V | 1.35 A | 2.7 A | 40 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.483" L x 0.122" W (12.26mm x 3.10mm) | 0.718" (18.26mm) | - | 0.201" (5.10mm) |
|
MINISMDC150F-2PTC RESET FUSE 6V 1.5A 1812 |
8,085 | 0.47 |
|
Datasheet |
1812 (4532 Metric), Concave | PolySwitch®, miniSMD | Tape & Reel (TR) | Active | Polymeric | 6V | 1.5 A | 3 A | 100 A | 500 ms | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.019" (0.48mm) | - |
