PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

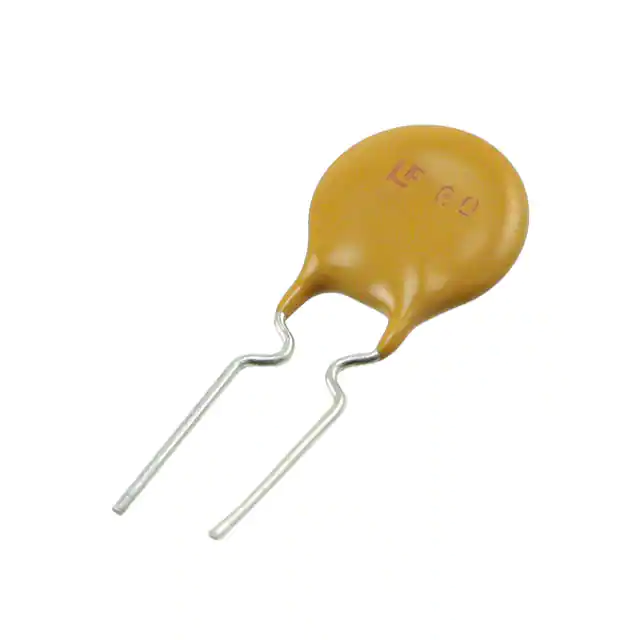

60R075XPRPTC RESET FUSE 60V 750MA RADIAL |
5,451 | 0.55 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 60R | Cut Tape (CT) | Active | Polymeric | 60V | 750 mA | 1.5 A | 40 A | 6.3 s | 250 mOhms | 600 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.402" Dia x 0.122" T (10.20mm x 3.10mm) | 0.591" (15.00mm) | - | 0.201" (5.10mm) |
|
MF-USML500/12-2PTC RESET FUSE 12V 5A 1210 |
3,121 | 1.23 |
|
Datasheet |
1210 (3225 Metric), Concave | Multifuse®, MF-USML/X | Tape & Reel (TR) | Active | Polymeric | 12V | 5 A | 10 A | 50 A | 2 s | 1 mOhms | 12 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.047" (1.20mm) | - |
|
60R110XMRPTC RESET FUSE 60V 1.1A RADIAL |
37,114 | 0.56 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 60R | Cut Tape (CT) | Active | Polymeric | 60V | 1.1 A | 2.2 A | 40 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.512" Dia x 0.122" T (13.00mm x 3.10mm) | 0.717" (18.20mm) | - | 0.201" (5.10mm) |
|

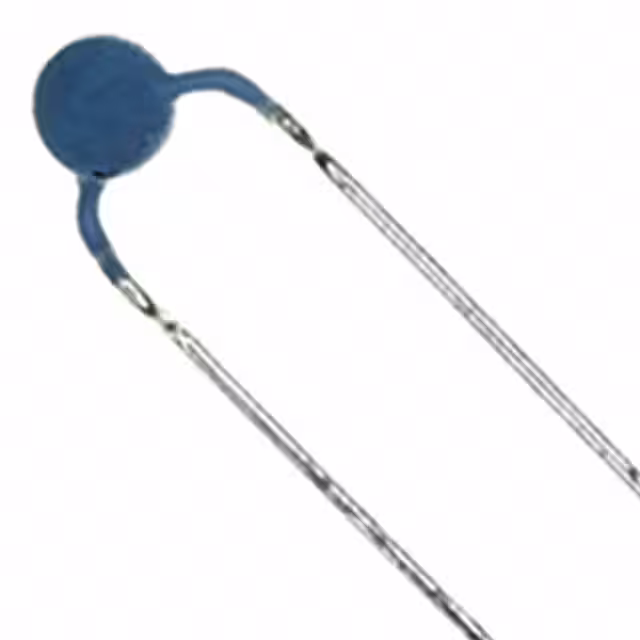

B59990C0080A070PTC RESET FUSE 80V 30MA RADIAL |
6,932 | 1.11 |
|
Datasheet |
Radial, Disc | B59990 | Bulk | Active | Ceramic | 80V | 30 mA | 60 mA | 700 mA | - | - | - | 55 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.157" Dia x 0.138" T (4.00mm x 3.50mm) | 0.295" (7.50mm) | - | 0.197" (5.00mm) |
|
B59995C0120A070PTC RESET FUSE 30V 120MA RADIAL |
6,057 | 1.11 |
|
Datasheet |
Radial, Disc | B59995 | Bulk | Active | Ceramic | 30V | 120 mA | 240 mA | 700 mA | - | - | - | 13 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.157" Dia x 0.138" T (4.00mm x 3.50mm) | 0.295" (7.50mm) | - | 0.197" (5.00mm) |
.JPG)
|
MF-NSMF020X-2PTC RESET FUSE 30V 200MA 1206 |
33,736 | 0.49 |
|
Datasheet |
1206 (3216 Metric), Concave | Multifuse® freeXpansionTM, MF-NSMF | Tape & Reel (TR) | Active | Polymeric | 30V | 200 mA | 400 mA | 60 A | 600 ms | 600 mOhms | 3.3 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.033" (0.85mm) | - |
|
2920L200DRPTC RESET FUSE 15V 2A 2920 |
10,335 | 0.79 |
|
Datasheet |
2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 15V | 2 A | 4 A | 40 A | 5 s | 50 mOhms | 125 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.289" L x 0.202" W (7.35mm x 5.12mm) | - | 0.049" (1.25mm) | - |
|
2016L150DRPTC RESET FUSE 15V 1.5A 2016 |
9,624 | 0.79 |
|
Datasheet |
2016 (5041 Metric), Concave | POLY-FUSE®, 2016L | Tape & Reel (TR) | Active | Polymeric | 15V | 1.5 A | 3 A | 40 A | 1 s | 70 mOhms | 180 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.200" L x 0.160" W (5.08mm x 4.07mm) | - | 0.061" (1.55mm) | - |
|
AHS120F/33-2PPTC-SMD-PSW |
7,807 | 0.79 |
|
Datasheet |
2-SMD | PolySwitch® AHS | Tape & Reel (TR) | Active | Polymeric | 33V | 1.2 A | 2.3 A | 20 A | 2 s | 150 mOhms | 340 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | 0.118" (3.00mm) | - | - |
|

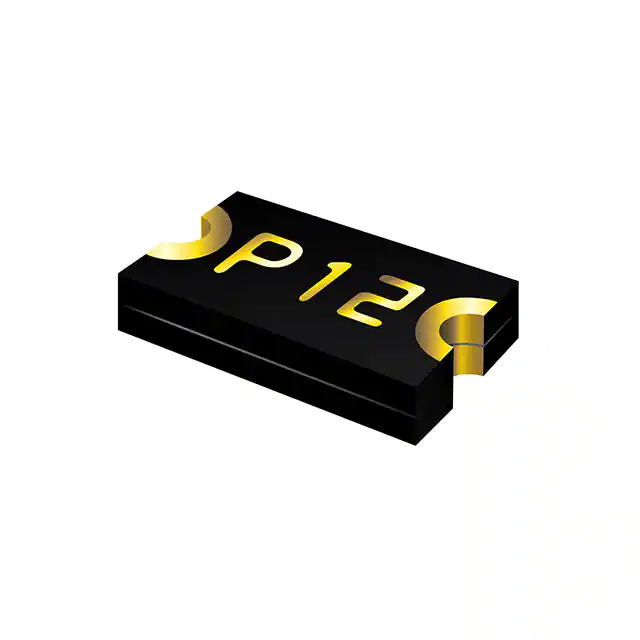

MF-NSML400/6-2PTC RESET FUSE 6V 4A 1206 |
7,731 | 0.87 |
|
Datasheet |
1206 (3216 Metric), Concave | Multifuse®, MF-NSML/X | Tape & Reel (TR) | Active | Polymeric | 6V | 4 A | 8 A | 50 A | 5 s | 2 mOhms | 18 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.063" W (3.25mm x 1.60mm) | - | 0.055" (1.40mm) | - |
|
|
MF-NSMF050/16X-2FUSE RESET PPTC 1206 0.50A/16V |
7,724 | 0.00 |
|
Datasheet |
1206 (3216 Metric), Concave | Multifuse® freeXpansionTM, MF-NSMF | Tape & Reel (TR) | Active | Polymeric | 16V | 500 mA | 1 A | 100 A | 100 ms | 150 mOhms | 750 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.033" (0.85mm) | - |
|
|
MF-NSMF025/30X-2FUSE RESET PPTC 1206 0.25A/30V |
6,994 | 0.00 |
|
Datasheet |
1206 (3216 Metric), Concave | Multifuse® freeXpansionTM, MF-NSMF | Tape & Reel (TR) | Active | Polymeric | 30V | 250 mA | 500 mA | 60 A | 50 ms | 450 mOhms | 2.3 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.033" (0.85mm) | - |
|
|
MF-NSMF110/16X-2FUSE RESET PPTC 1206 1.1A/16V |
5,368 | 0.00 |
|
Datasheet |
1206 (3216 Metric), Concave | Multifuse® freeXpansionTM, MF-NSMF | Tape & Reel (TR) | Active | Polymeric | 16V | 1.1 A | 2.2 A | 100 A | 100 ms | 60 mOhms | 230 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.043" (1.10mm) | - |
|
LVR033S-2PTC RESET FUSE 240V 330MA RADIAL |
5,291 | 0.87 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Tape & Reel (TR) | Active | Polymeric | 240V (265V Int) | 330 mA | 740 mA | 4.5 A | 21 s | 770 mOhms | 2.6 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.150" W (11.40mm x 3.80mm) | 0.650" (16.50mm) | - | 0.200" (5.08mm) |
|

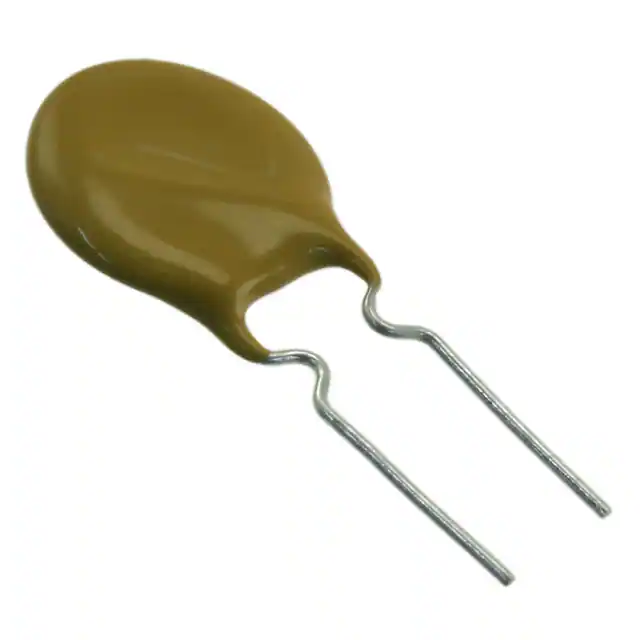

60R090XPRPTC RESET FUSE 60V 900MA RADIAL |
3,108 | 0.55 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 60R | Cut Tape (CT) | Active | Polymeric | 60V | 900 mA | 1.8 A | 40 A | 7.2 s | 200 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.441" Dia x 0.122" T (11.20mm x 3.10mm) | 0.622" (15.80mm) | - | 0.201" (5.10mm) |
|

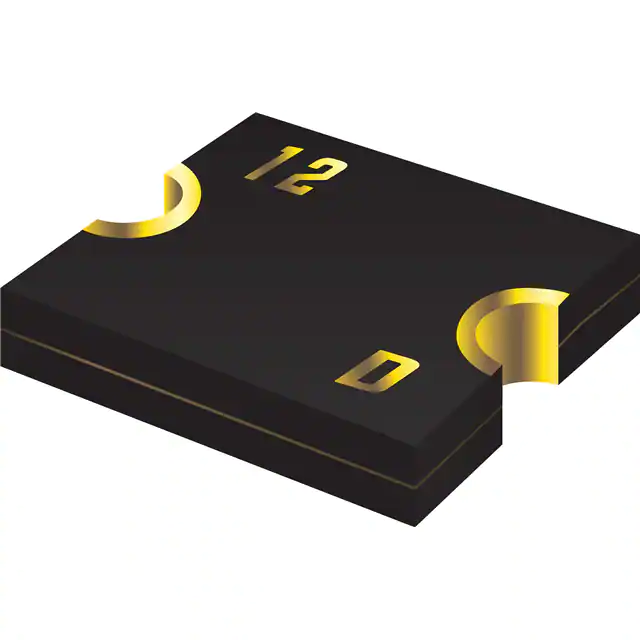

MF-MSHT035KX-21812 HIGH TEMP SMD POLYMER PTC 0 |
4,474 | 1.13 |
|
Datasheet |
1812 (4532 Metric), Concave | Multifuse® MF-MSHT | Tape & Reel (TR) | Active | Polymeric | 36V | 350 mA | 1.75 A | 40 A | 100 ms | 300 mOhms | 2.6 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.181" L x 0.128" W (4.60mm x 3.24mm) | - | 0.033" (0.85mm) | - |
|
0ZRE0055FF2APTC RESET FUSE 240V 550MA RADIAL |
3,970 | 0.78 |
|
Datasheet |
Radial, Disc | 0ZRE | Tape & Reel (TR) | Active | Polymeric | 240V | 550 mA | 1.25 A | 7 A | 26 s | 450 mOhms | 1.45 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.161" W (14.00mm x 4.10mm) | 0.854" (21.70mm) | - | 0.201" (5.10mm) |
|

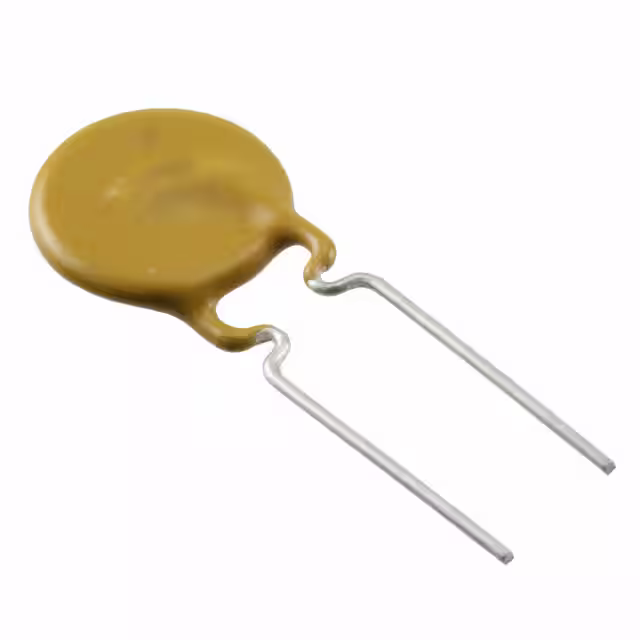

AHEF100PTC RESET FUSE 32V 1A RADIAL |
2,809 | 0.82 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHEF | Bag | Active | Polymeric | 32V | 1 A | 1.9 A | 100 A | 6.2 s | 150 mOhms | 430 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.382" Dia x 0.118" T (9.70mm x 3.00mm) | 0.535" (13.60mm) | - | 0.199" (5.05mm) |
|
CMF-RL25U-0PTC RESET FUSE 220V 60MA RADIAL |
2,500 | 0.74 |
|
Datasheet |
Radial, Disc | CMF-RL | Bulk | Active | Ceramic | 220V (600V Int) | 60 mA | 150 mA | 900 mA | 250 ms | - | - | 25 Ohms | -40°C ~ 125°C | - | - | - | Through Hole | 0.205" L x 0.138" W (5.20mm x 3.50mm) | 0.205" (5.20mm) | - | 0.197" (5.00mm) |
|
2920L075/72MR2920L |
2,236 | 0.82 |
|
Datasheet |
2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | - | 72V | 750 mA | 1.5 A | 10 A | 300 ms | 240 mOhms | 950 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.071" (1.80mm) | - |
