PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0805L020/16YRPOLYSWITCH RESETTABLE PPTC |
3,289 | 0.00 |
|
Datasheet |
0805 (2012 Metric), Concave | POLY-FUSE®, 0805L | Tape & Reel (TR) | Active | Polymeric | 16V | 200 mA | 500 mA | 100 A | 500 ms | 500 mOhms | 3.5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.030" (0.75mm) | - |
|

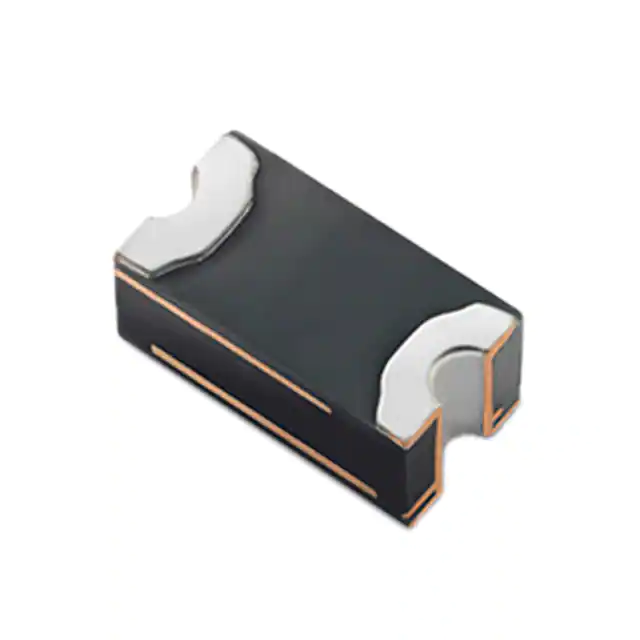

FEMTOASMDC005F-2PTC RESET FUSE 15V 50MA 0603 |
19,394 | 0.90 |
|
Datasheet |
0603 (1608 Metric) | PolySwitch®, femtoASMD | Tape & Reel (TR) | Active | Polymeric | 15V | 50 mA | 150 mA | 10 A | 100 ms | 3.8 Ohms | 30 Ohms | - | - | Automotive | AEC-Q200 | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.033" (0.85mm) | - |
|
|
MF-FSMF025X-2PTC RESETTABLE 0.25A 6V SMD 0603 |
14,264 | 0.81 |
|
Datasheet |
0603 (1608 Metric), Concave | Multifuse®, MF-FSMF | Tape & Reel (TR) | Active | Polymeric | 6V | 250 mA | 750 mA | 40 A | 100 ms | 200 mOhms | 1.4 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.065" L x 0.033" W (1.65mm x 0.85mm) | - | 0.026" (0.65mm) | - |
|
ASMDC300F/24-2PTC RESET FUSE 24V 3A 2SMD |
7,262 | 0.90 |
|
Datasheet |
2-SMD | PolySwitch®, ASMD | Tape & Reel (TR) | Active | Polymeric | 24V | 3 A | 6 A | 40 A | 5 s | 15 mOhms | 72 mOhms | - | - | Automotive | AEC-Q200 | - | Surface Mount | 0.295" L x 0.201" W (7.50mm x 5.10mm) | - | 0.028" (0.71mm) | - |
|
B59890C0120A070PTC RESET FUSE 265V 30MA RADIAL |
10,099 | 1.33 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 265V | 30 mA | 60 mA | 200 mA | - | - | - | 150 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.157" Dia x 0.197" T (4.00mm x 5.00mm) | 0.295" (7.50mm) | - | 0.197" (5.00mm) |
|
PTCCL05H630HBEPTC RESET FUSE 265V 63MA RADIAL |
2,257 | 1.37 |
|
Datasheet |
Radial, Disc | PTCCL - 265V | Bulk | Active | Ceramic | 265V | 63 mA | 95 mA | 450 mA | - | - | - | 120 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.197" Dia x 0.197" T (5.00mm x 5.00mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
|
PTCCL05H110HBEPTC RESET FUSE 265V 11MA RADIAL |
1,858 | 1.37 |
|
Datasheet |
Radial, Disc | PTCCL - 265V | Bulk | Active | Ceramic | 265V | 11 mA | 17 mA | 80 mA | - | - | - | 3 kOhms | 0°C ~ 70°C | - | - | - | Through Hole | 0.197" Dia x 0.197" T (5.00mm x 5.00mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|

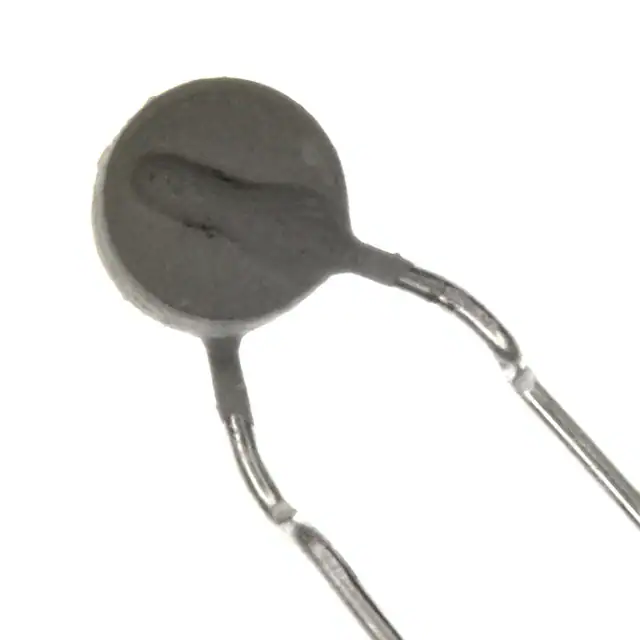

PTCCL05H190HBEPTC RESET FUSE 265V 19MA RADIAL |
1,593 | 1.37 |
|
Datasheet |
Radial, Disc | PTCCL - 265V | Bulk | Active | Ceramic | 265V | 19 mA | 29 mA | 140 mA | - | - | - | 1.2 kOhms | 0°C ~ 70°C | - | - | - | Through Hole | 0.197" Dia x 0.217" T (5.00mm x 5.50mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
MF-RX375/72-2PTC RESET FUSE 72V 3.75A RADIAL |
5,564 | 1.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/72 | Tape & Reel (TR) | Active | Polymeric | 72V | 3.75 A | 7.5 A | 40 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.926" L x 0.122" W (23.51mm x 3.10mm) | 1.161" (29.50mm) | - | 0.402" (10.20mm) |
|
B59623A0090A062THERMISTOR PTC 470 OHM 25% 0603 |
26,319 | 1.42 |
|
Datasheet |
0603 (1608 Metric) | B59623 | Tape & Reel (TR) | Active | Ceramic | 80V | - | 25 mA | 150 mA | - | 300 Ohms | 470 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.031" (0.80mm) | - |
|
RUEF600K-2PTC RESET FUSE 30V 6A RADIAL |
2,455 | 0.89 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Tape & Reel (TR) | Active | Polymeric | 30V | 6 A | 12 A | 100 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 1.032" (26.20mm) | - | 0.400" (10.15mm) |
|
1206L075/16WRPTC RESET FUSE 16V 750MA 1206 |
9,342 | 0.98 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, 1206L | Tape & Reel (TR) | Active | Polymeric | 16V | 750 mA | 1.5 A | 100 A | 200 ms | 90 mOhms | 290 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.049" (1.25mm) | - |
|
MF-R900-2PTC RESET FUSE 30V 9A RADIAL |
5,637 | 1.07 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 30V | 9 A | 18 A | 40 A | 20 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.953" L x 0.118" W (24.20mm x 3.00mm) | 1.295" (32.90mm) | - | 0.402" (10.20mm) |
|
RGEF1000PTC RESET FUSE 16V 10A RADIAL |
1,520 | 1.06 |
|
Datasheet |
Radial, Disc | PolySwitch®, RGEF | Bag | Active | Polymeric | 16V | 10 A | 17 A | 100 A | 6 s | 4 mOhms | 10.2 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.630" L x 0.098" W (16.00mm x 2.50mm) | 0.992" (25.20mm) | - | 0.199" (5.05mm) |
|
|
0805L002YRPOLYSWITCH RESETTABLE PPTC |
3,774 | 0.00 |
|
Datasheet |
0805 (2012 Metric), Concave | POLY-FUSE®, 0805L | Tape & Reel (TR) | Active | Polymeric | 63V | 20 mA | 60 mA | 40 A | 1.5 s | 12 Ohms | 70 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.049" (1.25mm) | - |
|
1210L200PRPTC RESET FUSE 6V 2A 1210 |
3,468 | 0.98 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, 1210L | Tape & Reel (TR) | Active | Polymeric | 6V | 2 A | 4 A | 100 A | 1 s | 15 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.063" (1.60mm) | - |
|
B59970C0130A070PTC RESET FUSE 80V 150MA RADIAL |
2,936 | 0.98 |
|
Datasheet |
Radial, Disc | B59970 | Bulk | Active | Ceramic | 80V | 150 mA | 240 mA | 1 A | - | - | - | 20 Ohms | -40°C ~ 125°C | - | - | - | Through Hole | 0.256" Dia x 0.138" T (6.50mm x 3.50mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
0ZRS0200FF1EPTC RESET FUSE 32V 2A RADIAL |
2,522 | 0.90 |
|
Datasheet |
Radial, Disc | 0ZRS | Bulk | Active | Ceramic | 32V | 2 A | 4 A | 100 A | 5.5 s | 65 mOhms | 250 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.374" L x 0.118" W (9.50mm x 3.00mm) | 0.531" (13.50mm) | - | 0.201" (5.10mm) |
|

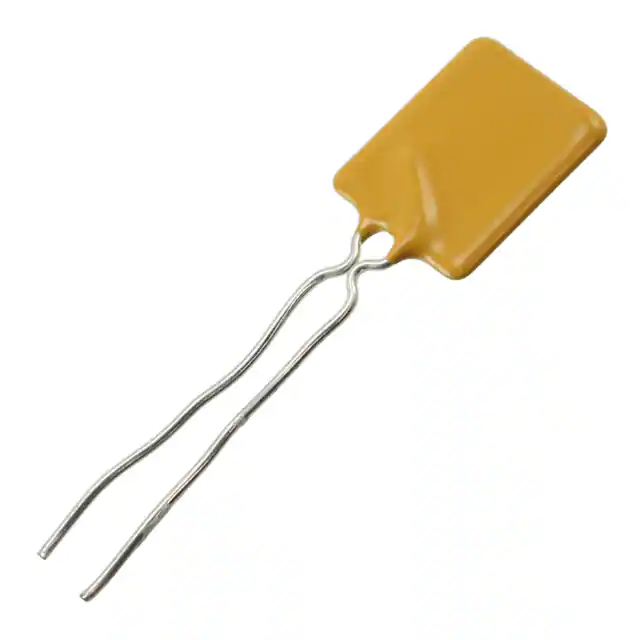

30R400UMRPTC RESET FUSE 30V 4A RADIAL |
79,066 | 0.67 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 30R | Cut Tape (CT) | Active | Polymeric | 30V | 4 A | 8 A | 40 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.866" (22.00mm) | - | 0.201" (5.10mm) |
|
B59985C0160A070PTC RESET FUSE 20V 300MA RADIAL |
2,610 | 0.98 |
|
Datasheet |
Radial, Disc | B59985 | Bulk | Active | Ceramic | 20V | 300 mA | 600 mA | 1 A | - | - | - | 4.6 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" Dia x 0.138" T (6.50mm x 3.50mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
