Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TG01-1006N2RLTRISO MOD 10BASE-T 4CH 1:1 16P SMD |
3,042 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10 Base-T | 100µH | - | 1:1 | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
TG37-1505NSRLTRISO MOD T1 1:1.14C X-TEMP 6P SMD |
4,751 | 0.00 |
|
- |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Single) | 1.5mH | - | 1:1.14CT | Surface Mount | 0.320" L x 0.280" W (8.13mm x 7.11mm) | 0.200" (5.08mm) | -40°C ~ 85°C | - | - |
|
|
TG37-1505NSRLISO MOD T1 1:1.14C X-TEMP 6P SMD |
1,630 | 0.00 |
|
- |
- | Tube | Not For New Designs | T1/E1 (Single) | 1.5mH | - | 1:1.14CT | Surface Mount | 0.320" L x 0.280" W (8.13mm x 7.11mm) | 0.200" (5.08mm) | -40°C ~ 85°C | - | - |
|
|
T60403K5026X0235026X023 |
4,897 | 0.00 |
|
- |
- | Box | Active | General Purpose | 200nH | - | 1:1 | Surface Mount | 0.787" L x 0.451" W (20.00mm x 11.46mm) | 0.280" (7.10mm) | -40°C ~ 85°C | - | - |
|
|
TG04-0456NSLFTRISO MOD T3 1CH 1C:1C X-TEMP 6P S |
2,597 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T3/E3 (Single) | 45µH | - | 1CT:1CT | Surface Mount | 0.320" L x 0.280" W (8.13mm x 7.11mm) | 0.200" (5.08mm) | -40°C ~ 85°C | - | - |
|

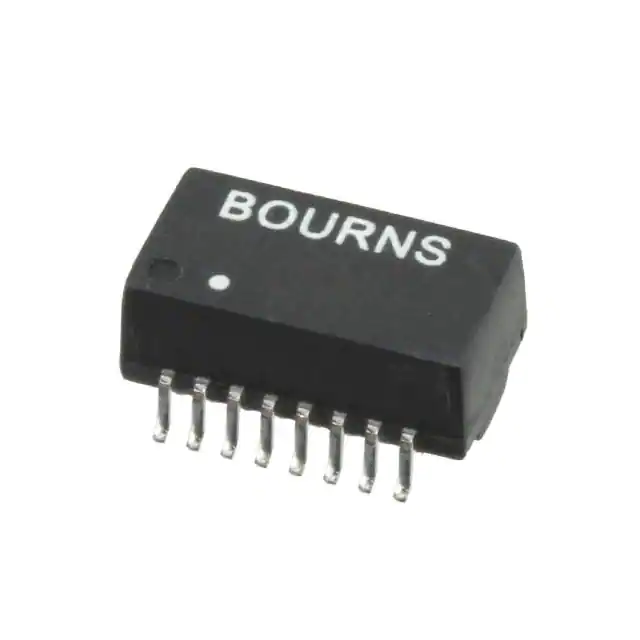

SM51108PELPULSE XFMR 1CT:1CT 350UH |
1,292 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | -40°C ~ 85°C | - | - |
|
|
TG01-1006N2RLISO MOD 10BASE-T 4CH 1:1 16P SMD |
1,671 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10 Base-T | 100µH | - | 1:1:1:1:1:1:1:1 | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
TG04-0456NSLFISO MOD T3 1CH 1C:1C X-TEMP 6P S |
3,477 | 0.00 |
|
Datasheet |
- | Tube | Active | T3/E3 (Single) | 45µH | - | 1CT:1CT | Surface Mount | 0.320" L x 0.280" W (8.13mm x 7.11mm) | 0.200" (5.08mm) | -40°C ~ 85°C | - | - |
|
|
TG110-E055N5RLTRISO MOD 10/100 X-TEMP 16P SMD T/ |
3,375 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10/100 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
TG110-E050N5RLTRISO MOD 10/100 X-TEMP 16P SMD T/ |
1,444 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10/100 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
TG91-1505N5LFISO MOD T1 1C:2.4C/1C:1C X-TEMP |
4,097 | 0.00 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.5mH | - | 1CT:2.4CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
PA3948.001NLPULSE XFMR 32UH 40UH |
3,151 | 1.88 |
|
Datasheet |
- | Tray | Active | - | 32µH, 40µH | - | - | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 130°C | - | - |
|
|
PA3948.002NLPULSE XFMR 32UH 40UH |
2,465 | 1.88 |
|
Datasheet |
- | Tray | Active | - | 32µH, 40µH | - | - | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 130°C | - | - |
|
|
PA3948.003NLPULSE XFMR 32UH 40UH |
1,873 | 1.88 |
|
Datasheet |
- | Tray | Active | - | 32µH, 40µH | - | - | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 130°C | - | - |
|
|
PA3948.005NLPULSE XFMR 32UH 40UH |
4,972 | 1.88 |
|
Datasheet |
- | Tray | Active | - | 32µH, 40µH | - | - | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 130°C | - | - |
|
|
PA3948.006NLPULSE XFMR 32UH 40UH |
2,241 | 1.88 |
|
Datasheet |
- | Tray | Active | - | 32µH, 40µH | - | - | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 130°C | - | - |
|
|
TGAD-260NALFISO MOD DC 1C:2C 14VUS 6P SMD |
3,287 | 0.00 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 389µH | - | 1CT:2CT | Surface Mount | 0.380" L x 0.350" W (9.65mm x 8.89mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
TG23-1505N5LFTRISO MOD T1 DUAL 1:2.42C X-TEMP |
4,714 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.5mH | - | 1:2.42CT Transmitter, 1:2.42CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
TG80-1505N5LFTRISO MOD T1 1C:2.45C X-TEMP 16P S |
4,708 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.5mH | - | 1CT:2.45CT Transmitter, 1CT:2.45CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
TG37-S001N1RLTRISO MOD T1 DUAL 1C:1.14C X-TEMP |
4,398 | 0.00 |
|
- |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Dual) | 1.5mH | - | 1CT:1.14CT Transmitter, 1CT:1.14CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | -40°C ~ 85°C | - | - |
