Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TG01-1506NRLTRISO MOD AUI 3CH 16P SMD T/R |
1,277 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | Isolation and Data Interface (Encapsulated) | 150µH | - | 1:1 | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
TG74-1505N1RLTRISO MOD T1 1C:1C 1C:2C X-TEMP |
2,766 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Dual) | 1.5mH | - | 1CT:1CT, 1CT:2CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | -40°C ~ 85°C | - | - |
|
|
S558-5999-K6-FXFRMR MOD LAN 10/100BT 12P SMD |
4,998 | 0.00 |
|
- |
- | Tape & Reel (TR) | Obsolete | LAN 10/100 Base-T | 400µH | - | 1CT:1 Transmitter, 1CT:1CT Receiver | Surface Mount | 0.590" L x 0.470" W (14.99mm x 11.94mm) | 0.196" (4.98mm) | - | - | - |
|
|
TG01-1006N2LFISO MOD 10BASE-T 4CH 1:1 16P SMD |
3,694 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10 Base-T | 100µH | - | 1:1 | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
36977TRANSF T3/DS3/E3/STS-1 1:2CT SMD |
3,426 | 0.00 |
|
Datasheet |
- | Cut Tape (CT) | Discontinued at Digi-Key | - | 40µH | - | 1:2CT | Surface Mount | 0.300" L x 0.390" W (7.62mm x 9.91mm) | 0.250" (6.35mm) | - | - | - |
|
S558-5500-44TRANSFORMER PULSE |
2,474 | 2.28 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.542" L x 0.480" W (13.77mm x 12.19mm) | 0.250" (6.35mm) | - | - | - |
|
|
ALANL100X1-DE62DT10/100BASE-TX LAN XFMR |
4,289 | 2.58 |
|
Datasheet |
ALANL100X1-D | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.085" (2.15mm) | -40°C ~ 85°C | - | - |
|
|
TG01-1506NRLISO MOD AUI 3CH 16P SMD |
1,025 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | Isolation and Data Interface (Encapsulated) | 150µH | - | 1:1 | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
TG110-S055N2RLISO MOD 10/100 16P SMD |
3,256 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10/100 Base-TX | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
TG110-S050N2RLISO MOD 10/100 16P SMD |
4,207 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10/100 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
TG74-1505N1RLISO MOD T1 1C:1C 1C:2C X-TEMP 16 |
2,267 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | T1/E1 (Dual) | 1.5mH | - | 1:1, 1:2 | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | -40°C ~ 85°C | - | - |
|
|
E2454NLTXFRMR ISOL 10BASE-T 1:2 SMD |
1,716 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Isolation and Data Interface (Encapsulated) | 50µH, 200µH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
TC1000TRANSFORMER LAN 1GB PHY |
4,779 | 0.98 |
|
Datasheet |
PulseChip™ | Tape & Reel (TR) | Active | LAN 1000 Base-T | 200µH | - | 1:1 | Surface Mount | 0.185" L x 0.134" W (4.70mm x 3.40mm) | 0.118" (3.00mm) | -40°C ~ 85°C | - | - |
|
|
TC2500TRANSFORMER LAN 2.5GB PHY |
1,745 | 0.97 |
|
Datasheet |
PulseChip™ | Tape & Reel (TR) | Active | LAN 2.5G Base-T | 180µH | - | 1:1 | Surface Mount | 0.185" L x 0.134" W (4.70mm x 3.40mm) | 0.118" (3.00mm) | -40°C ~ 85°C | - | - |
|
|
TG51-1506N1LFTRISO MOD TOKENR 1:1:1.22:1.22 16P |
1,391 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 150µH | - | 1:1:1.22:1.22 | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | - | - | - |
|
|
TG51-2506N1LFTRISO MOD TOKENR 1:1:1.22:1.22 16P |
4,719 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 250µH | - | 1:1:1.22:1.22 | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | - | - | - |
|
|
BX4504NLTXFMR G.FAST 1.25CT:1CT 106MHZ |
2,421 | 1.84 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 60µH | - | 1.25:1 | Surface Mount | 0.266" L x 0.230" W (6.76mm x 5.84mm) | 0.135" (3.43mm) | -40°C ~ 85°C | - | - |
|
|
TG1G-T3L8LFISO MOD 1000BASE-T1 SPE X-TEMP 8 |
4,951 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 1000 Base-T | - | - | - | Surface Mount | 0.280" L x 0.230" W (7.11mm x 5.84mm) | 0.158" (4.01mm) | -40°C ~ 105°C | - | - |
|

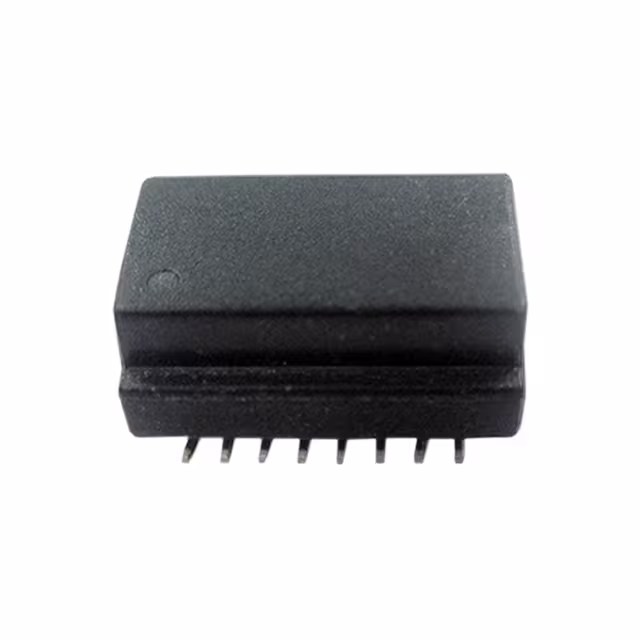

ALAN-2201-TPULSE XFMR 1CT:1CT 350UH |
4,493 | 1.94 |
|
Datasheet |
ALAN-2201 | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.500" L x 0.346" W (12.70mm x 8.80mm) | 0.234" (5.95mm) | -40°C ~ 85°C | - | - |
|
|
TG01-0456NSLFTRISO MOD T3 1CH 1:1 6P SMD T/R |
2,612 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T3/E3 (Single) | 30µH | - | 1:1 | Surface Mount | 0.320" L x 0.280" W (8.13mm x 7.11mm) | 0.200" (5.08mm) | -40°C ~ 85°C | - | - |
