Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TG5G-S12NZ5LFTRISO MOD 5G POE 0.35A 24P SMD T/R |
3,113 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 5G Base-T, Power over Ethernet (PoE) | - | - | 1:1 | Surface Mount | 0.722" L x 0.485" W (18.33mm x 12.32mm) | 0.255" (6.48mm) | 0°C ~ 70°C | - | - |
|

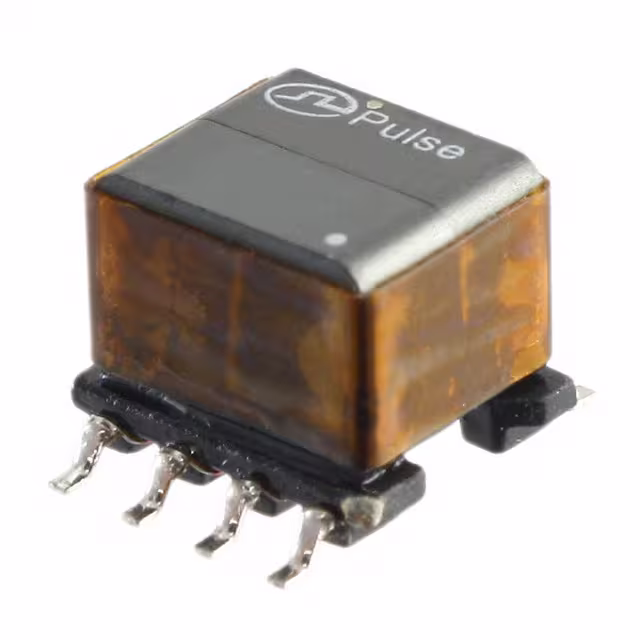

PA1281NLTXFRMR 12V 3W 310UH POE EP7 SMD |
2,806 | 3.97 |
|
Datasheet |
EP7 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 310µH | - | 1:0.682:0.682 | Surface Mount | 0.420" L x 0.525" W (10.67mm x 13.34mm) | 0.365" (9.27mm) | -40°C ~ 125°C | - | - |
|
|
TG10G-E100NZ5LFISO MOD 10G X-TEMP 24P SMD |
3,692 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10G Base-T | - | - | - | Surface Mount | 0.722" L x 0.485" W (18.34mm x 12.32mm) | 0.255" (6.48mm) | -40°C ~ 85°C | - | - |
|
|
T1146NLXFRMR 1:2/2.4 / 1:0.79/1 1/1MH |
1,042 | 4.16 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1mH, 1mH | - | 1:2/2.4, 1:0.79/1 | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
|
H0009TPULSE XFMR 1:1 TX 1:1 RX |
1,133 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | LAN 10/100 Base-T | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.560" L x 0.560" W (14.22mm x 14.22mm) | 0.082" (2.08mm) | 0°C ~ 70°C | - | - |
|
|
TG1G-3506NZRLISO MOD 1G 24P SMD |
1,539 | 0.00 |
|
- |
- | Tube | Not For New Designs | LAN 1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
PA1066NLTPULSE XFMR 137UH |
3,298 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | 137µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|
|
TG2G-E12NZLFTRISO MOD 2.5G POE 0.35A 24P SMD T |
2,873 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 2.5G Base-T, Power over Ethernet (PoE) | - | - | 1:1 | Surface Mount | 0.722" L x 0.485" W (18.33mm x 12.32mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
TG05-S001NURLISO MOD T1 8CH 1:2 X-TEMP 32P SM |
3,471 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | T1/E1 (Quad) | 1.5mH | - | 1:2 | Surface Mount | 1.000" L x 0.300" W (25.40mm x 7.62mm) | 0.290" (7.37mm) | -40°C ~ 85°C | - | - |
|
|
TG23-1505NURLISO MOD T1 8CH 1:2.42 X-TEMP 32P |
3,736 | 0.00 |
|
- |
- | Tube | Not For New Designs | T1/E1 (Octal) | 1.5mH | - | 1:2.42 | Surface Mount | 1.000" L x 0.300" W (25.40mm x 7.62mm) | 0.290" (7.37mm) | -40°C ~ 85°C | - | - |
|
|
40SS1041AX HFMDL LAN 10/100BT QUAD SMD |
3,268 | 4.18 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
TLA-6M102LFSURGE PROTECT INTEGRATE FILTER |
4,132 | 4.07 |
|
Datasheet |
TLA | Tray | Active | LAN | - | - | - | Surface Mount | 1.012" L x 0.374" W (25.70mm x 9.50mm) | 0.234" (5.95mm) | 0°C ~ 70°C | - | - |
|
|
PE-65848TPULSE XFMR 1CS:1CS 3.5MH 5.6MH |
1,858 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Isolation and Data Interface (Encapsulated) | 3.5mH | - | 1CS:1CS | Surface Mount | 0.496" L x 0.496" W (12.60mm x 12.60mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
|
T60404E6100X2296100X229 |
3,893 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - |
|
|
TG1G-E001NZLFISO MOD 1G X-TEMP 24P SMD |
4,892 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-TX | 350µH | - | 1CT:1CT | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
TG05-1205NXLFTRISO MOD T1 8CH 1:2 40P SMD T/R |
3,783 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Quad) | 1.2mH | - | 1:2 Transmitter, 1:2 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
TG111-HPE3NZRLTRISO MOD 1G POE 0.6A X-TEMP 24P S |
3,241 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10/100 Base-T, Power over Ethernet (PoE) | - | - | - | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
E2003QNLTMODULE 10BASE-T INTRFACE 1:1 SMD |
3,853 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.000" L x 0.385" W (25.40mm x 9.78mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
HX1112QNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
4,544 | 4.21 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.192" (4.88mm) | -40°C ~ 85°C | - | - |
|
|
TG110-BCM2NXLFISO MOD 10/100 QUAD 40P SMD |
2,160 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-TX | - | - | - | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
