Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TG44-S020NXRLTRISO MOD 10BASE-T QUAD 1C:1.41 |
4,170 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10 Base-T | 140µH | - | 1CT:1.41 Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG44-S010NXRLTRISO MOD 10BASE-T QUAD 1C:1.41 |
1,369 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10 Base-T | 140µH | - | 1CT:1.41 Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG44-1406NXRLTRISO MOD 10BASE-T QUAD 1C:1.41 |
1,338 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10 Base-T | 140µH | - | 1CT:1.41 Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG87-S020NXRLTRISO MOD 10BASE-T QUAD 1C:2/1:1 |
1,580 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10 Base-T | 50µH, 200µH | - | 1CT:2 Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG87-2006NXRLTRISO MOD 10BASE-T QUAD 1C:2 40P S |
2,889 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10 Base-T | 50µH, 200µH | - | 1CT:2 Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG87-S010NXRLTRISO MOD 10BASE-T QUAD 1C:2/1:1 |
4,706 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10 Base-T | 50µH, 200µH | - | 1CT:2 Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG1G-E001NYLFISO MOD 1G X-TEMP 24P SMD |
1,861 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-TX | 350µH | - | 1CT:1CT | Surface Mount | 0.600" L x 0.540" W (15.24mm x 13.72mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
TGR74-4406V12LFISO MOD 10BASE-T 1C:1C/1C:2C |
2,189 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10 Base-T | 25µH | - | 1CT:1CT Transmitter, 1CT:2CT Receiver | Surface Mount | 0.675" L x 0.560" W (17.15mm x 14.22mm) | 0.390" (9.91mm) | 0°C ~ 70°C | - | - |
|
|
TGR42-4406V12LFISO MOD 10BASE-T 1C:1C/1C:1.41C |
4,361 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10 Base-T | 140µH | - | 1CT:1CT Transmitter, 1CT:1.41CT Receiver | Surface Mount | 0.675" L x 0.560" W (17.15mm x 14.22mm) | 0.390" (9.91mm) | 0°C ~ 70°C | - | - |
|

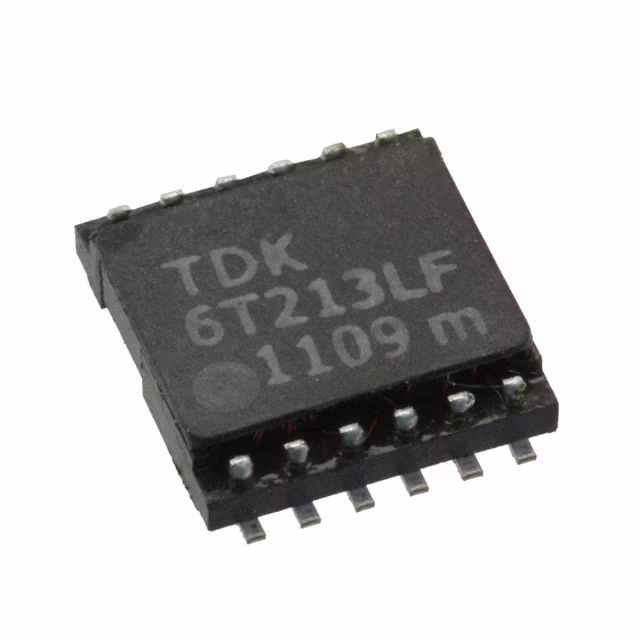

TLA-6T213LF-TTRANSFORMER LAN 10/100/1000 T |
2,239 | 0.00 |
|
Datasheet |
TLA | Tape & Reel (TR) | Obsolete | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.331" L x 0.335" W (8.40mm x 8.50mm) | 0.087" (2.20mm) | 0°C ~ 70°C | - | - |
|
|
TG110-6506NXLFISO MOD 10/100 QUAD 40P SMD |
1,111 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-TX | - | - | - | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
TG111-S001J24LFISO MID 1G LOWPRFL 24P SMD |
1,839 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-TX | 350µH | - | 1CT:1CT | Surface Mount | 0.520" L x 0.480" W (13.21mm x 12.19mm) | 0.148" (3.75mm) | 0°C ~ 70°C | - | - |
|
|
TG05-S001NURLTRISO MOD T1 8CH 1:2 X-TEMP 32P SM |
4,861 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Quad) | 1.5mH | - | 1:2 | Surface Mount | 1.000" L x 0.300" W (25.40mm x 7.62mm) | 0.290" (7.37mm) | -40°C ~ 85°C | - | - |
|
|
TG23-1505NURLTRISO MOD T1 8CH 1:2.42 X-TEMP 32P |
1,790 | 0.00 |
|
- |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Octal) | 1.5mH | - | 1:2.42 | Surface Mount | 1.000" L x 0.300" W (25.40mm x 7.62mm) | 0.290" (7.37mm) | -40°C ~ 85°C | - | - |
|
|
TG10G-S100NJLFISO MOD 10G 24P SMD |
1,369 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10G Base-T | - | - | - | Surface Mount | 0.545" L x 0.480" W (13.84mm x 12.19mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
TG39-1205NXLFISO MOD T1 QUAD 1:1.15 40P SMD |
4,476 | 0.00 |
|
Datasheet |
- | Tube | Active | T1/E1 (Quad) | 1.2mH | - | 1:1.15 Transmitter, 1:1.15 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
TG05-1205NXRLISO MOD T1 8CH 1:2 40P SMD |
1,272 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | T1/E1 (Quad) | 1.2mH | - | 1:2 Transmitter, 1:2 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
TG29-1205NXLFISO MOD T1 QUAD 1:2 2C:1 40P SMD |
3,934 | 0.00 |
|
Datasheet |
- | Tube | Active | T1/E1 (Quad) | 1.2mH | - | 1:2 Transmitter, 1:2CT Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
TG28-1205NXLFISO MOD T1 QUAD 1C:1.36C 40P SMD |
2,852 | 0.00 |
|
Datasheet |
- | Tube | Active | T1/E1 (Quad) | 1.2mH | - | 1CT:1.36CT Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
TG37-5176NXLFISO MOD T1 QUAD 1:1.14C X-TEMP 4 |
1,461 | 0.00 |
|
Datasheet |
- | Tube | Active | T1/E1 (Quad) | 1.5mH | - | 1:1.14CT Transmitter, 1:1.14CT Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
