Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

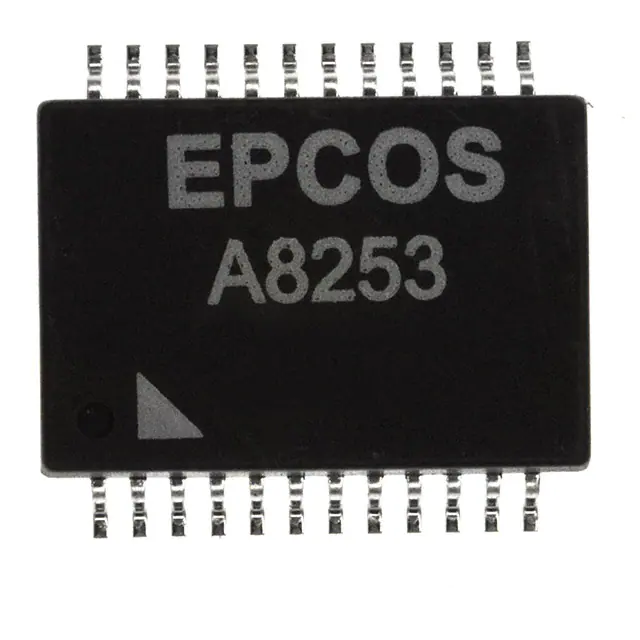

B78476A8253A003PULSE XFMR 1CT:1CT 350UH |
2,626 | 2.95 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.693" L x 0.476" W (17.60mm x 12.10mm) | 0.228" (5.80mm) | 0°C ~ 70°C | - | - |
|
ST7010QNLTPULSE XFMR 1CT:1.414CT 1CT:1CT |
1,934 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | 18µH, 60µH, 80µH, 175µH | - | 1CT:1.414CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.455" L x 0.275" W (11.56mm x 6.99mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
|
TG111-E112NYRLTRISO MOD 1G POE 0.35A X-TEMP |
4,795 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10/100 Base-TX | 350µH | - | 1CT:1CT | Surface Mount | 0.600" L x 0.540" W (15.24mm x 13.72mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
G4801DGDUAL LAN XFMR 1000 BASE-T |
1,174 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Through Hole | 1.122" L x 0.472" W (28.59mm x 12.00mm) | 0.472" (12.00mm) | 0°C ~ 70°C | - | - |
|
|
TG97-1505NZLFTRISO MOD T1 DUAL 1C:1.36C/1C:2C |
2,485 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | - | - | 1CT:1.36CT Transmitter, 1CT:2CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG85-S002NZLFTRISO MOD T1 DUAL 1C:2C X-TEMP 24P |
3,902 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | - | - | 1CT:2CT Transmitter, 1CT:2CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG75-1505NZLFTRISO MOD T1 DUAL 1C:2C X-TEMP 24P |
3,055 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | - | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG36-1505NZLFTRISO MOD T1 DUAL 1:1.15 X-TEMP |
2,569 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | - | - | 1CT:1.15CT Transmitter, 1CT:1.15CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG43-1505NZLFTRISO MOD T1 DUAL 1C:1.41C X-TEMP |
2,681 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | - | - | 1CT:1.41CT Transmitter, 1CT:1.41CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG85-1505NZLFTRISO MOD T1 DUAL 1C:2C X-TEMP 24P |
4,700 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | - | - | 1CT:2CT Transmitter, 1CT:2CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG48-1505NZLFTRISO MOD T1 DUAL 1C:2C X-TEMP 24P |
2,458 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | - | - | 1CT:2CT Transmitter, 1CT:2CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG98-1505NZLFTRISO MOD T1 DUAL 1C:1.36C/1C:1C |
1,191 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | - | - | 1CT:1.36CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG110-AMX2NXRLISO MOD 10/100 QUAD 40P SMD |
1,582 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10/100 Base-T | - | - | - | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
TG10G-S101NJRLISO MOD 10G 24P SMD |
3,338 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10G Base-T | - | - | - | Surface Mount | 0.545" L x 0.480" W (13.84mm x 12.19mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
TG41-S010NXLFTRISO MOD 10BASE-T QUAD 1C:2.5C |
2,945 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10 Base-T | 35µH, 200µH | - | 1CT:2.5CT Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|

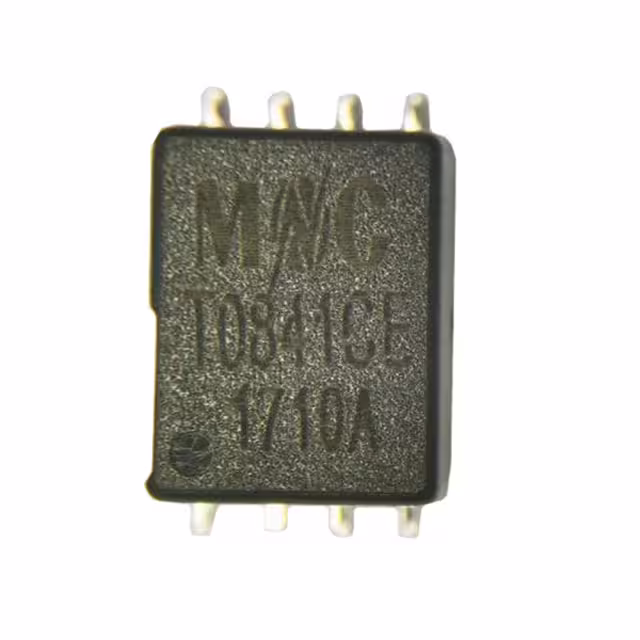

T0841CEPLC XFMR,1:1:1:2,28UH,FUNC.1500V |
3,712 | 0.00 |
|
- |
- | Tape & Reel (TR) | Active | - | 28µH | - | 1:1:1:2 | Surface Mount | - | - | - | - | - |
|
|
TG70-1505NXRLTRISO MOD T1 QUAD 1:1.36C X-TEMP |
4,723 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Quad) | 1.5mH | - | 1:1.36CT Transmitter, 1:1.36CT Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
TG37-1505NXRLTRISO MOD T1 QUAD 1:1.14 X-TEMP |
3,478 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Quad) | 1.5mH | - | 1:1.15 Transmitter, 1:1.15 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
TG42-1505NXRLTRISO MOD T1 QUAD 1:1.41 X-TEMP |
2,225 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Quad) | 1.5mH | - | 1:1.36 Transmitter, 1:1.41 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
TG110-EMX6NXLFTRISO MOD 10/100 QUAD X-TEMP 40P S |
3,690 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | - | - | - | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
