Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TG36-1505NXRLTRISO MOD T1 QUAD 1:1.15 X-TEMP |
2,774 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Quad) | 1.5mH | - | 1:1.15 Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
TG63-S003NXRLTRISO MOD T1 QUAD 1:2 1:1.15 XTEMP |
1,801 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Quad) | 1.5mH | - | 1:1.15 Transmitter, 1:2 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
TG29-1505NXRLTRISO MOD T1 QUAD 1:2 2C:1 X-TEMP |
3,683 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Quad) | 1.5mH | - | 1:2 Transmitter, 1:2CT Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
TG83-1505NXRLTRISO MOD T1 QUAD 1:2 X-TEMP 40P S |
4,013 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Quad) | 1.5mH | - | 1:2 Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
TG64-1505NXRLTRISO MOD T1 QUAD 1:1/1.26 1:2C |
4,016 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Quad) | 1.5mH | - | 1:1/1.26 Transmitter, 1:2CT Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
TG87-S004NXRLTRISO MOD T1 QUAD 1:1/1:2C X-TEMP |
3,041 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Quad) | 1.5mH | - | 1:2CT Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
TG63-1505NXRLTRISO MOD T1 QUAD 1:1.15 1:2C |
2,158 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Quad) | 1.5mH | - | 1:1.15 Transmitter, 1:2CT Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
TG27-1505NXRLTRISO MOD T1 QUAD 1:1.36 1:2CT |
4,669 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Quad) | 1.5mH | - | 1:1.36 Transmitter, 1:2CT Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
C2268NLTPULSE XFMR 1:1 7.5UH |
3,869 | 2.65 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 7.5µH | - | 1:1 | Surface Mount | 0.500" L x 0.275" W (12.70mm x 6.99mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
TG80-1505NXRLISO MOD T1 QUAD 1:2.45C X-TEMP 4 |
4,338 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | T1/E1 (Quad) | 1.5mH | - | 1:2.45CT Transmitter, 1:2.45CT Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
TG111-E032NYRLISO MOD 1G X-TEMP 24P SMD |
1,085 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10/100 Base-TX | 350µH | - | 1CT:1CT | Surface Mount | 0.600" L x 0.540" W (15.24mm x 13.72mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
TG41-4006NCRLISO MOD 10BASE-T 1C:2.5C 4.5KV 1 |
3,413 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10 Base-T | 35µH | - | 1CT:1CT Transmitter, 1CT:2.5CT Receiver | Surface Mount | 0.675" L x 0.455" W (17.15mm x 11.56mm) | 0.340" (8.64mm) | - | - | - |
|

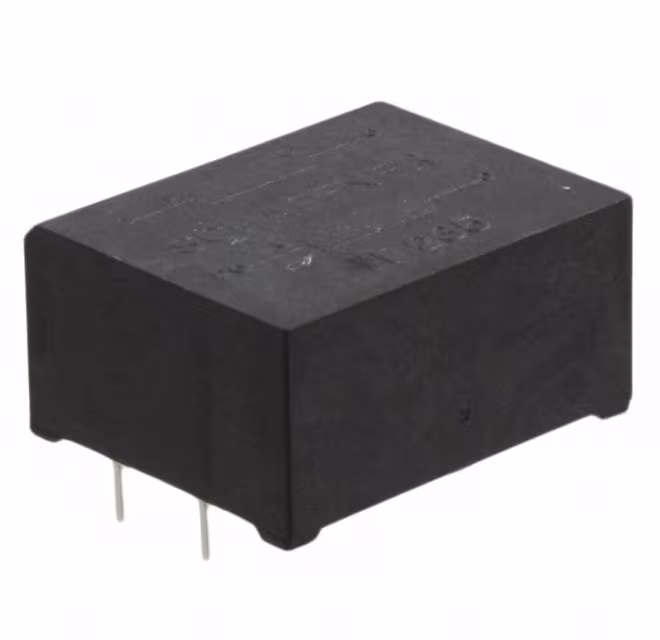

IT235TRANSFORMER PULSE |
4,807 | 0.00 |
|
Datasheet |
IT | Tray | Obsolete | Data/Voice Coupling | 3mH | - | 1:1 | Through Hole | - | - | -25°C ~ 70°C | - | - |
|
|
TGR41-4006V12LFTRISO MOD 10BASE-T 1C:2.5C REINF |
4,799 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10 Base-T | 35µH | - | 1CT:1CT Transmitter, 1CT:2.5CT Receiver | Surface Mount | 0.675" L x 0.560" W (17.15mm x 14.22mm) | 0.390" (9.91mm) | -40°C ~ 85°C | - | - |
|
|
TG111-E001J24RLISO MOD 1G LOWPRFL 24P SMD |
4,573 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10/100 Base-TX | 350µH | - | 1CT:1CT | Surface Mount | 0.520" L x 0.480" W (13.21mm x 12.19mm) | 0.148" (3.75mm) | -40°C ~ 85°C | - | - |
|
|
AVP9014RS5MMDL 2.5G 1 PORT 4PAIR POE 90W |
3,470 | 4.91 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
|
TG2G-HPE3NYNLFISO MOD 2.5G POE .6A X-TEMP MINI |
2,629 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 2.5/5G Base-T | - | - | 1CT:1CT | Surface Mount | 0.560" L x 0.300" W (14.22mm x 7.62mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
|
TG75-4406NCRLTRISO MOD 10BASE-T 1C:2C 4.5KV 12P |
1,737 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10 Base-T | 25µH | - | 1CT:1CT Transmitter, 1CT:2CT Receiver | Surface Mount | 0.675" L x 0.455" W (17.15mm x 11.56mm) | 0.340" (8.64mm) | 0°C ~ 70°C | - | - |
|
|
TG43-4406NCRLTRISO MOD 10BASE-T 1C:1.41C 4.5KV |
3,798 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10 Base-T | 140µH | - | 1CT:1CT Transmitter, 1CT:2CT Receiver | Surface Mount | 0.675" L x 0.455" W (17.15mm x 11.56mm) | 0.340" (8.64mm) | - | - | - |
|
|
TG92-4006NCRLTRISO MOD 10BASE-T 1C:1C/1C:2.5C |
4,778 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10 Base-T | 35µH | - | 1CT:1CT Transmitter, 1CT:2.5CT Receiver | Surface Mount | 0.675" L x 0.455" W (17.15mm x 11.56mm) | 0.340" (8.64mm) | - | - | - |
