Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

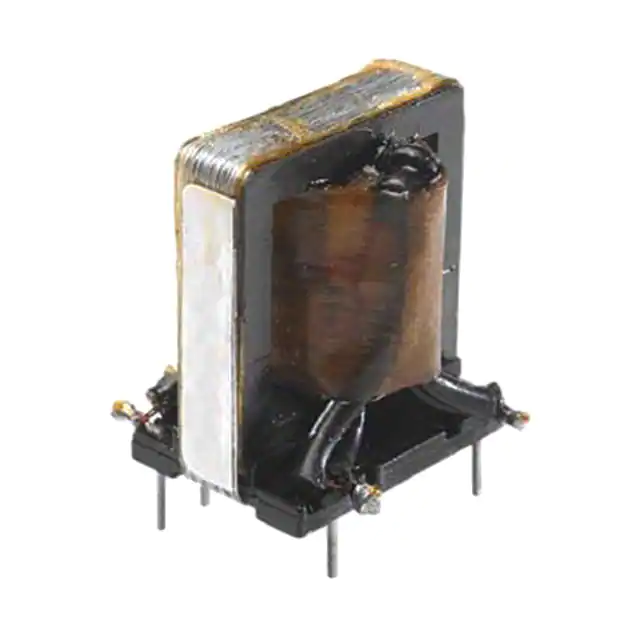

GDE25-1-BTRANSF .350 OHM SINGL GATE DRIVE |
2,744 | 11.42 |
|
Datasheet |
GDE25 | Bulk | Active | Gate Drive | 680µH | 540VµS | 1:1 | Through Hole | 1.100" L x 1.040" W (27.94mm x 26.42mm) | 1.200" (30.48mm) | -40°C ~ 80°C | - | - |
|
|
GDE25-2-BTRANSF .650 OHM DUAL GATE DRIVE |
1,698 | 11.42 |
|
Datasheet |
GDE25 | Bulk | Active | Gate Drive | 680µH | 540VµS | 1:1:1 | Through Hole | 1.100" L x 1.040" W (27.94mm x 26.42mm) | 1.200" (30.48mm) | -40°C ~ 80°C | - | - |
|
|
GDE25-4-BTRANSF .650 OHM DUAL GATE DRIVE |
3,260 | 11.42 |
|
Datasheet |
GDE25 | Bulk | Active | Gate Drive | 1.5mH | 840VµS | 1.5:1:1 | Through Hole | 1.100" L x 1.040" W (27.94mm x 26.42mm) | 1.200" (30.48mm) | - | - | - |
|
|
GDE25-5-BTRANSF .875 OHM SINGL GATE DRIVE |
2,203 | 11.42 |
|
Datasheet |
GDE25 | Bulk | Active | Gate Drive | 680µH | 540VµS | 1:1.5 | Through Hole | 1.100" L x 1.040" W (27.94mm x 26.42mm) | 1.200" (30.48mm) | -40°C ~ 80°C | - | - |
|
|
GDE25-6-BTRANSF 1.75 OHM DUAL GATE DRIVE |
4,237 | 11.42 |
|
Datasheet |
GDE25 | Bulk | Active | Gate Drive | 680µH | 540VµS | 1:1.5:1.5 | Through Hole | 1.100" L x 1.040" W (27.94mm x 26.42mm) | 1.200" (30.48mm) | -40°C ~ 80°C | - | - |
|
100B-1018TEXTMP XFMR 100BT SMG COM PBC |
1,576 | 15.92 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | - | - | 1CT:1CT | Surface Mount | 0.583" L x 0.470" W (14.81mm x 11.94mm) | 0.180" (4.57mm) | - | - | - |
|
H5012NLTMODULE DL GIGABIT ETHER LAN 48P |
2,171 | 15.79 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 1000 Base-T | - | - | 1CT:1CT | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|
PL1960XFMR TOROID GATE-DR SMT CU PBC |
1,127 | 12.10 |
|
Datasheet |
- | Tube | Active | - | 785µH | 9.7VµS | 1:1 | Surface Mount | 0.265" L x 0.340" W (6.73mm x 8.64mm) | 0.140" (3.56mm) | - | - | - |
|
|
T60404N4646X9564646X956 |
2,124 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - |
|
|
TX3051TPULSE XFMR 1:1 60UH |
2,238 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | T3/E3 (Twelve) | 60µH | - | 1:1 | Surface Mount | 1.120" L x 0.480" W (28.45mm x 12.19mm) | 0.280" (7.11mm) | -40°C ~ 85°C | - | - |
|

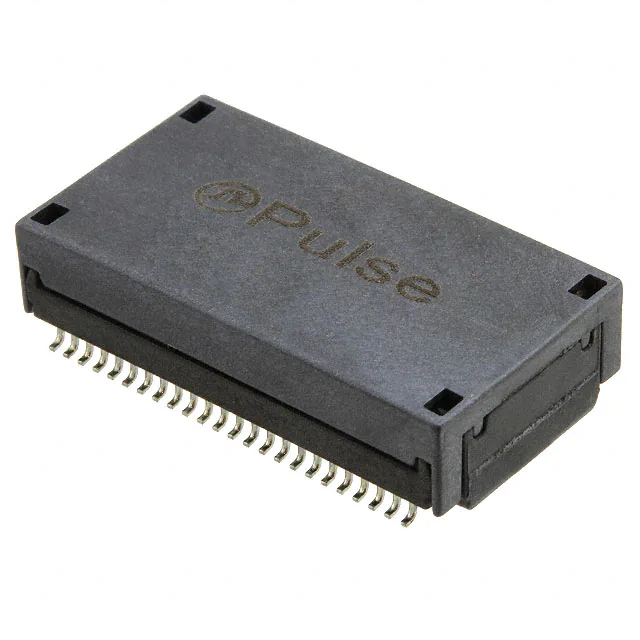

H5012FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
3,818 | 15.94 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.590" W (27.81mm x 14.99mm) | 0.285" (7.24mm) | 0°C ~ 70°C | - | - |
|
|
T60404N4646P9514646P951 |
3,375 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - |
_iNRCORE_Product-Image.jpg)
|
R6001NLTXFRMR ETHERNET MOD IND 10/100B-T |
4,423 | 14.58 |
|
- |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | 120µH | - | - | Surface Mount | 0.700" L x 0.490" W (17.78mm x 12.45mm) | 0.235" (5.97mm) | -40°C ~ 85°C | - | - |
|

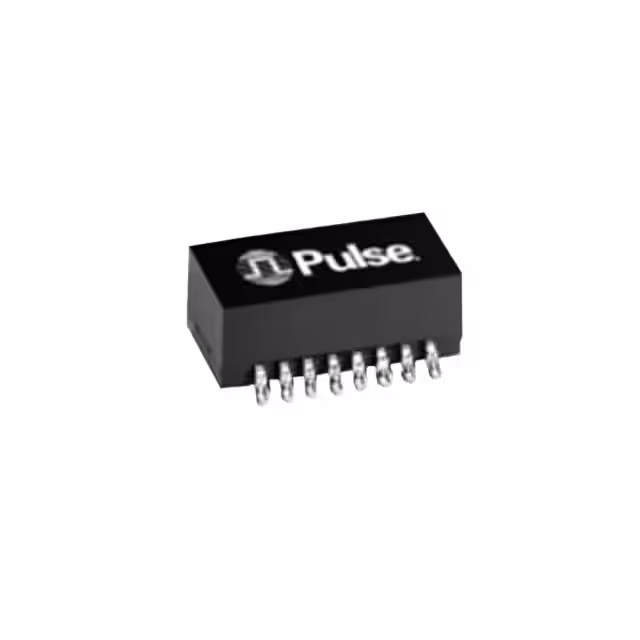

100B-1003FNLXFMR MODULE 100BT SMG COM NPB |
2,991 | 10.23 |
|
Datasheet |
- | Bulk | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.500" L x 0.265" W (12.70mm x 6.73mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
|
1000B-5016TMDL SIN 1GD 1:1 SM TR PBC |
4,684 | 13.98 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | - | - | 1:1 | Surface Mount | 0.600" L x 0.300" W (15.24mm x 7.62mm) | 0.163" (4.14mm) | - | - | - |
|
|
T4PH04RVMDL 10G 4 PORT POE 90W |
1,450 | 16.60 |
|
Datasheet |
- | Tube | Active | LAN 10 Base-T | 120µH | - | 1:1CT Transmitter, 1:1CT Receiver | Through Hole | 1.319" L x 1.142" W (33.50mm x 29.00mm) | 0.661" (16.80mm) | -40°C ~ 105°C | - | - |
|
|
T4PH04RTMDL 10G 4 PORT POE 90W |
4,197 | 16.60 |
|
Datasheet |
- | Tube | Active | LAN 10 Base-T | 100µH | - | 1:1CT Transmitter, 1:1CT Receiver | Through Hole | 1.319" L x 1.142" W (33.50mm x 29.00mm) | 0.661" (16.80mm) | -40°C ~ 90°C | - | - |
|
|
T60404N4647X2644647X264 |
3,636 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - |
|
|
PL1374EXTMP XFMR SGL T1 LS PBC |
4,590 | 10.90 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 1.2mH | - | 1CT:1CT | Surface Mount | 0.300" L x 0.276" W (7.62mm x 7.00mm) | 0.260" (6.60mm) | - | - | - |
|
|
100B-1018EXTMP XFMR 100BT SMG COM PBC |
3,044 | 16.95 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | - | - | 1CT:1CT | Surface Mount | 0.583" L x 0.470" W (14.81mm x 11.94mm) | 0.180" (4.57mm) | - | - | - |
