Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TG110-RPE15NVRLISO MOD 10/100 QUAD POE 0.35A 48 |
2,578 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10/100 Base-TX | - | - | - | Surface Mount | 1.090" L x 0.740" W (27.69mm x 18.80mm) | 0.300" (7.62mm) | -40°C ~ 85°C | - | - |
|
|
TG1G-E234NVRLISO MOD 1G DUAL X-TEMP 48P SMD |
3,013 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10/100 Base-T | - | - | - | Surface Mount | 1.090" L x 0.740" W (27.69mm x 18.80mm) | 0.300" (7.62mm) | -40°C ~ 85°C | - | - |
|
|
HU4103NLMODULE MAG DUAL POE 2.5GB SMT |
2,331 | 10.80 |
|
Datasheet |
- | Tube | Active | - | - | - | - | Surface Mount | 1.100" L x 0.430" W (27.94mm x 10.92mm) | 0.328" (8.33mm) | 0°C ~ 70°C | - | - |
|
|
100B-1003FEXTMP XFMR 100BT SMG COM PBC |
1,615 | 10.23 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.500" L x 0.265" W (12.70mm x 6.73mm) | 0.245" (6.22mm) | - | - | - |
|
|
TG110-RPE15NVRLTRISO MOD 10/100 QUAD POE 0.35A |
4,084 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10/100 Base-TX | - | - | - | Surface Mount | 1.090" L x 0.740" W (27.69mm x 18.80mm) | 0.300" (7.62mm) | -40°C ~ 85°C | - | - |
|
|
TG1G-E234NVRLTRISO MOD 1G DUAL X-TEMP 48P SMD T |
2,576 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10/100 Base-T | - | - | - | Surface Mount | 1.090" L x 0.740" W (27.69mm x 18.80mm) | 0.300" (7.62mm) | -40°C ~ 85°C | - | - |
|

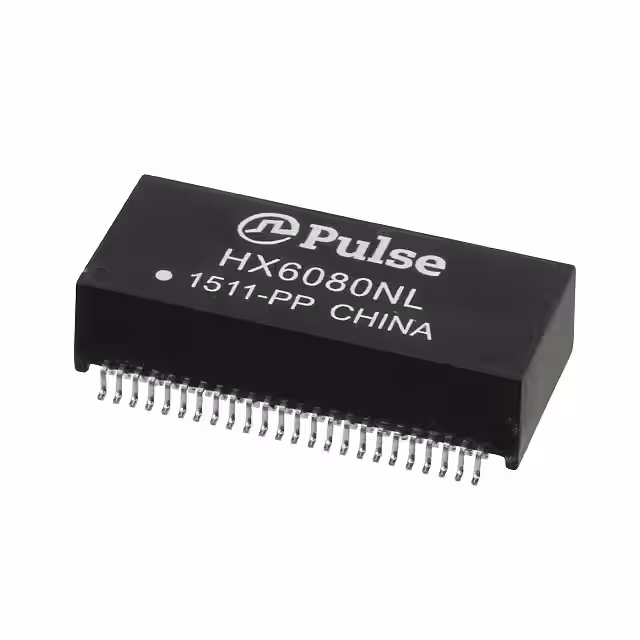

HX6080NLTPULSE XFMR 1 CT:1CT TX/RX 350UH |
3,626 | 10.34 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.285" (7.24mm) | -40°C ~ 85°C | - | - |
|
|
HX5G2003NLTMDL DUAL 5GD 1:1 SMT TR |
1,403 | 10.34 |
|
Datasheet |
- | Tape & Reel (TR) | Active | General Purpose | 120µH | - | 1:1 | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.285" (7.25mm) | -40°C ~ 85°C | - | - |
|
|
100B-1003FNLTEXTMP XFMR 100BT SMG COM NPB |
3,139 | 9.43 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.500" L x 0.265" W (12.70mm x 6.73mm) | 0.245" (6.22mm) | - | - | - |
|
|
T1176NLTMODULE INTERFACE 1CT:2.4CT SMD |
2,484 | 10.37 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.2mH | - | 1CT:2.4CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | -40°C ~ 85°C | - | - |
|
|
100B-1003NLTEXTMP XFMR 100BT SMG COM NPB |
2,004 | 9.46 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.500" L x 0.265" W (12.70mm x 6.73mm) | 0.245" (6.22mm) | - | - | - |
|
|
GU4629RM LFMDL 1G DIP 4 PORT POE 60W |
1,569 | 10.38 |
|
Datasheet |
- | Tube | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Through Hole | 1.319" L x 1.142" W (33.50mm x 29.00mm) | 0.661" (16.80mm) | -40°C ~ 85°C | - | - |
|
MTBAUGDT125050TRANSFORMER, MICRO GATE DRIVE, 1 |
4,835 | 10.50 |
|
Datasheet |
MTBAUGDT | Tape & Reel (TR) | Active | Gate Drive | 330µH | 63VµS | 1:0.5:0.5 | Surface Mount | - | 0.220" (5.59mm) | -55°C ~ 130°C | - | - |
|
|
MTBAUGDT125075TRANSFORMER, MICRO GATE DRIVE, 1 |
2,466 | 10.50 |
|
Datasheet |
MTBAUGDT | Tape & Reel (TR) | Active | Gate Drive | 360µH | 66VµS | 1:0.75:0.75 | Surface Mount | - | 0.220" (5.59mm) | -55°C ~ 130°C | - | - |
_iNRCORE_Product-Image.jpg)
|

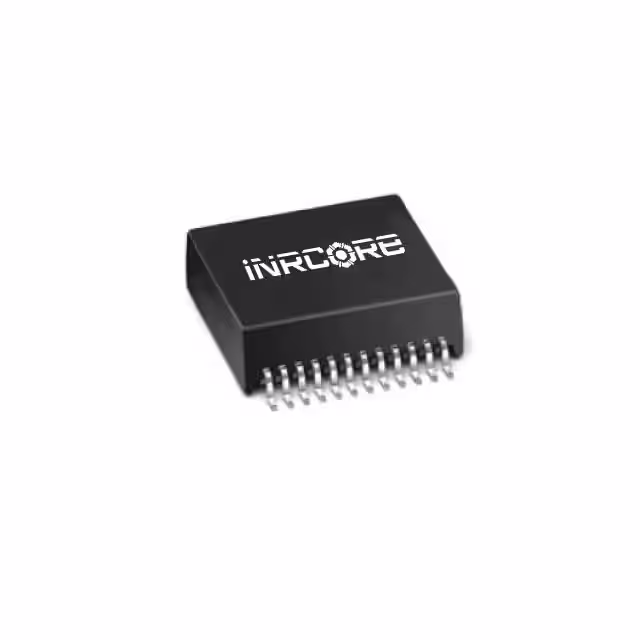

R5033NLTXFRMR ETHERNET MOD IND 1000B-T |
4,828 | 9.97 |
|
- |
- | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | - | Surface Mount | 0.600" L x 0.430" W (15.24mm x 10.92mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
|
HX7137NLTMDL SIN 10GD 1:1 SM TR |
3,742 | 10.64 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10 Base-T | 120µH | - | 1:1 | Surface Mount | 0.698" L x 0.480" W (17.73mm x 12.19mm) | 0.285" (7.24mm) | -40°C ~ 85°C | - | - |
|
|
HX7019NLTMDL SIN 10G 1:1 GEN2 SM TU |
3,226 | 10.64 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
|
T1108NLTXFRMR T1/E1/CEPT/ISDN-PRI 1:2CT |
3,905 | 6.29 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Quad) | 1.2mH | - | 1:2CT Transmitter, 1:1CT Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
T1142NLTXFRMR T1/E1/CEPT/ISDN-PRI 1:2.4 |
4,845 | 6.29 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Quad) | 1mH, 1mH | - | 1:2.4 Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
PL1863NLPOWER |
3,514 | 0.00 |
|
Datasheet |
- | Tube | Active | Gate Drive | 1.2mH | 27.2VµS | 2:1:1 | Surface Mount | - | - | - | - | - |
