Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
100B-4011NLETHERNET |
2,671 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 1.120" L x 0.480" W (28.45mm x 12.19mm) | 0.280" (7.11mm) | -40°C ~ 85°C | - | - |
|
10GB-6013XLAN MODULE XFRMR 10GBASE-T SMD |
2,751 | 32.51 |
|
Datasheet |
- | Tube | Active | LAN 10G Base-T, Power over Ethernet (PoE) | 120µH | - | - | Surface Mount | 0.725" L x 0.480" W (18.42mm x 12.19mm) | 0.265" (6.73mm) | -55°C ~ 125°C | - | - |
|
|
DKG1553-75NON-QPL 1553 |
4,742 | 0.00 |
|
Datasheet |
- | Tube | Active | MIL-STD-1553 | - | - | 1:2.5 | Surface Mount | 0.675" L x 0.400" W (17.15mm x 10.16mm) | 0.185" (4.70mm) | -55°C ~ 125°C | COTS | - |
|
|
1000B-5027FXXFMR CHOKE SHUNT SNGLE 10 PBC |
2,457 | 18.29 |
|
- |
* | Tube | Active | - | - | - | - | - | - | - | - | - | - |
|
|
1000B-5012XNLMDL SGL 1000B 1:1 SMT TU PBC |
1,059 | 21.48 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.518" L x 0.595" W (13.16mm x 15.11mm) | 0.251" (6.38mm) | - | - | - |
|

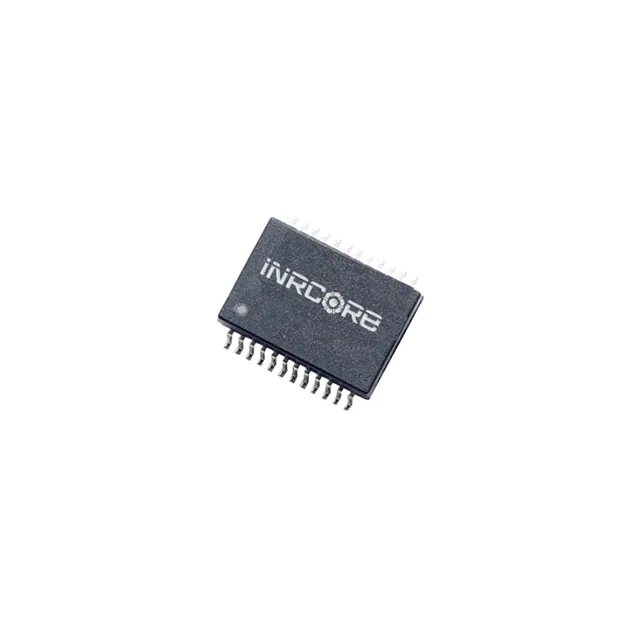

10GB-6011XNLLAN MODULE XFRMR 10GBASE-T SMD |
4,924 | 32.78 |
|
Datasheet |
- | Tube | Active | LAN 10G Base-T, Power over Ethernet (PoE) | 120µH | - | - | Surface Mount | 0.725" L x 0.480" W (18.42mm x 12.19mm) | 0.265" (6.73mm) | -55°C ~ 125°C | - | - |
|
QC1553-24TRANSFORMER PBC |
4,447 | 34.39 |
|
Datasheet |
- | Tube | Active | MIL-STD-1553 | - | - | 1CT:2CT | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | - | - | - |
|
|
QC1553-25TRANSFORMER PBC |
2,461 | 34.39 |
|
Datasheet |
- | Tube | Active | MIL-STD-1553 | - | - | 1CT:1.5CT | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | - | - | - |
|
|
X-1644MDL SIN 100D 1:1 SMT OH PBC |
1,965 | 34.53 |
|
Datasheet |
* | Tube | Active | - | - | - | - | - | - | - | - | - | - |
|
|
10GB-6011XLAN MODULE XFRMR 10GBASE-T SMD |
1,443 | 33.08 |
|
Datasheet |
- | Tube | Active | LAN 10G Base-T, Power over Ethernet (PoE) | 120µH | - | - | Surface Mount | 0.725" L x 0.480" W (18.42mm x 12.19mm) | 0.265" (6.73mm) | -55°C ~ 125°C | - | - |
|
|
100B-4005XNLXFMR CHK QUAD 100BT SMT X PBC |
4,320 | 21.73 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 1.120" L x 0.480" W (28.45mm x 12.19mm) | 0.290" (7.36mm) | - | - | - |
|
|
T-1485SCTNLTXMFR 04F09855 DUAL 1.458 G RPB |
4,272 | 26.16 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 3.75µH | - | 1CT:1CT | Surface Mount | 0.500" L x 0.290" W (12.70mm x 7.37mm) | 0.185" (4.70mm) | - | - | - |
|
SMG1553-68TRANSFORMER 1553 SINGLE PBC |
3,399 | 24.05 |
|
Datasheet |
- | Tube | Active | MIL-STD-1553 | - | - | 1CT:3.75CT | Surface Mount | 0.400" L x 0.400" W (10.16mm x 10.16mm) | 0.185" (4.70mm) | - | - | - |
|
|
1000B-5009FXFRMS SINGLE 1GD 1:1 SMT T PBC |
3,182 | 17.99 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.600" L x 0.430" W (15.24mm x 10.93mm) | 0.350" (8.89mm) | - | - | - |
|

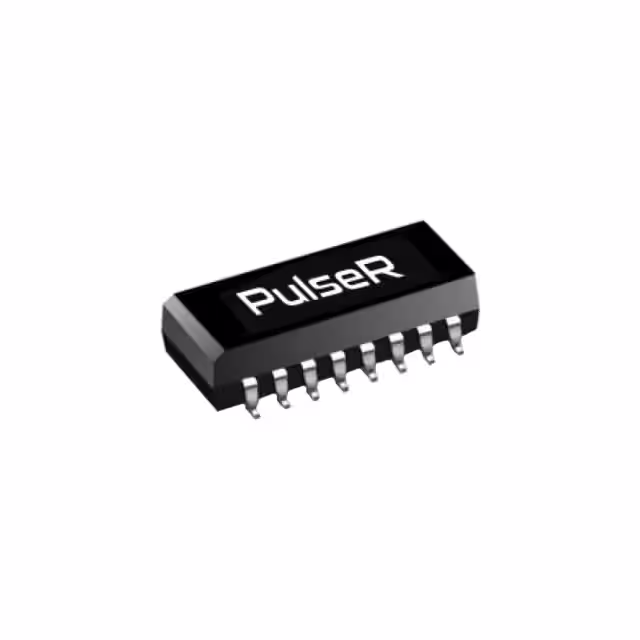

100B-1027FXXFMR MODULE 100B 1:1 SMT TU PBC |
4,713 | 15.19 |
|
Datasheet |
- | Bulk | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.90mm) | 0.235" (5.97mm) | -55°C ~ 125°C | - | - |
|
|
1000B-5027FXNLETHERNET |
1,018 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 1000 Base-T | - | - | 1CT:1CT | Surface Mount | - | - | -55°C ~ 125°C | - | - |
|
|
1000B-5027XNLETHERNET |
1,951 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | - | - | 1CT:1CT | Surface Mount | 0.700" L x 0.620" W (17.78mm x 15.75mm) | 0.185" (4.70mm) | -55°C ~ 125°C | - | - |
|
|
100B-1027XMDL SIN 100D 1:1 SMT TU PBC |
1,701 | 15.27 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 1.000" L x 0.505" W (25.40mm x 12.83mm) | 0.245" (6.22mm) | - | - | - |
|
|
1000B-5027XMDL SIN 1GD 1:1 SMT PBC |
1,652 | 18.88 |
|
- |
- | Tube | Active | LAN 10/100/1000 Base-T | - | - | 1CT:1CT | Surface Mount | 0.700" L x 0.620" W (17.78mm x 15.75mm) | 0.185" (4.70mm) | - | - | - |
|
|
1000B-5009FXTETHERNET |
2,159 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.600" L x 0.430" W (15.24mm x 10.92mm) | 0.350" (8.89mm) | -55°C ~ 125°C | - | - |
