Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1000B-5003FNLMDL DUAL 1GD 1:1 SMT TU NPB |
1,262 | 30.42 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.341" (8.66mm) | - | - | - |
|
|
TQ1553-45TRANSFORMER PBC |
4,581 | 39.39 |
|
Datasheet |
- | Tube | Active | Interface, MIL-STD-1553 | - | - | 1CT:2.5CT, 1CT:1.79CT | Through Hole | 0.624" L x 0.624" W (15.86mm x 15.86mm) | 0.250" (6.35mm) | - | - | - |
|
T-1062SCTNLXFMR DUAL 1.0625GB Z:150 C RPB |
2,119 | 33.90 |
|
Datasheet |
- | Tube | Active | - | 3.75µH | - | 1CT:1CT | Surface Mount | 0.500" L x 0.290" W (12.70mm x 7.37mm) | 0.185" (4.70mm) | - | - | - |
|
|
T-1062ACTNLFIBRE CHANNEL |
3,853 | 0.00 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 3.75µH | - | 1CT:1CT | Surface Mount | 0.230" L x 0.265" W (5.84mm x 6.73mm) | 0.220" (5.59mm) | -55°C ~ 125°C | - | - |
|
|
1000B-5003MDL DUAL 1GD 1:1 SMT TU PBC |
3,910 | 31.18 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.341" (8.66mm) | - | - | - |
|

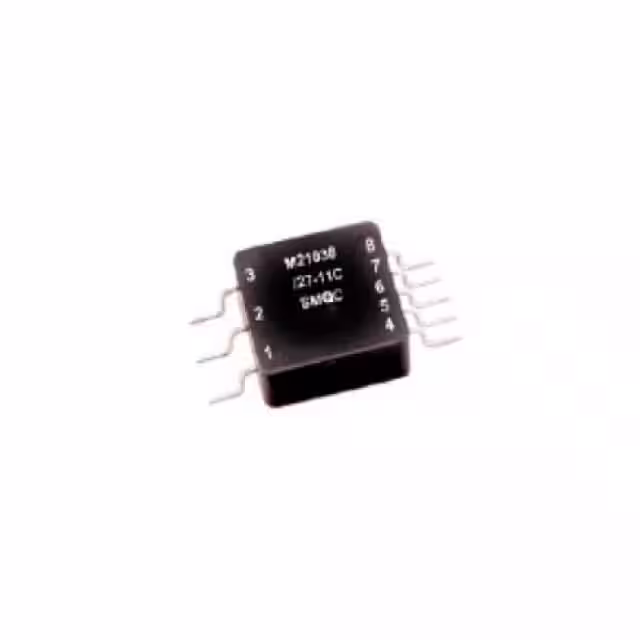

SMQC1553-6TRANSFORMER PULSE DUAL RATIO |
2,992 | 36.17 |
|
Datasheet |
- | Bulk | Active | Interface, MIL-STD-1553 | - | - | 1CT:1CT, 1CT:0.707CT | Surface Mount | 0.624" L x 0.624" W (15.86mm x 15.86mm) | 0.250" (6.35mm) | -55°C ~ 130°C | - | - |
|
FPQC1553-45TRANSFORMER PBC |
2,231 | 40.35 |
|
Datasheet |
- | Tube | Active | MIL-STD-1553 | - | - | 1CT:2.5CT, 1CT:1.79CT | Surface Mount | 0.624" L x 0.624" W (15.86mm x 15.86mm) | 0.254" (6.45mm) | - | - | - |
|

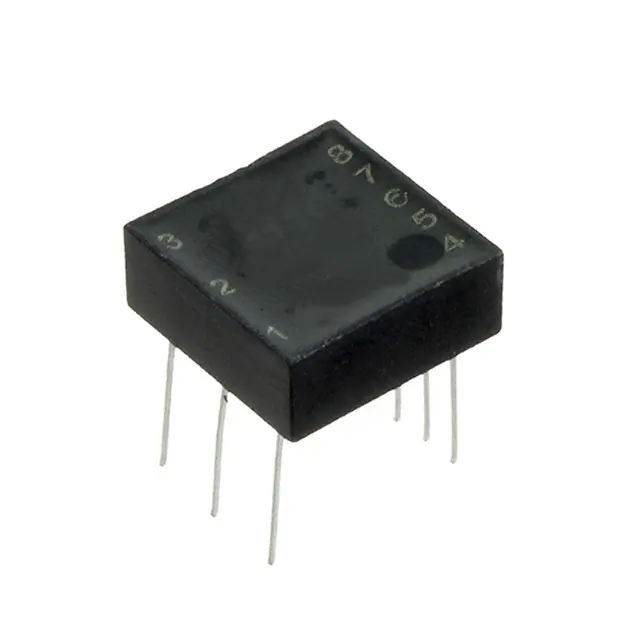

Q1553-70TRANSFORMER 1553-70 PBC |
1,177 | 38.12 |
|
Datasheet |
- | Tube | Active | MIL-STD-1553 | - | - | 1CT:3CT, 1CT:2.15CT | Through Hole | 0.624" L x 0.624" W (15.86mm x 15.86mm) | 0.250" (6.35mm) | - | - | - |
|
|
1000B-5003NLMDL DUAL 1GD 1:1 SMT TU NPB |
2,195 | 31.75 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.341" (8.66mm) | - | - | - |
|
|
1000B-5003XMDL DUAL 1GD 1:1 SMT TU PBC |
2,444 | 31.62 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.341" (8.66mm) | - | - | - |
|
|
1000B-5003FXMDL DUAL 1GD 1:1 SMT TU PBC |
4,635 | 32.22 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.341" (8.66mm) | - | - | - |
|
QC1553-45TRANSFORMER PBC |
2,843 | 31.94 |
|
Datasheet |
- | Tube | Active | MIL-STD-1553 | - | - | 1CT:2.5CT, 1CT:1.79CT | Through Hole | 0.624" L x 0.624" W (15.86mm x 15.86mm) | 0.250" (6.35mm) | - | - | - |
|
|
FPQC1553-6TRANSFORMER PBC |
3,312 | 41.89 |
|
Datasheet |
- | Tube | Active | MIL-STD-1553 | - | - | 1CT:1CT, 1CT:0.707CT | Surface Mount | 0.624" L x 0.624" W (15.86mm x 15.86mm) | 0.254" (6.45mm) | - | - | - |
|
|
1000B-5003XNLMDL DUAL 1GD 1:1 SMT TU RPB |
3,031 | 32.75 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.341" (8.66mm) | - | - | - |
|
|
SMQ1553-8TRANSFORMER PBC |
4,220 | 47.94 |
|
Datasheet |
- | Tube | Active | MIL-STD-1553 | - | - | 1.25CT:1CT, 1.66CT:1CT | Surface Mount | 0.624" L x 0.624" W (15.86mm x 15.86mm) | 0.250" (6.35mm) | - | - | - |
|
|
FPQC1553-8TRANSFORMER PBC |
3,005 | 44.94 |
|
Datasheet |
- | Tube | Active | MIL-STD-1553 | - | - | 1.25CT:1CT, 1.66CT:1CT | Surface Mount | 0.624" L x 0.624" W (15.86mm x 15.86mm) | 0.254" (6.45mm) | - | - | - |
|
|
Q1553-5TRANSFORMER PBC |
1,367 | 36.54 |
|
Datasheet |
- | Tube | Active | MIL-STD-1553 | - | - | 1CT:2.12CT, 1CT:1.5CT | Through Hole | 0.624" L x 0.624" W (15.86mm x 15.86mm) | 0.250" (6.35mm) | - | - | - |
|
|
T-3200SCT3.2GB INTERFACE TRANSFORME PBC |
4,821 | 31.33 |
|
Datasheet |
- | Tube | Active | - | 700nH | - | 1:1 | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.240" (6.10mm) | - | - | - |
|
|
1000B-5020XNLMDL DUAL 1GD 1:1 SM TR NPB |
3,003 | 26.62 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | - | - | 1CT:1CT | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.285" (7.24mm) | - | - | - |
|
|
T-531SCTXFMR DUAL 531MB MIL PBC |
3,552 | 34.58 |
|
Datasheet |
- | Tube | Active | - | 7.5µH | - | 1CT:1CT | Surface Mount | 0.500" L x 0.290" W (12.70mm x 7.37mm) | 0.185" (4.70mm) | - | - | - |
