Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPX-75-4NTRANSFORMER,WIDE-BAND |
1,070 | 0.00 |
|
Datasheet |
- | Tray | Active | - | - | - | - | Surface Mount | 1.343" L x 1.343" W (34.10mm x 34.10mm) | 0.752" (19.10mm) | -55°C ~ 85°C | - | - |
|

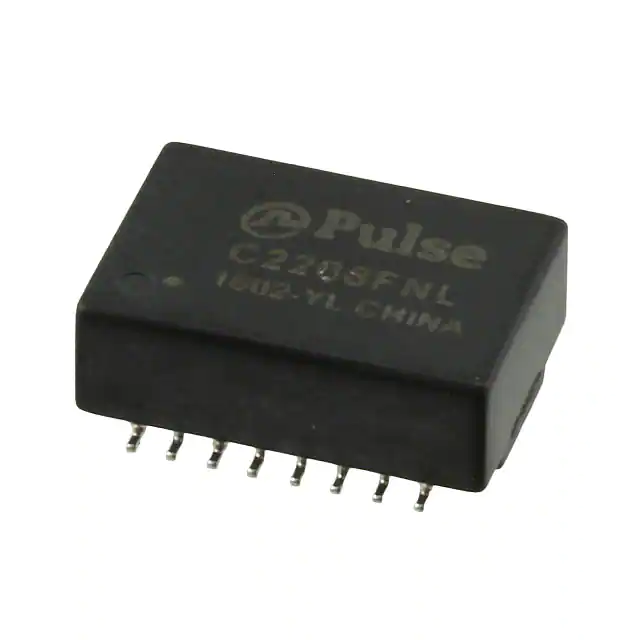

C2268FNLPULSE XFMR 1:1 7.5UH |
3,376 | 4.72 |
|
Datasheet |
- | Tube | Obsolete | - | 7.5µH | - | 1:1 | Surface Mount | 0.498" L x 0.350" W (12.65mm x 8.89mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
G501TRANSFORMER 2.0MH 1:1:1 PULSE |
1,079 | 0.00 |
|
- |
G5 | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | 2mH | 16VµS | 1:1:1 Ter | Through Hole | 0.350" L x 0.500" W (8.90mm x 12.70mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
G504TRANSFORMER 0.05MH 1:1:1 PULSE |
1,187 | 6.60 |
|
Datasheet |
G5 | Tube | Active | Isolation and Data Interface (Encapsulated) | 50µH | 5.2VµS | 1:1:1 Ter | Through Hole | 0.350" L x 0.500" W (8.90mm x 12.70mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
STT-101TRANSFORMER TRIGGER 1.0MH 1:1 |
1,697 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | SCR and Triac Trigger (Encapsulated) | 1mH | 90VµS | 1:1 | Through Hole | 0.969" L x 0.776" W (24.60mm x 19.70mm) | 0.827" (21.00mm) | - | - | - |
|
|
STT-102TRANSFORMER TRIGGER 5.0MH 1:1 |
3,926 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | SCR and Triac Trigger (Encapsulated) | 5mH | 200VµS | 1:1 | Through Hole | 0.969" L x 0.776" W (24.60mm x 19.70mm) | 0.827" (21.00mm) | - | - | - |
|
|
STT-103TRANSFORMER TRIGGER 10.0MH 1:1 |
1,539 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | SCR and Triac Trigger (Encapsulated) | 10mH | 280VµS | 1:1 | Through Hole | 0.969" L x 0.776" W (24.60mm x 19.70mm) | 0.827" (21.00mm) | - | - | - |
|
|
STT-104TRANSFORMER TRIGGER 1.0MH 1:1:1 |
2,919 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | SCR and Triac Trigger (Encapsulated) | 1mH | 90VµS | 1:1:1 Ter | Through Hole | 0.969" L x 0.776" W (24.60mm x 19.70mm) | 0.827" (21.00mm) | - | - | - |
|
|
STT-105TRANSFORMER TRIGGER 5.0MH 1:1:1 |
4,978 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | SCR and Triac Trigger (Encapsulated) | 5mH | 200VµS | 1:1:1 Ter | Through Hole | 0.969" L x 0.776" W (24.60mm x 19.70mm) | 0.827" (21.00mm) | - | - | - |
|
|
STT-106TRANSFORMER TRIGGER 10.0MH 1:1:1 |
3,134 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | SCR and Triac Trigger (Encapsulated) | 10mH | 280VµS | 1:1:1 Ter | Through Hole | 0.969" L x 0.776" W (24.60mm x 19.70mm) | 0.827" (21.00mm) | - | - | - |
|
|
STT-107TRANSFORMER TRIGGER 1.0MH 2:1 |
3,735 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | SCR and Triac Trigger (Encapsulated) | 1mH | 90VµS | 2:1 | Through Hole | - | - | - | - | - |
|
|
STT-108TRANSFORMER TRIGGER 5.0MH 2:1 |
4,275 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | SCR and Triac Trigger (Encapsulated) | 5mH | 200VµS | 2:1 | Through Hole | 0.969" L x 0.776" W (24.60mm x 19.70mm) | 0.827" (21.00mm) | - | - | - |
|
|
STT-109TRANSFORMER TRIGGER 10.0MH 2:1 |
1,171 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | SCR and Triac Trigger (Encapsulated) | 10mH | 280VµS | 2:1 | Through Hole | 0.969" L x 0.776" W (24.60mm x 19.70mm) | 0.827" (21.00mm) | - | - | - |
|
|
STT-111TRANSFORMER TRIGGER 5.0MH 2:1:1 |
4,030 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | SCR and Triac Trigger (Encapsulated) | 5mH | 200VµS | 2:1:1 Ter | Through Hole | - | - | - | - | - |
|
|
STT-112TRANSFORMER TRIGGER 10.0MH 2:1:1 |
3,639 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | SCR and Triac Trigger (Encapsulated) | 10mH | 280VµS | 2:1:1 Ter | Through Hole | 0.969" L x 0.776" W (24.60mm x 19.70mm) | 0.827" (21.00mm) | - | - | - |
|
631BTRANSFORMER PULSE 1MHZ .25DCR |
1,103 | 0.00 |
|
Datasheet |
631 | Bulk | Obsolete | SCR and Triac Trigger (Encapsulated) | 1mH | - | 1:1:1 | Through Hole | 0.984" L x 0.787" W (25.00mm x 20.00mm) | 0.512" (13.00mm) | - | - | - |
|
602ATRANSFORMER PULSE 2060UH 1.5DCR |
1,600 | 0.00 |
|
Datasheet |
602 | Bulk | Obsolete | Isolation and Data Interface (Encapsulated) | 2.06mH | - | 1:1:1 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | - | - | - |
|
|
602GATRANSFORMER PULSE 2.7UH .2DCR |
3,691 | 0.00 |
|
Datasheet |
602 | Bulk | Obsolete | Isolation and Data Interface (Encapsulated) | 2.7µH | - | 2:1 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | - | - | - |
|
|
601FTRANSFORMER PULSE 9.5UH .4DCR |
4,657 | 5.83 |
|
Datasheet |
601 | Bulk | Obsolete | Isolation and Data Interface (Encapsulated) | 9.5µH | - | 1:1 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | - | - | - |
|
|
601ETRANSFORMER PULSE 23UH .3DCR |
3,213 | 12.71 |
|
Datasheet |
601 | Bulk | Obsolete | Isolation and Data Interface (Encapsulated) | 23µH | - | 1:1 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | - | - | - |
