Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

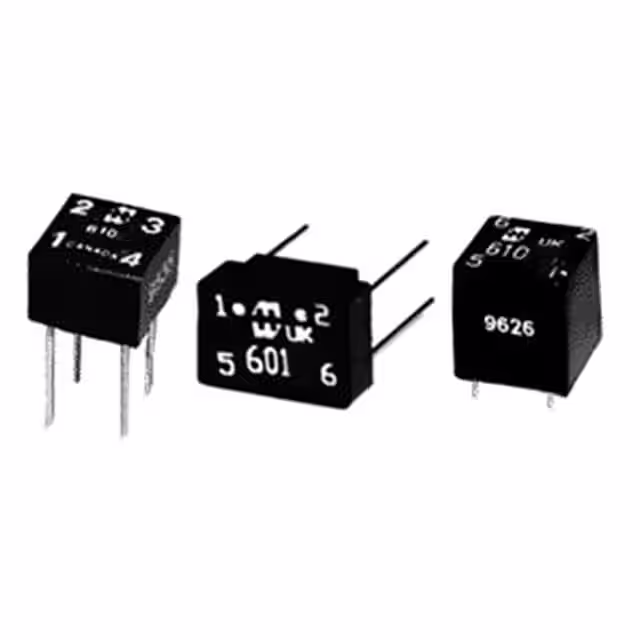

601ATRANSFORMER PULSE 2060UH 1.5DCR |
1,095 | 0.00 |
|
Datasheet |
601 | Bulk | Obsolete | Isolation and Data Interface (Encapsulated) | 2.06mH | - | 1:1 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | - | - | - |
|
601BTRANSFORMER PULSE 492UH .8DCR |
2,836 | 510.00 |
|
Datasheet |
601 | Bulk | Obsolete | Isolation and Data Interface (Encapsulated) | 492µH | - | 1:1 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | - | - | - |
|
611BTRANSFORMER PULSE 17.2MH 1.26DCR |
1,896 | 0.00 |
|
Datasheet |
611 | Bulk | Obsolete | SCR and Triac Trigger (Encapsulated) | 17.2mH | - | 1:1:1 | Through Hole | - | 0.690" (17.53mm) | - | - | - |
|

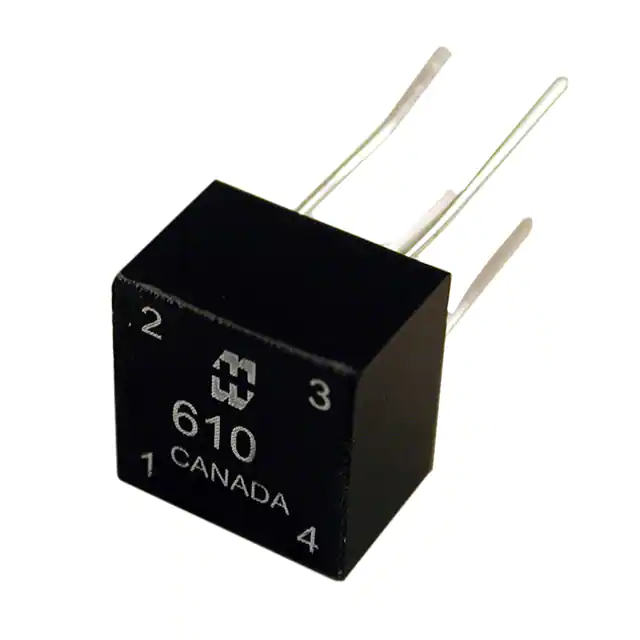

610BTRANSFORMER PULSE 2.7MH 2.1DCR |
3,972 | 0.00 |
|
Datasheet |
610 | Bulk | Active | Isolation and Data Interface (Encapsulated) | 2.7mH | - | 1:1:1 | Through Hole | 0.449" L x 0.449" W (11.40mm x 11.40mm) | 0.358" (9.10mm) | - | - | - |
|
|
611CTRANSFORMER PULSE 56MH 3.31DCR |
1,174 | 0.00 |
|
Datasheet |
611 | Bulk | Obsolete | SCR and Triac Trigger (Encapsulated) | 56mH | - | 1:1 | Through Hole | - | 0.820" (20.83mm) | - | - | - |
|
|
610BBTRANSFORMER PULSE 3MH 1.4DCR |
4,955 | 0.00 |
|
Datasheet |
610 | Bulk | Obsolete | Isolation and Data Interface (Encapsulated) | 3mH | - | 1:1:1 | Through Hole | 0.591" L x 0.591" W (15.00mm x 15.00mm) | 0.622" (15.80mm) | - | - | - |
|
|
610ATRANSFORMER PULSE 3.9MH 3.4DCR |
4,253 | 0.00 |
|
Datasheet |
610 | Bulk | Active | Isolation and Data Interface (Encapsulated) | 3.9mH | - | 1:1 | Through Hole | 0.449" L x 0.449" W (11.40mm x 11.40mm) | 0.358" (9.10mm) | - | - | - |
|
|
611ATRANSFORMER PULSE 8.6MH .45DCR |
1,398 | 0.00 |
|
Datasheet |
611 | Bulk | Obsolete | SCR and Triac Trigger (Encapsulated) | 8.6mH | - | 1:1 | Through Hole | - | 0.690" (17.53mm) | - | - | - |
|
|
611DTRANSFORMER PULSE 17MH 1.73DCR |
1,235 | 0.00 |
|
Datasheet |
611 | Bulk | Obsolete | SCR and Triac Trigger (Encapsulated) | 17mH | - | 1:1:1 | Through Hole | - | 0.820" (20.83mm) | - | - | - |
|
|
610AATRANSFORMER PULSE 3MH 1.2DCR |
4,979 | 0.00 |
|
Datasheet |
610 | Bulk | Obsolete | Isolation and Data Interface (Encapsulated) | 3mH | - | 1:1 | Through Hole | 0.591" L x 0.591" W (15.00mm x 15.00mm) | 0.622" (15.80mm) | - | - | - |
|
|
641ATRANSFORMER PULSE 10MH .45DCR |
4,191 | 12.33 |
|
Datasheet |
641 | Bulk | Obsolete | SCR and Triac Trigger (Encapsulated) | 10mH | - | 2:1:1:1 | Through Hole | 1.417" Dia (36.00mm) | 0.795" (20.20mm) | - | - | - |
|
|
641CTRANSFORMER PULSE 100MH 5.2DCR |
1,017 | 0.00 |
|
Datasheet |
641 | Bulk | Obsolete | SCR and Triac Trigger (Encapsulated) | 100mH | - | 2:1:1:1 | Through Hole | 1.417" Dia (36.00mm) | 0.795" (20.20mm) | - | - | - |
|
632DTRANSFORMER PULSE 16.3MH 3.5DCR |
3,513 | 0.00 |
|
Datasheet |
632 | Bulk | Obsolete | SCR and Triac Trigger (Encapsulated) | 16.3mH | - | 2:1:1 | Through Hole | 0.984" L x 0.787" W (25.00mm x 20.00mm) | 0.512" (13.00mm) | - | - | - |
|
|
631DTRANSFORMER PULSE 16.3MH 3.6DCR |
1,517 | 0.00 |
|
Datasheet |
631 | Bulk | Obsolete | SCR and Triac Trigger (Encapsulated) | 16.3mH | - | 1:1:1 | Through Hole | 0.984" L x 0.787" W (25.00mm x 20.00mm) | 0.512" (13.00mm) | - | - | - |
|
|
612HTRANSFORMER PULSE 1.5MH .45DCR |
4,045 | 0.00 |
|
Datasheet |
612 | Bulk | Obsolete | SCR and Triac Trigger (Encapsulated) | 1.5mH | - | 1:1:1 | Chassis Mount | 2.060" L x 1.250" W (52.32mm x 31.75mm) | 1.190" (30.23mm) | - | - | - |
|
|
632BTRANSFORMER PULSE 1MH .24DCR |
2,676 | 0.00 |
|
Datasheet |
632 | Bulk | Obsolete | SCR and Triac Trigger (Encapsulated) | 1mH | - | 2:1:1 | Through Hole | 0.984" L x 0.787" W (25.00mm x 20.00mm) | 0.512" (13.00mm) | - | - | - |
|
631CTRANSFORMER PULSE 4MH .9DCR |
4,243 | 0.00 |
|
Datasheet |
631 | Bulk | Obsolete | SCR and Triac Trigger (Encapsulated) | 4mH | - | 1:1:1 | Through Hole | 0.984" L x 0.787" W (25.00mm x 20.00mm) | 0.512" (13.00mm) | - | - | - |
|
|
630CTRANSFORMER PULSE 4MH .86DCR |
4,187 | 0.00 |
|
Datasheet |
630 | Bulk | Obsolete | SCR and Triac Trigger (Encapsulated) | 4mH | - | 1:1 | Through Hole | 0.984" L x 0.787" W (25.00mm x 20.00mm) | 0.512" (13.00mm) | - | - | - |
|
|
612GTRANSFORMER PULSE 6.6MH .87DCR |
3,208 | 0.00 |
|
Datasheet |
612 | Bulk | Obsolete | SCR and Triac Trigger (Encapsulated) | 6.6mH | - | 1:1 | Chassis Mount | 2.060" L x 1.250" W (52.32mm x 31.75mm) | 1.190" (30.23mm) | - | - | - |
|
|
TTC-299TRANSFORMER T1/CEPT/ISDN 1.2MH |
2,478 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.90mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
