Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCT80101EAL-ETRANSF ISOLATION 1:1 |
248 | 0.00 |
|
Datasheet |
HCT8 | Tape & Reel (TR) | Active | General Purpose | 160µH | 14VµS | 1:1 | Surface Mount | 0.559" L x 0.417" W (14.20mm x 10.60mm) | 0.315" (8.00mm) | -40°C ~ 125°C | Automotive | AEC-Q200 |
|
|
HCT80102EAL-ETRANSF ISOLATION 1:2 |
248 | 0.00 |
|
Datasheet |
HCT8 | Tape & Reel (TR) | Active | General Purpose | 160µH | 14VµS | 1:2 | Surface Mount | 0.559" L x 0.417" W (14.20mm x 10.60mm) | 0.315" (8.00mm) | -40°C ~ 125°C | Automotive | AEC-Q200 |
|
PA1477NLPULSE XFMR 38.3UH |
585 | 3.13 |
|
Datasheet |
- | Tray | Active | - | 38.3µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|
|
TX1287NLTXFRMR 1CT:2.42CT/1CT:2.42CT SMD |
1,069 | 3.31 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.2mH | - | 1CT:2.42CT, 1CT:2.42CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
|
HB6003HLTMOD SIN 1GPP 1:1 HF SMD |
350 | 0.00 |
|
Datasheet |
HB6 | Tape & Reel (TR) | Active | LAN 1G Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT | Surface Mount | 0.691" L x 0.480" W (17.55mm x 12.20mm) | 0.236" (6.00mm) | 0°C ~ 70°C | - | - |
|
|
HXB6005HLTMOD SIN 1GPP 1:1 EXT HF SMD |
350 | 0.00 |
|
Datasheet |
HXB | Tape & Reel (TR) | Active | LAN 1G Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT | Surface Mount | 0.691" L x 0.480" W (17.55mm x 12.20mm) | 0.236" (6.00mm) | -40°C ~ 85°C | - | - |
|
|
750311063WE-GDT GATE DRIVE TRANSFORMER E |
415 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
|
TMYB1-391NLBMS TRANSFORMERS WITH CMC, 12 PI |
400 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
|
HXB7009HLTMOD SIN 10GD 1:1 EXT. HF SMD |
350 | 0.00 |
|
Datasheet |
HXB | Tape & Reel (TR) | Active | LAN 10G Base-T | 100µH | - | 1CT:1CT | Surface Mount | 0.691" L x 0.480" W (17.55mm x 12.20mm) | 0.236" (6.00mm) | -40°C ~ 90°C | - | - |
|
|
HXB7010HLTMOD SIN 10GD 1:1 EXT. HF SMD |
350 | 0.00 |
|
Datasheet |
HXB | Tape & Reel (TR) | Active | LAN 10G Base-T | 100µH | - | 1CT:1CT | Surface Mount | 0.691" L x 0.480" W (17.55mm x 12.20mm) | 0.236" (6.00mm) | -40°C ~ 90°C | - | - |
|
|
HXB7008HLTMOD SIN 10GD 1:1 EXT. HF SMD |
350 | 0.00 |
|
Datasheet |
HXB | Tape & Reel (TR) | Active | LAN 10G Base-T | 100µH | - | 1CT:1CT | Surface Mount | 0.691" L x 0.480" W (17.55mm x 12.20mm) | 0.236" (6.00mm) | -40°C ~ 90°C | - | - |
|
|
HB6002HLTMOD SIN 1GPP 1:1 HF SMD |
264 | 0.00 |
|
Datasheet |
HB6 | Tape & Reel (TR) | Active | LAN 1G Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT | Surface Mount | 0.691" L x 0.480" W (17.55mm x 12.20mm) | 0.236" (6.00mm) | 0°C ~ 70°C | - | - |
|

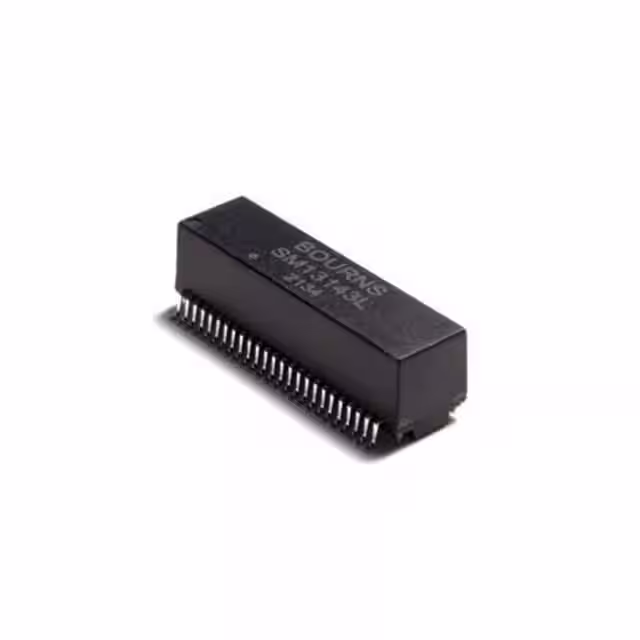

SM13143EL10/100/1000 BASE-T,DUAL-PORT,POE |
2,040 | 5.66 |
|
Datasheet |
SM | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 1.094" L x 0.299" W (27.80mm x 7.60mm) | 0.328" (8.33mm) | 0°C ~ 70°C | - | - |
|
SM91076L-E10/100 BASE-T SINGLE PORT, 16PIN |
5,160 | 5.80 |
|
Datasheet |
SM | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.524" L x 0.291" W (13.30mm x 7.40mm) | 0.240" (6.10mm) | -40°C ~ 125°C | - | - |
|
H1019NLXFRMR MODULE 1PORT 1:1 10/100 |
400 | 4.36 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
H1267NLMODULE XFRMR SGL ETHR LAN24P SMD |
275 | 3.42 |
|
Datasheet |
- | Tube | Active | LAN | - | - | 1CT:1CT | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | 0°C ~ 70°C | - | - |
|
|
HXB6004HLTMOD SIN 1GPP 1:1 EXT HF SMD |
1,590 | 0.00 |
|
Datasheet |
HXB | Tape & Reel (TR) | Active | LAN 1G Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT | Surface Mount | 0.691" L x 0.480" W (17.55mm x 12.20mm) | 0.236" (6.00mm) | -40°C ~ 85°C | - | - |
|
|
SM91536AL-EBMS TRANSFOMER,6PIN,SGL,3KVAC |
2,000 | 0.00 |
|
Datasheet |
SM | Tape & Reel (TR) | Active | Battery Management | 150µH, 450µH | - | 1:1 | Surface Mount | 0.528" L x 0.409" W (13.40mm x 10.40mm) | 0.331" (8.40mm) | -40°C ~ 125°C | - | - |
|
|
HXB4016HLTMOD SIN 2.5GPP 1:1 EXT HF SMD |
335 | 0.00 |
|
Datasheet |
HXB | Tape & Reel (TR) | Active | LAN 2.5G Base-T, Power over Ethernet (PoE) | 180µH | - | 1CT:1CT | Surface Mount | 0.691" L x 0.480" W (17.55mm x 12.20mm) | 0.236" (6.00mm) | -40°C ~ 85°C | - | - |
|
|
HXB6008HLTMOD SIN 1GPP 1:1 EXT HF SMD |
315 | 0.00 |
|
Datasheet |
HXB | Tape & Reel (TR) | Active | LAN 1G Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT | Surface Mount | 0.691" L x 0.480" W (17.55mm x 12.20mm) | 0.236" (6.00mm) | -40°C ~ 85°C | - | - |
