Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HB6007HLTMOD SIN 1GPP 1:1 HF SMD |
278 | 0.00 |
|
Datasheet |
HB6 | Tape & Reel (TR) | Active | LAN 1G Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT | Surface Mount | 0.691" L x 0.480" W (17.55mm x 12.20mm) | 0.236" (6.00mm) | 0°C ~ 70°C | - | - |
|
|
HXB6009HLTMOD SIN 1GPP 1:1 EXT HF SMD |
350 | 0.00 |
|
Datasheet |
HXB | Tape & Reel (TR) | Active | LAN 1G Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT | Surface Mount | 0.691" L x 0.480" W (17.55mm x 12.20mm) | 0.236" (6.00mm) | -40°C ~ 85°C | - | - |
|
|
TG1G-E012NZLFTRISO MOD 1G X-TEMP 24P SMD T/R |
400 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-TX | 350µH | - | 1CT:1CT | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
HX1188ENLMODULE XFRMR POE 100B-TX HI TEMP |
1,348 | 0.00 |
|
Datasheet |
HX1188ENL | Tray | Active | LAN 100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.230" (5.84mm) | -40°C ~ 125°C | - | - |
|
|
HX1198ENLMODULE XFRMR POE 100B-TX HI TEMP |
508 | 0.00 |
|
Datasheet |
HX1198ENL | Tray | Active | LAN 100 Base-T | - | - | 1:1 | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.230" (5.84mm) | -40°C ~ 125°C | - | - |
|
|
PE-68629NLXFRMR T3/DS3/E3/STS-1 1:1 40UH |
530 | 4.66 |
|
Datasheet |
- | Tube | Active | T3/E3 (Single) | 40µH | - | 1:1 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|

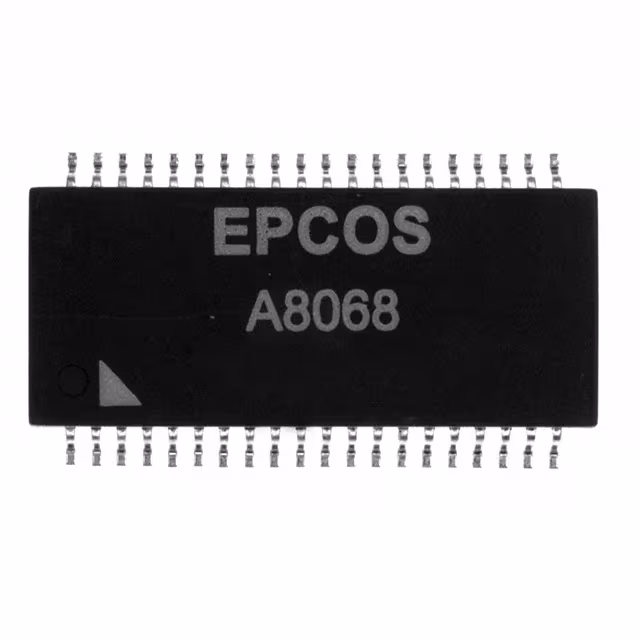

B78476A8068A003PULSE XFMR 1CT:1CT 350UH |
4,200 | 3.91 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 1.106" L x 0.469" W (28.10mm x 11.90mm) | 0.226" (5.75mm) | 0°C ~ 70°C | - | - |
|

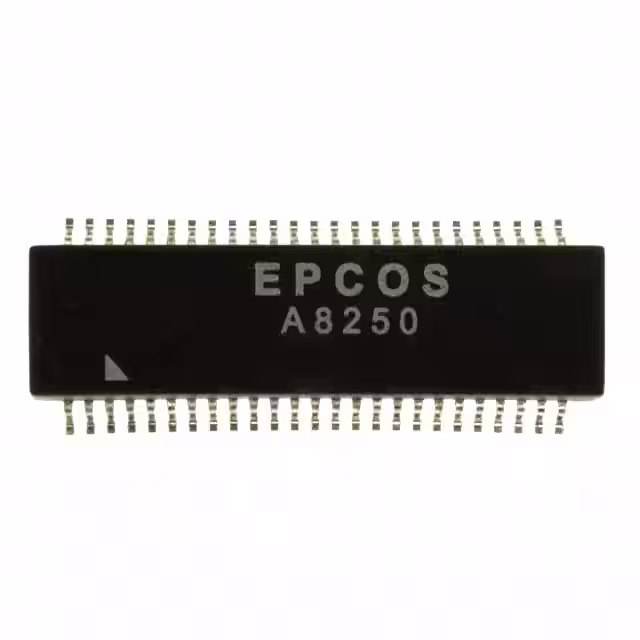

B78476A8250A003PULSE XFMR 1CT:1CT 350UH |
695 | 4.18 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 1.090" L x 0.287" W (27.69mm x 7.29mm) | 0.341" (8.66mm) | 0°C ~ 70°C | - | - |
|
|
HB5614NLMOD QUAD 1GP 1:1 HF 72P |
389 | 0.00 |
|
Datasheet |
HB5 | Tube | Active | LAN 1/5/10G Base-T | 350µH | - | 1CT:1CT | Through Hole | 1.358" L x 0.748" W (34.50mm x 19.00mm) | 0.409" (10.40mm) | 0°C ~ 70°C | - | - |
|
|
TG1G-S002NZLFTRISO MOD 1G 24P SMD T/R |
400 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-TX | 350µH | - | 1CT:1CT | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
TM7173-1ANLLAN XFMR 1G BASE-T POE++ |
400 | 0.00 |
|
Datasheet |
Exos | Tape & Reel (TR) | Active | LAN 1G Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.697" L x 0.496" W (17.70mm x 12.60mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|

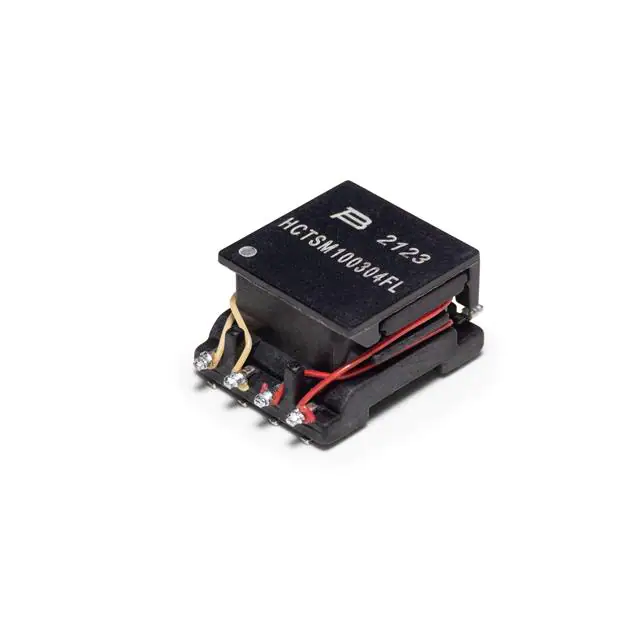

HCTSM100304FL-ETRANSF HIGH VOLTAGE ISOLATION |
4,110 | 6.31 |
|
Datasheet |
HCT | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 400µH | 11.0VµS | 1:1.33 | Surface Mount | 0.620" L x 0.425" W (15.70mm x 10.08mm) | 0.295" (7.50mm) | -40°C ~ 125°C | - | - |
|
PA1735NLTPULSE XFMR 28.5UH |
600 | 3.79 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 28.5µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|
|
TM23105NLLAN XFMR 10/100 BASE-T DUAL |
300 | 0.00 |
|
Datasheet |
Exos | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.601" L x 0.541" W (15.26mm x 13.75mm) | 0.224" (5.70mm) | -40°C ~ 85°C | - | - |
|
|
24HSS1041-2 HFMDL LAN 1GBT 1 PORT SMD |
654 | 3.73 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.691" L x 0.480" W (17.55mm x 12.20mm) | 0.236" (6.00mm) | 0°C ~ 70°C | - | - |
|
|
HB4011HLTMOD SIN 2. 5GD 3KV 1:1 HF SMD |
350 | 0.00 |
|
Datasheet |
HB4 | Tape & Reel (TR) | Active | LAN 2.5G Base-T | 180µH | - | - | Surface Mount | 0.691" L x 0.480" W (17.55mm x 12.20mm) | 0.236" (6.00mm) | 0°C ~ 70°C | - | - |
|
|
TM82467NLLAN TRANSFORMER, 1G BASE-T, 24 P |
396 | 0.00 |
|
Datasheet |
Exos1G | Tape & Reel (TR) | Active | LAN 1G Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT | Surface Mount | 0.594" L x 0.280" W (15.10mm x 7.10mm) | 0.323" (8.20mm) | 0°C ~ 70°C | - | - |
|
|
H5610NLXFRMR MODULE SIN 1GP 1:1 BGA SMD |
168 | 0.00 |
|
Datasheet |
H5610NL | Tray | Active | LAN 1G Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT | Surface Mount | 0.310" L x 0.680" W (7.87mm x 17.27mm) | 0.440" (11.18mm) | 0°C ~ 70°C | - | - |
|
|
VMT45DR-X01S1P4TRANSFORMER |
1,800 | 0.00 |
|
Datasheet |
VMT | Tape & Reel (TR) | Active | Battery Management | 100µH | - | 1:1 | Surface Mount | 0.425" L x 0.335" W (10.80mm x 8.50mm) | 0.189" (4.80mm) | -40°C ~ 130°C | - | - |
|
|
VMT45DR-X02S1P4TRANSFORMER |
1,800 | 0.00 |
|
Datasheet |
VMT | Tape & Reel (TR) | Active | Battery Management | 150µH | - | 1:1 | Surface Mount | 0.425" L x 0.335" W (10.80mm x 8.50mm) | 0.189" (4.80mm) | -40°C ~ 130°C | - | - |
