Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TG01-0756NRLTRISO MOD AUI 75UH 3CH 16P SMD T/R |
1,686 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | Isolation and Data Interface (Encapsulated) | 75µH | - | 1:1 | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
TG110-S050N2RLTRISO MOD 10/100 16P SMD T/R |
4,516 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10/100 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
TTC-4060TRANSF ADSL 100:51 441UH SMT |
4,520 | 0.00 |
|
Datasheet |
TTC | Bulk | Obsolete | ADSL | 441µH | - | 1:1.4 | Surface Mount | 0.551" L x 0.551" W (14.00mm x 14.00mm) | 0.516" (13.10mm) | - | - | - |
|
|
TG01-1006NRLISO MOD AUI 100UH 3CH 16P SMD |
4,056 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | Isolation and Data Interface (Encapsulated) | 100µH | - | 1:1 | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
TG01-0756NRLISO MOD AUI 75UH 3CH 16P SMD |
1,717 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | Isolation and Data Interface (Encapsulated) | 75µH | - | 1:1 | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|

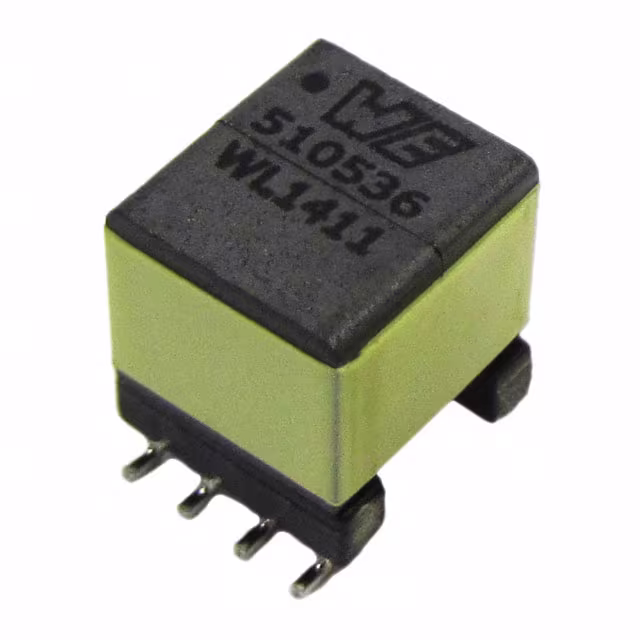

750510536WE-DSL TRANSFORMER |
3,419 | 1.03 |
|
Datasheet |
MID-DSLITL | Tape & Reel (TR) | Active | ADSL | 1.44mH | - | 1.31:1 | Surface Mount | 0.310" L x 0.355" W (7.87mm x 9.02mm) | 0.400" (10.16mm) | -40°C ~ 85°C | - | - |
|
|
ALANS10001-3J11DTLAN SGL 1000B XFMR&CMC 24PIN |
2,943 | 2.29 |
|
Datasheet |
ALANS10001-3 | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | - | 0.254" (6.45mm) | -40°C ~ 85°C | - | - |
|
|
ALANS10001-3J11JTLAN SGL 1000B XFMR&CMC 24PIN |
3,460 | 4.58 |
|
Datasheet |
ALANS10001-3 | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | - | 0.254" (6.45mm) | -40°C ~ 105°C | - | - |
|
|
ALANL100X1-EFD2ET10/100BASE-TX LAN XFMR |
3,472 | 2.50 |
|
Datasheet |
ALANL100X1-E | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.085" (2.15mm) | 0°C ~ 70°C | - | - |
|
|
ALANL100X1-EF10DT10/100BASE-TX LAN XFMR |
1,982 | 2.58 |
|
Datasheet |
ALANL100X1-E | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.085" (2.15mm) | -40°C ~ 85°C | - | - |
|
|
ALANL100X1-DE12JT10/100BASE-TX LAN XFMR |
2,491 | 3.66 |
|
Datasheet |
ALANL100X1-D | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.085" (2.15mm) | -40°C ~ 105°C | - | - |
|
|
ALANL100X1-DE10DT10/100BASE-TX LAN XFMR |
1,510 | 2.58 |
|
Datasheet |
ALANL100X1-D | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.085" (2.15mm) | -40°C ~ 85°C | - | - |
|
|
ALANL100X1-EF10KT10/100BASE-TX LAN XFMR |
3,080 | 3.81 |
|
Datasheet |
ALANL100X1-E | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.085" (2.15mm) | -40°C ~ 125°C | - | - |
|
|
TG110-S055N2RLTRISO MOD 10/100 16P SMD T/R |
1,869 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10/100 Base-TX | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
S553-5999-52-FPULSE XFMR 2CT:1CT TX/1CT:1CT RX |
3,105 | 1.47 |
|
Datasheet |
- | Bulk | Active | LAN 10G Base-T | 28µH, 110µH | - | 2CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
|
TG70-1205NSLFISO MOD T1 1:1.36C 6P SMD |
4,920 | 0.00 |
|
Datasheet |
- | Tube | Active | T1/E1 (Single) | 1.2mH | - | 1:1.36CT | Surface Mount | 0.320" L x 0.280" W (8.13mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
TG42-1205NSLFISO MOD T1 1C:1.41C 6P SMD |
2,286 | 0.00 |
|
Datasheet |
- | Tube | Active | T1/E1 (Single) | 1.2mH | - | 1CT:1.41CT | Surface Mount | 0.320" L x 0.280" W (8.13mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
TG02-1205NSLFISO MOD T1 1C:1 6P SMD |
3,669 | 0.00 |
|
Datasheet |
- | Tube | Active | T1/E1 (Single) | 1.2mH | - | 1CT:1 | Surface Mount | 0.320" L x 0.280" W (8.13mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
TG15-1205NSLFISO MOD T1 2C:1 6P SMD |
2,490 | 0.00 |
|
Datasheet |
- | Tube | Active | T1/E1 (Single) | 1.2mH | - | 2CT:1 | Surface Mount | 0.320" L x 0.280" W (8.13mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
TG04-1205NSLFISO MOD T1 1CH 1C:1C 6P SMD |
4,440 | 0.00 |
|
Datasheet |
- | Tube | Active | T1/E1 (Single) | 1.2mH | - | 1CT:1CT | Surface Mount | 0.320" L x 0.280" W (8.13mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
