Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S560-6600-N7-FMODULE XFRMR LAN GSHDSL ISOL SMD |
2,167 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SHDSL | 3mH | - | 1:5.4 | Surface Mount | 0.540" L x 0.585" W (13.72mm x 14.86mm) | 0.500" (12.70mm) | -40°C ~ 85°C | - | - |
|
|
S559-6204-18-FPULSE XFMR 1CT:1.25 1.75MH |
4,778 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | - | 1.75mH | - | 1CT:1.25 | Surface Mount | 0.420" L x 0.370" W (10.67mm x 9.40mm) | 0.360" (9.14mm) | - | - | - |
|
|
ESMIT-4155IC |
4,390 | 0.00 |
|
- |
* | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
|
ALANS100X1-2F82DTLAN SGL 100B XFMR&CMC&AUTO 12PIN |
2,616 | 1.40 |
|
Datasheet |
ALANS100X1-2 | Tape & Reel (TR) | Active | - | 350µH | - | 1CT:1CT | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | -40°C ~ 85°C | - | - |
|
DA103MC-RDIGITAL AUDIO TX 1:1 5MH SMD |
2,909 | 1.12 |
|
Datasheet |
DA100 | Bulk | Not For New Designs | - | 7.75mH | 28VµS | 1:1 | Surface Mount | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
0553-0013-AC-FPULSE TRANSFORMER 1:1 1.2MH |
1,698 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | T1/E1 (Single) | 1.2mH | - | 1:1 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | - | - | - |
|

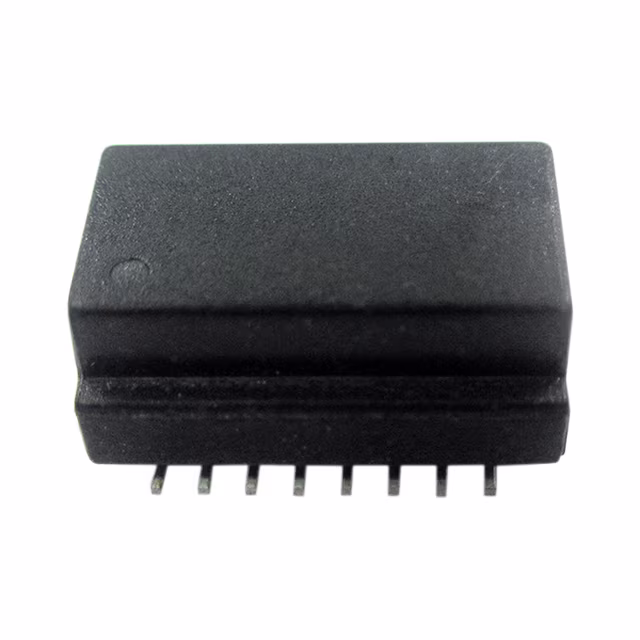

APT-106LAN XFRMR 10/100 1PORT EXT-TEMP |
2,763 | 1.66 |
|
Datasheet |
APT-106 | Tube | Active | - | - | - | - | - | - | - | - | - | - |
|
|
T60403K5024X0445024X044 |
3,723 | 0.00 |
|
- |
- | Box | Active | - | 300nH | - | 1:1 | Surface Mount | 0.451" L x 0.433" W (11.46mm x 11.00mm) | 0.299" (7.60mm) | -40°C ~ 85°C | - | - |
|

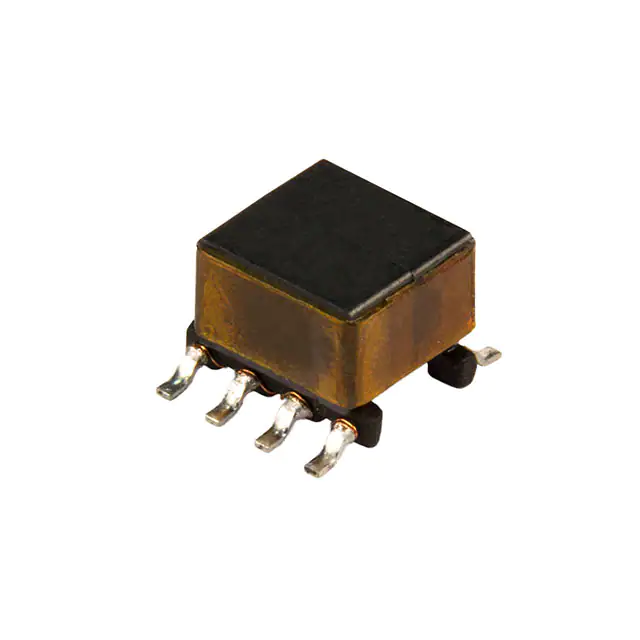

SM51430ELTRANSFORMER G FAST 8SMD |
1,325 | 1.20 |
|
Datasheet |
SM | Tape & Reel (TR) | Active | LAN | 10µH | - | 1:1 | Surface Mount | 0.299" L x 0.197" W (7.60mm x 5.00mm) | 0.209" (5.30mm) | -40°C ~ 85°C | - | - |
|
78601/16JC-RPULSE XFMR 1:1 3.65MH |
2,456 | 1.24 |
|
Datasheet |
786J | Tape & Reel (TR) | Active | General Purpose | 3.65mH | 28VµS | 1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
78601/16MC-RPULSE XFMR 1:1 4MH |
3,307 | 1.24 |
|
Datasheet |
786 | Tape & Reel (TR) | Not For New Designs | General Purpose | 4mH | 28VµS | 1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78601/1MC-RPULSE XFMR 1:1 2MH |
4,168 | 1.24 |
|
Datasheet |
786 | Tape & Reel (TR) | Not For New Designs | General Purpose | 2mH | 20VµS | 1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78601/3JC-RPULSE XFMR 1:1 150UH |
1,917 | 1.24 |
|
Datasheet |
786J | Tape & Reel (TR) | Active | General Purpose | 150µH | 6VµS | 1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78601/3MC-RPULSE XFMR 1:1 200UH |
4,082 | 1.24 |
|
Datasheet |
786 | Tape & Reel (TR) | Not For New Designs | General Purpose | 200µH | 6VµS | 1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78601/8MC-RPULSE XFMR 1:1 1MH |
1,660 | 1.24 |
|
Datasheet |
786 | Tape & Reel (TR) | Not For New Designs | General Purpose | 1mH | 15VµS | 1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78601/9MC-RPULSE XFMR 1:1 10MH |
3,055 | 1.24 |
|
Datasheet |
786 | Tape & Reel (TR) | Not For New Designs | General Purpose | 10mH | 56VµS | 1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78602/16MC-RPULSE XFMR 1:1:1 4MH |
1,297 | 1.24 |
|
Datasheet |
786 | Tape & Reel (TR) | Not For New Designs | General Purpose | 4mH | 28VµS | 1:1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78602/1MC-RPULSE XFMR 1:1:1 2MH |
4,318 | 1.24 |
|
Datasheet |
786 | Tape & Reel (TR) | Not For New Designs | General Purpose | 2mH | 20VµS | 1:1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78602/3JC-RPULSE XFMR 1:1:1 180UH |
4,700 | 1.24 |
|
Datasheet |
786J | Tape & Reel (TR) | Active | General Purpose | 180µH | 6VµS | 1:1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78602/4JC-RPULSE XFMR 1:1:1 53UH |
1,548 | 1.24 |
|
Datasheet |
786J | Tape & Reel (TR) | Active | General Purpose | 53µH | 4VµS | 1:1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
