Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPOE10-3305POE PWR OVER ETHERNET EP10 CORE |
4,027 | 2.08 |
|
Datasheet |
SPoE | Tape & Reel (TR) | Active | Power over Ethernet (PoE) | 20.4µH | - | 1:0.6 | Surface Mount | - | - | -40°C ~ 125°C | - | - |
|

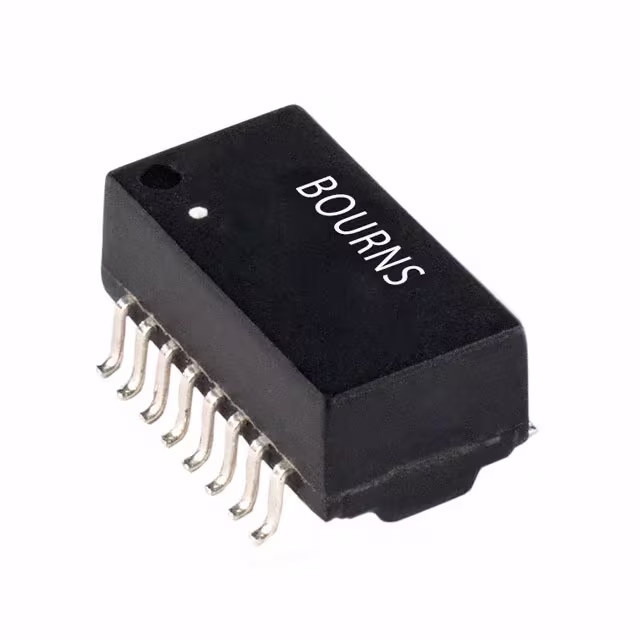

SM75057PELPULSE XFMR 1:2 TX 1:2 RX 1.2MH |
3,141 | 1.68 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 1.2mH | - | 1:2 Transmitter, 1:2 Receiver | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | -40°C ~ 85°C | - | - |
|
TG08-1505N5LFISO MOD T1 1C:2C X-TEMP 16P SMD |
2,624 | 0.00 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.5mH | - | 1CT:2CT Transmitter, 1CT:2CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
TG41-2006NRLISO MOD 10BASE-T 1C:2.5C X-TEMP |
2,700 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10 Base-T | 200µH | - | 1CT:1CT Transmitter, 1CT:2.5CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | -40°C ~ 85°C | - | - |
|
|
TG75-1406NRLISO MOD 10BASE-T 1C:2C X-TEMP 16 |
4,627 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10 Base-T | 140µH | - | 1CT:1CT Transmitter, 1CT:2CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | -40°C ~ 85°C | - | - |
|
|
TG43-1406NRLISO MOD 10BASE-T 1C:1.41C 16P SM |
2,034 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10 Base-T | 140µH | - | 1CT:1CT Transmitter, 1CT:1.41CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
TG73-1205N5LFTRISO MOD T1 1C:2.3C X-TEMP 16P SM |
3,290 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.2mH | - | 1CT:2.3CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
S558-5999-A2-FPULSE XFMR 1CT:1.41CT 1CT:1CT |
1,349 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | LAN 10/100 Base-T | 350µH | - | 1CT:1.41CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.790" L x 0.560" W (20.07mm x 14.22mm) | 0.094" (2.39mm) | 0°C ~ 70°C | - | - |
|
|
TG08-1505NSRLTRISO MOD T1 1C:2C X-TEMP 6P SMD T |
3,874 | 0.00 |
|
- |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Single) | 1.5mH | - | 1CT:2CT | Surface Mount | 0.320" L x 0.280" W (8.13mm x 7.11mm) | 0.200" (5.08mm) | -40°C ~ 85°C | - | - |
|
|
TG71-1205NSLFTRISO MOD T1 1:2.3C 6P SMD T/R |
2,325 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Single) | 1.2mH | - | 1:2.3CT | Surface Mount | 0.320" L x 0.280" W (8.13mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
TG01-0406NSRLTRISO MOD T3 1CH 1:1 6P SMD T/R |
3,003 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | T3/E3 (Single) | 40µH | - | 1:1 | Surface Mount | 0.320" L x 0.280" W (8.13mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
TG04-1006N1RLTRISO MOD 10BASE-T 1C:1C 16P SMD T |
3,042 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10 Base-T | 100µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
TG38-1505NSRLTRISO MOD T1 1:1.15C X-TEMP 6P SMD |
1,199 | 0.00 |
|
- |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Single) | 1.5mH | - | 1:1.15CT | Surface Mount | 0.320" L x 0.280" W (8.13mm x 7.11mm) | 0.200" (5.08mm) | -40°C ~ 85°C | - | - |
|
|
TG26-1205N1RLTRISO MOD T1 DUAL 1C:2C 16P SMD T/ |
3,869 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Dual) | 1.2mH | - | 1CT:2CT Transmitter, 1CT:2CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
TG23-1505NSRLTRISO MOD T1 1:2.42C X-TEMP 6P SMD |
2,752 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Single) | 1.5mH | - | 1:2.42CT | Surface Mount | 0.320" L x 0.280" W (8.13mm x 7.11mm) | 0.200" (5.08mm) | -40°C ~ 85°C | - | - |
|
|
TG02-1505NSRLTRISO MOD T1 1C:1 X-TEMP 6P SMD T/ |
1,150 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Single) | 1.5mH | - | 1CT:1 | Surface Mount | 0.320" L x 0.280" W (8.13mm x 7.11mm) | 0.200" (5.08mm) | -40°C ~ 85°C | - | - |
|
|
TG04-0406NSLFTRISO MOD T3 1CH 1C:1C X-TEMP 6P S |
4,496 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T3/E3 (Single) | 40µH | - | 1CT:1CT | Surface Mount | 0.320" L x 0.280" W (8.13mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
TG37-1205NSRLTRISO MOD T1 1:1.14C 6P SMD T/R |
2,030 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Single) | 1.2mH | - | 1:1.14CT | Surface Mount | 0.320" L x 0.280" W (8.13mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
TG64-1205N1RLTRISO MOD T1 1:1:1.26 1C:2C 16P SM |
3,664 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Dual) | 1.2mH | - | 1:1:1.26 Transmitter, 1CT:2CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
TG38-1205N1RLTRISO MOD T1 DUAL 1C:1.15C 16P SMD |
3,228 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Dual) | 1.2mH | - | 1CT:1.15CT Transmitter, 1CT:1.15CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
