RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFB4506A-0100IIRF ANT TRI-BAND WIFI6E 2.4/5/6 G |
873 | 0.00 |
|
Datasheet |
- | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.53GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.93GHz ~ 7.13GHz | Flat Patch | 3 | 2 | - | 1.8dBi, 3.6dBi, 4.3dBi | - | Cable - 100mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.016" (0.40mm) | 802.11b/be/g/n/ac/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
W6F15X7W01-H050D3B0CWI-FI 6GHZ FPC ANTENNA, 50MM CAB |
399 | 0.00 |
|
- |
- | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9001157GPS 18X18X4 SMT CERAMIC PATCH AN |
217 | 0.00 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.58GHz, 1.6GHz | 1.56GHz ~ 1.59GHz, 1.59GHz ~ 1.61GHz | Ceramic Patch | 2 | 3.2, 5.8 | - | 3.8dBi, 4.3dBi | 2 W | - | - | - | - | - | Surface Mount | 0.157" (4.00mm) | GLONASS, GPS |
|
|
L000670-01L1/L5 MICRO SPLATCH GNSS CHIP AN |
2,990 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.583GHz | 1.175GHz ~ 1.177GHz, 1.56GHz ~ 1.607GHz | PCB Trace | 2 | 2.5 | - | 3dBi, 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | GNSS, GPS |
|
|
ANT-GNFPC-SHL1550M4ANTENNA GNSS FPC SH L1/L5 25X25 |
1,000 | 0.00 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.387GHz | 1.164GHz ~ 1.61GHz | Flat Patch | 1 | 2 | - | - | 5 W | Cable - 50mm | MHF4 | - | - | - | Adhesive | - | GNSS, GPS |
|
|
EMB-910002WIFI EMBEDDED 2.4/5/6GHZ 6" UFL |
4,879 | 0.00 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | Stamped Metal | 3 | 2 | - | 3.4dBi, 4.8dBi, 5.1dBi | - | - | U.FL | - | - | - | Screw | 0.291" (7.40mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
L000682-01SPLATCH 5G/LTE EUROPE WIDEBAND C |
3,000 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular | Wide Band | 2.808GHz | 617MHz ~ 5GHz | PCB Trace | 1 | 3.9 | - | 6dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.062" (1.57mm) | 5G, LTE, UMTS, WCDMA |
|
|
AANI-FB-0085-0200IFPC ANT WI-FI6E/7 TRI-BAND 2.4/ |
1,000 | 0.00 |
|
Datasheet |
AANI-FB | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | - | Flat Patch | 2 | 2 | - | 0.4dBi, 1.5dBi | - | Cable - 200mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.008" (0.20mm) | ISM, LoRa, Sigfox |
|
1004369PT-AA10L0100ANTENNA ASSY, WLANA PT 100 |
979 | 1.56 |
|
Datasheet |
- | Box | Active | 802.15.4, Bluetooth, WiFi | SHF (f > 4GHz) | 5.4875GHz | 5.15GHz ~ 5.825GHz | PCB Trace | 1 | 2 | - | 3.7dBi | 2 W | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
1005188F0-AA70L0100UWB FPC ANTENNA, 100MM CABLE, MH |
978 | 0.00 |
|
Datasheet |
- | Bag | Active | General ISM | SHF (f > 4GHz) | 7.25GHz | 6GHz ~ 8.5GHz | Flat Patch | 1 | 2 | - | 5.2dBi | 10 W | Cable - 100mm | MHF | - | - | - | Adhesive | 0.008" (0.20mm) | UWB |
|
|
L000657-01SPLATCH 5G/LTE EUROPE WIDEBAND C |
3,000 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular | Wide Band | 2.808GHz | 617MHz ~ 5GHz | PCB Trace | 1 | 4.5 | - | 6dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.062" (1.57mm) | 5G, LTE, UMTS, WCDMA |
|
|
EMB-910003WIFI EMBEDDED 2.4/5/6GHZ 6" UFL |
4,928 | 0.00 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | Stamped Metal | 3 | 2 | - | 2.6dBi, 2.4dBi, 3.7dBi | - | Cable - 152.4mm | U.FL | - | - | - | Screw | 0.531" (13.50mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
ANT-GNFPC-SAHL1150M4ANTENNA GNSS FPC SH L1 13X13 150 |
1,000 | 0.00 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.387GHz | 1.164GHz ~ 1.61GHz | Flat Patch | 1 | 2 | - | - | 5 W | Cable - 150mm | MHF4 | - | - | - | Adhesive | - | GNSS, GPS |
|
|
ANT-5GW-FPC-LH50M4ANT 5G FPC 120X20 50MM MHF4 |
910 | 0.00 |
|
Datasheet |
ANT-5GW-FPC-LH | Bag | Active | Cellular | Wide Band | 657.5MHz, 750.5MHz, 842.5MHz, 1.175GHz, 1.593GHz, 1.947GHz, 2.495GHz, 3.75GHz, 4.7GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 832MHz ~ 1.518GHz, 1.525GHz ~ 1.661GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz | Flat Patch | 9 | 1.6, 1.7, 1.8, 1.9, 2, 2.5, 2.7, 4.7 | - | 5dBi, 5dBi, 5.5dBi, 6dBi, 5.2dBi, 5.1dBi, 7dBi, 6.2dBi, 6.8dBi | 2 W | Cable - 50mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | 2G, 3G, 4G, 5G, LTE |
|
|
ST0643-00-N02-ARF ANTENNA EMBEDDED LORA CHIP 91 |
5,975 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | General ISM, Lora | UHF (300MHz ~ 1GHz) | 917MHz | 915MHz ~ 919MHz | Chip | 1 | - | -10dB | 1.8dBi | 1 W | - | - | - | - | - | Surface Mount | 0.020" (0.50mm) | LoRa, LPWAN, Sigfox |
|

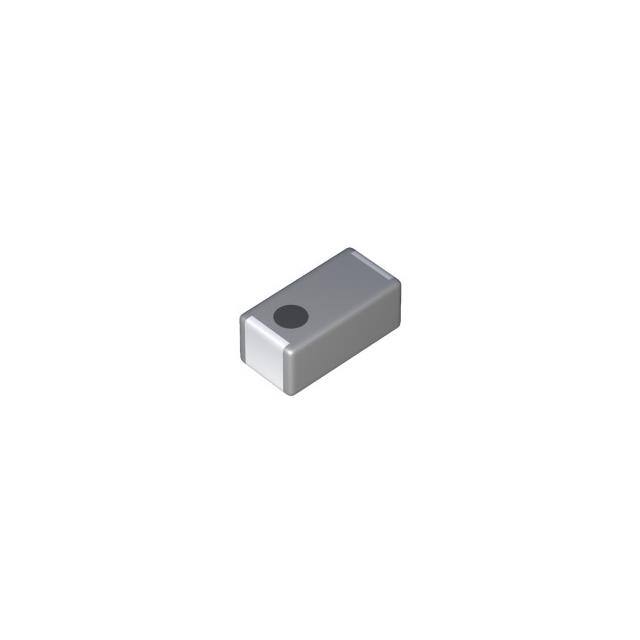

TSA5N18D2G45NV001TRF ANT BLUETOOTH/WLAN/ZIGBEE SMD |
2,470 | 1.63 |
|
- |
TSA5 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | - | - | - | - | Solder | - | - | - | Surface Mount | 0.026" (0.65mm) | Bluetooth, WLAN, Zigbee™ |
|
|
P622301LTE-M/NB-IOT/LPWA PCB ANTENNA, F |
1,112 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular | Wide Band | 830MHz, 1.94GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Chip | 2 | - | -3dB, -2.25dB | -0.89dBi, 1.06dBi | 2 W | - | - | - | - | - | Surface Mount | 0.126" (3.20mm) | Cat-M1, Firstnet, IoT, LoRA, LPWAN, LTE-M, M2M, NB-IoT, Sigfox |
|
|
ANT-5GW-FPC-LH200M4ANT 5G FPC 120X20 200MM MHF4 |
950 | 0.00 |
|
Datasheet |
ANT-5GW-FPC-LH | Bag | Active | Cellular | Wide Band | 657.5MHz, 750.5MHz, 842.5MHz, 1.175GHz, 1.593GHz, 1.947GHz, 2.495GHz, 3.75GHz, 4.7GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 832MHz ~ 1.518GHz, 1.525GHz ~ 1.661GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz | Flat Patch | 9 | 1.6, 1.7, 1.8, 1.9, 2, 2.5, 2.7, 4.7 | - | 5dBi, 5dBi, 5.5dBi, 6dBi, 5.2dBi, 5.1dBi, 7dBi, 6.2dBi, 6.8dBi | 2 W | Cable - 200mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | 2G, 3G, 4G, 5G, LTE |
|
|
ANT-5GW-FPC-LH150M4ANT 5G FPC 120X20 150MM MHF4 |
992 | 0.00 |
|
Datasheet |
ANT-5GW-FPC-LH | Bag | Active | Cellular | Wide Band | 657.5MHz, 750.5MHz, 842.5MHz, 1.175GHz, 1.593GHz, 1.947GHz, 2.495GHz, 3.75GHz, 4.7GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 832MHz ~ 1.518GHz, 1.525GHz ~ 1.661GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz | Flat Patch | 9 | 1.6, 1.7, 1.8, 1.9, 2, 2.5, 2.7, 4.7 | - | 5dBi, 5dBi, 5.5dBi, 6dBi, 5.2dBi, 5.1dBi, 7dBi, 6.2dBi, 6.8dBi | 2 W | Cable - 150mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | 2G, 3G, 4G, 5G, LTE |
|
|
EMB-910004WIFI EMBEDDED 2.4/5GHZ 6" UFL |
4,983 | 0.00 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.45GHz, 5.512GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | Flat Patch | 2 | 2 | - | 2dBi, 2.8dBi | - | Cable - 152.4mm | U.FL | - | - | - | Screw | 0.020" (0.50mm) | Bluetooth, Wi-Fi, Zigbee™ |
