RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

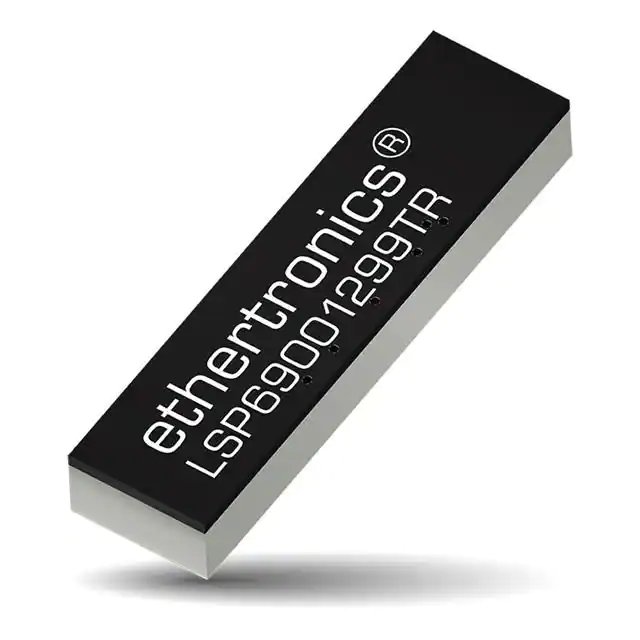

LSP69001299TRANTENNA PCB, IOT 35X9 |
5,598 | 1.75 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 1.94GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Chip | 2 | - | -2.5dB, -3dB | -2dBi, 1.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | Cellular, LTE Cat 1, LTE-M, NB-IoT, loRa, SigFox |
|
2445750-1ANTENNA 2.4GHZ HELICAL VERT THM |
2,367 | 0.00 |
|
Datasheet |
- | Tray | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Helical | 1 | 1.8 | - | 3dBi | 15 W | - | Solder | - | - | - | Surface Mount | 1.350" (34.29mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|
|
SWA425AANT WIFI 6E IPEX MHF 4L 95MM |
244 | 0.00 |
|
- |
- | Bag | Active | WiFi | Wide Band | 2.45GHz, 6.137GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 7.125GHz | Flat Patch | 2 | - | -5dB | 3dBi, 4.5dBi | - | Cable - 95mm | I-PEX MHF4L | - | - | - | Surface Mount | 0.144" (3.65mm) | Wi-Fi |
|

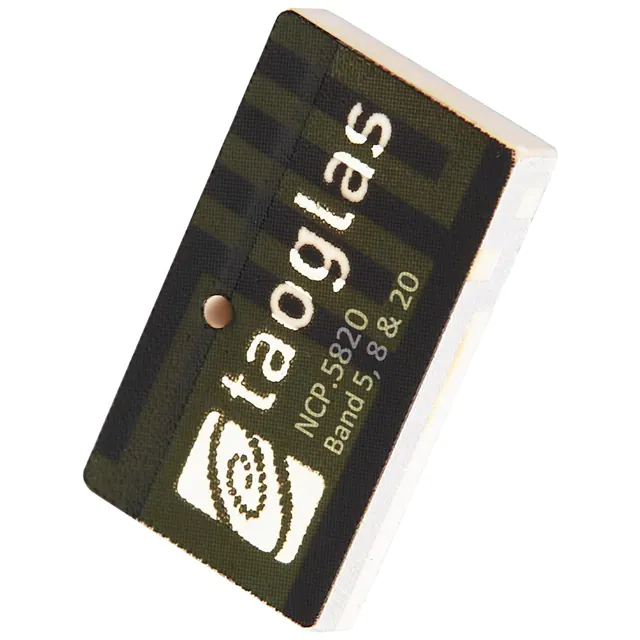

NCP.5820NB-IOT CERAMIC PATCH ANTENNA FOR |
1,577 | 3.36 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 826.5MHz, 859MHz, 920MHz | 791MHz ~ 862MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz | Ceramic Patch | 3 | - | -4.5dB, -5dB | -0.3dBi, 1.1dBi, 1.7dBi, 0.6dBi, 1.2dBi | 5 W | - | - | - | - | - | Surface Mount | 0.079" (2.00mm) | - |
|
1001435M0-AA10L0025ANTENNA ASSY, WLAN 25 |
1,424 | 1.78 |
|
Datasheet |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | Stamped Metal | 2 | 2 | - | 4.2dBi, 4.7dBi, 6.4dBi, 6dBi | 500 mW | Cable - 25mm | Solder | - | - | - | Adhesive | 0.382" (9.70mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
YF0002DAEMBEDDED, 700-960, 1710-2700, 33 |
1,000 | 0.00 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 830MHz, 2.21GHz, 4.15GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.3GHz ~ 5GHz | Module | 3 | 5 | - | 3dBi, 3dBi, 3dBi | - | - | - | - | - | - | Screw | 0.394" (10.00mm) | 5G |
|
|
YF0002CAEMBEDDED, 1710-2700, 3300-5000, |
994 | 0.00 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 2.21GHz, 4.15GHz | 1.71GHz ~ 2.7GHz, 3.3GHz ~ 5GHz | Module | 2 | 5 | - | 3dBi, 3dBi | - | - | - | - | - | - | Surface Mount | 0.394" (10.00mm) | 5G |
|
|
9003034F0-AA10L01005G HIGH BAND FPC ANTENNA, 100MM |
985 | 0.00 |
|
Datasheet |
- | Box | Active | Cellular | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.395GHz, 4.15GHz | 2.1GHz ~ 2.69GHz, 3.3GHz ~ 5GHz | Flat Patch | 2 | - | -7.7dB, -7.3dB | 4.2dBi, 4.3dBi | - | Cable - 100mm | MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | 5G, IoT, LTE, M2M |
|
|
YF0002AAEMBEDDED, 700-960, 1710-2700, 33 |
973 | 0.00 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 830MHz, 2.21GHz, 4.15GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.3GHz ~ 5GHz | Module | 3 | 5 | - | 3dBi, 3dBi, 3dBi | - | - | - | - | - | - | - | 0.394" (10.00mm) | 5G |
|
|
YCGA003AAGNSS PATCH STANDARD ANTENNA 35*3 |
840 | 0.00 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.58GHz | 1.56GHz ~ 1.61GHz | Ceramic Patch | 1 | - | - | - | - | - | - | - | - | - | - | 0.157" (4.00mm) | GNSS |
|
|
ST0224-10-401-ARF ANTENNA INTERNAL AMC PLUG DUA |
469 | 0.00 |
|
Datasheet |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -10dB | 2.1dBi | 1 W | Cable - 100mm | - | - | - | - | Adhesive | 0.008" (0.20mm) | Wi-Fi |
|
ANT-2.4-FPC-LV150UFANT 2.4 FPC 45X7 150MM CBL UFL |
2,769 | 3.47 |
|
Datasheet |
ANT-2.4-FPC-LV | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.7 | - | 4.3dBi | 2 W | Cable - 150mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
|
EMB-910001WIFI EMBEDDED 5GHZ 4.3DBI 6" UFL |
4,989 | 0.00 |
|
Datasheet |
- | Bulk | Active | WiFi | SHF (f > 4GHz) | 5.512GHz | 5.15GHz ~ 5.875GHz | - | 1 | 2 | - | 4.3dBi | - | Cable - 152.4mm | U.FL | - | - | - | Screw | 0.035" (0.90mm) | Wi-Fi |
|
|
ANT-5GW-FPC-LH150UFANT 5G FPC 120X20 150MM UFL |
961 | 0.00 |
|
Datasheet |
ANT-5GW-FPC-LH | Bag | Active | Cellular | Wide Band | 657.5MHz, 750.5MHz, 842.5MHz, 1.175GHz, 1.593GHz, 1.947GHz, 2.495GHz, 3.75GHz, 4.7GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 832MHz ~ 1.518GHz, 1.525GHz ~ 1.661GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz | Flat Patch | 9 | 1.6, 1.7, 1.8, 1.9, 2, 2.5, 2.7, 4.7 | - | 5dBi, 5dBi, 5.5dBi, 6dBi, 5.2dBi, 5.1dBi, 7dBi, 6.2dBi, 6.8dBi | 2 W | Cable - 150mm | MHF1, U.FL | - | - | - | Adhesive | 0.004" (0.10mm) | 2G, 3G, 4G, 5G, LTE |
|
|
L9000230-01ANTENNA WIFI6/6E FPC 20X110 100 |
4,659 | 0.00 |
|
Datasheet |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EFB2455A3S-15MH4LANT, FLEXPIFA, 2.4/5.5GHZ, 150MM |
118 | 0.00 |
|
Datasheet |
FlexPIFA™ | Bag | Active | Bluetooth, WiFi | Wide Band | 2.44GHz, 5.4GHz | 2.4GHz ~ 2.48GHz, 4.9GHz ~ 5.9GHz | Flat Bar | 2 | 2.5, 3 | - | 2.5dBi, 3dBi | - | Cable - 150mm | MHF4L | - | - | - | Adhesive | 0.500" (12.70mm) | Bluetooth, Wi-Fi |
|
|
P822603BROADBAND 5G/LTE/LPWA PCB ANTENN |
396 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Chip | 3 | 2.5, 3.3, 3.4 | - | 0.7dBi, 1dBi, 0.4dBi | 2 W | - | - | - | - | - | Surface Mount | 0.126" (3.20mm) | LoRa, LTE, Sigfox |
|
|
P822604BROADBAND 5G/LTE/LPWA PCB ANTENN |
396 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Chip | 3 | 2.5, 3.3, 3.4 | - | 0.7dBi, 1dBi, 0.4dBi | 2 W | - | - | - | - | - | Surface Mount | 0.126" (3.20mm) | LoRa, LTE, Sigfox |
|
|
ST0543-00-N08-USINGLE BAND EMBEDDED RF ANTENNA |
2,998 | 0.00 |
|
Datasheet |
- | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.56GHz ~ 1.59GHz | Chip | 1 | - | -10dB | 2.9dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | GPS |
|
|
ST1225-10-401-ARF ANTENNA INTERNAL AMC PLUG MUL |
496 | 0.00 |
|
Datasheet |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 6.18GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 7.2GHz | PCB Trace | 2 | - | -7dB, -6dB | 2.6dBi | 1 W | Cable - 100mm | - | - | - | - | Adhesive | 0.033" (0.85mm) | Wi-Fi |
