RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE9856B/SF-10WR-90 Standard Gain Horn Antenna |
4,682 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 10.3GHz | 8.2GHz ~ 12.4GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | SMA Female | - | - | - | Waveguide Mount | 1.220" (31.00mm) | General Purpose |
|
|
PEWAN1009WR-15 Waveguide Standard Gain Ho |
3,508 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 62.5GHz | 50GHz ~ 75GHz | Horn | 1 | 1.15 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 1.250" (31.75mm) | General Purpose |
|
|
PE2WAN042-20WR-42 Waveguide Antenna, 18 GHz |
2,763 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 22.25GHz | 18GHz ~ 26.5GHz | Horn | 1 | 1.3 | - | 20dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Screw-Mount | - | - | - | Bracket Mount | 3.150" (80.01mm) | General Purpose |
|
|
PE9860B/NF-10WR-159 Standard Gain Horn Antenn |
2,158 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 5.975GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | N Type Female | - | - | - | Waveguide Mount | 6.490" (164.85mm) | General Purpose |
|
|
PEWAN1019WR-10 Waveguide Standard Gain Ho |
2,789 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 92.5GHz | 75GHz ~ 110GHz | Horn | 1 | - | - | 22dBi | - | - | - | - | - | - | Waveguide Mount | 1.600" (40.64mm) | General Purpose |
|
|
PE9861B-15-CPRGWR-187 Waveguide Standard Gain H |
2,293 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 4.9GHz | 3.95GHz ~ 5.85GHz | Horn | 1 | 1.5 | - | 15dBi | - | - | - | - | - | - | Waveguide Mount | 9.280" (235.71mm) | General Purpose |
|
|
PE1WAN075-10WR-75 Waveguide Antenna, 10 GHz |
2,175 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.3 | - | 10dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Connector | - | - | - | Bracket Mount | 3.150" (80.01mm) | General Purpose |
|
|
PEANGPS1005ANT 1.16-1.62GHz, 47.5 DBI, TNC |
4,728 | 0.00 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.232GHz, 1.57GHz | 1.164GHz ~ 1.3GHz, 1.525GHz ~ 1.615GHz | Module | 3 | 2 | - | 47.5dBi, 47.5dBi | - | - | TNC Female | IP67, IP69K | - | - | Screw | 2.080" (52.83mm) | Galileo, GLONASS, GNSS, GPS |
|
|
PE9857B/NF-10WR-102 Waveguide Standard Gain H |
3,579 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 9GHz | 7GHz ~ 11GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | N Type Female | - | - | - | Waveguide Mount | 3.950" (100.33mm) | General Purpose |
|
|
PE9854B/SF-10WR-62 Standard Gain Horn Antenna |
3,517 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.3 | - | 10dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 0.680" (17.27mm) | General Purpose |
|

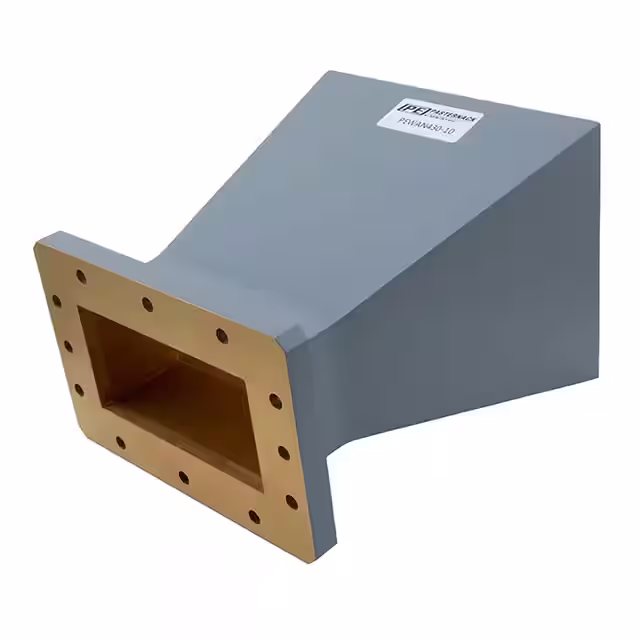

PEWAN430-10WR430 GAIN HORN 1.7-2.6GHZ 10DBI |
3,509 | 1690.00 |
|
Datasheet |
- | Bulk | Active | Waveguide | L Band (1GHz ~ 2GHz) | 2.2GHz | 1.7GHz ~ 2.6GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PE9862B-15-CPRGWR-229 Waveguide Standard Gain H |
2,995 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 4.1GHz | 3.3GHz ~ 4.9GHz | Horn | 1 | 1.5 | - | 15dBi | - | - | - | - | - | - | Waveguide Mount | 11.340" (288.04mm) | General Purpose |
|
|
PE9863B-10WR-284 Waveguide Standard Gain H |
1,922 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 3.275GHz | 2.6GHz ~ 3.95GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 8.240" (209.30mm) | General Purpose |
|
|
PEWAN1010WR-15 WAVEGUIDE STANDARD GAIN HO |
2,712 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 62.5GHz | 50GHz ~ 75GHz | Horn | 1 | - | - | 15dBi | - | - | - | - | - | - | Waveguide Mount | 1.000" (25.40mm) | General Purpose |
|
|
PEWAN1086WR-10 Waveguide Lens Horn Antenn |
3,453 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 94GHz | 89GHz ~ 99GHz | Horn | 1 | 1.5 | - | 40dBi | - | - | - | - | - | - | Waveguide Mount | 10.950" (278.13mm) | General Purpose |
|
|
PE1WAN075-20WR-75 Waveguide Antenna, 10 GHz |
3,279 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.3 | - | 20dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Connector | - | - | - | Bracket Mount | 3.150" (80.01mm) | General Purpose |
|
|
PE2WAN042-10SFWR-42 Standard Gain Horn with 10 |
1,036 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 22.25GHz | 18GHz ~ 26.5GHz | Horn | 1 | 1.3 | - | 10dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Bracket Mount | 4.032" (102.41mm) | General Purpose |
|
|
PE9856B/NF-15WR-90 Standard Gain Horn Antenna |
1,563 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 10.3GHz | 8.2GHz ~ 12.4GHz | Horn | 1 | 1.3 | - | 15dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | - | General Purpose |
|
|
PE1WAN112-10WR-112 Waveguide Standard Gain H |
2,343 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 8.525GHz | 7.05GHz ~ 10GHz | Horn | 1 | 1.3 | - | 10dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Screw-Mount | - | - | - | Bracket Mount | 3.150" (80.01mm) | General Purpose |
|
|
PE9856B/NF-10WR-90 Standard Gain Horn Antenna |
1,414 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 10.3GHz | 8.2GHz ~ 12.4GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | N Type Female | - | - | - | Waveguide Mount | 3.010" (76.45mm) | General Purpose |
