RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEWAN1082WR-12 Waveguide Lens Horn Antenn |
2,627 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 77GHz | 72GHz ~ 82GHz | Horn | 1 | 1.5 | - | 37dBi | - | - | - | - | - | - | Waveguide Mount | 11.950" (303.53mm) | General Purpose |
|
|
PE9860B/NF-20WR-159 Standard Gain Horn Antenn |
4,164 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 5.975GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | N Type Female | - | - | - | Waveguide Mount | 17.300" (439.42mm) | General Purpose |
|
|
PE9860B/SF-20WR-159 Standard Gain Horn Antenn |
3,896 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 5.975GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.3 | - | 20dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 6.300" (160.02mm) | General Purpose |
|
|
PEWAN430-10SFWR-430 Standard Gain Horn with 1 |
1,147 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 2.15GHz | 1.7GHz ~ 2.6GHz | Horn | 1 | 1.3 | - | 10dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Screw Mount | 5.250" (133.35mm) | General Purpose |
|
|
PE9862B/NF-10WR-229 Standard Gain Horn Antenn |
4,174 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 4.1GHz | 3.3GHz ~ 4.9GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | N Type Female | - | - | - | Waveguide Mount | 8.180" (207.77mm) | General Purpose |
|
|
PEWAN11180.141 Inch Circular Waveguide Sc |
4,647 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 63GHz | 58GHz ~ 68GHz | Horn | 1 | 1.2 | - | 17dBi | - | - | - | - | - | - | Waveguide Mount | 1.520" (38.61mm) | General Purpose |
|
|
PEWAN1134WR-12 Waveguide Omni-directional |
2,356 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 78.5GHz | 71GHz ~ 86GHz | Module | 1 | - | - | 2dBi | - | - | - | - | - | - | Waveguide Mount | 0.511" (12.99mm) | General Purpose |
|
|
PE2WAN137-10SFWR-137 Standard Gain Horn with 1 |
4,838 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 7.025GHz | 5.85GHz ~ 8.2GHz | Horn | 1 | 1.3 | - | 10dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Bracket Mount | 3.020" (76.71mm) | General Purpose |
|
|
PE1WAN137-10SFWR-137 Standard Gain Horn with 1 |
4,124 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 7.025GHz | 5.85GHz ~ 8.2GHz | Horn | 1 | 1.3 | - | 10dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Bracket Mount | 3.020" (76.71mm) | General Purpose |
|
|
PE1WAN137-10NFWR-137 Standard Gain Horn with 1 |
1,106 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 7.025GHz | 5.85GHz ~ 8.2GHz | Horn | 1 | 1.3 | - | 10dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Bracket Mount | 3.020" (76.71mm) | General Purpose |
|
|
PE2WAN137-10NFWR-137 Standard Gain Horn with 1 |
4,158 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 7.025GHz | 5.85GHz ~ 8.2GHz | Horn | 1 | 1.3 | - | 10dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Bracket Mount | 3.020" (76.71mm) | General Purpose |
|
|
PEWAN430-10NFWR-430 Standard Gain Horn with 1 |
1,048 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 2.15GHz | 1.7GHz ~ 2.6GHz | Horn | 1 | 1.3 | - | 10dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Screw Mount | 5.250" (133.35mm) | General Purpose |
|
|
PEWAN1085WR-10 Waveguide Lens Horn Antenn |
4,472 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 94GHz | 89GHz ~ 99GHz | Horn | 1 | 1.5 | - | 34dBi | - | - | - | - | - | - | Waveguide Mount | 3.350" (85.09mm) | General Purpose |
|
|
PEWAN11200.125 Inch Circular Waveguide Sc |
4,885 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 72.5GHz | 68GHz ~ 77GHz | Horn | 1 | 1.2 | - | 17dBi | - | - | - | - | - | - | Waveguide Mount | 2.000" (50.80mm) | General Purpose |
|
|
PEWAN11220.110 Inch Circular Waveguide Sc |
2,012 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 82GHz | 77GHz ~ 87GHz | Horn | 1 | 1.2 | - | 17dBi | - | - | - | - | - | - | Waveguide Mount | 2.000" (50.80mm) | General Purpose |
|
|
PEWAN650-15WR-650 Waveguide Standard Gain H |
1,332 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | UHF (1GHz ~ 2GHz) | 1.43GHz | 1.13GHz ~ 1.73GHz | Horn | 1 | 1.5 | - | 15dBi | - | - | - | - | - | - | Waveguide Mount | 16.930" (430.02mm) | General Purpose |
|
|
PE1WAN112-20NFWR-112 Standard Gain Horn with 2 |
2,405 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 8.525GHz | 7.05GHz ~ 10GHz | Horn | 1 | 1.3 | - | 20dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Bracket Mount | 10.440" (265.18mm) | General Purpose |
|

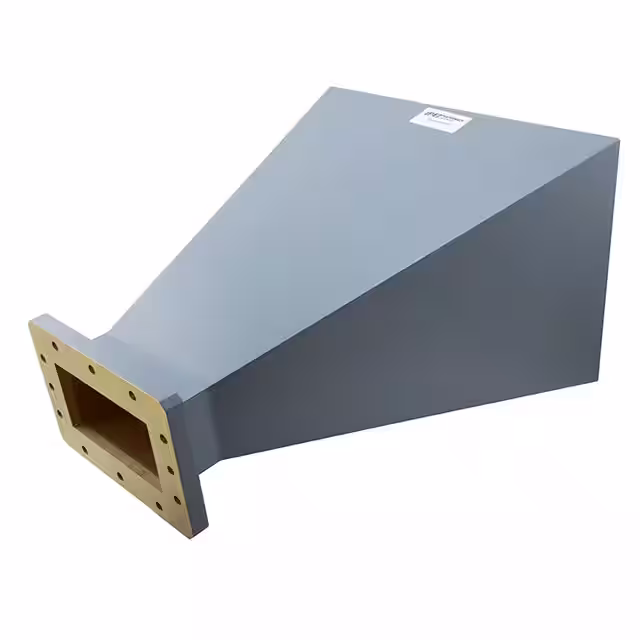

PEWAN430-15WR430 GAIN HORN 1.7-2.6GHZ 15DBI |
1,750 | 2300.00 |
|
Datasheet |
- | Bulk | Active | Waveguide | L Band (1GHz ~ 2GHz) | 2.2GHz | 1.7GHz ~ 2.6GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PE1WAN137-15NFWR-137 Standard Gain Horn with 1 |
4,989 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 7.025GHz | 5.85GHz ~ 8.2GHz | Horn | 1 | 1.3 | - | 15dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Bracket Mount | 6.380" (162.05mm) | General Purpose |
|
|
PE2WAN137-15NFWR-137 Standard Gain Horn with 1 |
4,730 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 7.025GHz | 5.85GHz ~ 8.2GHz | Horn | 1 | 1.3 | - | 15dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Bracket Mount | 6.380" (162.05mm) | General Purpose |
