RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEWAN1081WR-12 Waveguide Lens Horn Antenn |
1,770 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 77GHz | 72GHz ~ 82GHz | Horn | 1 | - | - | 32dBi | - | - | - | - | - | - | Waveguide Mount | 3.350" (85.09mm) | General Purpose |
|

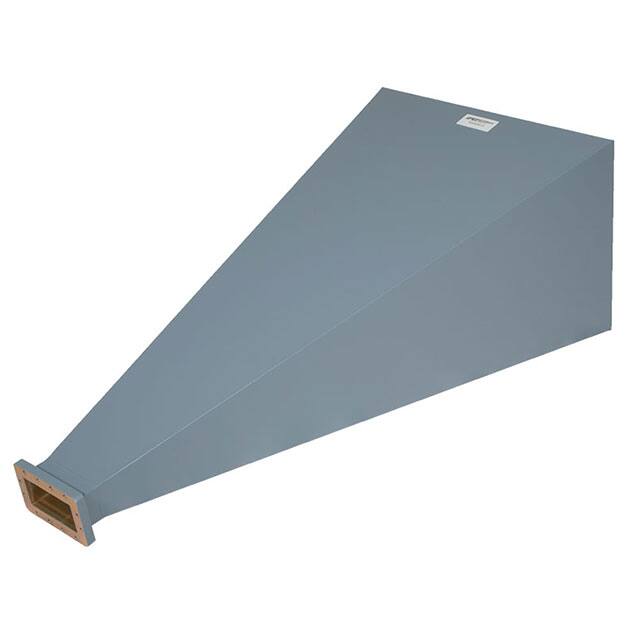

PEWAN284-20WR284 GAIN HORN 2.6-3.95GHZ 20DB |
4,023 | 2220.00 |
|
Datasheet |
- | Bulk | Active | Waveguide | S Band (2GHz ~ 4GHz) | 3.3GHz | 2.6GHz ~ 3.95GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PEWAN510-15WR-510 Waveguide Standard Gain H |
4,316 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 1.825GHz | 1.45GHz ~ 2.2GHz | Horn | 1 | - | - | 15dBi | - | - | - | - | - | - | Waveguide Mount | 14.370" (365.00mm) | General Purpose |
|
|
PEWAN11100.328 Inch Circular Waveguide Sc |
3,274 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 28.5GHz | 24GHz ~ 33GHz | Horn | 1 | 1.2 | - | 16dBi | - | - | - | - | - | - | Waveguide Mount | 2.750" (69.85mm) | General Purpose |
|
|
PEWAN1144WR-28 Waveguide Sector Antenna O |
2,423 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 35GHz | 30GHz ~ 40GHz | Horn | 1 | 2 | - | 0dBi | - | - | - | - | - | - | Waveguide Mount | 0.870" (22.10mm) | General Purpose |
|
|
PEWAN11140.315 Inch Circular Waveguide Sc |
1,290 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 29.5GHz | 26GHz ~ 33GHz | Horn | 1 | 1.2 | - | 17dBi | - | - | - | - | - | - | Waveguide Mount | 2.750" (69.85mm) | General Purpose |
|
|
PEWAN1113WR-28 Waveguide Scalar Feed Horn |
2,185 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 28GHz | 26GHz ~ 30GHz | Horn | 1 | 1.2 | - | 17dBi | - | - | - | - | - | - | Waveguide Mount | 3.220" (81.78mm) | General Purpose |
|
|
PEWAN1143WR-28 Waveguide Sector Antenna O |
2,054 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 28.5GHz | 27.5GHz ~ 29.5GHz | Module | 1 | - | - | 6dBi | - | - | - | - | - | - | Waveguide Mount | 1.030" (26.16mm) | General Purpose |
|
|
PEWAN11150.250 Inch Circular Waveguide Sc |
2,716 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 35.75GHz | 33GHz ~ 38.5GHz | Horn | 1 | 1.2 | - | 17dBi | - | - | - | - | - | - | Waveguide Mount | 2.750" (69.85mm) | General Purpose |
|
|
PE9850B/2F-15WR-28 Standard Gain Horn Antenna |
1,301 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 33.25GHz | 26.5GHz ~ 40GHz | Horn | 1 | 1.4 | - | 15dBi | - | - | 2.92mm Female | - | - | - | Waveguide Mount | 0.550" (13.97mm) | General Purpose |
|
|
PE9852B/2F-20WR-42 Waveguide Standard Gain Ho |
3,971 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 22.25GHz | 18GHz ~ 26.5GHz | Horn | 1 | 1.4 | - | 20dBi | - | - | 2.92mm Female | - | - | - | Waveguide Mount | - | General Purpose |
|
|
PE9851B/2F-10WR-34 Waveguide Standard Gain Ho |
3,072 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 27.5GHz | 22GHz ~ 33GHz | Horn | 1 | 1.4 | - | 10dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | 2.92mm Female | - | - | - | Waveguide Mount | - | General Purpose |
|
|
PE9851B/2F-15WR-34 Waveguide Standard Gain Ho |
4,792 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 27.5GHz | 22GHz ~ 33GHz | Horn | 1 | 1.4 | - | 15dBi | - | - | 2.92mm Female | - | - | - | Waveguide Mount | 2.590" (65.79mm) | General Purpose |
|
|
PE9860B/SF-15WR-159 Waveguide Standard Gain H |
3,109 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 5.975GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.3 | - | 15dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 3.150" (80.01mm) | General Purpose |
|
|
PE9863B-20-UWR-284 Standard Gain Horn Antenn |
2,420 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 3.275GHz | 2.6GHz ~ 3.95GHz | Horn | 1 | 1.5 | - | 20dBi | - | - | - | - | - | - | Waveguide Mount | 29.750" (755.65mm) | General Purpose |
|
|
PE9862B/SF-10WR-229 Standard Gain Horn Antenn |
1,980 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 4.1GHz | 3.3GHz ~ 4.9GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | SMA Female | - | - | - | Waveguide Mount | 3.156" (80.16mm) | General Purpose |
|
|
PE9860B/NF-15WR-159 Waveguide Standard Gain H |
3,304 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 5.975GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | N Type Female | - | - | - | Waveguide Mount | 10.970" (278.64mm) | General Purpose |
|
|
PE9861B/NF-10WR-187 Standard Gain Horn Antenn |
2,951 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 4.9GHz | 3.95GHz ~ 5.85GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | N Type Female | - | - | - | Waveguide Mount | 7.910" (200.91mm) | General Purpose |
|
|
PE9851B/2F-20WR-34 Waveguide Standard Gain Ho |
4,445 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 27.5GHz | 22GHz ~ 33GHz | Horn | 1 | 1.4 | - | 20dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | 2.92mm Female | - | - | - | Waveguide Mount | - | General Purpose |
|
|
PE9861B/SF-10WR-187 Standard Gain Horn Antenn |
2,496 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 4.9GHz | 3.95GHz ~ 5.85GHz | Horn | 1 | 1.3 | - | 10dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 2.120" (53.85mm) | General Purpose |
