RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEWAN1157Broadband Gain Horn Antenna, 4 G |
3,919 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 6GHz | 4GHz ~ 8GHz | Horn | 1 | - | - | 20dBi | - | - | SMA Female | - | - | - | Bracket Mount | 14.070" (357.37mm) | General Purpose |
|
|
PEWAN1116WR-19 Waveguide Dual Polarized S |
2,982 | 0.00 |
|
Datasheet |
- | Retail Package | Active | Cellular | SHF (f > 4GHz) | 50GHz | 40GHz ~ 60GHz | Horn | 1 | 1.4 | - | 13dBi | - | - | - | - | - | - | Waveguide Mount | 1.700" (43.18mm) | 5G |
|
|
PEWAN1119WR-12 Waveguide Dual Polarized S |
2,155 | 0.00 |
|
Datasheet |
- | Retail Package | Active | Cellular | SHF (f > 4GHz) | 75GHz | 60GHz ~ 90GHz | Horn | 1 | 1.4 | - | 13dBi | - | - | - | - | - | - | Waveguide Mount | 1.300" (33.02mm) | 5G |
|
|
PEWAN1117WR-15 Waveguide Dual Polarized S |
4,828 | 0.00 |
|
Datasheet |
- | Retail Package | Active | Cellular | SHF (f > 4GHz) | 62.5GHz | 50GHz ~ 75GHz | Horn | 1 | - | - | 13dBi | - | - | - | - | - | - | Waveguide Mount | 1.300" (33.02mm) | 5G |
|
|
PEWAN1121WR-10 Waveguide Dual Polarized S |
4,677 | 0.00 |
|
Datasheet |
- | Retail Package | Active | Cellular | SHF (f > 4GHz) | 92.5GHz | 75GHz ~ 110GHz | Horn | 1 | - | - | 13dBi | - | - | - | - | - | - | Waveguide Mount | 1.300" (33.02mm) | 5G |
|
|
PEWAN1174Broadband Horn Antenna, Dual Pol |
3,899 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 94GHz | 93GHz ~ 95GHz | Horn | 1 | 1.3 | - | 22dBi | - | - | - | - | - | - | Bracket Mount | 1.220" (31.00mm) | General Purpose |
|
|
PEWAN2300-10NFWR-2300 Waveguide Standard Gain |
4,467 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | UHF (300MHz ~ 1GHz) | 405MHz | 320MHz ~ 490MHz | Horn | 1 | 1.5 | - | 10dBi | - | - | N Type Female | - | - | - | Waveguide Mount | 31.500" (800.10mm) | General Purpose |
|

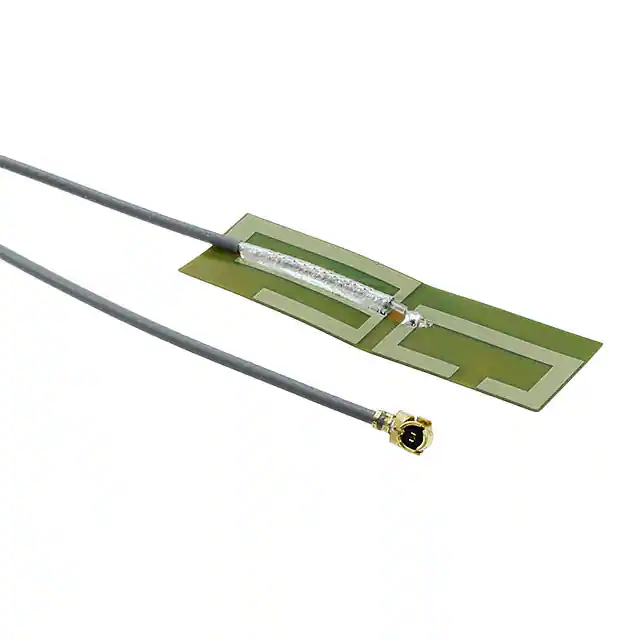

MAF95310EMBED ASSY 185MM UFL |
2,835 | 1.06 |
|
Datasheet |
Mini NanoBlade Flex | Bulk | Active | - | UHF (2GHz ~ 3GHz), UHF (5GHz ~ 6GHz) | 2.45GHz, 5.3875GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.875GHz | - | 2 | 2 | - | 2.8dBi, 3.4dBi | - | Cable - 185mm | I-PEX | - | - | - | Adhesive | - | WLAN |
|
ANT-433-HESMRF ANT 433MHZ HELICAL SOLDER SMD |
3,703 | 1.41 |
|
Datasheet |
HE | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 418MHz ~ 458MHz | Helical | 1 | 2 | - | 1.9dBi | - | - | Solder | - | - | - | Surface Mount | 0.350" (8.89mm) | Alarms, ISM, Remote Control, Security Systems |
|

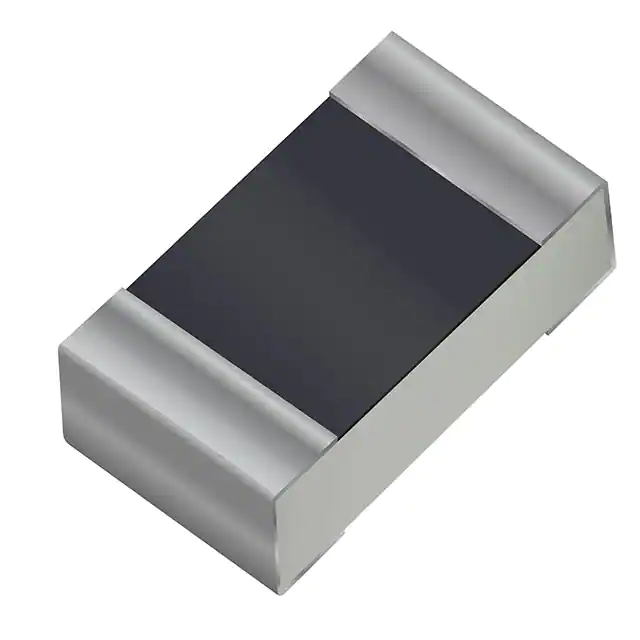

1001312RF ANT 2.4GHZ CHIP SOLDER SMD |
1,973 | 0.87 |
|
Datasheet |
Savvi™ | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 1.8 | - | 1.72dBi | - | - | Solder | - | - | - | Surface Mount | 0.022" (0.55mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
1575AT43A0040001ERF ANT 1.561GHZ/1.575GHZ CHIP |
1,758 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.561GHz ~ 1.602GHz | Chip | 3 | - | -9.5dB | 0.5dBi, 1dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.031" (0.80mm) | Beidou, GLONASS, GPS |
|

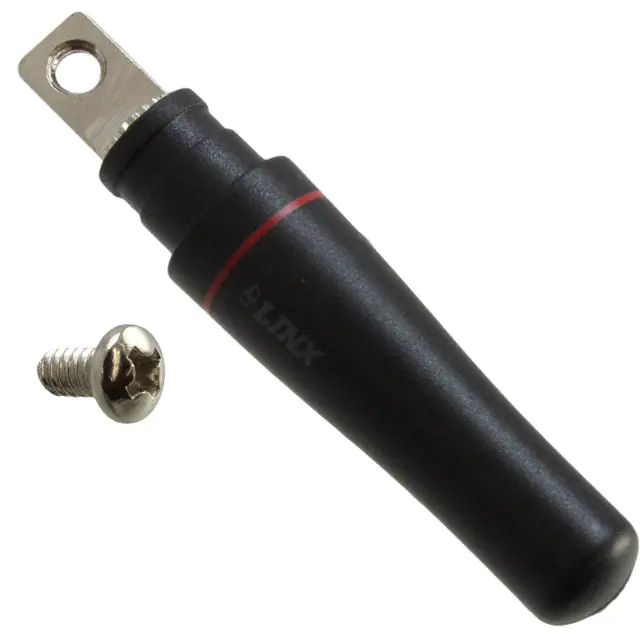

ANT-433-PW-LPRF ANT 433MHZ WHIP STR SCREW-MNT |
1,870 | 2.85 |
|
Datasheet |
LP | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 427MHz ~ 439MHz | Whip, Straight | 1 | 1.9 | - | -1.9dBi | - | - | Screw-Mount | - | - | - | Panel Mount | 1.988" (50.50mm) | Alarms, ISM, Remote Control, Security Systems |
|
|
YF0006DAEMBEDDED CELLULAR ANTENNA |
3,077 | 2.35 |
|
Datasheet |
- | Bag | Active | Cellular | UHF (1GHz ~ 2GHz) | 1.695GHz | 690MHz ~ 2.7GHz | Flat Patch | 1 | 3 | - | 6dBi | - | Cable - 75mm | I-PEX MHF1 | - | - | - | Surface Mount | 0.005" (0.13mm) | LTE |
|

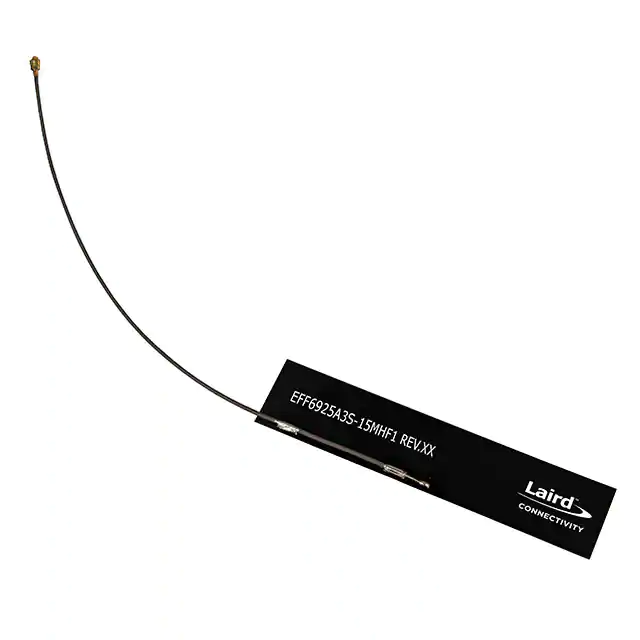

EFF6925A3S-15MHF1REVIE FLEX LTE/CAT M1/NB-IOT ANT |
2,455 | 2.91 |
|
Datasheet |
Revie Flex | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 786.5MHz, 2.105GHz | 698MHz ~ 875MHz, 1.71GHz ~ 2.5GHz | PCB Trace | 2 | 2.5 | - | 1.9dBi, 3.7dBi | 5 W | Cable - 152mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.006" (0.16mm) | LTE |
|
001-0014RF ANT 2.4GHZ FLEXPIFA U.FL ADH |
4,775 | 3.41 |
|
Datasheet |
FlexPIFA™ | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.48GHz | FlexPIFA | 1 | 2 | - | 2dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.098" (2.50mm) | - |
|

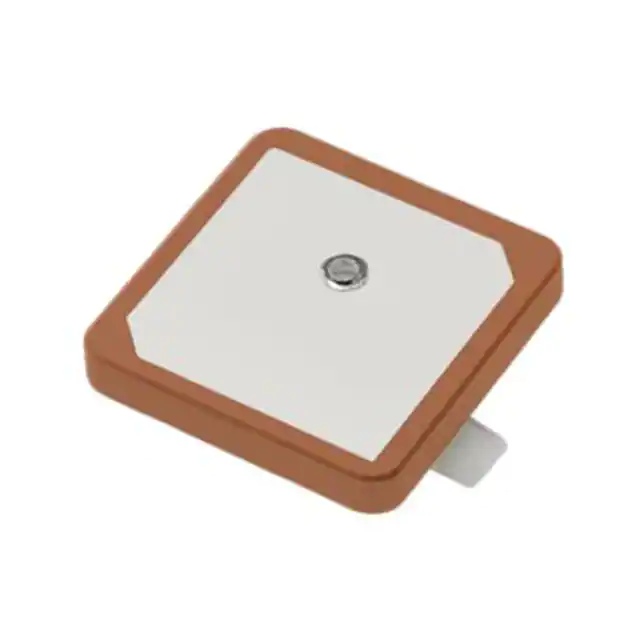

2042860001RF ANT CER PATCH SOLDER SMD |
1,643 | 2.87 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | - | - | Ceramic Patch | 1 | - | -10dB | 5.5dBi | - | - | Solder | - | - | - | Through Hole | 0.157" (4.00mm) | Beidou, GLONASS, GPS |
|
1461530150RF ANT 2.4/5GHZ FLAT PATCH 150MM |
4,893 | 2.86 |
|
Datasheet |
146153 | Bulk | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 2 | - | -10dB | 2.8dBi, 4.2dBi | 2 W | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | WLAN, Zigbee™ |
|

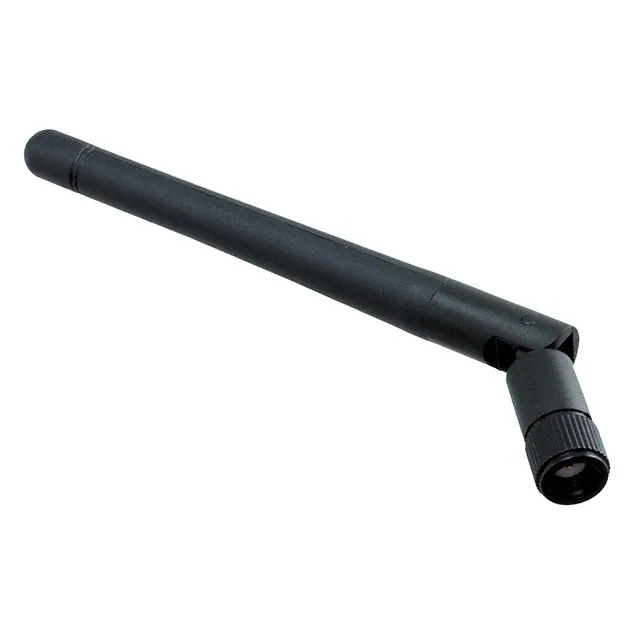

ANT-900-RP-2-ARF ANT 900MHZ WHIP TILT RP-SMA |
2,534 | 3.99 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 900MHz | 880MHz ~ 960MHz | Whip, Tilt | 1 | 1.5 | - | 2.1dBi | 30 W | - | RP-SMA Male | - | - | - | Connector Mount | 4.528" (115.00mm) | ISM |
|

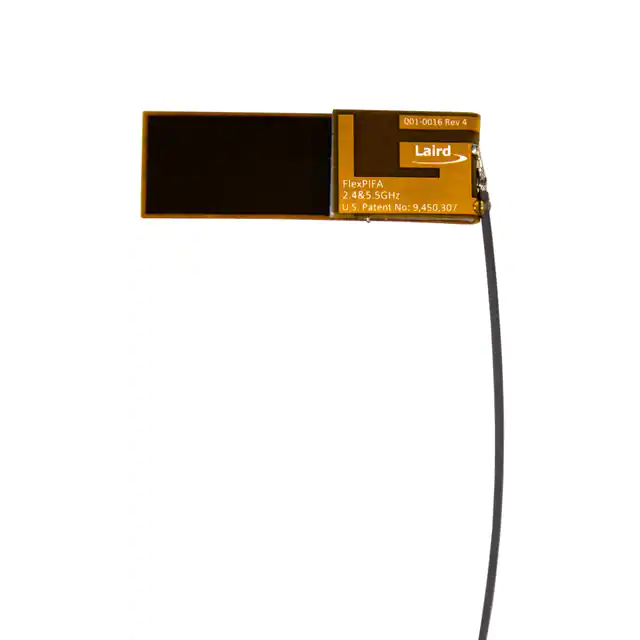

001-0016RF ANT 2.4GHZ/5.5GHZ PCB TRACE |
4,993 | 4.71 |
|
Datasheet |
FlexPIFA™ | Bulk | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 4.9GHz ~ 5.9GHz | PCB Trace | 2 | 3 | - | 2.5dBi, 3dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.098" (2.50mm) | - |
|

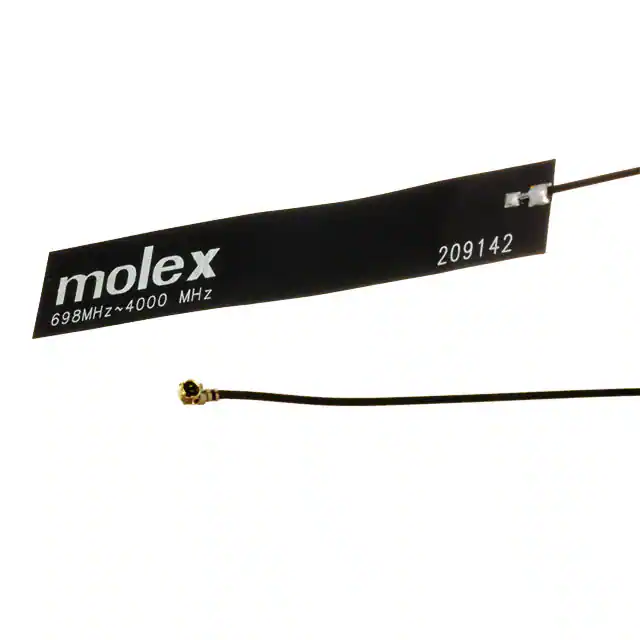

2091420180698 - 4000MHZ FLEXIBLE ANTENNA 1 |
4,364 | 3.73 |
|
Datasheet |
209142 | Bulk | Active | Cellular | Wide Band | 829MHz, 2.2GHz, 3.55GHz | 698MHz ~ 4GHz | PCB Trace | 3 | - | -10dB, -5dB | 1.2dBi, 5.2dBi, 2.7dBi | - | Cable - 180mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | LTE |
