RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

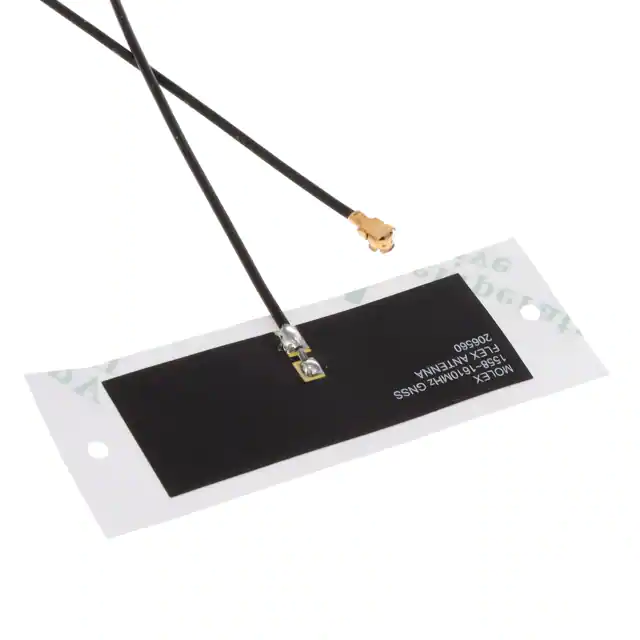

2065600250RF ANT 1.561/1.575GHZ FLAT 250MM |
1,839 | 4.01 |
|
Datasheet |
206560 | Bulk | Active | Navigation | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz | 1.558GHz ~ 1.61GHz | Flat Patch | 3 | - | -8dB | 0.6dBi, 0.7dBi, 1dBi | - | Cable - 250mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | Beidou, GLONASS, GNSS, GPS |
|

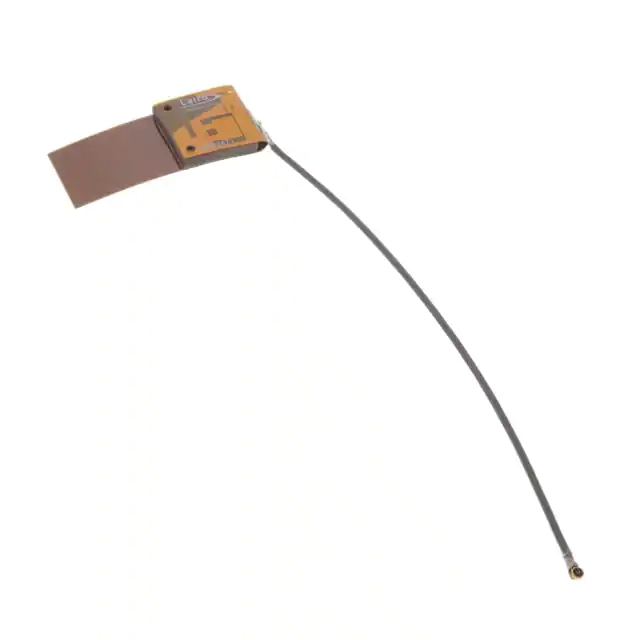

EFB2471A3S-10MH4LANT EMBEDDED FLEXPIFA |
3,105 | 5.35 |
|
Datasheet |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.4125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz | FlexPIFA | 3 | 2.5, 3, 3 | - | 2.2dBi, 3.9dBi, 3.8dBi | 5 W | Cable - 100mm | MHF4L | - | - | - | Adhesive | 0.098" (2.50mm) | Wi-Fi |
|
2133530100LTE/GPS COMBO FLEXIBLE ANTENNA 1 |
1,010 | 4.91 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.45GHz, 1.6GHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.2GHz, 3.75GHz, 4.7GHz, 7.2GHz | 698MHz ~ 960MHz, 1.4GHz ~ 1.5GHz, 1.5GHz ~ 1.7GHz, 1.558GHz ~ 1.563GHz, 1.573GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz, 1.7GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.9GHz ~ 8.5GHz | Flat Patch | 10 | - | -5dB, -10dB | 2.5dBi, 2.3dBi, 2.3dBi, 5.4dBi, 5.4dBi, 4.5dBi, 7dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | Beidou, GLONASS, GPS, LTE, UWB |
|

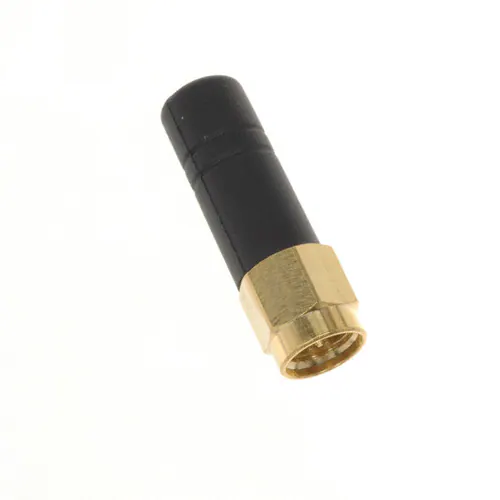

RN-SMA-SRF ANT 2.4GHZ WHIP STR SMA ML 1" |
2,735 | 6.62 |
|
Datasheet |
- | Bag | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Straight | 1 | - | - | 0.56dB | - | - | SMA Male | - | - | - | Connector Mount | 1.118" (28.40mm) | - |
|

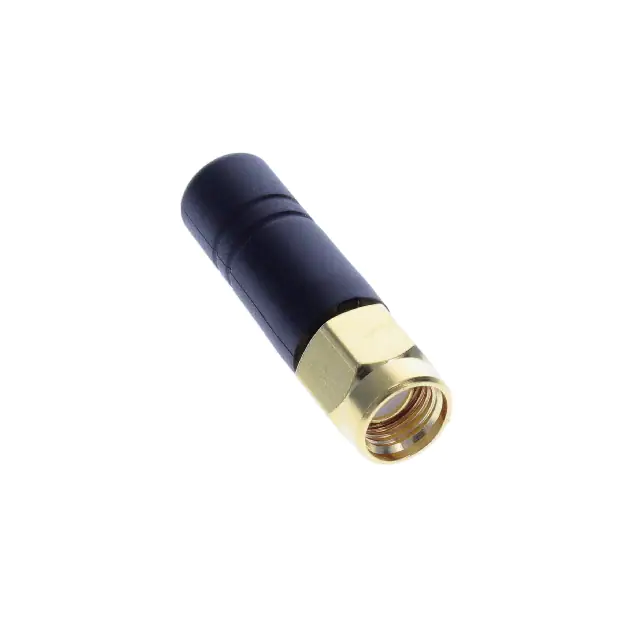

RN-SMA-S-RPRF ANT 2.4GHZ WHIP STR RP-SMA ML |
1,645 | 6.62 |
|
Datasheet |
- | Bag | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Straight | 1 | - | - | 0.56dB | - | - | RP-SMA Male | - | - | - | Connector Mount | 1.118" (28.40mm) | - |
|

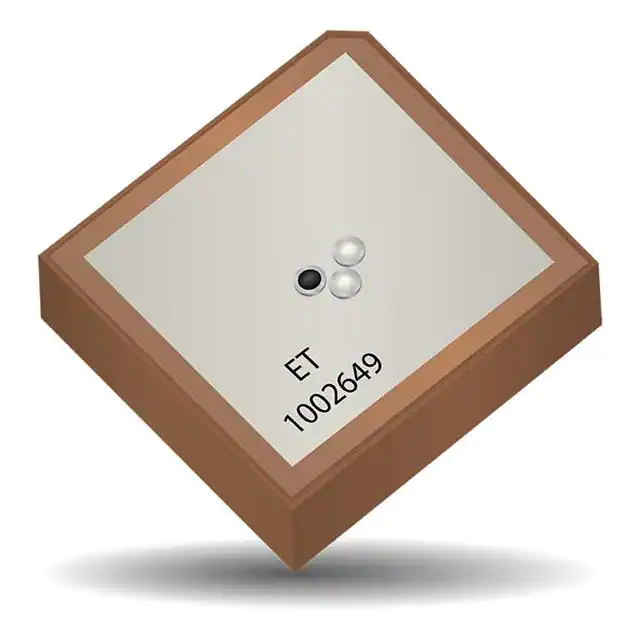

1002649EMBEDDED ANTENNA, GPS, GLONASS, |
3,020 | 0.00 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.575GHz, 1.603GHz | 1.559GHz ~ 1.563GHz, 1.559GHz ~ 1.591GHz, 1.593GHz ~ 1.61GHz | Ceramic Patch | 4 | - | -15dB | 5dBi, 5.5dBi, 5.5dBi, 5.5dBi | - | - | Solder | - | - | - | Adhesive, Through Hole | 0.264" (6.70mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
66089-0906RF ANT 915MHZ WHIP STR U.FL CONN |
1,167 | 6.59 |
|
Datasheet |
66089 | Tray | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | - | Whip, Straight | 1 | 1.7 | - | 3dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 3.464" (88.00mm) | - |
|
SP.1615.25.4.A.02RF ANT 1.615GHZ CER PATCH 25MM |
3,775 | 8.49 |
|
Datasheet |
Globalstar | Tray | Active | Cellular, Navigation | UHF (1GHz ~ 2GHz) | 1.615GHz | 1.602GHz ~ 1.628GHz | Ceramic Patch | 1 | 1.5 | -10dB | 4dBi | - | - | Pin | - | - | - | Adhesive | 0.197" (5.00mm) | Globalstar |
|
ANT-433-CW-HDRF ANT 433MHZ WHIP STR RP-SMA ML |
2,234 | 10.33 |
|
Datasheet |
HD | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 420MHz ~ 445MHz | Whip, Straight | 1 | 2 | - | 0.7dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 3.465" (88.00mm) | Alarms, ISM, Remote Control, Security Systems |
|

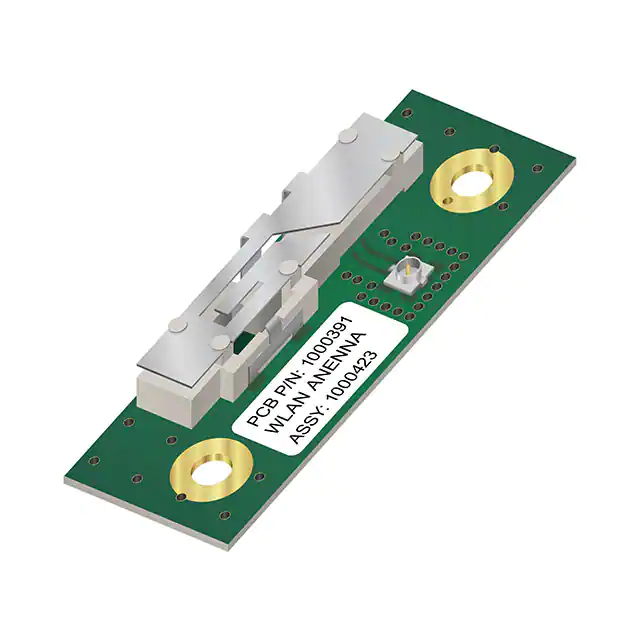

1000423RF ANT 2.4GHZ/4.9GHZ STAMPED MET |
2,375 | 8.09 |
|
Datasheet |
Prestta™ | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 4.9GHz, 5.2GHz, 5.8GHz | 2.39GHz ~ 2.49GHz, 4.9GHz ~ 5.35GHz, 5.7GHz ~ 5.9GHz | Stamped Metal | 4 | 3, 2.5, 2.5, 3 | - | -0.6dBi, 2.5dBi, 4.5dBi, 3.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.280" (7.10mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

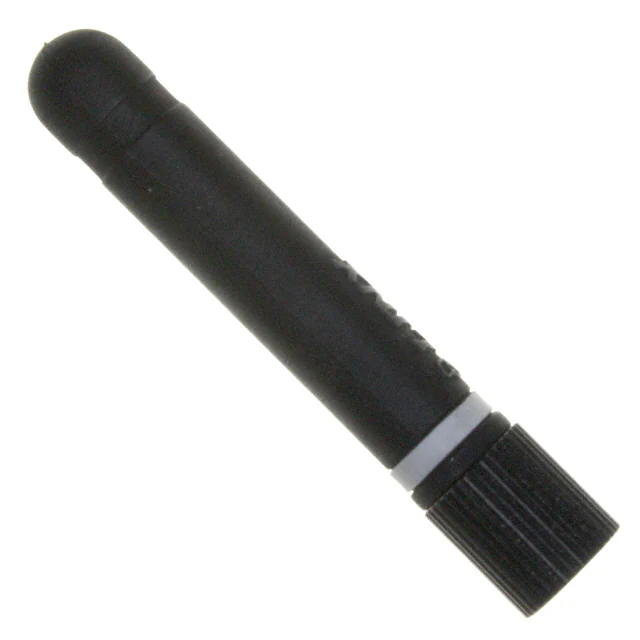

ANT-868-CW-RH-SMARF ANT 868MHZ WHIP STR SMA MALE |
3,552 | 10.09 |
|
Datasheet |
RH | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 855MHz ~ 880MHz | Whip, Straight | 1 | 1.9 | - | -1.5dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.008" (51.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|

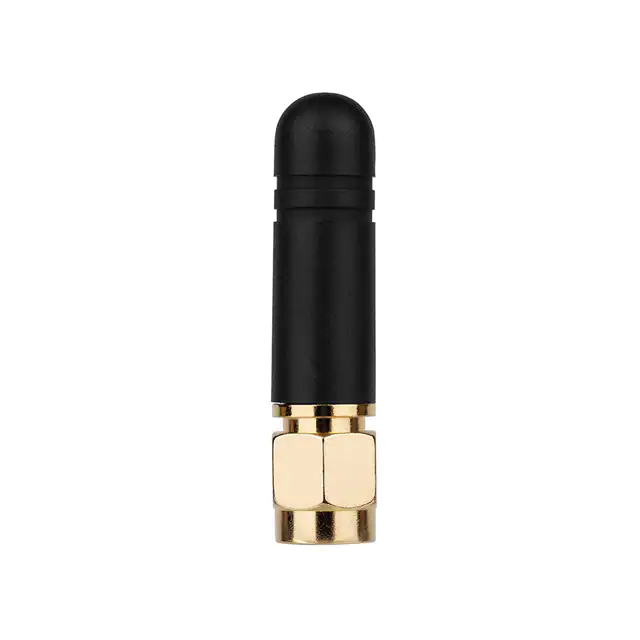

2158720001MINI-LINK WI-FI TRI-BAND ANT STR |
1,633 | 10.58 |
|
Datasheet |
215872 | Tray | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.5625GHz | 2.4GHz ~ 2.5GHz, 5GHz ~ 7.125GHz | Whip, Straight | 3 | - | -10dB, -3dB, -5dB | 3.4dBi, 4.5dBi, 6dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.378" (35.00mm) | Bluetooth, IoT, Wi-Fi, Zigbee™ |
|
2158720101MINI-LINK WI-FI TRI-BAND ANT RIG |
4,510 | 10.58 |
|
Datasheet |
215872 | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.5625GHz | 2.4GHz ~ 2.5GHz, 5GHz ~ 6GHz, 6GHz ~ 7.125GHz | Whip, Straight | 3 | - | -4dB, -5dB, -10dB | 3dBi, 3.8dBi, 4.6dBi | - | - | SMA Male | IP66 | - | - | Connector Mount | 1.181" (30.00mm) | Bluetooth, DSRC, Wi-Fi, Zigbee™ |
|

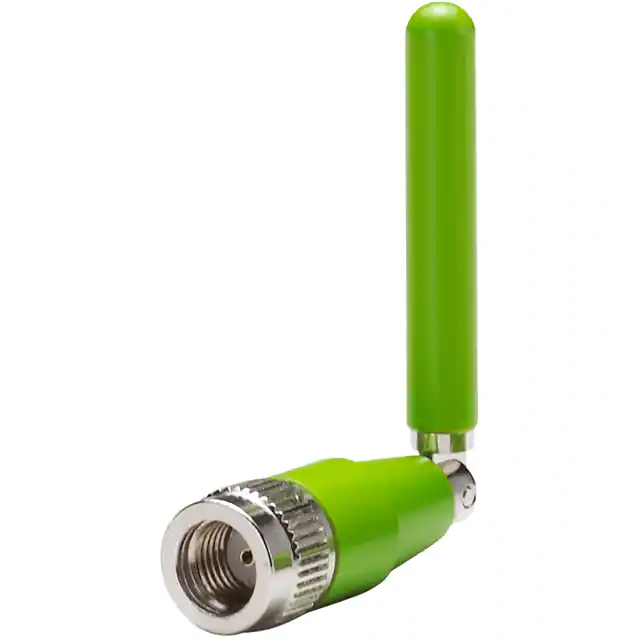

GW.05.0153RF ANT 2.4GHZ/5.5GHZ WHIP TILT |
4,652 | 10.99 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Tilt | 2 | - | -10dB | 5.8dBi | 10 W | - | RP-SMA Male | - | - | - | Connector Mount | 2.453" (62.30mm) | Bluetooth, WLAN, Zigbee™ |
|

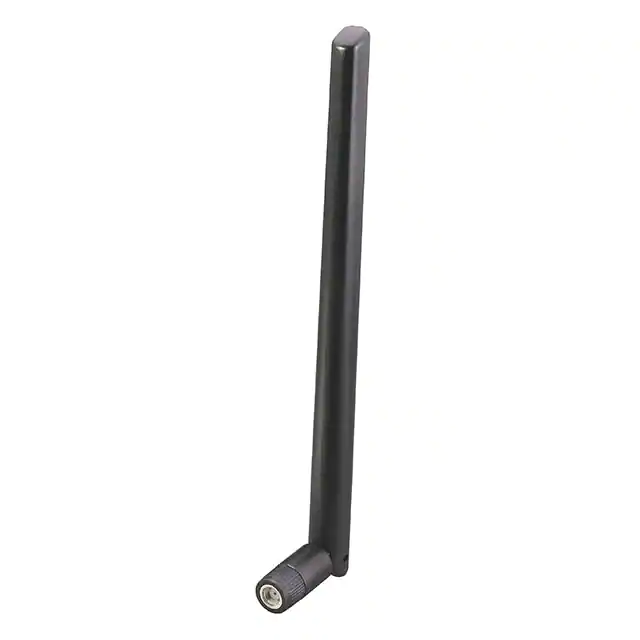

ANT-915-IPW1-RPSRF ANT 915MHZ HINGED WHIP RPSMA |
4,731 | 12.52 |
|
Datasheet |
IPW | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 930MHz | Whip, Tilt/Swivel | 1 | 1.8 | -10.9dB | 2.7dBi | 2 W | - | RP-SMA | IP67 | - | - | Connector Mount | 7.992" (203.00mm) | 802.11ah, HaLow, ISM, LoRaWAN, LPWA, Wi-Fi |
|
ANT-8/9-IPW1-SMARF ANT 868/915MHZ HINGE WHIP SMA |
4,698 | 12.52 |
|
Datasheet |
IPW | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 862MHz ~ 876MHz, 902MHz ~ 930MHz | Whip, Tilt/Swivel | 2 | 1.6, 3.2 | -12.7dB, -5.6dB | 2.9dBi, 2.5dBi | 2 W | - | SMA Male | IP67 | - | - | Connector Mount | 7.992" (203.00mm) | 802.11ah, HaLow, ISM, LoRaWAN, LPWA, Sigfox, Wi-Fi |
|
ANT-2.4-CW-HWR-RPSRF ANT 2.4GHZ WHIP TILT RP-SMA |
4,297 | 12.96 |
|
Datasheet |
HWR | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.3GHz ~ 2.6GHz | Whip, Tilt | 1 | 2 | - | 3.2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 5.591" (142.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
DELTA6B/X/SMAM/S/S/11RF ANT 2.4GHZ WHIP TILT SMA MALE |
2,392 | 15.72 |
|
Datasheet |
DELTA 6B | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 5dBi | - | - | SMA Male | - | - | - | Connector Mount | 7.717" (196.00mm) | Bluetooth, WLAN, Zigbee™ |
|

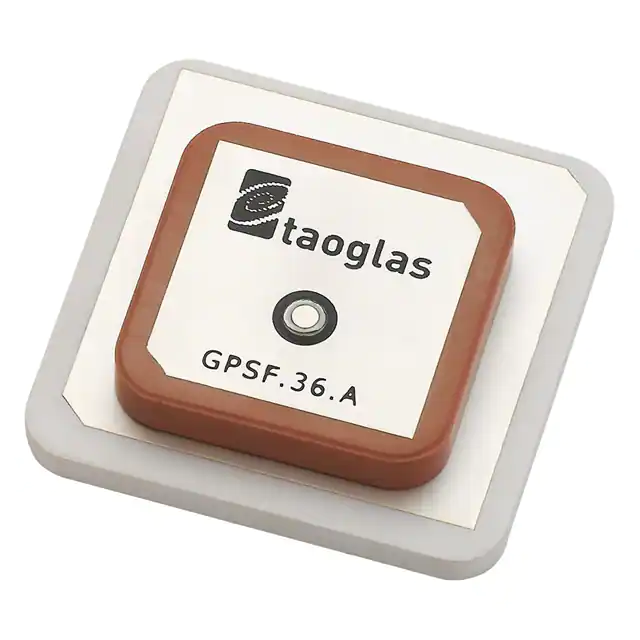

GPSF.36.7.A.30GPS SINGLE FEED STACKED PATCH AN |
2,071 | 16.48 |
|
- |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.227GHz, 1.575GHz | - | Ceramic Patch | 2 | - | - | 3.1dBi, 5.44dBi | - | - | Pin | - | - | - | Through Hole | 0.276" (7.00mm) | GPS |
|
TANGO25/0.1M/SMAM/S/RP/29RF ANT 2.4GHZ PUCK RP-SMA MALE |
2,180 | 17.23 |
|
Datasheet |
TANGO 25 | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Puck | 1 | 1.5 | - | 3dBi | - | - | RP-SMA Male | - | - | - | Panel Mount | 0.591" (15.00mm) | Bluetooth, WLAN, Zigbee™ |
