RF Antennas

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	RF Family/Standard	Frequency Group	Frequency (Center/Band)	Frequency Range	Antenna Type	Number of Bands	VSWR	Return Loss	Gain	Power - Max	Features	Termination	Ingress Protection	Grade	Qualification	Mounting Type	Height (Max)	Applications
ACAG0301-1575-T RF ANT 1.575GHZ CHIP SOLDER SMD Abracon LLC	30,541	1.44	RFQ	Datasheet	ACAG	Tape & Reel (TR)	Active	Navigation	UHF (1GHz ~ 2GHz)	1.575GHz	1.565GHz ~ 1.585GHz	Chip	1	2	-	4.18dBi	-	-	Solder	-	-	-	Surface Mount	0.024" (0.60mm)	GPS

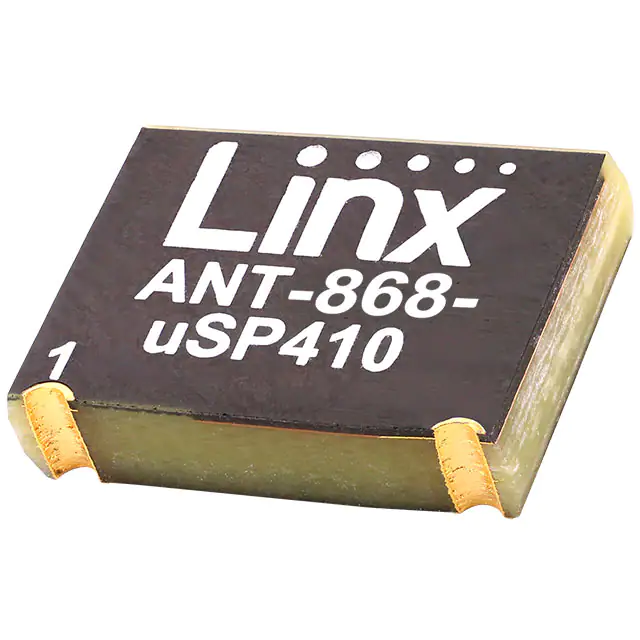

ANT-868-USP410 RF ANT 868MHZ CHIP SOLDER SMD TE Connectivity Linx	1,715	1.67	RFQ	Datasheet	uSP410	Tape & Reel (TR)	Active	General ISM	UHF (300MHz ~ 1GHz)	868MHz	862MHz ~ 876MHz	Chip	1	2.1	-9dB	0.7dBi	5 W	-	Solder	-	-	-	Surface Mount	0.114" (2.90mm)	ISM, LoRaWAN, LPWA, Sigfox

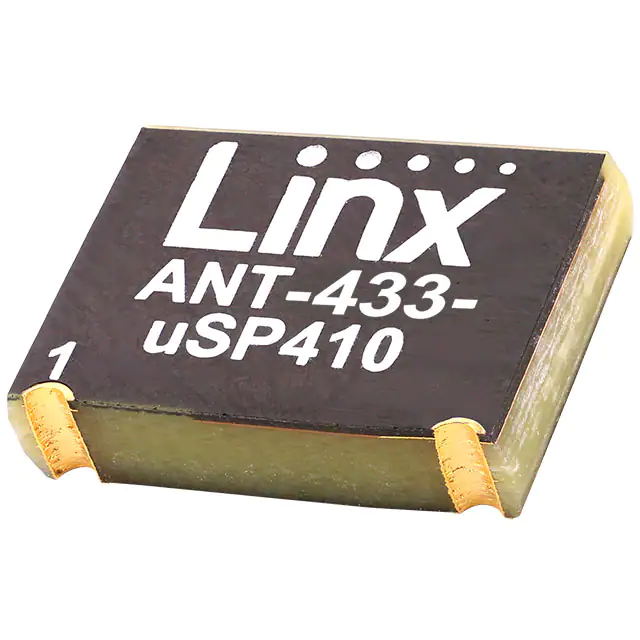

ANT-433-USP410 RF ANT 433MHZ CHIP SOLDER SMD TE Connectivity Linx	511	1.67	RFQ	Datasheet	uSP410	Tape & Reel (TR)	Active	General ISM	UHF (300MHz ~ 1GHz)	433MHz	430MHz ~ 435MHz	Chip	1	1.6	-12.7dB	-8dBi	5 W	-	Solder	-	-	-	Surface Mount	0.114" (2.90mm)	ISM, LoRaWAN, LPWA
2195835-3 ISM 868 / 915 MHZ ANTENNA TE Connectivity AMP Connectors	7,042	1.46	RFQ	Datasheet	-	Bag	Active	General ISM	UHF (300MHz ~ 1GHz)	868MHz, 915MHz	863MHz ~ 928MHz	PCB Trace	2	2.3	-	1.4dBi	10 W	Cable - 150mm	MHF	-	-	-	Adhesive	0.008" (0.20mm)	ISM
W3334B0290 ANTENNA 2.4/5GHZ/DSRC Pulse Electronics	2,262	0.83	RFQ	Datasheet	Internal Antenna	Box	Active	802.15.4, Bluetooth, WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.45GHz, 5.45GHz	2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz	PCB Trace	2	2	-10dB	4dBi, 5.5dBi	-	Cable - 290mm	U.FL	-	-	-	Adhesive	0.004" (0.10mm)	Bluetooth, Wi-Fi, Zigbee™
H2B1WD1A3B0200 WIFI TRIPLE BAND WT32D1-KX 001 Unictron Technologies Corporation	654	2.81	RFQ	Datasheet	-	Bag	Active	WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.4425GHz, 5.5GHz, 6.525GHz	2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz	PCB Trace	3	2	-	3dBi, 4dBi, 4dBi	-	Cable - 119mm	I-PEX MHF1	-	-	-	Adhesive	0.059" (1.50mm)	802.11a/b/g/-c, Wi-Fi 6, Wi-Fi 6E
YF0027AA FLEX ANTENNA WIFI 6 100MM UFL Quectel	4,550	0.00	RFQ	Datasheet	-	Bulk	Active	Bluetooth, WiFi	Wide Band	2.45GHz, 5.375GHz, 6.525GHz	2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz, 5.925GHz ~ 71.25GHz	Flat Patch	3	-	-	-	-	Cable - 100mm	I-PEX	-	-	-	Adhesive	1.654" (42.00mm)	Bluetooth, Wi-Fi, WLAN
YC0002AA EMBEDDED CELLULAR ANTENNA Quectel	3,548	1.31	RFQ	Datasheet	-	Tape & Reel (TR)	Not For New Designs	Cellular	UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz)	829MHz, 2.2GHz	698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz	Chip	2	3	-	3dBi	-	-	Solder	-	-	-	Surface Mount	0.118" (3.00mm)	4G, LTE
YC0017BA EMBEDDED CELLULAR ANTENNA Quectel	2,616	1.56	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Cellular	Wide Band	830MHz, 2.205GHz, 3.6GHz	700MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.4GHz ~ 3.8GHz	Chip	3	4	-	4dBi	-	-	Solder	-	-	-	Surface Mount	0.118" (3.00mm)	LTE
YFGA007AA GNSS FPC ANTENNA L1/L2/L5 1176.4 Quectel	2,520	0.00	RFQ	Datasheet	-	Bulk	Active	Navigation	Wide Band	1.18GHz, 1.58GHz	-	Flat Patch	2	-	-	-	-	Cable - 115mm	I-PEX-1	-	-	-	Adhesive	0.005" (0.12mm)	GNSS
YC0017DA 4G SMD CHIP ANTENNA, 25 X 7 X 3M Quectel	1,954	0.00	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Cellular	Wide Band	2.25GHz	698MHz ~ 3.8GHz	Chip	1	-	-	-	-	-	-	-	-	-	Surface Mount	0.118" (3.00mm)	2G, 3G, 4G
YF0026AA WIFI/BT ANTENNA Quectel	866	2.74	RFQ	Datasheet	-	Bag	Active	WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.45GHz, 5.5GHz, 6.525GHz	2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz	Flat Patch	3	2	-	5.5dBi	-	Cable - 100mm	I-PEX MHF1	-	-	-	Surface Mount	0.005" (0.12mm)	Wi-Fi
W3092 RF ANT 2.4GHZ CHIP SOLDER SMD Pulse Electronics	1,026	1.26	RFQ	Datasheet	The Blue Dot	Tape & Reel (TR)	Active	Bluetooth, WiFi	UHF (2GHz ~ 3GHz)	2.4GHz	2.4GHz ~ 2.483GHz	Chip	1	3	-	0.8dBi	-	-	Solder	-	-	-	Surface Mount	0.022" (0.55mm)	Bluetooth, Wi-Fi

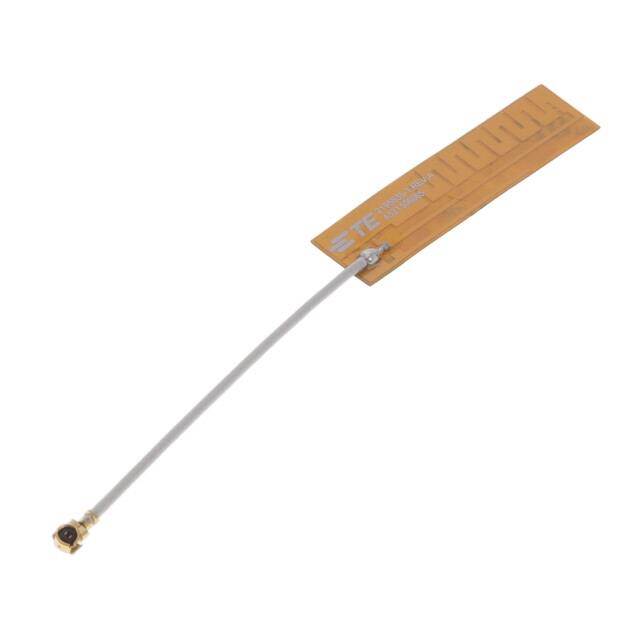

2195835-1 ISM 868 / 915 MHZ ANTENNA TE Connectivity AMP Connectors	2,000	1.29	RFQ	Datasheet	-	Bag	Active	General ISM	UHF (300MHz ~ 1GHz)	868MHz, 915MHz	863MHz ~ 928MHz	PCB Trace	2	2.3	-	1.4dBi	10 W	Cable - 50mm	MHF	-	-	-	Adhesive	0.008" (0.20mm)	ISM
YF0007BA EMBEDDED CELLULAR ANTENNA Quectel	471	2.81	RFQ	Datasheet	-	Bag	Not For New Designs	Cellular	Wide Band	780MHz, 1.6934GHz, 1.9GHz, 2.5GHz	600MHz ~ 960MHz, 1.4279GHz ~ 1.4959GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz	PCB Trace	4	5	-	4.7dBi	-	-	-	-	-	-	Surface Mount	0.033" (0.85mm)	LTE
YF0029AA FLEX , WIFI DUAL BAND,100MM,UFL Quectel	1,313	0.00	RFQ	Datasheet	-	Bulk	Not For New Designs	WiFi	Wide Band	2.45GHz, 5.5GHz, 6.525GHz	2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz	Flat Patch	3	2.3	-	6.64dBi, 6.64dBi, 6.64dBi	-	-	I-PEX MHF	-	-	-	Adhesive	0.005" (0.12mm)	Wi-Fi
YF0023CA FLEX PCB ANTNA WIFI 6 100MM UFL Quectel	249	0.00	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Cellular, WiFi	Wide Band	2.45GHz, 5.375GHz, 6.525GHz	2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz	Flat Patch	3	-	-8.8dB	7dBi, 7dBi, 7dBi	-	-	-	-	-	-	Adhesive	0.004" (0.10mm)	Wi-Fi

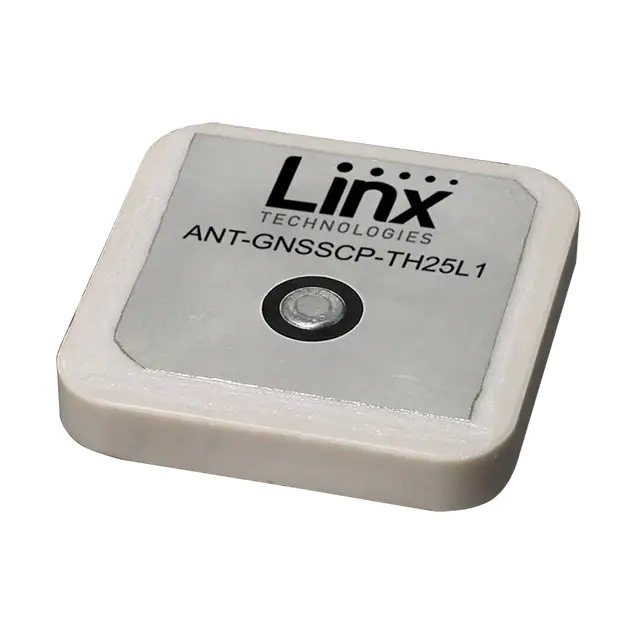

ANT-GNSSCP-TH25L1 RF ANT GNSS PATCH L1 25X25 PIN TE Connectivity Linx	214	2.71	RFQ	Datasheet	GNSSCP	Tray	Active	Navigation	UHF (1GHz ~ 2GHz)	1.575GHz, 1.602GHz	1.567GHz ~ 1.609GHz	Ceramic Patch	3	5.6, 2.1, 1.7	-3.1dB, -9dB, -11.7dB	3.5dBi, 4dBi, 4dBi	8 W	-	Pin	-	-	-	Adhesive	0.157" (4.00mm)	Beidou, Galileo, GLONASS, GNSS, GPS

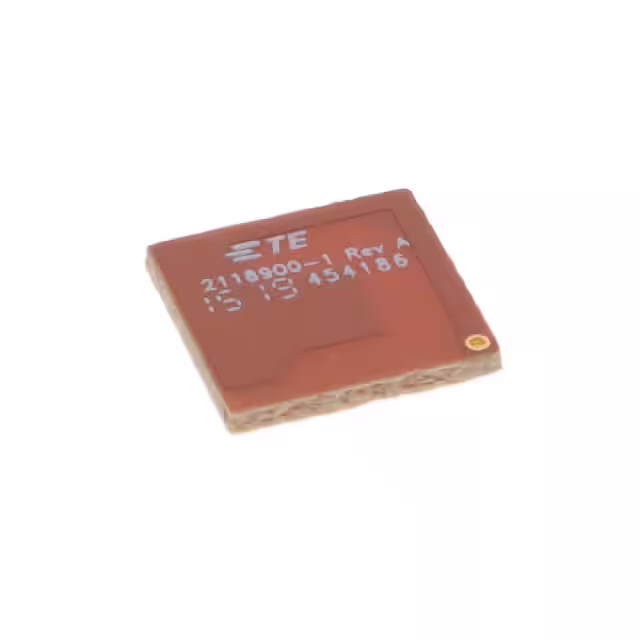

2118900-1 GNSS , GPS AND GLONASS, CHIP ANT TE Connectivity AMP Connectors	2,864	1.42	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Navigation	UHF (1GHz ~ 2GHz)	1.581GHz	1.56GHz ~ 1.602GHz	Chip	1	2	-	-	3 W	-	-	-	-	-	Surface Mount	0.039" (1.00mm)	GNSS

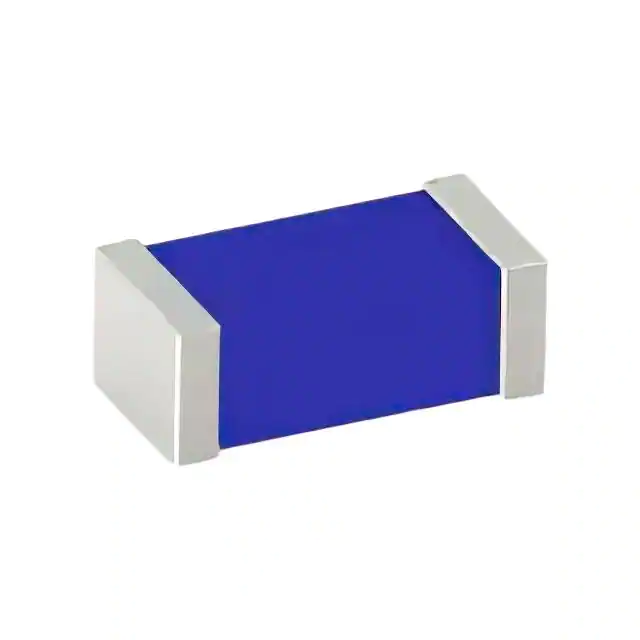

2108838-1 CHIP ANT., SMD, BT/WI-FI 2.4GHZ TE Connectivity AMP Connectors	24,589	0.42	RFQ	Datasheet	-	Tape & Reel (TR)	Active	802.15.4, Bluetooth, WiFi	UHF (2GHz ~ 3GHz)	2.4GHz	2.4GHz ~ 2.5GHz	Chip	1	2:1	-	2.4dBi	-	-	-	-	-	-	Surface Mount	0.047" (1.20mm)	Bluetooth, Wi-Fi, Zigbee™

Total 14124 Record«Prev 1... 27 28 29 303132 33 34...707 Next»
