RF Antennas

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	RF Family/Standard	Frequency Group	Frequency (Center/Band)	Frequency Range	Antenna Type	Number of Bands	VSWR	Return Loss	Gain	Power - Max	Features	Termination	Ingress Protection	Grade	Qualification	Mounting Type	Height (Max)	Applications
YG0062AA GNSS RF ANTENNA Quectel	1,998	1.56	RFQ	Datasheet	-	Tray	Active	Navigation	UHF (1GHz ~ 2GHz)	1.575GHz, 1.602GHz	1.572GHz ~ 1.578GHz, 1.599GHz ~ 1.605GHz	Ceramic Patch	2	3.5	-	2dBi	-	-	Pin	-	-	-	Surface Mount	0.157" (4.00mm)	GNSS
YF0028AA FLEX PCB ANT LTE 150MM UFL Quectel	1,938	0.00	RFQ	Datasheet	-	Bag	Active	Cellular	Wide Band	829MHz, 2.2GHz	698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz	Flat Patch	2	4	-	4.84dBi, 4.84dBi	-	Cable - 150mm	I-PEX MHF	-	-	-	Adhesive	0.005" (0.12mm)	LTE
YCGA001AA PATCH, GNSS L1, PIN MNT, 10X10 Quectel	1,886	0.00	RFQ	Datasheet	-	Tray	Active	Navigation	UHF (1GHz ~ 2GHz)	1.5825GHz	1.559GHz ~ 1.606GHz	Ceramic Patch	1	-	-	-	-	-	-	-	-	-	Adhesive	0.157" (4.00mm)	GNSS, GPS
YF0007KA EMBEDDED, 600960, 1427.91495.9, Quectel	1,612	0.00	RFQ	Datasheet	-	Bulk	Active	Cellular	Wide Band	780MHz, 1.46GHz, 1.94GHz, 2.5GHz	600MHz ~ 960MHz, 1.43GHz ~ 1.49GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz	Flat Patch	4	-	-	-	-	Cable - 75mm	I-PEX-1	-	-	-	Adhesive	0.033" (0.85mm)	4G, LTE
YF0017GA EMBEDDED, 11006000, 5G, FPC WITH Quectel	1,566	0.00	RFQ	Datasheet	-	Bulk	Active	Cellular	Wide Band	3.55GHz	1.1GHz ~ 6GHz	Flat Patch	1	-	-	-	-	Cable - 201mm	I-PEX4	-	-	-	Adhesive	0.005" (0.13mm)	5G
YG0043AA PATCH, GNSS L1, PIN MNT, 15X15 Quectel	967	0.00	RFQ	Datasheet	-	Tray	Active	Navigation	UHF (1GHz ~ 2GHz)	1.561GHz, 1.575GHz, 1.602GHz	-	Ceramic Patch	3	2.53	-	3dBi	-	-	Solder	-	-	-	Surface Mount	0.157" (4.00mm)	BeiDou, Galileo, GLONASS, GNSS, GPS
YF0020EA EMBEDDED, 6006000, 5G, FPC WITH Quectel	914	0.00	RFQ	Datasheet	-	Bulk	Active	Cellular	Wide Band	3.3GHz	600MHz ~ 6GHz	Flat Patch	1	-	-	-	-	Cable - 202mm	I-PEX4	-	-	-	Adhesive	-	5G
YG0005AA GNSS RF ANTENNA Quectel	566	3.16	RFQ	Datasheet	-	Tray	Active	Navigation	UHF (1GHz ~ 2GHz)	1.575GHz, 1.6GHz	1.597GHz ~ 1.603GHz	Ceramic Patch	2	-	-20dB	-	-	-	Solder	-	-	-	Adhesive	0.157" (4.00mm)	GPS
YFGA006AA GNSS FPC ANTENNA L1/L2/L5 1176.4 Quectel	460	0.00	RFQ	Datasheet	-	Bulk	Active	Navigation	UHF (1GHz ~ 2GHz)	1.22GHz, 1.58GHz	1.16GHz ~ 1.27GHz, 1.56GHz ~ 1.61GHz	Flat Patch	2	-	-	-	-	Cable - 143mm	I-PEX-1	-	-	-	Adhesive	0.010" (0.25mm)	GNSS

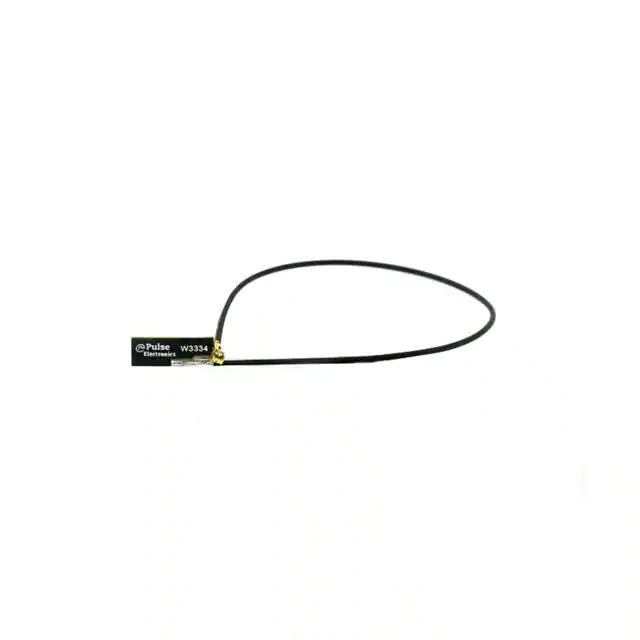

W3334B0100 FPC ANTENNA 2.4/5.XGHZ/DSRC Pulse Electronics	1,411	1.64	RFQ	Datasheet	Internal Antenna	Bag	Active	802.15.4, Bluetooth, WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.45GHz, 5.45GHz	2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz	PCB Trace	2	2, 2.5	-	4dBi, 5.5dBi	-	Cable - 100mm	U.FL	-	-	-	Adhesive	0.004" (0.10mm)	Bluetooth, DSRC, Wi-Fi, Zigbee™
YF0022AA FLEX PCB ANTENNA, LTE 75MM UFL Quectel	3,215	0.00	RFQ	Datasheet	-	Bag	Not For New Designs	Cellular	Wide Band	-	700MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz	PCB Trace	9	2.78, 2.54, 1.76, 1.27, 2.21, 2.71, 2.41, 1.74, 1.12	-	1.53dBi, 0.95dBi, 3.77dBi, 4.12dBi, 2.94dBi, 4.45dBi, 3.22dBi, 3.83dBi, 2.9dBi	-	Cable - 75mm	-	-	-	-	Adhesive	0.079" (2.00mm)	LTE
YF0006PA EMBEDDED, 690960, 17102170, 2300 Quectel	2,000	0.00	RFQ	Datasheet	-	Bulk	Active	Cellular	Wide Band	1.69GHz	700MHz ~ 2.69GHz	Flat Patch	1	-	-	-	-	Cable - 90mm	I-PEX-1	-	-	-	Adhesive	0.005" (0.13mm)	4G, LTE

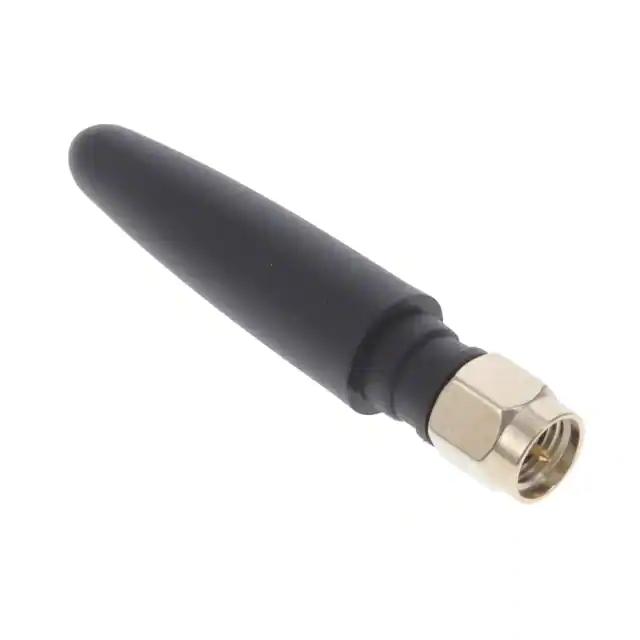

YE0031AA WIFI/BT ANTENNA Quectel	718	2.35	RFQ	Datasheet	-	Bag	Not For New Designs	WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.45GHz, 5.5GHz	2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz	Whip, Straight	2	2.5, 3	-	3.85dBi	-	-	SMA Male	IP65	-	-	Connector Mount	2.047" (52.00mm)	Wi-Fi

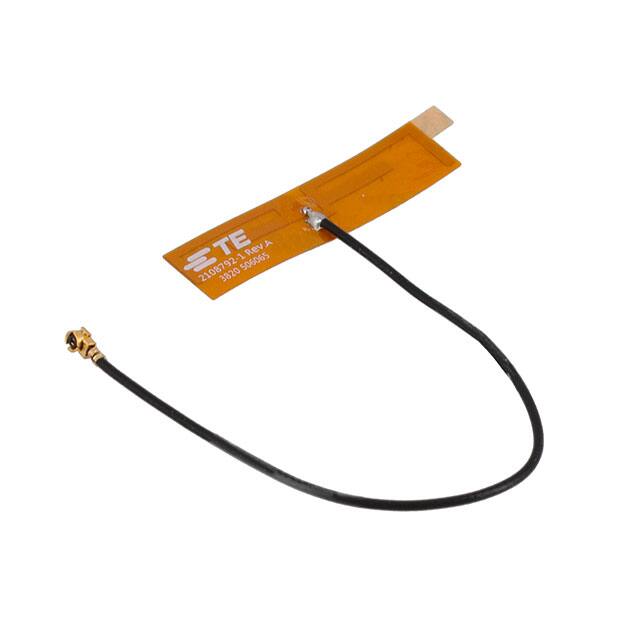

2108792-1 WLAN TRIPLE ANTENNA FPC CABLE 12 TE Connectivity AMP Connectors	3,948	1.58	RFQ	Datasheet	-	Bag	Active	802.15.4, Bluetooth, WiFi	Wide Band	2.44GHz, 5.3685GHz, 6.525GHz	2.4GHz ~ 2.4835GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz	PCB Trace	3	2, 2.5	-	2.7dBi, 3.3dBi, 3.5dBi	-	Cable - 120mm	MHF	-	-	-	Adhesive	0.004" (0.10mm)	Bluetooth, Wi-Fi, Zigbee™

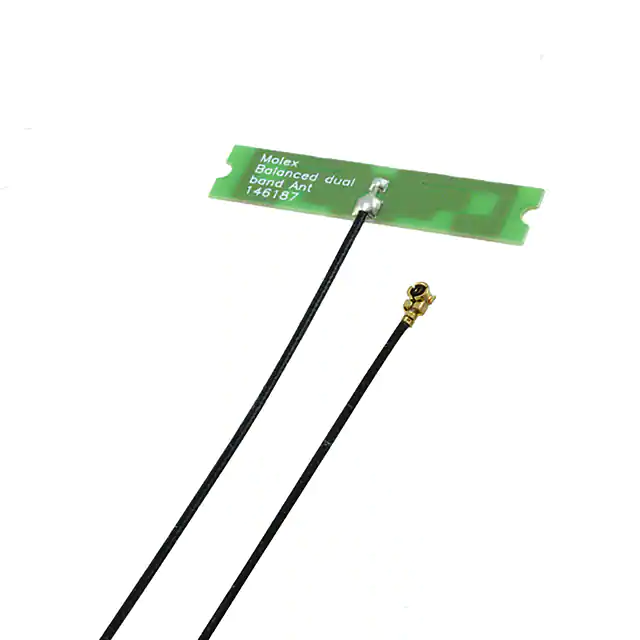

1461870050 RF ANT 2.4/5.5GHZ PCB TRACE U.FL Molex	9,905	3.05	RFQ	Datasheet	146187	Bulk	Active	WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.4GHz, 5.5GHz	2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz	PCB Trace	2	-	-10dB	4.75dBi	-	Cable - 50mm	U.FL	-	-	-	Surface Mount	0.004" (0.10mm)	WLAN

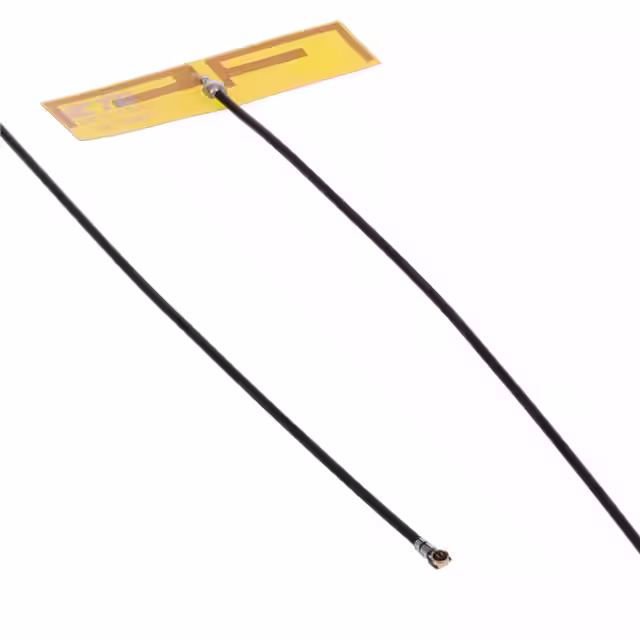

2108792-7 FPC ANT, MHF 4L, 100MM, WI-FI 6E TE Connectivity AMP Connectors	963	1.63	RFQ	Datasheet	-	Bag	Active	802.15.4, Bluetooth, WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.45GHz, 5.5125GHz, 6.525GHz	2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz	PCB Trace	3	2	-	4.5dBi	-	Cable - 100mm	MHF4L	-	-	-	Adhesive	0.005" (0.12mm)	Bluetooth, Wi-Fi, WLAN, Zigbee™
YEGT002AA GNSS L1 TERMINAL ANT SMA M STR Quectel	934	0.00	RFQ	Datasheet	-	Bag	Active	Navigation	UHF (1GHz ~ 2GHz)	1.58GHz	1.555GHz ~ 1.605GHz	Whip, Straight	1	3	-	1.75dBi	-	-	SMA Male	IP64	-	-	Connector Mount	2.047" (52.00mm)	GNSS

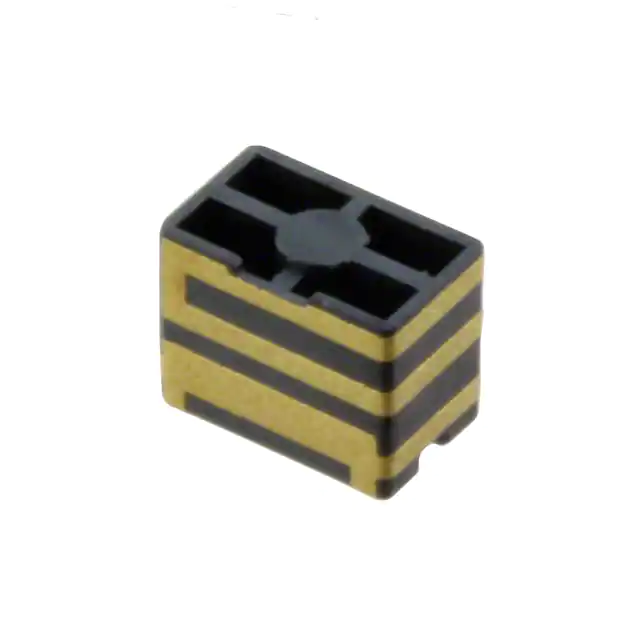

1461750001 RF ANT 2.4GHZ/5.4GHZ CHIP SLD Molex	14,807	1.67	RFQ	Datasheet	-	Tape & Reel (TR)	Active	WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.4GHz, 5.4GHz	2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz	Chip	2	-	-6dB	4.2dB	-	-	Solder	-	-	-	Surface Mount	0.157" (4.00mm)	WLAN

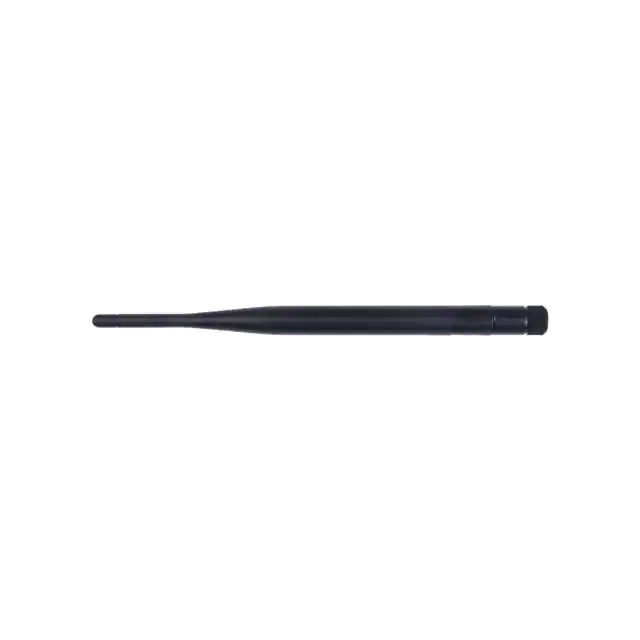

318020389 2.6DBI LORA ANTENNA - SMA MALE - Seeed Technology Co., Ltd	646	2.49	RFQ	-	-	Bulk	Active	General ISM	UHF (300MHz ~ 1GHz)	915MHz	902MHz ~ 928MHz	Whip, Tilt	1	-	-	2.6dBi	10 W	-	SMA Male	-	-	-	Connector Mount	7.677" (195.00mm)	LoRa
2344657-3 WLAN DUAL BAND ANTENNA FPC H 150 TE Connectivity AMP Connectors	4,176	2.30	RFQ	Datasheet	-	Box	Active	802.15.4, Bluetooth, WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.45GHz, 5.5125GHz	2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz	PCB Trace	2	2	-	2dBi	-	Cable - 150mm	U.FL (UMCC), I-PEX MHF1	-	-	-	Adhesive	0.007" (0.19mm)	Bluetooth, WLAN, Zigbee™

Total 14124 Record«Prev 1... 29 30 31 323334 35 36...707 Next»
