RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W3P35X8F04-U150D3B0TANTENNA ASSY, WLAN 04 150 F |
1,906 | 2.00 |
|
Datasheet |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | - | -6dB, -10dB, -15dB | 2.3dBi, 5dBi, 2.5dBi | - | Cable - 150mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
WCP3015W08-U150D3B0AANTENNA ASSY, WIFI STRAIGHT, 150 |
3,558 | 2.00 |
|
Datasheet |
- | Box | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -8.4dB, 8.7dB | 3dBi, 6.7dBi | - | Cable - 150mm | U.FL | - | - | - | Adhesive | 0.031" (0.80mm) | Wi-Fi |
|

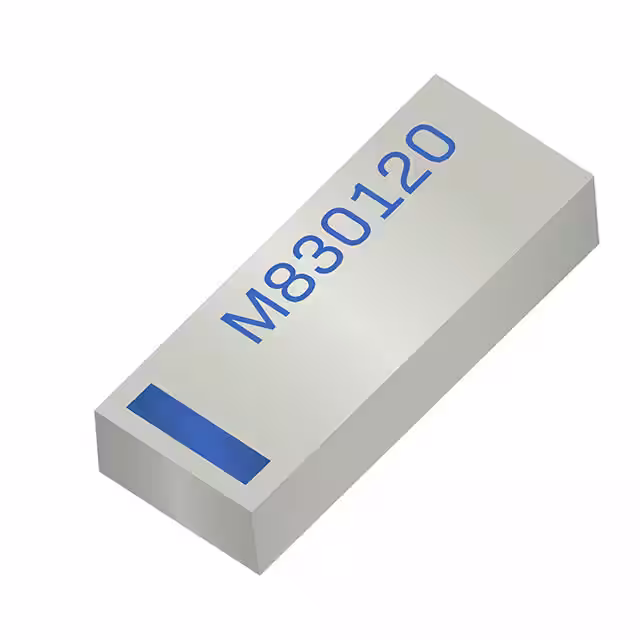

M830120-4.5KRF ANT 1.561GHZ/1.575GHZ CHIP |
3,069 | 0.93 |
|
Datasheet |
Savvi™ | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.561GHz ~ 1.602GHz | Chip | 1 | 1.7 | - | 1.78dBi | 500 mW | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | Beidou, GLONASS, GPS |
|
YC0003AAEMBEDDED CELLULAR ANTENNA |
3,674 | 1.31 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.9475GHz, 2.5GHz | 698MHz ~ 960MHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz | Chip | 3 | 3 | - | 5.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | LTE |
|
9001118ANTENNA PATCH, 5G V2X D0231 |
4,163 | 2.21 |
|
Datasheet |
- | Box | Active | - | SHF (f > 4GHz) | 5.8875GHz | 5.85GHz ~ 5.925GHz | Ceramic Patch | 1 | - | -15dB | 4dBi | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | DSRC |
|
W1P35X8F04-U150D3B0TANTENNA ASSY, WLAN1 04 150 D0230 |
4,795 | 2.00 |
|
Datasheet |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.44GHz | 2.4GHz ~ 2.48GHz | PCB Trace | 1 | - | -15dB | 2.8dBi | - | Cable - 150mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
WAP3015W08-U150D3B0AANTENNA ASSY WIFI LEFT, 150, D02 |
2,486 | 2.00 |
|
Datasheet |
- | Box | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -8.4dB, 8.7dB | 3dBi, 6.7dBi | - | Cable - 150mm | U.FL | - | - | - | Adhesive | 0.031" (0.80mm) | Wi-Fi |
|

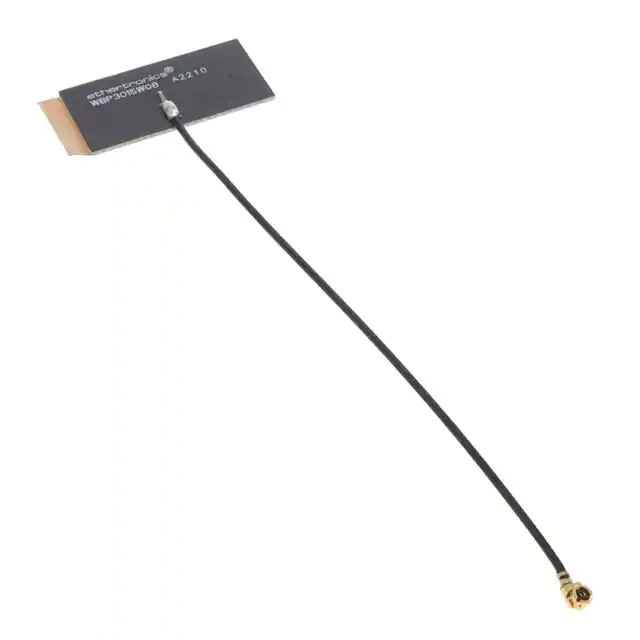

WBP3015W08-U150D3B0AANTENNA ASSY, WIFI RIGHT, 150, D |
1,046 | 2.00 |
|
Datasheet |
- | Box | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -8.4dB, 8.7dB | 3dBi, 6.7dBi | - | Cable - 150mm | U.FL | - | - | - | Adhesive | 0.031" (0.80mm) | Wi-Fi |
|
1001932PT-AA10L0075ANTENNA ASSY WLAN T 75 |
4,771 | 2.00 |
|
Datasheet |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.585GHz, 5.15GHz ~ 5.825GHz | PCB Trace | 2 | 2 | - | 2.5dBi, 4.4dBi | 500 mW | Cable - 75mm | U.FL | - | - | - | Adhesive | 0.063" (1.60mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

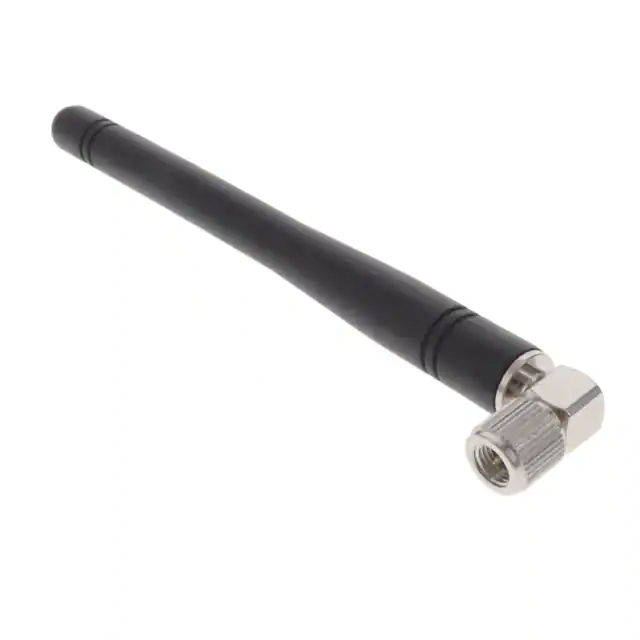

YE0013AAEXTERNAL CELLULAR ANTENNA |
3,717 | 21.98 |
|
Datasheet |
- | Bag | Obsolete | Cellular | UHF (1GHz ~ 2GHz) | 1.7GHz | 700MHz ~ 2.7GHz | Whip, Right Angle | 1 | 3 | - | 2.5dBi | - | - | SMA Male | IP66 | - | - | Connector Mount | 4.543" (115.40mm) | LTE |
|
SRFG017-50RF ANT 1.561GHZ/1.575GHZ FLAT |
3,273 | 2.11 |
|
Datasheet |
Bentoni | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.609GHz | Flat Patch | 1 | 1.45 | -14dB | 4dBi | - | Cable - 50mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | Beidou, Galileo, GLONASS, GPS |
|
|
SRFG017-150RF ANT 1.561/1.575GHZ FLAT 150MM |
4,215 | 2.08 |
|
Datasheet |
Bentoni | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.609GHz | Flat Patch | 1 | 1.45 | -14dB | 4dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | Beidou, Galileo, GLONASS, GPS |
|
|
2118309-5DUAL BAND WIFI, 2.4 & 5GHZ, PCB |
2,255 | 0.00 |
|
- |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.387GHz | 2.4GHz ~ 2.483GHz, 4.9GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 3.7dBi, 3.7dBi | 3 W | Cable - 231.65mm | MHF4L | - | - | - | Adhesive | 0.039" (1.00mm) | 802.11a/b/g/n/ac/ad, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
ST0226-10-501-ARF ANTENNA EXTERNAL DUAL BAND WI |
1,632 | 0.00 |
|
Datasheet |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.487GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz | Whip, Right Angle | 2 | - | -7.4dB, -6dB | 2.5dBi, 2.2dBi | 1 W | - | RP-SMA | - | - | - | Connector Mount | 1.870" (47.50mm) | IoT, Wi-Fi |
|

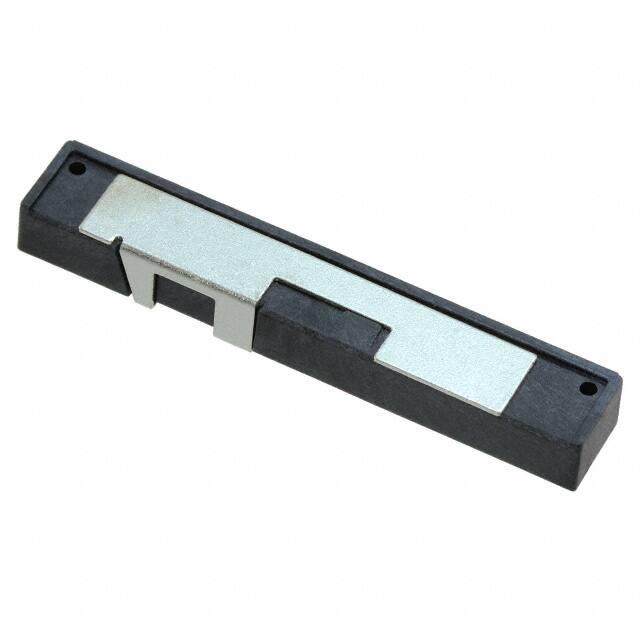

2118315-1RF ANT 2.4/5GHZ STAMPED MET SLD |
4,397 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | - | Stamped Metal | 2 | - | - | - | - | - | Solder | - | - | - | Surface Mount | 0.169" (4.28mm) | WLAN |
|

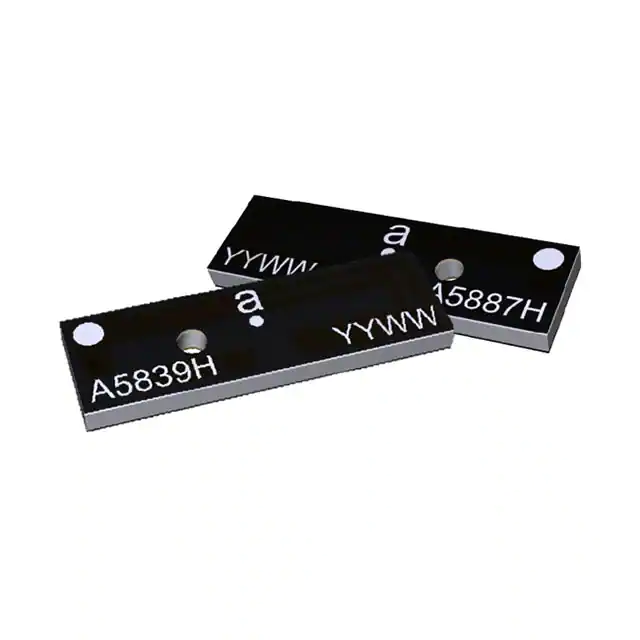

A5839HA5839H RUFA LEFT 2.4 GHZ SMD HAL |
4,088 | 1.70 |
|
Datasheet |
Rufa | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.8 | - | - | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | - |
|

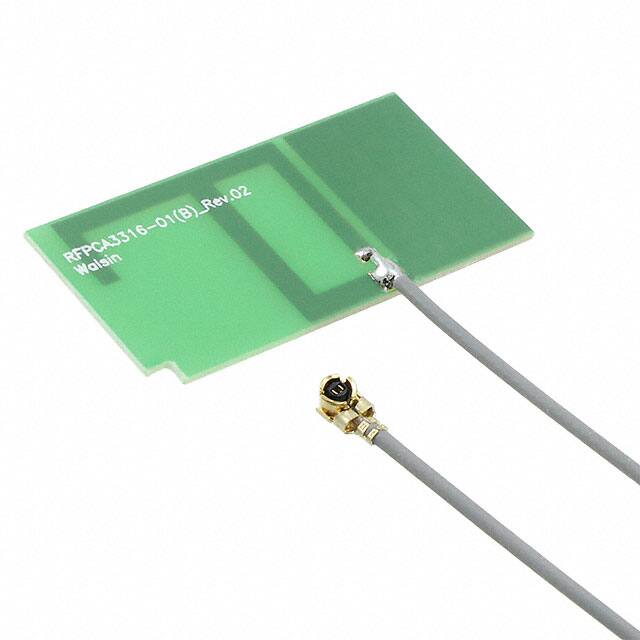

RFPCA331630IMAB301RF ANT 2.4GHZ PCB TRACE IPEX MAL |
2,248 | 4.72 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | - | - | - | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | ISM |
|

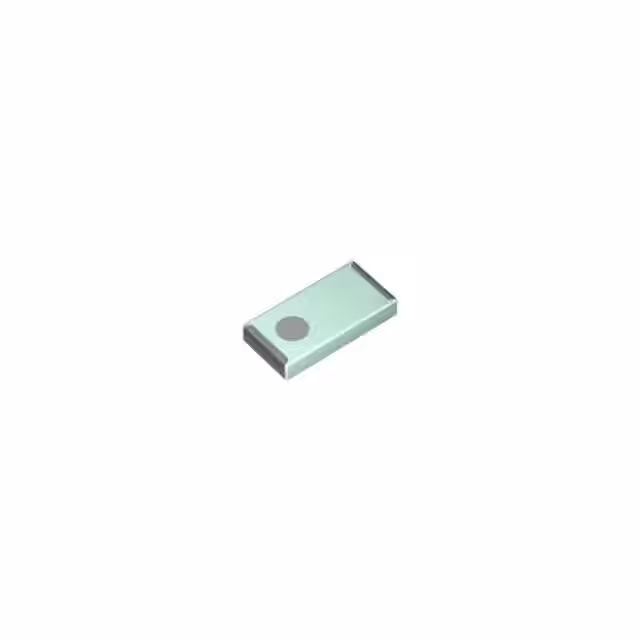

TSA5NA2K1G57NS001TRF ANT 1.575GHZ CHIP SOLDER SMD |
1,979 | 2.11 |
|
- |
TSA5 | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Chip | 1 | - | - | - | - | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | GPS |
|
|
2118060-3DUAL BAND ANTENNA ASSEMBLY W/80M |
2,150 | 2.19 |
|
Datasheet |
- | Box | Active | 802.15.4, Bluetooth, General ISM, WiFi | Wide Band | 3.05GHz, 2.44175GHz, 5.5125GHz | 2.3GHz ~ 3.8GHz, 2.4GHz ~ 2.4835GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 3 | 3 | - | 2dBi | - | Cable - 80mm | MHF | - | - | - | Adhesive | 0.012" (0.30mm) | Bluetooth, ISM, Wi-Fi, WiMax™, WLAN, Zigbee™ |
|
|
1001932PT-AA10L0150ANTENNA ASSY WLAN T 150 |
3,813 | 2.08 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.585GHz, 5.15GHz ~ 5.825GHz | PCB Trace | 2 | 2 | - | 2.5dBi, 4.4dBi | 500 mW | Cable - 150mm | U.FL | - | - | - | Adhesive | 0.063" (1.60mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
