RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2042810250RF ANT 2.442/5.5GZ PCB ADH 250MM |
2,066 | 1.91 |
|
Datasheet |
204281 | Tray | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.442GHz, 5.5GHz | 2.4GHz ~ 2.484GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -10dB | 1.4dBi, 2.5dBi | - | Cable - 250mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | Wi-Fi, Zigbee™ |
|
|
2042811250RF ANT 2.4417/5.415GHZ PCB 250MM |
3,575 | 1.91 |
|
Datasheet |
204281 | Tray | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4417GHz, 5.415GHz | 2.4GHz, 5GHz | PCB Trace | 2 | - | -10dB | 1.4dBi, 2.5dBi | - | Cable - 250mm | I-PEX MHF4L | - | - | - | Adhesive | 0.004" (0.10mm) | Wi-Fi, Zigbee™ |
|

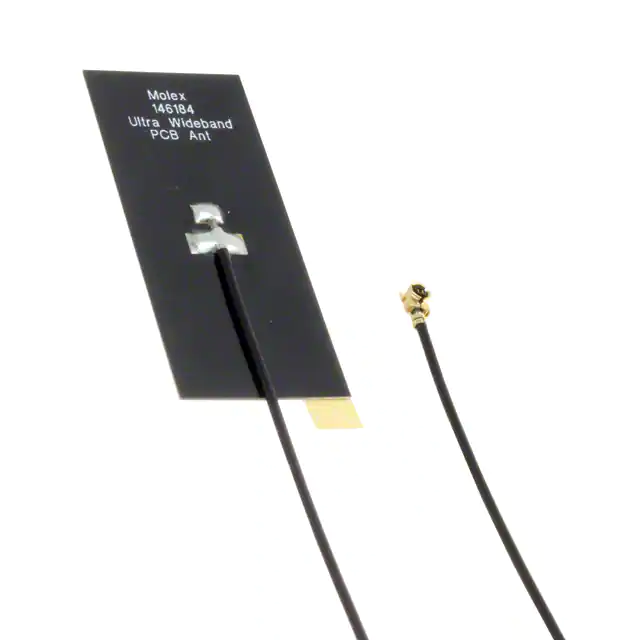

1461840200RF ANT 4.5GHZ FLAT ADH 200MM |
2,678 | 3.85 |
|
Datasheet |
UWB | Bulk | Obsolete | - | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 4.5GHz | 3GHz ~ 6GHz | Flat Patch | 1 | - | -6dB | 4dBi | - | - | - | - | - | - | Adhesive | 0.012" (0.30mm) | - |
|
X9001091-W3DRMWANTENNA WHIP, WIFI DUAL BAND RP- |
1,665 | 2.04 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | Whip, Tilt | 2 | - | -11dB, -14dB | 1.8dBi, 4dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 3.307" (84.00mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
X9001091-W3DRMBANTENNA WHIP, WIFI DUAL BAND RP- |
3,292 | 2.04 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | Whip, Tilt | 2 | - | -11dB, -14dB | 1.8dBi, 4dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 3.307" (84.00mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
W7049ANTENNA INFRASTRUCT |
2,466 | 1.78 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

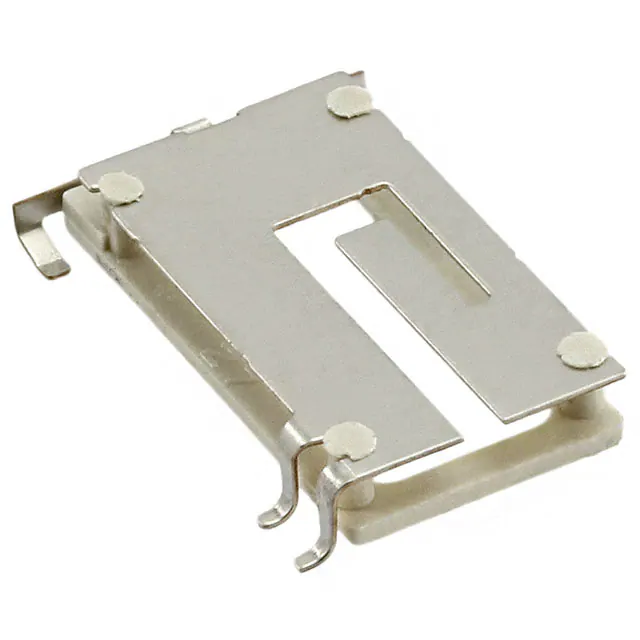

GB04001RF ANT 2.4GHZ STAMPED MET SLD |
1,453 | 0.00 |
|
Datasheet |
Prestta™ | Tape & Reel (TR) | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Stamped Metal | 1 | 2.1 | - | 1dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
1001932FT-AA10L0075ANTENNA ASSY, WLAN FT 75 |
2,870 | 1.86 |
|
Datasheet |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.825GHz | PCB Trace | 2 | 2 | - | 2.5dBi, 4.4dBi | 500 mW | Cable - 75mm | U.FL | - | - | - | Adhesive | 0.063" (1.60mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
W3P35X8W04-U150D3B0AANTENNA ASSY, WLAN 04 150 F |
4,991 | 1.86 |
|
Datasheet |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | - | -6dB, -10dB, -15dB | 2.3dBi, 5dBi, 2.5dBi | - | Cable - 150mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
WAP3015W08-U050D3B0AANTENNA ASSY WIFI LEFT, 050, D02 |
3,343 | 1.86 |
|
Datasheet |
- | Box | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -8.4dB, 8.7dB | 3dBi, 6.7dBi | - | Cable - 50mm | U.FL | - | - | - | Adhesive | 0.031" (0.80mm) | Wi-Fi |
|
|
2067640050RF ANT 868MHZ/915MHZ FLAT PATCH |
4,746 | 2.00 |
|
Datasheet |
206764 | Box | Active | General ISM, Lora | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 863MHz ~ 870MHz, 902MHz ~ 928MHz | Flat Patch | 2 | - | -9dB | 1.3dBi | - | Cable - 50mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.004" (0.10mm) | General Purpose |
|
|
W3P35X8F04-U050D3B0TANTENNA ASSY, WLAN 04 50 F |
4,700 | 1.86 |
|
Datasheet |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | - | -6dB, -10dB, -15dB | 2.3dBi, 5dBi, 2.5dBi | - | Cable - 50mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
W1P35X8W04-U150D3B0AANTENNA ASSY, WLAN1 04 150 |
4,262 | 1.86 |
|
Datasheet |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.44GHz | 2.4GHz ~ 2.48GHz | PCB Trace | 1 | - | -15dB | 2.8dBi | - | Cable - 150mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
W1P35X8F04-U050D3B0TANTENNA ASSY, WLAN1 04 050 D0230 |
2,212 | 1.86 |
|
Datasheet |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.44GHz | 2.4GHz ~ 2.48GHz | PCB Trace | 1 | - | -15dB | 2.8dBi | - | Cable - 50mm | MHF4 | - | - | - | Adhesive | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
WCP3015W08-U050D3B0AANTENNA ASSY, WIFI STRAIGHT, 050 |
1,272 | 1.86 |
|
Datasheet |
- | Box | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -8.4dB, 8.7dB | 3dBi, 6.7dBi | - | Cable - 50mm | U.FL | - | - | - | Adhesive | 0.031" (0.80mm) | Wi-Fi |
|
WBP3015W08-U050D3B0AANTENNA ASSY, WIFI RIGHT, 050, D |
2,727 | 1.86 |
|
Datasheet |
- | Box | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -8.4dB, 8.7dB | 3dBi, 6.7dBi | - | Cable - 50mm | U.FL | - | - | - | Adhesive | 0.031" (0.80mm) | Wi-Fi |
|
1462200250RF ANT 2.4GHZ/5GHZ PCB TRACE |
4,821 | 0.00 |
|
Datasheet |
146220 | Bulk | Obsolete | Navigation, WiFi | Wide Band | 2.4GHz, 5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -8dB | 3.1dBi | 2 W | Cable - 250mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.031" (0.80mm) | GPS, WLAN |
|
|
2042810300RF ANT 2.442/5.5GZ PCB ADH 300MM |
2,922 | 1.97 |
|
Datasheet |
204281 | Tray | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.442GHz, 5.5GHz | 2.4GHz ~ 2.484GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -10dB | 1.2dBi, 2.3dBi | - | Cable - 300mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | Wi-Fi, Zigbee™ |
|
|
1461840300RF ANT 4.5GHZ FLAT CONN 300MM |
3,146 | 0.00 |
|
Datasheet |
UWB | Bulk | Obsolete | - | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 4.5GHz | 3GHz ~ 6GHz | Flat Patch | 1 | - | -6dB | 3.5dBi | - | - | Connector | - | - | - | Adhesive | 0.012" (0.30mm) | - |
|
|
1462200300RF ANT 2.4GHZ/5GHZ PCB TRACE |
1,966 | 0.00 |
|
Datasheet |
146220 | Bulk | Obsolete | Navigation, WiFi | Wide Band | 2.4GHz, 5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -8dB | 2.8dBi | 2 W | Cable - 300mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.031" (0.80mm) | GPS, WLAN |
