RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

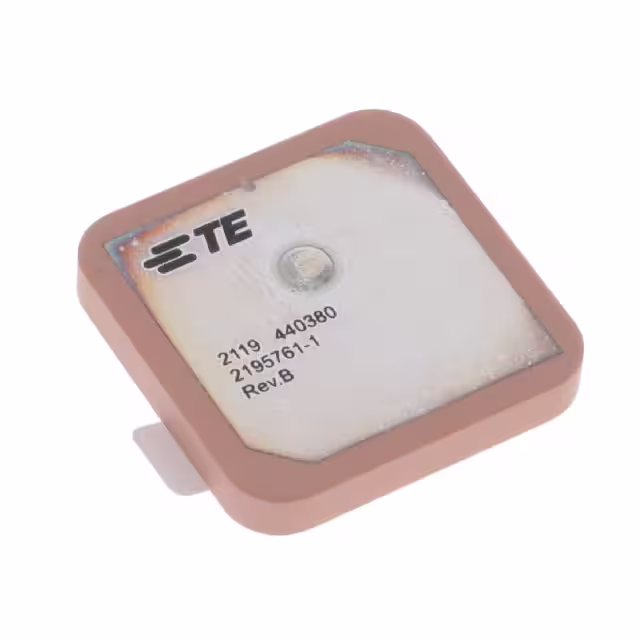

2195761-1GNSS PATCH 25X25MM SMD |
3,598 | 5.53 |
|
Datasheet |
- | Bag | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.5825GHz | 1.559GHz ~ 1.606GHz | Ceramic Patch | 1 | 3 | - | 4.7dBi, 4.8dBi | - | - | Pin | - | - | - | Adhesive | 0.177" (4.50mm) | GNSS |
|
ANT-W63-FPC-LH50M4ANT WIFI6 FPC 45X7 50MM MHF4 |
3,084 | 2.72 |
|
Datasheet |
ANT-W63-FPC-LH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz, 6.5375GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 1.4, 1.7, 1.8 | - | 4.5dBi, 6.3dBi, 10.1dBi | 2 W | Cable - 50mm | I-PEX MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g/ac/ax, Bluetooth, ISM, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee™ |
|
ANT-W63-FPC-LV50M4ANT WIFI6 FPC 45X7 50MM MHF4 |
3,629 | 0.00 |
|
Datasheet |
ANT-W63-FPC-LV | Bag | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.45GHz, 5.522GHz, 6.537GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 1.5, 1.6 | - | 4.8dBi, 6.3dBi, 7.4dBi | 2 W | Cable - 50mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
7488910157RF ANT 1.575GHZ CHIP SOLDER SMD |
3,895 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.555GHz ~ 1.595GHz | Chip | 1 | 2 | - | -1dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.030" (0.77mm) | GPS |
|
|
ST0543-11-N01-URF ANTENNA EMBEDDED GPS 1574 MHZ |
3,585 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | - | -10.9dB | 3.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS |
|
21406102002.4/5GHZ ON FULL METAL CABLED AN |
1,244 | 2.85 |
|
Datasheet |
214061 | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 1 | - | -6dB, -7dB | 3.6dBi, 5.8dBi | - | Cable - 200mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.138" (3.50mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
APAGM3606-SG3RF ANT MULTIBAND GNSS CER PATCH |
2,464 | 3.77 |
|
Datasheet |
APAG | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.561GHz ~ 1.602GHz | Ceramic Patch | 3 | 1.5 | - | 4dBi | - | - | Solder | - | - | - | Through Hole | 0.236" (6.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
TQ0121AA0000RF ANT 1575MHZ CERAMIC PATCH PIN |
3,588 | 0.00 |
|
- |
- | Active | - | - | 1.575GHz | - | Ceramic Patch | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
H2UA6K2K1N0200GSM 3G CHIP 824-960 1710-2170 MH |
1,549 | 1.29 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Chip | 2 | 3 | - | 1.1dBi, 2.4dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | 3G, GSM |
|
|
ANT-W63-FPC-LH200UFANT WIFI6 FPC 45X7 200MM UFL |
3,981 | 2.77 |
|
Datasheet |
ANT-W63-FPC-LH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz, 6.5375GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 1.4, 1.7, 1.8 | - | 4.5dBi, 6.3dBi, 10.1dBi | 2 W | Cable - 200mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g/ac/ax, Bluetooth, ISM, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee™ |
|
|
ANT-W63-FPC-LV200UFANT WIFI6 FPC 45X7 200MM UFL |
2,258 | 0.00 |
|
Datasheet |
ANT-W63-FPC-LV | Bag | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.45GHz, 5.522GHz, 6.537GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 1.5, 1.6 | - | 4.8dBi, 6.3dBi, 7.4dBi | 2 W | Cable - 200mm | MHF1, U.FL | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
MAF94158RF ANT 2.4GHZ/5.5GHZ FLAT PATCH |
2,348 | 2.51 |
|
Datasheet |
NanoBlade | Bulk | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Flat Patch | 2 | 2 | - | 4dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | - | - |
|

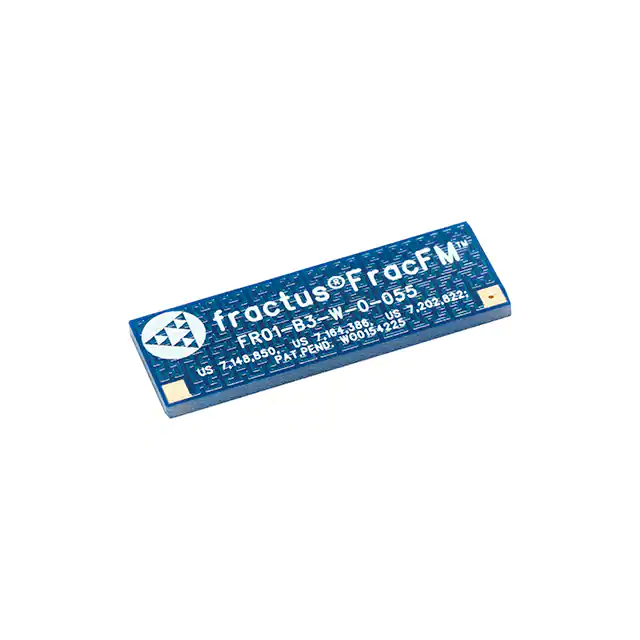

NN01-055FRACFM - 055 |
3,968 | 0.00 |
|
- |
FracFM™ | Tape & Reel (TR) | Obsolete | - | VHF (f < 300MHz) | 93MHz | 78MHz ~ 108MHz | Chip | 1 | - | - | - | - | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | - |
|
|
W1095KRPANTENNA 2.4-2.5GHZ SMA STUB |
3,795 | 2.53 |
|
- |
External Stubby | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Right Angle | 1 | 2.5 | -7dB | 1dBi | - | - | RP-SMA Male | IP65 | - | - | Connector Mount | 1.890" (48.00mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|
|
LCSMA10132400 - 2500 MHZ 1.74 DBI, STAMPE |
2,074 | 0.00 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Stamped Metal | 1 | 2 | - | 1.74dBi | 1 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Screw-Mount | - | - | - | Surface Mount | 0.190" (4.83mm) | 802.11a/b/g/n/ac, Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™ |
|
|
LCSMA10122400 - 2500 & 5150 - 5825 MHZ 4. |
1,983 | 0.00 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.487GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz | Stamped Metal | 2 | 2 | - | 4.35dBi, 3.24dBi | 1 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Screw-Mount | - | - | - | Surface Mount | 0.065" (1.65mm) | 802.11a/b/g/n/ac, Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™ |
|
|
ANT-W63-FPC-LH150M4ANT WIFI6 FPC 45X7 150MM MHF4 |
2,694 | 2.82 |
|
Datasheet |
ANT-W63-FPC-LH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz, 6.5375GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 1.4, 1.7, 1.8 | - | 4.5dBi, 6.3dBi, 10.1dBi | 2 W | Cable - 150mm | I-PEX MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g/ac/ax, Bluetooth, ISM, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee™ |
|
|
ANT-W63-FPC-LV150M4ANT WIFI6 FPC 45X7 150MM MHF4 |
2,523 | 0.00 |
|
Datasheet |
ANT-W63-FPC-LV | Bag | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.45GHz, 5.522GHz, 6.537GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 1.5, 1.6 | - | 4.8dBi, 6.3dBi, 7.4dBi | 2 W | Cable - 150mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
L000604-01ISM FPC ANT, HDP, MHF-TYPE, 50MM |
3,534 | 0.00 |
|
Datasheet |
FPC | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 440MHz | 410MHz ~ 470MHz | Flat Patch | 1 | 1.3 | - | 3dBi | 10 W | Cable - 48.77mm | MHF1 | - | - | - | Adhesive | 0.060" (1.52mm) | ISM |
|
|
RFPCA202210IMMB301RF ANT PCB IPEX MALE 10CM LTE |
1,101 | 5.72 |
|
Datasheet |
- | Bulk | Active | Cellular | SHF (f > 4GHz) | 5.5GHz | 3.8GHz ~ 7.2GHz | PCB Trace | 1 | 2 | -10dB | 5.54dBi | 1 W | Cable - 100mm | I-PEX | - | - | - | Adhesive | 0.016" (0.40mm) | LTE |
