RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ST0543-00-N03-URF ANTENNA PASSIVE PATCH 1575.42 |
4,636 | 0.00 |
|
- |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | - | -10dB | 2.5dBi | - | - | Pin | - | - | - | - | 0.157" (4.00mm) | GPS |
|
1002428RF ANT 1.575GHZ CER PATCH PIN |
4,293 | 3.00 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.575GHz ~ 1.606GHz | Ceramic Patch | 2 | - | - | 5.26dBic, 4.25dBic, 3.46dBic | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | GLONASS, GPS |
|
|
1462340050RF ANT 829MHZ/2.1GHZ FLAT PATCH |
2,558 | 3.02 |
|
Datasheet |
146234 | Tray | Obsolete | - | Wide Band | 829MHz, 2.1GHz, 4.35GHz | 698MHz ~ 6GHz | Flat Patch | 3 | - | -4dB, -5dB | 1.9dBi, 2.85dBi, 5.2dBi | - | Cable - 50mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | General Purpose |
|
|
MAF94048RF ANT 2.4GHZ WHIP/TILT CONN MT |
2,911 | 0.00 |
|
Datasheet |
WRR | Bulk | Obsolete | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 1.5dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 4.291" (109.00mm) | WLAN |
|
|
W3325ANTENNA 791-960MHZ |
1,881 | 2.61 |
|
Datasheet |
Domino | Box | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz) | 875.5MHz | 791MHz ~ 960MHz | Chip | 1 | - | 5dB | 1.3dBi | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | ISM, LTE |
|
|
SR4G031-150RF ANT 1.584GHZ FLAT PATCH |
3,674 | 0.00 |
|
- |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.584GHz | 1.559GHz ~ 1.609GHz | Flat Patch | 1 | 1.7 | -11dB | 3.8dBi | - | Cable - 150mm | I-PEX, MHF | - | - | - | Adhesive | 0.063" (1.60mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
SRFL026-150RF ANT 748MHZ/892MHZ FLAT 150MM |
3,729 | 3.09 |
|
Datasheet |
Mitis | Bulk | Active | Cellular | Wide Band | 748MHz, 892MHz, 1.94GHz, 2.35GHz, 2.6GHz | 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz | Flat Patch | 5 | 3.1 | -10dB | 3.5dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | GSM, LTE, W-CDMA |
|
SRFL029-200RF ANT 748/892MHZ FLAT CAB 200MM |
2,622 | 3.12 |
|
Datasheet |
Moseni | Bulk | Active | Cellular | Wide Band | 748MHz, 892MHz, 1.94GHz, 2.35GHz, 2.6GHz | 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz | Flat Patch | 5 | 1.7 | -8dB | 3.8dBi | - | Cable - 200mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | GSM, LTE, W-CDMA |
|
|
L000604-04ISM FPC ANT, HDP, MHF4L-TYPE, 50 |
4,922 | 0.00 |
|
Datasheet |
FPC | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 440MHz | 410MHz ~ 470MHz | Flat Patch | 1 | 1.3 | - | 3dBi | 10 W | Cable - 48.77mm | MHF4 | - | - | - | Adhesive | 0.060" (1.52mm) | ISM |
|
|
L000605-01ISM FPC ANT, VDP, MHF-TYPE, 50MM |
3,745 | 0.00 |
|
Datasheet |
FPC | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 440MHz | 410MHz ~ 470MHz | Flat Patch | 1 | 1.5 | - | 3dBi | 10 W | Cable - 48.77mm | MHF1 | - | - | - | Adhesive | 0.060" (1.52mm) | ISM |
|
ANT-2.4-PW-LPRF ANT 2.4GHZ WHIP STR SCREW-MNT |
2,958 | 2.42 |
|
Datasheet |
LP | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.35GHz ~ 2.6GHz | Whip, Straight | 1 | 1.9 | - | -1.9dBi | - | - | Screw-Mount | - | - | - | Panel Mount | 1.988" (50.50mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
|
ANT-GNFPC-SHL1150UFRF ANT GNSS FPC L1 150MM UFL |
2,557 | 0.00 |
|
- |
ANT-GNFPC-SHL1 | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.601GHz, 1.602GHz | - | Flat Patch | 4 | 1.6, 1.9 | - | 3.2dBi, 3.2dBi, 2.6dBi, 2.6dBi | 2 W | Cable - 150mm | MHF1, U.FL | - | - | - | Adhesive | 0.004" (0.10mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
YE0039BAEXTERNAL, 430-470, 790-960, ISM, |
2,913 | 0.00 |
|
- |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 450MHz, 875MHz | 430MHz ~ 470MHz, 790MHz ~ 960MHz | Whip, Straight | 2 | 3 | - | 4dBi, 4dBi | - | Cable - 75mm | SMA Male | IP66 | - | - | Adhesive | 4.606" (117.00mm) | General Purpose |
|
|
LCSMA10082400 - 2500 & 5150 - 5825 MHZ 2. |
1,892 | 0.00 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.487GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz | Stamped Metal | 2 | 2 | - | 2.82dBi, 3.43dBi | 1 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Screw-Mount | - | - | - | Surface Mount | 0.010" (0.25mm) | 802.11a/b/g/n/ac, Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™ |
|
|
LCSMA10165900 - 7125 MHZ 3 DBI, STAMPED M |
3,720 | 0.00 |
|
Datasheet |
- | Bulk | Active | General ISM, WiFi | SHF (f > 4GHz) | 6.512GHz | 5.9GHz ~ 7.125GHz | Stamped Metal | 1 | 2 | - | 3dBi | 1 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Screw-Mount | - | - | - | Surface Mount | 0.010" (0.25mm) | 802.11a/b/g/n/ac/ax, IoT, ISM, M2M, Wi-Fi |
|

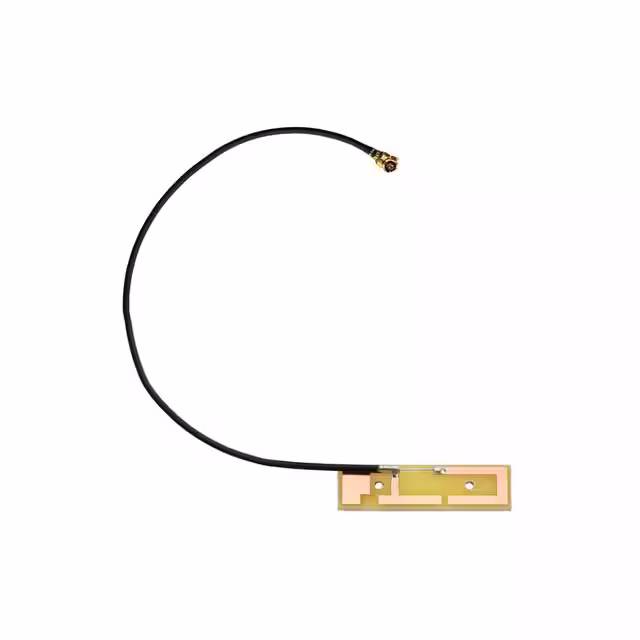

PE512073 DBI PCB 2400-2500 MHZ UMCX |
1,153 | 6.59 |
|
Datasheet |
- | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2 | - | 3dBi | - | Cable - 100mm | U.FL (UMCX), I-PEX | - | - | - | Surface Mount | - | Bluetooth, WLAN |
|
ANT-418-USPRF ANT 418MHZ CHIP SOLDER SMD |
3,928 | 3.14 |
|
Datasheet |
microSplatch™ | Tube | Obsolete | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 414MHz ~ 422MHz | Chip | 1 | 1.9 | - | -8.9dBi | - | - | Solder | - | - | - | Surface Mount | 0.103" (2.62mm) | Alarms, ISM, Remote Control, Security Systems |
|
|
AT2.4G-09082-2.0BTH2.4GHZ WIFI ANTENNA IPEX |
3,478 | 0.00 |
|
Datasheet |
AT2.4G | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 1.92 | -10dB | 2dBi | 1 W | Cable - 110mm | - | - | - | - | Connector Mount | 3.228" (82.00mm) | Bluetooth, Wi-Fi | |
|
|
CDCA60S00RF ANT 7370MHZ CERAMIC CHIP SMD |
4,608 | 0.00 |
|
- |
- | Active | - | - | 7.37GHz | - | Chip | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
ANT-W63-FPC-SH150UFANT WIFI6 FPC 25X20 150MM UFL |
3,608 | 2.87 |
|
Datasheet |
ANT-W63-FPC-SH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz, 6.5375GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 1.5, 1.6, 1.8 | - | 4.7dBi, 7.8dBi, 8.5dBi | 2 W | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g/ac/ax, Bluetooth, ISM, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee™ |
