RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

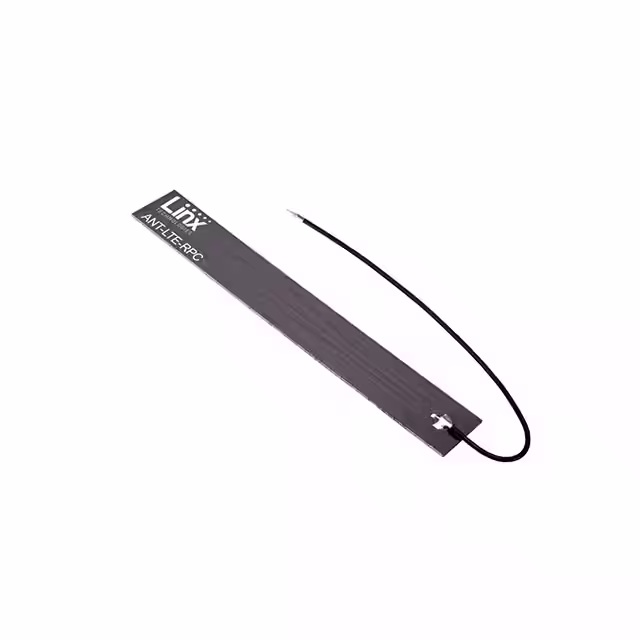

ANT-LTE-RPCRF ANT LTE NBIOT RIGID PCB ADHES |
4,078 | 5.56 |
|
Datasheet |
RPC | Bag | Active | Cellular, Navigation | Wide Band | 600MHz, 700MHz, 800MHz, 850MHz, 900MHz, 1.575GHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.4GHz, 2.5GHz, 3.3GHz, 3.4GHz, 3.5GHz, 3.6GHz | 600MHz ~ 3.8GHz | PCB Trace | 7 | 2.5, 1.8, 2.4, 1.8, 1.4, 2.1, 4.1 | -7.4dB, -10.9dB, -7.7dB, -10.9dB, -15.6dB, -9.0dB, -4.3dB | 3.6dBi, 4.9dBi, 6.3dBi, 5.1dBi, 5.0dBi, 4.6dBi, 3.1dBi | 2 W | Cable - 100mm | - | - | - | - | Adhesive | 0.031" (0.80mm) | 2G, 3G, 4G, Beidou, COMPASS, GALILEO, GLONASS, GNSS, GPS, GSM, LoRaWAN, LPWA, LTE, LTE-M, NB-Iot, UMTS |
|
LCSMA10142412 - 2484 & 5150 - 5825 MHZ 0. |
4,487 | 0.00 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.448GHz, 5.487GHz | 2.412GHz ~ 2.484GHz, 5.15GHz ~ 5.825GHz | Stamped Metal | 2 | 2 | - | 0.5dBi, 3.5dBi | 1 W | Cable - 110.236mm | I-PEX | - | - | - | Surface Mount | 0.200" (4.00mm) | 802.11a/b/g/n/ac/ax, Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™ |
|
|
AANE-WH-0149-SIPRF ANT WI-FI6E/7 WATERPROOF WHI |
1,199 | 0.00 |
|
Datasheet |
AANE-WH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Straight | 3 | 2, 2.5, 3.5 | 5dBi, 6dBi, 10dBi | 2.2dBi, 3.2dBi, 2.7dBi | 5 W | - | SMA Male | IP65 | - | - | Connector Mount | 1.969" (50.00mm) | 802.11ac/ax/be/b/g/n, Bluetooth, WLAN, Zigbee™ |
|
|
AANE-WH-0148-RRF ANT WI-FI6E/7 WHIP ANTENNA |
3,538 | 0.00 |
|
Datasheet |
AANE-WH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Tilt | 3 | 2 | 10dB | 3.7dBi, 4.1dBi, 5.3dBi | 5 W | - | RP-SMA Male | IP65 | - | - | Connector Mount | 6.181" (157.00mm) | 802.11ac/ax/be/b/g/n, Bluetooth, WLAN, Zigbee™ |
|
|
AANE-WH-0150-SIPRF ANT WI-FI6E/7 WATERPROOF WHIP |
1,091 | 0.00 |
|
Datasheet |
AANE-WH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Tilt | 3 | 2 | 10dB | 2.4dBi, 4.4dBi, 4.1dBi | 5 W | - | SMA Male | IP65 | - | - | Connector Mount | 8.740" (222.00mm) | 802.11ac/ax/be/b/g/n, Bluetooth, WLAN, Zigbee™ |
|
|
AANE-WH-0148-SRF ANT WI-FI6E/7 WHIP ANTENNA |
1,844 | 0.00 |
|
Datasheet |
AANE-WH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Tilt | 3 | 2 | 10dB | 3.7dBi, 4.1dBi, 5.3dBi | 5 W | - | SMA Male | IP65 | - | - | Connector Mount | 6.181" (157.00mm) | 802.11ac/ax/be/b/g/n, Bluetooth, WLAN, Zigbee™ |
|
|
AANE-WH-0151-SIPRF ANT WI-FI6E/7 WATERPROOF WHIP |
4,947 | 0.00 |
|
Datasheet |
AANE-WH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Tilt | 3 | 2 | 10dB | 2.6dBi, 4.7dBi, 4.3dBi | 5 W | - | SMA Male | IP65 | - | - | Connector Mount | 7.728" (196.30mm) | 802.11ac/ax/be/b/g/n, Bluetooth, WLAN, Zigbee™ |
|
ANT-W63RPC1-MHF4-200RF ANT WIFI 6GHZ FLEX MHF4 200MM |
2,204 | 5.25 |
|
Datasheet |
W63RPC | Bag | Active | WiFi | Wide Band | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Rigid Patch | 3 | 1.8, 2.1, 1.6 | -10.9dB, -9dB, -12.7dB | 3.7dBi, 6.1dBi, 5.9dBi | 5 W | Cable - 200mm | MHF4 | - | - | - | Adhesive | 0.051" (1.30mm) | 802.11, 802.15.4, Bluetooth, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee |
|
|
MEA-2400-CM/100-00278-012.4 GHz ISM Connector Mount |
2,263 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.41GHz ~ 2.49GHz | Whip, Straight | 1 | 2.2 | -8.4dB | 3.6dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 2.205" (56.00mm) | ISM |
|

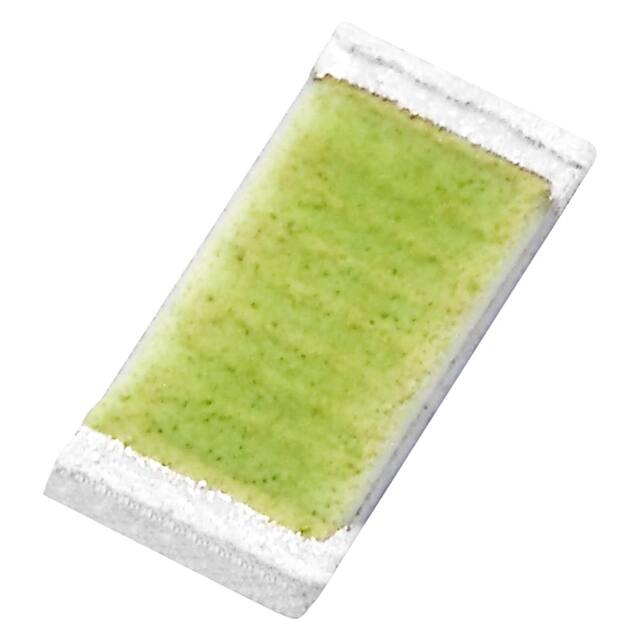

CA.50RF ANT 5.5GHZ CHIP SOLDER SMD |
3,179 | 1.54 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | WiFi | SHF (f > 4GHz) | 5.5GHz | 5.15GHz ~ 5.9GHz | Chip | 1 | 2 | -17dB | 3.4dBi | 50 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | WLAN |
|
|
WXC2400SMRPRF ANT 2.4GHZ WHIP STR RP-SMA ML |
4,281 | 0.00 |
|
- |
WXC | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | - | - | - | - | - | RP-SMA Male | - | - | - | Connector Mount | - | - |
|
|
ANT2525JB12BGNSSAANTENNA PATCH GPS |
2,872 | 8.53 |
|
Datasheet |
2525 | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2066400172GNSS ACTIVE PATCH 25MM COAX 48MM |
4,517 | 5.81 |
|
- |
206640 | Bulk | Active | Navigation | - | - | - | Ceramic Patch | - | - | - | - | - | Cable - 48mm | I-PEX | - | - | - | Surface Mount | - | GNSS |
|
|
TWX-614XSA3BANT WIFI 7 BLADE SMA PLUG MALE |
4,970 | 0.00 |
|
Datasheet |
614 | Active | WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Blade, Tilt | 3 | 1.8, 1.6, 3 | -10.8dB, -12.7dB, -6dB | 3.2dBi, 6.2dBi, 5.4dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 6.311" (160.30mm) | 802.11ax, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E | |
|
|
H2UE6Q1K2G0100LTE/4G+ FULL BAND 617-698 698-96 |
2,297 | 3.52 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular | Wide Band | 748MHz, 892MHz, 1.94GHz, 2.35GHz, 2.59GHz | 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.49GHz ~ 2.69GHz | Chip | 5 | 3.5 | - | 2.1dBi, 2.3dBi, 5.8dBi, 6.4dBi, 6.8dBi | - | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | 2G, 3G, CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA |
|

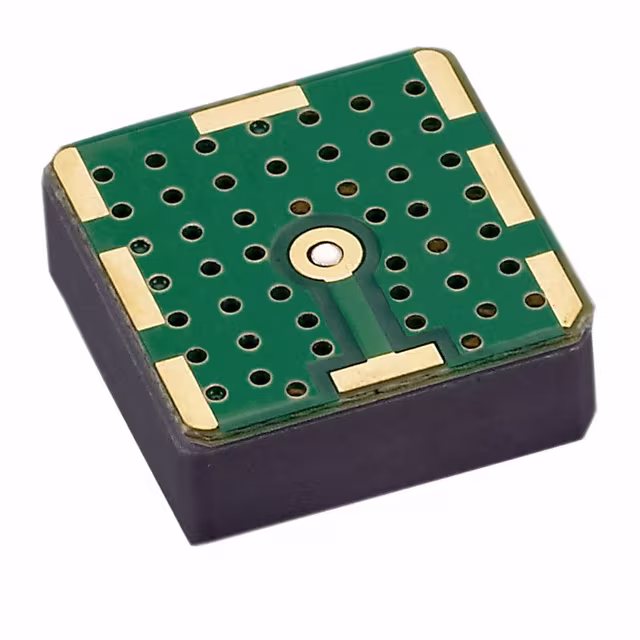

SGP.1575.12.4.A.02RF ANT 1.575GHZ CER PATCH SLD |
3,577 | 0.00 |
|
- |
- | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.573GHz ~ 1.577GHz | Ceramic Patch | 1 | 1.5 | - | -1dBic | - | - | Solder | - | - | - | Surface Mount | 0.177" (4.50mm) | GPS |
|
|
ANT-GFPCB2180-UFLWIRELESS ANTENNA |
1,994 | 0.00 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 830MHz, 2.25GHz | 700MHz ~ 960MHz, 1.8GHz ~ 2.7GHz | Flat Patch | 2 | 2 | - | 8dBi, 8dBi | 1 W | Cable - 150mm | U.FL | - | - | - | Adhesive | 0.012" (0.30mm) | GSM |
|
|
ANT-ELE-S01-012MULTI-BAND ELE SERIES HIGH GAIN |
2,239 | 0.00 |
|
- |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.85GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Whip, Straight | 2 | 2 | - | 3.2dBi, 4.4dBi | - | - | M5 | - | - | - | Base Mount | 10.270" (260.86mm) | General Purpose |
|
APAMP-122RF ANT 1.575GHZ DOME SMA ML MAG |
4,215 | 6.25 |
|
Datasheet |
APAMP | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Dome | 1 | 1.5 | - | 5dBic | - | - | SMA Male | - | - | - | Magnetic | 0.591" (15.00mm) | GPS |
|
APAMP-125RF ANT 1.575GHZ DOME SMA ML MAG |
1,360 | 6.25 |
|
Datasheet |
APAMP | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Dome | 1 | 1.5 | - | 5dBic | - | - | SMA Male | - | - | - | Magnetic | 0.512" (13.00mm) | GPS |
