RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SGGP.18.4.A.02RF ANT 1.6GHZ CER PATCH SLDR SMD |
4,986 | 0.00 |
|
- |
- | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.6GHz | 1.575GHz ~ 1.602GHz | Ceramic Patch | 2 | 2 | - | 0.26dBic, 1.25dBic | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GLONASS, GPS |
|
1750008836-01863-870MHZ DIPOLE ANTENNA FOR WI |
3,859 | 12.21 |
|
Datasheet |
- | Box | Active | - | UHF (300MHz ~ 1GHz) | 866.5MHz | 863MHz ~ 870MHz | Dipole Antenna | 1 | - | - | - | - | - | - | - | - | - | - | - | - |
|
PRO-EX-388RF ANT 892MHZ/1.85GHZ SMA 57MM |
3,338 | 0.00 |
|
Datasheet |
External Antenna | Bulk | Obsolete | Cellular | - | 892MHz, 1.85GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 2.11GHz ~ 2.17GHz | - | 6 | - | -3dB | - | - | - | SMA Male | - | - | - | Connector Mount | 2.256" (57.30mm) | GSM, UMTS |
|

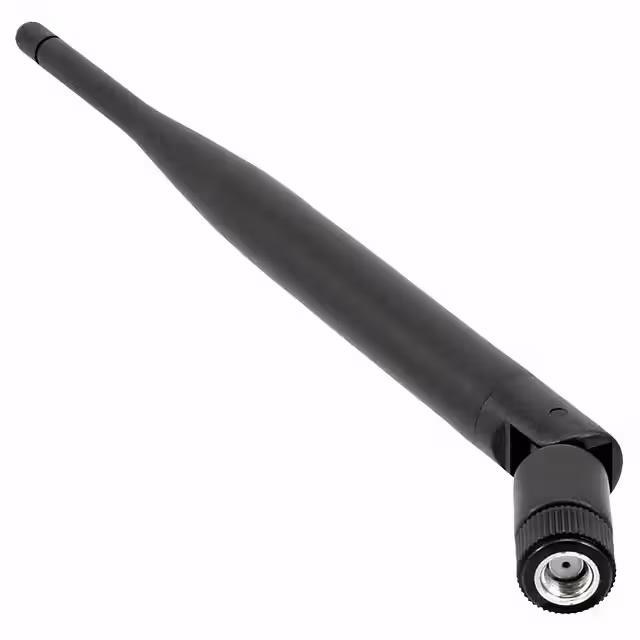

RFDPA171300SBAB8G1RF ANT 2.4GHZ WHIP TILT RP-SMA |
4,115 | 7.22 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | -10dB | 3dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 6.791" (172.50mm) | - |
|
|
ANT-GHEL2R-SMARPWIRELESS ANTENNA |
1,560 | 0.00 |
|
Datasheet |
- | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 890MHz, 960MHz, 1.71GHz, 1.88GHz | - | Helical | 4 | 2 | - | 2dBi, 2dBi, 2dBi, 2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 2.323" (59.00mm) | GSM |
|
|
1513544-1ANTENNA GSM PACKAGED |
2,456 | 6.35 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
NN02-250CUBE MXTEND MULTIBAND ANTENNA |
2,600 | 6.06 |
|
Datasheet |
CUBE mXTEND™ | Tape & Reel (TR) | Obsolete | Cellular | Wide Band | 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2GHz, 2.1GHz, 2.3GHz, 2.5GHz, 2.6GHz | 824MHz ~ 2.69GHz | Chip | 12 | 3 | - | 0.2dBi, 1dBi, 3.3dBi | - | - | Solder | - | - | - | Surface Mount | 0.197" (5.00mm) | DCS, GSM, LTE, PCS, UMTS |
|
|
QWFT120RORF ANT 544MHZ WHIP STR NMO 24" |
4,634 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | - | VHF (f < 300MHz), UHF (300MHz ~ 1GHz) | 544MHz | 118MHz ~ 970MHz | Whip, Straight | 1 | - | - | 0dB | - | - | NMO | - | - | - | Base Mount | 24.000" (609.60mm) | - |
|
AH104F2650S1-TRF ANT 2.6GHZ CHIP SOLDER SMD |
2,372 | 3.24 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | WiFi | UHF (2GHz ~ 3GHz) | 2.6GHz | 2.49GHz ~ 2.69GHz | Chip | 1 | 3 | - | 1.1dBi | - | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | WiMax™ |
|
ANT-8/9-MMG1-SMA-2RF ANT 868/915 MHZ MAG 2M SMA |
4,955 | 6.10 |
|
Datasheet |
ANT-8/9-MMG1-SMA | Bag | Obsolete | General ISM, WiFi | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 862MHz ~ 876MHz, 902MHz ~ 930MHz | Whip, Straight | 2 | 2, 2.1 | - | 2dBi, 2.3dBi | 10 W | Cable - 2m | SMA Male | - | - | - | Magnetic | 3.260" (82.80mm) | ISM, LoRaWAN, LPWA, Sigfox, Wi-Fi |
|
|
ANT-3GHEL2R-SMAWIRELESS ANTENNA |
4,662 | 0.00 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Helical | 5 | 3.5 | - | 1.5dBi, 1.5dBi, 1.5dBi, 1.5dBi, 1.5dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.087" (53.00mm) | GSM |
|
P522303RF ANT 850MHZ/900MHZ STAMPED MET |
3,444 | 0.00 |
|
Datasheet |
Prestta™ | Tray | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Stamped Metal | 5 | 2.5 | - | 1.4dBi, 1.2dBi, 2.7dBi, 2.6dBi, 2.8dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.319" (8.10mm) | CDMA, DCS, GSM, PCS, UMTS, WCDMA |
|

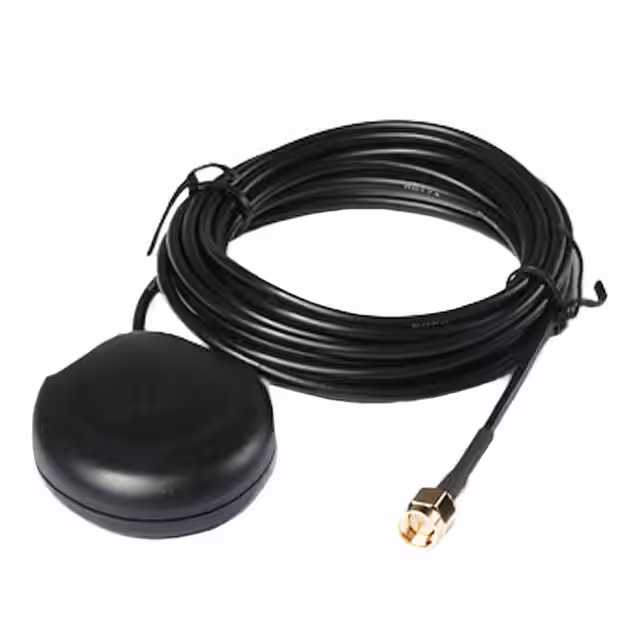

APAMP-108RF ANT 1.575GHZ MOD SMA MALE ADH |
2,234 | 7.69 |
|
Datasheet |
APAMP | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Module | 1 | 1.5 | -26dB | 5dBic | - | - | SMA Male | - | - | - | Adhesive | 0.583" (14.80mm) | GPS |
|
|
TQ0154AA0000RF ANT 1575MHZ/1175MHZ CERAMIC P |
3,838 | 0.00 |
|
- |
- | Active | - | - | 1.175GHz, 1.575GHz | - | Ceramic Patch | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
114992364RF ANT 2.45GHZ/5.45GHZ WHIP STR |
3,491 | 0.00 |
|
- |
- | Bulk | Active | General ISM | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.45GHz | 2.4GHz ~ 2.5GHz, 5.1GHz ~ 5.8GHz | Whip, Straight | 2 | 2 | - | - | 10 W | Cable - 205mm | SMA Female | - | - | - | Panel Mount | 4.252" (108.00mm) | General Purpose |
|
|
MAF94009RF ANT 2.4/5.5GHZ WHIP RA 150MM |
4,938 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Whip, Right Angle | 3 | - | - | 2dBi, 3dBi, 3.6dBi, 3.7dBi | - | Cable - 100mm | MHF | - | - | - | Connector Mount | 4.000" (101.60mm) | 802.11a/b/g, Bluetooth |
|

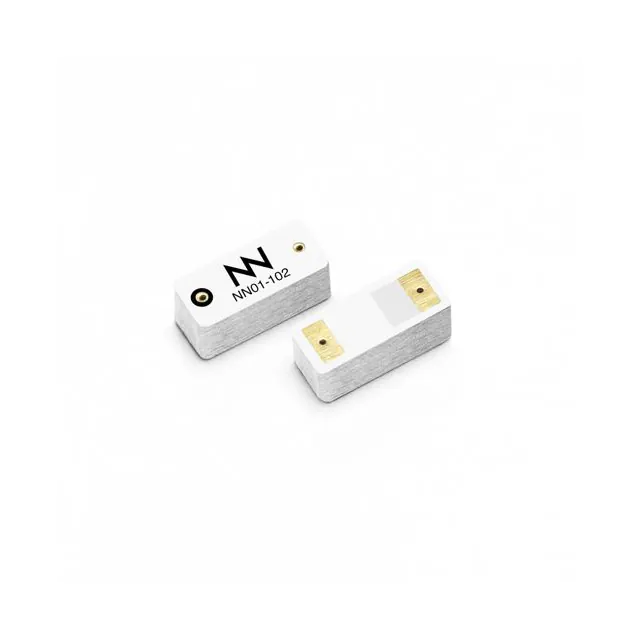

NN01-102COMPACT REACH XTEND - 102 |
1,220 | 0.72 |
|
Datasheet |
Compact Reach Xtend™ | Tape & Reel (TR) | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 1.7dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | Bluetooth, WLAN, Zigbee™ |
|
|
QW144RF ANT 144MHZ WHIP STR NMO 19" |
2,286 | 10.47 |
|
Datasheet |
- | Bulk | Active | - | VHF (f < 300MHz) | 144MHz | 144MHz ~ 152MHz | Whip, Straight | 1 | 2 | - | 0dB | - | - | NMO | - | - | - | Base Mount | 19.000" (482.60mm) | - |
|
QW162RF ANT 162MHZ WHIP STR NMO 17" |
2,771 | 0.10 |
|
Datasheet |
- | Bulk | Active | - | VHF (f < 300MHz) | 162MHz | 162MHz ~ 174MHz | Whip, Straight | 1 | 2 | - | 0dB | - | - | NMO | - | - | - | Base Mount | 17.000" (431.80mm) | - |
|
QW220RF ANT 220MHZ WHIP STR NMO 12.5" |
1,998 | 0.10 |
|
Datasheet |
- | Bulk | Active | - | VHF (f < 300MHz) | 220MHz | 220MHz ~ 225MHz | Whip, Straight | 1 | 2 | - | 0dB | - | - | NMO | - | - | - | Base Mount | 12.000" (304.80mm) | - |
